Hitachi / Hikoki C7BUY Circular Saw Spare Parts

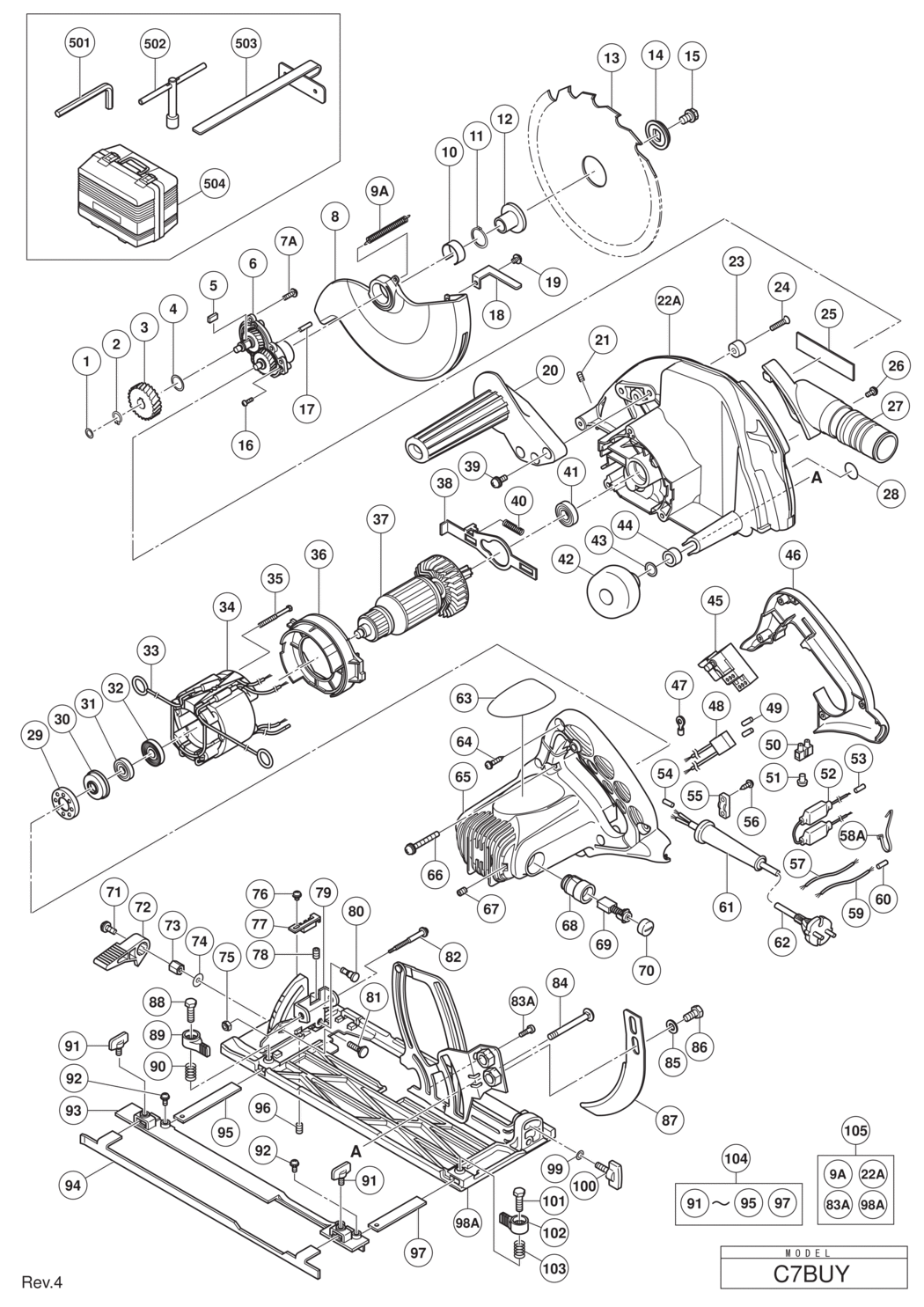

An exploded diagram and spare parts listing for the Hitachi / Hikoki C7BUY Circular Saw

	Ex VAT	Inc VAT
1 - WASHER (C) HIT-991733.A3 991733	-
2 - RETAINING RING FOR D11 SHAFT HIT-316487.A9 316487	£1.67	£2.00
3 - FIRST GEAR HIT-331756.A2 331756	£14.11	£16.93
4 - O-RING HIT-331304.A1 331304	-
5 - FEATHER KEY 4X4X10 HIT-930511.A10 930511	£2.78	£3.34
6 - BEARING HOLDER ASS'Y INCLUD.2-5 HIT-330999.A1 330999	£59.73	£71.68
7A - SEAL LOCK SCREW (W/WASHER) M4X12 HIT-328628.A15 328628	£1.67	£2.00
8 - PROTECTIVE COVER HIT-331015.A1 331015	£15.58	£18.69
9A - RETURN SPRING SINCE 12.2013 HIT-337086.A1 337086	-
10 - BUSHING HIT-330981.A1 330981	£1.67	£2.00
11 - RETAINING RING FOR D22 SHAFT (10 PCS.) HIT-939548.A3 939548	£7.48	£8.97
12 - WASHER (A) HIT-330985.A2 330985	£7.85	£9.42
13 - TCT SAW BLADE 190MM-D20 HOLE-NT18 HIT-330888.A1 330888	-
14 - WASHER (B) HIT-330986.A1 330986	£4.40	£5.28
15 - BOLT (W/WASHER) M7X17.5 HIT-957749.A3 957749	£1.67	£2.00
16 - MACHINE SCREW M3 HIT-331001.A2 331001	-
17 - NEEDLE ROLLER HIT-998426.A3 998426	£1.67	£2.00
18 - LEVER HIT-330977.A1 330977	£1.67	£2.00
19 - MACHINE SCREW (W/SP. WASHER) M4X8 (BLACK HIT-325079.A4 325079	£1.67	£2.00
20 - SIDE HANDLE HIT-330973.A0 330973	£6.45	£7.74
21 - HEX. SOCKET SET SCREW M5X6 HIT-962782.A2 962782	£1.67	£2.00
22A - GEAR COVER SINCE 12.2013 HIT-337079.A0 337079	£30.47	£36.56
23 - CUSHION HIT-961729.A12 961729	£1.67	£2.00
24 - FLAT HD. SCREW M6X20 (10 PCS.) HIT-949794.A25 949794	£1.67	£2.00
25 - BRAND PLATE HIT-328922.A9 328922	£2.71	£3.25
26 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A29 935196	£1.67	£2.00
*27 - DUST COLLECTOR FOR EUROPE HIT-997247.A5 997247	£8.28	£9.94
28 - NAME PLATE (BRAKE) HIT-000000.A5294 000000	-
29 - RUBBER BUSHING HIT-331006.A1 331006	-
30 - BEARING BUSHING HIT-322089.A1 322089	£6.50	£7.80
31 - BALL BEARING 608VVC2PS2L HIT-608VVM.A116 608VVM	£5.70	£6.84
32 - DUST SEAL HIT-315877.A2 315877	£1.67	£2.00
33 - BRUSH TERMINAL HIT-930703.A57 930703	£3.28	£3.93
*34 - STATOR ASS'Y 110V INCLUD.33 HIT-340764C.A0 340764C	-
*34 - STATOR ASS'Y 220V-230V INCLUD.33 HIT-340763E.A1 340763E	-
35 - HEX. HD. TAPPING SCREW D5X55 HIT-953174.A8 953174	£1.67	£2.00
36 - FAN GUIDE HIT-330971.A0 330971	-
*37 - ARMATURE ASS'Y 110V-120V INCLUD.31 HIT-360882C.A2 360882C	£100.40	£120.48
*37 - ARMATURE ASS'Y 220V-230V INCLUD.31 HIT-360882E.A1 360882E	£100.40	£120.48
38 - LOCK LEVER HIT-330976.A2 330976	-
39 - MACHINE SCREW (W/WASHERS) M5X16 HIT-990541.A1 990541	£1.67	£2.00
40 - SPRING (A) HIT-330982.A3 330982	-
41 - BALL BEARING 6000VVCMPS2L HIT-6000VV.A58 6000VV	£7.62	£9.15
42 - KNOB HIT-324660.A12 324660	£6.82	£8.18
43 - O-RING (P-7) HIT-676531.A12 676531	£1.67	£2.00
44 - SLEEVE HIT-319830.A0 319830	£4.07	£4.88
*45 - SWITCH (B) (2P PILLAR TYPE)W/SAFETY LOCK HIT-316445.A1 316445	£19.48	£23.38
*45 - SWITCH (1P PILLAR TYPE) W/LOCK FOR GBR (110V) HIT-998839.A1 998839	£16.67	£20.00
*46 - HANDLE COVER HIT-331758.A0 331758	-
*46 - HANDLE COVER FOR GBR (110V) HIT-330970.A1 330970	-
*47 - TERMINAL FOR GBR (110V) HIT-961419Z.A10 961419Z	-
*48 - NOISE SUPPRESSOR HIT-930039.A88 930039	£3.85	£4.62
*48 - NOISE SUPPRESSOR FOR GBR (110V) HIT-994273.A55 994273	£7.30	£8.76
49 - TUBE (D) HIT-981373.A87 981373	£1.67	£2.00
50 - PILLAR TERMINAL HIT-938307.A74 938307	£3.28	£3.93
51 - CONNECTOR 50092 (10 PCS.) HIT-959141.A54 959141	£7.12	£8.54
*52 - RESISTOR EXCEPT FOR GBR (110V) HIT-331012.A0 331012	-
*53 - TUBE (D) EXCEPT FOR GBR (110V) HIT-981373.A84 981373	£1.67	£2.00
54 - TUBE (D) HIT-981373.A85 981373	£1.67	£2.00
55 - CORD CLIP HIT-937631.A107 937631	£1.67	£2.00
56 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A58 984750	£1.67	£2.00
57 - INTERNAL WIRE (BLUE) 70L HIT-324680.A1 324680	-
58A - WIRE BAND HIT-313505.A5 313505	-
*59 - INTERNAL WIRE (BLUE) 100L EXCEPT FOR GBR (110V) HIT-324681.A2 324681	-
*60 - TUBE (D) EXCEPT FOR GBR (110V) HIT-981373.A86 981373	£1.67	£2.00
*61 - CORD ARMOR D8.8 HIT-953327.A29 953327	£1.67	£2.00
*62 - CORD (CORD ARMOR D8.8) FOR GBR (230V) HIT-500435Z.A70 500435Z	£14.14	£16.97
*62 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500461Z.A39 500461Z	£15.56	£18.67
63 - NAME PLATE HIT-000000.A5295 000000	-
64 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A18 301653	£1.67	£2.00
*65 - HOUSING ASS'Y INCLUD.67 HIT-331760.A1 331760	-
*65 - HOUSING ASS'Y INCLUD.67 HIT-331011.A1 331011	-
66 - MACHINE SCREW (W/WASHERS) M5X40 (BLACK) HIT-322123.A1 322123	£1.67	£2.00
67 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A92 938477	£1.67	£2.00
68 - BRUSH HOLDER HIT-957051.A2 957051	£7.57	£9.08
69 - CARBON BRUSH (1 PAIR) HIT-999056.A1 999056	£9.88	£11.85
70 - BRUSH CAP HIT-935829.A13 935829	£1.67	£2.00
71 - SEAL LOCK SCREW (W/SP. WASHERS) M6X14 HIT-322260.A0 322260	£1.67	£2.00
72 - LEVER (A) W/STOPPER HIT-322600.A1 322600	£4.99	£5.99
73 - LOCK NUT HIT-328048.A2 328048	£1.67	£2.00
74 - WASHER HIT-320975.A7 320975	£1.67	£2.00
75 - U-NUT M5 HIT-308387.A4 308387	£1.67	£2.00
76 - MACHINE SCREW (W/SP. WASHER) M4(BLACK) HIT-331003.A2 331003	-
77 - GUIDE PIECE HIT-324659.A2 324659	£3.02	£3.63
78 - SEAL LOCK HEX. SOCKET SET SCREW M5X6 HIT-319541.A4 319541	£1.67	£2.00
79 - BEVEL PLATE HIT-330975.A1 330975	-
80 - STEP PIN D6X13 HIT-320163.A6 320163	£1.67	£2.00
81 - BOLT (SQUARE) M6X20 HIT-942808.A2 942808	£1.67	£2.00
82 - ADJUSTING SCREW (A) HIT-322096.A0 322096	£1.67	£2.00
83A - SPECIAL SCREW M6 SINCE 12.2013 HIT-337081.A1 337081	-
84 - DIAGONAL BOLT M8 HIT-303800.A7 303800	£4.28	£5.13
*85 - BOLT WASHER M6 (10 PCS.) FOR EUROPE HIT-949432.A94 949432	£1.67	£2.00
*86 - BOLT (H) M6X10 FOR EUROPE HIT-331513.A2 331513	-
*87 - RIVING KNIFE FOR EUROPE HIT-331016.A0 331016	-
88 - BOLT M6X10 HIT-331004.A3 331004	-
89 - CLAMP LEVER HIT-330972.A6 330972	-
90 - SPRING (B) HIT-330983.A4 330983	-
*91 - WING BOLT M6X12 FOR EUROPE HIT-307947.A0 307947	£1.67	£2.00
*92 - MACHINE SCREW (W/SP. WASHER) M5X12(BLACK FOR EUROPE HIT-331761.A1 331761	-
*93 - GUIDE RAIL ADAPTER FOR EUROPE HIT-330968.A5 330968	-
*94 - GUIDE RAIL PLATE FOR EUROPE HIT-330978.A3 330978	-
*95 - GUIDE BAR FOR EUROPE HIT-330979.A2 330979	-
96 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X6 HIT-302469.A14 302469	£1.67	£2.00
*97 - GUIDE BAR FOR EUROPE HIT-330980.A3 330980	-
*97 - GUIDE BAR SUI HIT-330980.A4 330980	-
98A - BASE SINCE 12.2013 HIT-337083.A0 337083	-
99 - WASHER M6 (10 PCS.) HIT-949425.A53 949425	£1.67	£2.00
100 - WING BOLT M6X17 HIT-302459.A2 302459	£1.67	£2.00
*101 - BOLT M6X10 FOR EUROPE HIT-331004.A4 331004	-
*102 - CLAMP LEVER FOR EUROPE HIT-330972.A7 330972	-
*103 - SPRING (B) FOR EUROPE HIT-330983.A3 330983	-
*104 - GUIDE RAIL ASS'Y INCLUD.91-95 HIT-331762.A2 331762	£19.98	£23.97
105 - GEAR COVER SET INCLUD.9A HIT-337085.A0 337085	-
501 - HEX. BAR WRENCH 2.5MM HIT-990666.A8 990666	£5.98	£7.18
502 - BOX WRENCH 10MM HIT-940543.A12 940543	£7.34	£8.81
503 - GUIDE HIT-302756.A5 302756	£7.02	£8.42
504 - CASE HIT-331498.A0 331498	£33.53	£40.24
