Hitachi / Hikoki C6BU2 Circular Saw Spare Parts

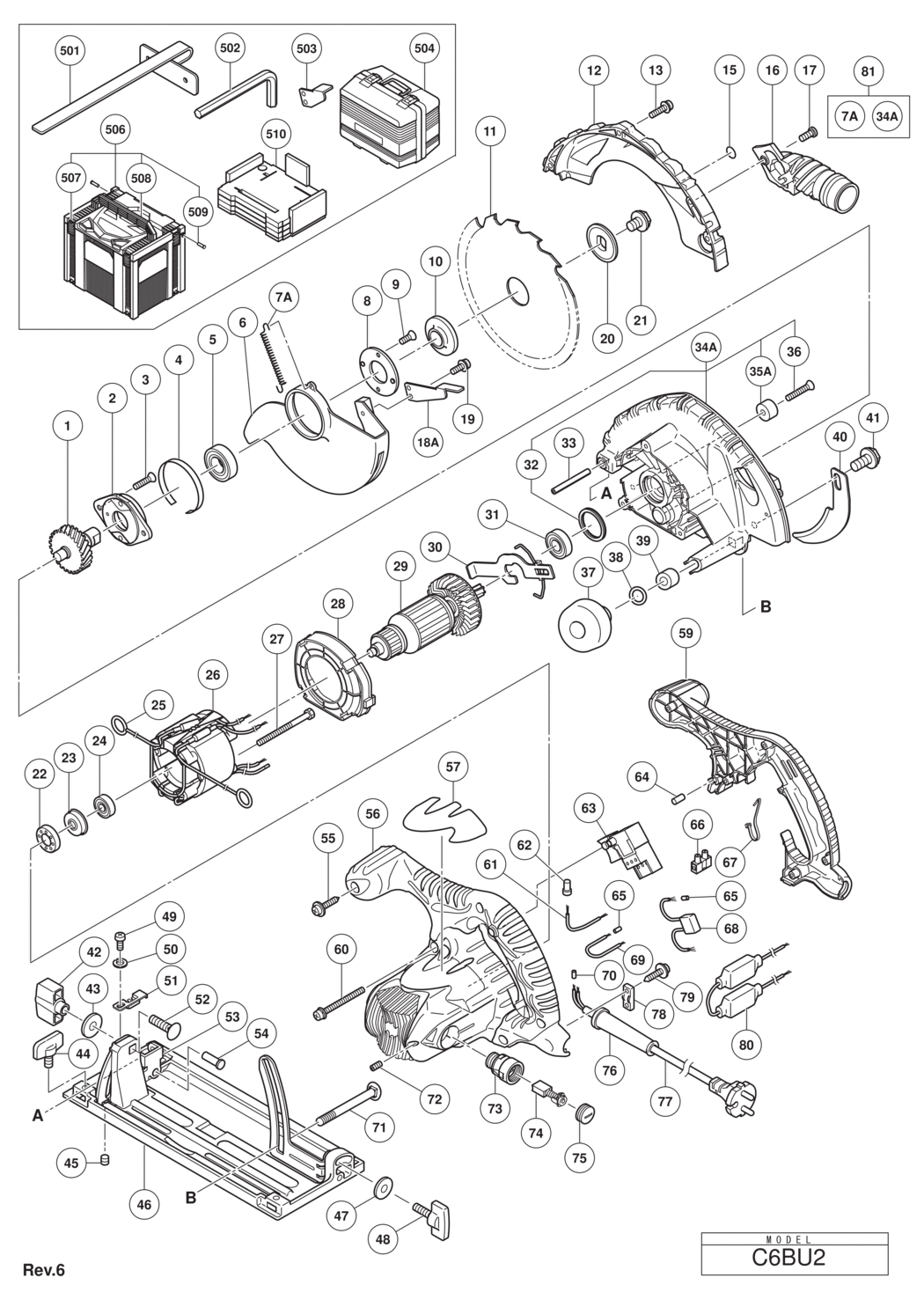

An exploded diagram and spare parts listing for the Hitachi / Hikoki C6BU2 Circular Saw

	Ex VAT	Inc VAT
1 - SPINDLE AND GEAR SET HIT-302449.A0 302449	-
2 - BEARING HOLDER HIT-302433.A4 302433	£5.27	£6.32
3 - SEAL LOCK FLAT HD. SCREW M5X14 HIT-992013.A0 992013	£1.67	£2.00
4 - BUSHING HIT-961807.A4 961807	£2.77	£3.32
5 - BALL BEARING 6003VVCMPS2L HIT-6003VV.A1 6003VV	£9.03	£10.84
6 - SAFETY COVER HIT-324677.A0 324677	£15.87	£19.04
7A - RETURN SPRING SINCE 12.2013 HIT-337100.A0 337100	£1.67	£2.00
8 - BEARING COVER HIT-302435.A6 302435	£2.78	£3.34
9 - SEAL LOCK FLAT HD. SCREW M4X10 HIT-990430.A12 990430	£1.67	£2.00
10 - WASHER (A) HIT-302476.A3 302476	£5.09	£6.11
11 - TCT SAW BLADE 165MM-D30 HOLE-NT16 HIT-324678.A0 324678	-
12 - SAW COVER HIT-324674.A0 324674	-
13 - MACHINE SCREW (W/WASHERS) M4X14 (BLACK) HIT-305691.A1 305691	£1.67	£2.00
15 - NAME PLATE (BRAKE) HIT-000000.A3419 000000	-
16 - DUST COLLECTOR HIT-324669.A0 324669	£2.89	£3.47
17 - SPECIAL BOLT HIT-324139.A0 324139	£1.67	£2.00
18A - LEVER HIT-370542.A9 370542	£1.67	£2.00
19 - MACHINE SCREW (W/WASHERS) M4X10 (BLACK) HIT-304043.A12 304043	£1.67	£2.00
20 - WASHER (B) HIT-302423.A0 302423	£4.31	£5.17
21 - HEX. SOCKET HD. BOLT M8X15.5 HIT-324662.A10 324662	£3.02	£3.63
22 - RUBBER BUSHING HIT-325060.A0 325060	£1.67	£2.00
23 - BEARING BUSHING HIT-322089.A4 322089	£6.50	£7.80
24 - BALL BEARING 608VVC2PS2L HIT-608VVM.A56 608VVM	£5.70	£6.84
25 - BRUSH TERMINAL HIT-930703.A39 930703	£3.28	£3.93
26 - STATOR ASS'Y 230V INCLUD.25 HIT-340424G.A0 340424G	-
27 - HEX. HD. TAPPING SCREW D5X50 HIT-953121.A3 953121	£1.04	£1.25
28 - FAN GUIDE HIT-324675.A0 324675	-
29 - ARMATURE 230V HIT-360728E.A0 360728E	-
30 - LOCK LEVER HIT-324655.A0 324655	£3.02	£3.63
31 - BALL BEARING 6001VV HIT-6001VV.A29 6001VV	£8.68	£10.42
32 - RUBBER RING HIT-958130.A0 958130	£1.67	£2.00
33 - ROLL PIN D6X40 (10 PCS.) HIT-949686.A1 949686	£8.48	£10.18
34A - GEAR COVER ASS'Y INCLUD.32 HIT-337096.A0 337096	-
35A - CUSHION SINCE 12.2013 HIT-337097.A0 337097	£1.67	£2.00
36 - FLAT HD. SCREW M6X20 (10 PCS.) HIT-949794.A15 949794	£1.67	£2.00
37 - KNOB HIT-324660.A11 324660	£6.82	£8.18
38 - O-RING (P-7) HIT-676531.A15 676531	£1.67	£2.00
39 - SLEEVE HIT-303801.A0 303801	£4.28	£5.13
40 - RIVING KNIFE HIT-303838.A0 303838	£9.03	£10.84
41 - HEX. SOCKET HD. BOLT M8X10 HIT-324664.A4 324664	£5.52	£6.63
42 - WING NUT M8 HIT-324658.A9 324658	£4.57	£5.48
43 - BOLT WASHER M8 (10 PCS.) HIT-949433.A15 949433	£1.67	£2.00
44 - WING BOLT M6X15 HIT-301806.A63 301806	£1.67	£2.00
45 - SLOTTED HD. SET SCREW (SEAL LOCK) M6X6 HIT-302469.A12 302469	£1.67	£2.00
46 - BASE ASS'Y (FLUORINE) INCLUD.42 HIT-324679.A0 324679	-
47 - WASHER M6 (10 PCS.) HIT-949425.A35 949425	£1.67	£2.00
48 - WING BOLT M6X17 HIT-302459.A8 302459	£1.67	£2.00
49 - MACHINE SCREW M4X6 (10 PCS.) HIT-949214.A11 949214	£1.67	£2.00
50 - SPRING WASHER M4 (10 PCS.) HIT-949453.A46 949453	£1.67	£2.00
51 - GUIDE PIECE HIT-324659.A3 324659	£3.02	£3.63
52 - BOLT (SQUARE) M8X30 HIT-302457.A0 302457	£1.67	£2.00
53 - BEVEL PLATE HIT-308479.A2 308479	£5.59	£6.71
54 - RIVET D6X17 HIT-308480.A0 308480	£1.67	£2.00
55 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A95 301653	£1.67	£2.00
56 - HOUSING ASS'Y INCLUD.72 HIT-324682.A0 324682	£39.69	£47.63
57 - NAME PLATE HIT-000000.A3420 000000	-
59 - HANDLE COVER HIT-324683.A1 324683	£7.99	£9.59
60 - MACHINE SCREW (W/WASHERS) M5X45 (BLACK) HIT-302434.A3 302434	£1.67	£2.00
61 - INTERNAL WIRE (BLUE) 70L HIT-324680.A0 324680	-
62 - CONNECTOR 50092 (10 PCS.) HIT-959141.A30 959141	£7.12	£8.54
63 - SWITCH (B) (2P PILLAR TYPE)W/SAFETY LOCK HIT-316445.A0 316445	£19.48	£23.38
64 - BEARING LOCK HIT-946362.A12 946362	£1.67	£2.00
65 - TUBE (D) HIT-981373.A127 981373	£1.67	£2.00
66 - PILLAR TERMINAL HIT-938307.A60 938307	£3.28	£3.93
67 - WIRE BAND HIT-313505.A0 313505	-
68 - NOISE SUPPRESSOR HIT-930039.A50 930039	£3.85	£4.62
69 - INTERNAL WIRE (BLUE) 100L HIT-324681.A3 324681	-
70 - TUBE (D) FOR CORD HIT-981373.A128 981373	£1.67	£2.00
71 - DIAGONAL BOLT M8X105 HIT-316444.A2 316444	£4.57	£5.48
72 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A76 938477	£1.67	£2.00
73 - BRUSH HOLDER HIT-960685.A0 960685	£7.59	£9.11
74 - CARBON BRUSH (1 PAIR) HIT-999056.A3 999056	£9.88	£11.85
75 - BRUSH CAP HIT-945161.A51 945161	£1.67	£2.00
76 - CORD ARMOR D8.8 HIT-953327.A80 953327	£1.67	£2.00
*77 - CORD (CORD ARMOR D8.8) HIT-500234Z.A31 500234Z	-
*77 - CORD (CORD ARMOR D8.8) FOR FIN HIT-500247Z.A27 500247Z	-
*77 - CORD (CORD ARMOR D8.8) FOR SUI HIT-500248Z.A9 500248Z	-
78 - CORD CLIP HIT-937631.A145 937631	£1.67	£2.00
79 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A138 984750	£1.67	£2.00
80 - RESISTOR HIT-316446.A1 316446	£30.28	£36.34
81 - GEAR COVER SET INCLUD.7A HIT-337102.A0 337102	-
501 - GUIDE HIT-302756.A7 302756	£7.02	£8.42
502 - HEX. BAR WRENCH 6MM HIT-872422.A29 872422	£1.67	£2.00
503 - KNOB HIT-303338.A0 303338	£1.67	£2.00
504 - CASE HIT-325317.A0 325317	-
506 - CASE ASS'Y (STACKABLE 4) INLCUD.507-509 HIT-337528.A1 337528	-
507 - LATCH HIT-336472.A56 336472	£1.67	£2.00
508 - HANDLE HIT-336473.A18 336473	£6.43	£7.72
509 - HINGE HIT-336474.A56 336474	£1.67	£2.00
510 - BOTTOM CUSHION HIT-337659.A2 337659	-
601 - GUIDE RAIL ADAPTER ASS'Y INCLUD.602-607 HIT-317848.A0 317848	£66.61	£79.93
602 - RAIL BAR HIT-317849.A2 317849	-
603 - BAR HIT-317850.A0 317850	-
604 - BAR HIT-317851.A2 317851	-
605 - WING BOLT M6X15 HIT-301806.A64 301806	£1.67	£2.00
606 - MACHINE SCREW M5X12 (10 PCS.) HIT-949237.A26 949237	£1.67	£2.00
607 - SPRING WASHER M5 (10 PCS.) HIT-949454.A71 949454	£1.67	£2.00
