Dewalt D25891K Type 1 Chipping Hammer Spare Parts

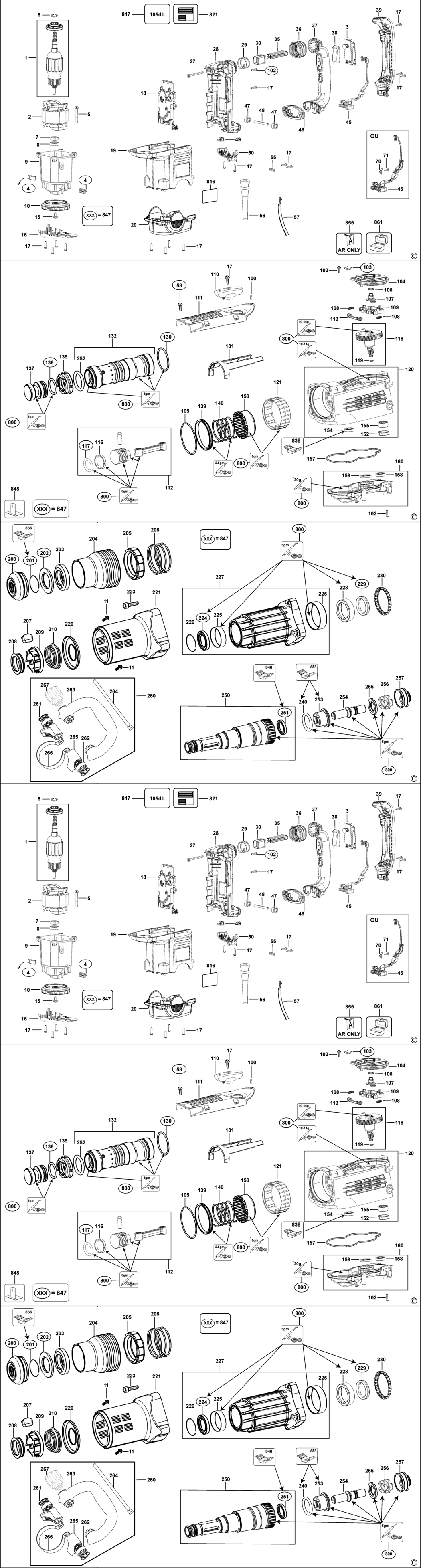

An exploded drawing and spare parts listing for the Dewalt D25891K Type 1 Chipping Hammer

	Ex VAT	Inc VAT
3 - SWITCH BDE-581070-01.A4 581070-01	£24.39	£29.27
5 - SCREW BDE-330019-30.A48 330019-30	£1.50	£1.80
6 - RING BDE-577746-00.A0 577746-00	£1.50	£1.80
7 - BEARING BDE-577745-00.A76 577745-00	£7.85	£9.42
8 - SLEEVE INSULATING BDE-590191-00.A15 590191-00	£1.50	£1.80
9 - HOUSING MOTOR BDE-N053065-02.A4 N053065-02	£34.00	£40.80
10 - FAN SA BDE-N542569.A21 N542569	£12.17	£14.60
10 - FAN SA BDE-N542569.A6 N542569	£12.17	£14.60
11 - SCREW BDE-330065-08.A72 330065-08	£1.50	£1.80
15 - SCREW BDE-324119-02.A48 324119-02	£1.50	£1.80
16 - BAFFLE FAN BDE-N029960.A3 N029960	£65.52	£78.62
17 - SCREW BDE-330065-08.A71 330065-08	£1.50	£1.80
19 - MOTOR COVER BDE-N022762-01.A1 N022762-01	£16.03	£19.24
20 - END CAP BDE-N026164.A1 N026164	£15.63	£18.76
27 - SCREW BDE-1005672-00.A24 1005672-00	£1.50	£1.80
28 - SUPPORT PLATE BDE-N026163-01.A2 N026163-01	£18.91	£22.69
29 - SPRING BDE-1007569-00.A27 1007569-00	£1.50	£1.80
30 - BUSH BDE-1007567-00.A0 1007567-00	£1.50	£1.80
35 - STOP BDE-1007566-00.A27 1007566-00	£9.41	£11.29
36 - BELLOWS BDE-1007565-00.A0 1007565-00	£3.80	£4.56
37 - SWITCH HANDLE BDE-1006579-01.A2 1006579-01	£12.17	£14.60
38 - TRIGGER BDE-488065-01.A0 488065-01	£2.26	£2.71
39 - HANDLE COVER BDE-1006580-00.A5 1006580-00	£14.57	£17.48
46 - BELLOWS BDE-1008678-00.A1 1008678-00	£3.30	£3.96
47 - BUSH BDE-N038214.A27 N038214	£1.50	£1.80
48 - PIN BDE-N062047.A7 N062047	£1.50	£1.80
49 - LENS BDE-N030728.A14 N030728	£1.82	£2.19
50 - COVER BDE-1008391-00.A20 1008391-00	£1.82	£2.19
55 - CORD CLAMP BDE-821070.A543 821070	£1.50	£1.80
56 - CORD PROTECTOR BDE-323091-01.A59 323091-01	£1.50	£1.80
58 - SCREW TORX BDE-324007-11.A57 324007-11	£1.50	£1.80
100 - DETENT BDE-326467-00.A28 326467-00	£1.50	£1.80
102 - SCREW TORX BDE-324007-11.A56 324007-11	£1.50	£1.80
103 - FILTER BDE-488067-00.A21 488067-00	£1.50	£1.80
104 - COVER GEARCASE BDE-N027968.A11 N027968	£9.41	£11.29
105 - O RING BDE-323711-56.A0 323711-56	£1.50	£1.80
106 - O RING BDE-323711-48.A7 323711-48	£1.50	£1.80
107 - ECCENTRIC BDE-586032-00.A12 586032-00	£1.50	£1.80
108 - SPRING BDE-323395-32.A26 323395-32	£2.26	£2.71
109 - SLIDER BDE-N027969.A4 N027969	£3.80	£4.56
110 - SELECTOR BDE-586038-00.A12 586038-00	£1.50	£1.80
111 - COVER-TOP BDE-585168-04 585168-04	£5.88	£7.06
112 - PISTON KIT <352010 BDE-492489-00.A2 492489-00	£30.08	£36.10
112 - PISTON KIT >352010 BDE-N079390.A3 N079390	£51.90	£62.28
113 - RETAINER BDE-N027970.A11 N027970	£1.50	£1.80
116 - CLIP BDE-N029957.A10 N029957	£1.50	£1.80
117 - O RING BDE-487213-00.A10 487213-00	£7.18	£8.62
118 - CRANKSHAFT >352010 BDE-N091329.A10 N091329	£99.47	£119.36
118 - NO LONGER AVAILABLE <352010 BDE-000000-00.A30210 000000-00	-
118 - CRANKSHAFT <352010 BDE-N503087.A1 N503087	£126.63	£151.96
119 - O RING BDE-323711-26.A81 323711-26	£1.50	£1.80
120 - HOUSING BDE-N079382 N079382	£204.32	£245.18
121 - BUSH BDE-489244-00.A3 489244-00	£5.88	£7.06
130 - O RING BDE-577744-07.A7 577744-07	£1.50	£1.80
131 - SLIDER BDE-586034-00.A19 586034-00	£2.26	£2.71
132 - CYLINDER BDE-N079395.A2 N079395	£60.94	£73.13
135 - BUSH BDE-584715-00.A18 584715-00	£2.78	£3.34
136 - O RING BDE-487296-00.A5 487296-00	£10.85	£13.02
137 - RAM BDE-492501-00.A4 492501-00	£29.32	£35.18
139 - BUSH BDE-478650-00.A10 478650-00	£2.26	£2.71
140 - SPRING BDE-584726-00.A14 584726-00	£2.26	£2.71
150 - SLEEVE BDE-489181-01.A9 489181-01	£45.14	£54.17
152 - SPACER BDE-479974-00.A4 479974-00	£1.50	£1.80
154 - BEARING BALL BDE-577745-02.A22 577745-02	£7.18	£8.62
155 - BEARING NEEDLE BDE-586301-00.A29 586301-00	£9.41	£11.29
157 - SEAL BDE-586022-00.A8 586022-00	£1.82	£2.19
158 - BEARING BDE-330003-39.A102 330003-39	£2.78	£3.34
159 - SEAL BDE-327141-08.A9 327141-08	£5.88	£7.06
160 - GEARCASE COVER SA BDE-N079388.A0 N079388	£44.14	£52.97
200 - SEAL BDE-487238-01.A6 487238-01	£7.85	£9.42
201 - RING BDE-487205-00.A9 487205-00	£1.50	£1.80
202 - WASHER BDE-487241-00.A8 487241-00	£9.41	£11.29
203 - RUBBER BDE-487244-00.A11 487244-00	£3.80	£4.56
204 - SLEEVE BDE-487236-00.A1 487236-00	£7.85	£9.42
205 - LOCKING RING BDE-579784-00.A20 579784-00	£24.39	£29.27
206 - SPRING BDE-487218-00.A0 487218-00	£1.50	£1.80
207 - KEY BDE-489672-00.A19 489672-00	£7.18	£8.62
208 - BUSH BDE-487249-00.A19 487249-00	£9.41	£11.29
209 - GUIDE BUSH BDE-590377-00.A21 590377-00	£1.50	£1.80
210 - SPRING BDE-487216-00.A29 487216-00	£1.50	£1.80
220 - GUIDE BDE-584696-00.A18 584696-00	£3.30	£3.96
221 - COVER BLACK BDE-587081-00.A6 587081-00	£5.88	£7.06
223 - SCREW BDE-949886-32.A8 949886-32	£1.50	£1.80
224 - LIP SEAL BDE-327141-09.A2 327141-09	£7.18	£8.62
225 - BEARING SET BDE-488679-00.A17 488679-00	£24.39	£29.27
226 - RING BDE-488787-00.A8 488787-00	£1.50	£1.80
227 - HOUSING FRONT BDE-492697-00.A0 492697-00	£58.69	£70.43
228 - BUSH BDE-589096-00.A0 589096-00	£2.26	£2.71
228 - WASHER SHIM BDE-584722-00.A5 584722-00	£2.71	£3.25
229 - DAMPER BDE-589223-00.A7 589223-00	£1.50	£1.80
230 - BUSH BDE-584727-00.A22 584727-00	£2.26	£2.71
240 - O RING BDE-487287-00.A17 487287-00	£9.41	£11.29
250 - SPINDLE SA BDE-492698-00.A6 492698-00	£183.42	£220.10
251 - SEAL BDE-N014007.A28 N014007	£10.85	£13.02
252 - O RING BDE-491004-00.A0 491004-00	£3.30	£3.96
253 - BEARING BUSH BDE-1007543-00.A11 1007543-00	£24.39	£29.27
254 - BEAT PIECE BDE-579832-00.A11 579832-00	£25.70	£30.84
255 - BUSH BDE-487270-00.A11 487270-00	£12.17	£14.60
256 - DAMPER BDE-496678-00.A11 496678-00	£16.03	£19.24
257 - BUSH BDE-579786-00.A0 579786-00	£24.39	£29.27
260 - HANDLE SIDE SA BDE-496441-00 496441-00	£44.14	£52.97
261 - CLAMPING INSERT BDE-479319-00.A5 479319-00	£1.50	£1.80
262 - WASHER LOCK BDE-479317-00.A1 479317-00	£1.50	£1.80
263 - HANDLE BDE-487277-00.A15 487277-00	£18.91	£22.69
264 - BOLT BDE-487343-00.A12 487343-00	£3.80	£4.56
265 - WASHER CLAMP BDE-479320-00.A1 479320-00	£2.78	£3.34
266 - CLAMP BDE-488140-00 488140-00	£12.17	£14.60
267 - KNOB SA BDE-487291-00.A15 487291-00	£5.88	£7.06
800 - GREASE 80 GMS BDE-578970-06.A40 578970-06	£55.32	£66.38
800 - GREASE 150 GMS BDE-578970-06.A2 578970-06	£55.32	£66.38
816 - BRAND LABEL BDE-N061824.A4 N061824	£1.42	£1.70
817 - LABEL BDE-487395-01.A26 487395-01	£1.50	£1.80
836 - S.T.CIRCLIP REMOVER BDE-559651-99.A19 559651-99	£131.46	£157.75
836 - S.T.CIRCLIP REMOVER BDE-559652-99.A3 559652-99	£24.39	£29.27
837 - S.T.BEARING EXTRACTOR BDE-559653-99.A19 559653-99	£12.17	£14.60
838 - S.T.BEARING EXTRACTOR BDE-559657-99.A3 559657-99	£60.94	£73.13
840 - S.T.SEAL FITTING TOOL BDE-559659-99.A0 559659-99	£24.39	£29.27
845 - S.T.SUPPORT JIG BDE-559656-99.A48 559656-99	£71.44	£85.73
861 - KITBOX BDE-N072214.A11 N072214	£115.77	£138.92

Attribute Name	Value
Brand	Dewalt
