Dewalt D25840K Type 1 Chipping Hammer Spare Parts

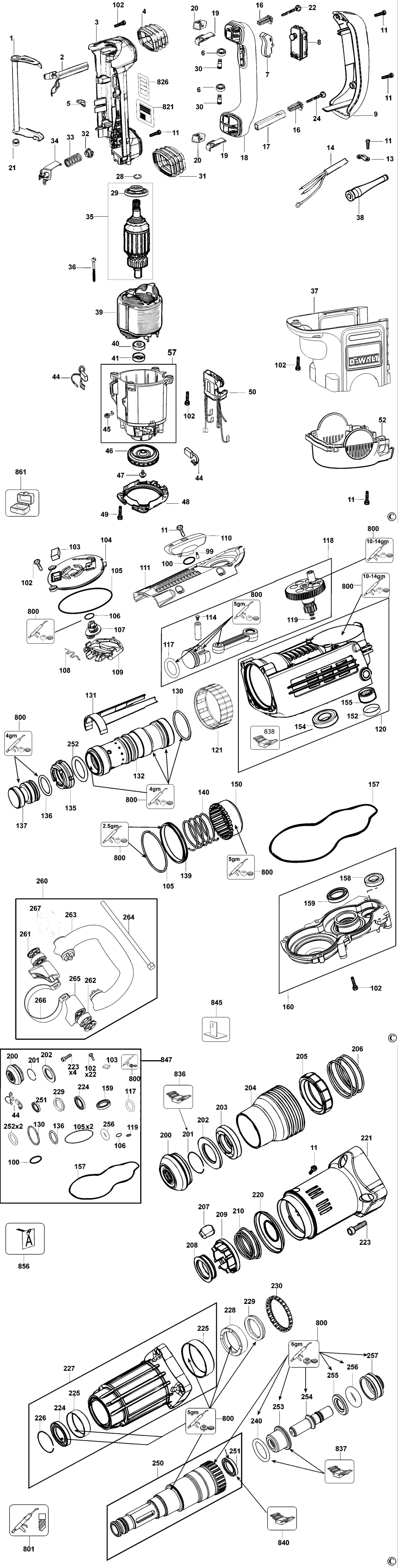

An exploded drawing and spare parts listing for the Dewalt D25840K Type 1 Chipping Hammer

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A126819 000000-00	-
2 - GUIDE SA BDE-586415-00.A2 586415-00	£16.03	£19.24
3 - HANDLE COVER BDE-585171-01.A2 585171-01	-
4 - NO LONGER AVAILABLE BDE-000000-00.A126820 000000-00	-
5 - LENS BDE-586045-00.A3 586045-00	£1.42	£1.70
6 - ROLLER BDE-586411-00.A3 586411-00	£1.78	£2.13
7 - TRIGGER BDE-488065-01.A6 488065-01	£2.26	£2.71
8 - SWITCH BDE-581070-01.A2 581070-01	£24.39	£29.27
9 - HANDLE COVER BDE-587090-00.A0 587090-00	£7.85	£9.42
11 - SCREW BDE-330065-08.A433 330065-08	£1.50	£1.80
13 - CORD CLAMP BDE-821070.A3 821070	£1.50	£1.80
14 - CORDSET (M/PLUG) GB GB BDE-582319-23.A5 582319-23	£30.08	£36.10
14 - CORDSET (M/PLUG) LX BDE-582319-24.A3 582319-24	£38.80	£46.56
16 - STOP BDE-494477-00.A3 494477-00	£3.30	£3.96
17 - NO LONGER AVAILABLE BDE-000000-00.A126821 000000-00	-
18 - HANDLE BDE-587085-02 587085-02	-
19 - DRIVER BDE-586413-00.A3 586413-00	£3.22	£3.86
20 - BUSHING BDE-1005496-00.A1 1005496-00	£1.50	£1.80
21 - NO LONGER AVAILABLE BDE-000000-00.A126822 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A126823 000000-00	-
24 - SCREW BDE-330019-33.A14 330019-33	£1.50	£1.80
28 - RING BDE-577746-00.A27 577746-00	£1.50	£1.80
29 - GUARD SA BDE-586597-00.A3 586597-00	£7.01	£8.41
30 - AXLE BDE-586412-00.A3 586412-00	-
31 - BELLOWS BDE-588640-00.A3 588640-00	-
32 - CARRIER BDE-586423-00.A4 586423-00	£1.42	£1.70
33 - SPRING COMPRESSION BDE-586421-00.A4 586421-00	£1.42	£1.70
34 - RETAINER BDE-586422-00.A2 586422-00	-
35 - ARMATURE 120V LX BDE-489252-00.A9 489252-00	£113.07	£135.68
35 - ARMATURE 230V GB BDE-489251-00.A0 489251-00	£113.07	£135.68
36 - SCREW BDE-330019-30.A10 330019-30	£1.50	£1.80
37 - NO LONGER AVAILABLE BDE-000000-00.A126824 000000-00	-
38 - CORD PROTECTOR BDE-403395-00.A40 403395-00	£1.50	£1.80
39 - FIELD 230V GB BDE-489254-00.A0 489254-00	£37.35	£44.82
39 - FIELD 115V LX BDE-489255-00.A9 489255-00	£38.80	£46.56
40 - BEARING BDE-577745-00.A33 577745-00	£7.85	£9.42
41 - SLEEVE INSULATING BDE-590191-00.A31 590191-00	£1.50	£1.80
44 - BRUSH PAIR 230V GB BDE-489256-00.A0 489256-00	£16.03	£19.24
44 - BRUSH PAIR 115V LX BDE-489257-00.A11 489257-00	£18.91	£22.69
45 - BRUSH SPRING BDE-487377-00.A15 487377-00	£2.26	£2.71
46 - FAN SA BDE-586611-00.A1 586611-00	£14.57	£17.48
47 - SCREW BDE-324119-02.A99 324119-02	£1.50	£1.80
48 - BAFFLE BDE-586614-00.A4 586614-00	£4.58	£5.49
49 - SCREW BDE-330019-30.A11 330019-30	£1.50	£1.80
50 - NO LONGER AVAILABLE GB BDE-000000-00.A126825 000000-00	-
50 - ELECTRONIC 115V LX BDE-662695-07 662695-07	-
52 - END CAP BDE-585170-00.A0 585170-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A126827 000000-00	-
99 - DETENT BDE-326467-00.A203 326467-00	£1.50	£1.80
100 - NO LONGER AVAILABLE BDE-000000-00.A126826 000000-00	-
102 - SCREW TORX BDE-324007-11.A187 324007-11	£1.50	£1.80
103 - FILTER BDE-488067-00.A6 488067-00	£1.50	£1.80
104 - COVER BDE-586031-00.A3 586031-00	£4.69	£5.63
105 - O RING BDE-323711-56.A22 323711-56	£1.50	£1.80
106 - O RING BDE-323711-48.A22 323711-48	£1.50	£1.80
107 - ECCENTRIC BDE-586032-00.A3 586032-00	£1.50	£1.80
108 - SPRING BDE-586033-00.A3 586033-00	-
109 - SLIDER BDE-586036-00.A3 586036-00	£3.30	£3.96
110 - SELECTOR BDE-586038-00.A3 586038-00	£1.50	£1.80
111 - COVER-TOP BDE-585168-01.A2 585168-01	£3.80	£4.56
112 - PISTON KIT BDE-488689-00.A3 488689-00	£30.08	£36.10
114 - PIN BDE-581656-00.A7 581656-00	£1.50	£1.80
117 - O RING BDE-584703-00.A6 584703-00	£4.69	£5.63
118 - CRANKSHAFT BDE-N513280.A8 N513280	£112.86	£135.43
119 - O RING BDE-323711-26.A12 323711-26	£1.50	£1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A126828 000000-00	-
121 - BUSH BDE-489244-00.A1 489244-00	£5.88	£7.06
130 - O RING BDE-577744-07.A13 577744-07	£1.50	£1.80
131 - SLIDER BDE-586034-00.A3 586034-00	£2.26	£2.71
132 - CYLINDER KIT BDE-N146117.A4 N146117	£76.16	£91.39
135 - BUSH BDE-584715-00.A6 584715-00	£2.78	£3.34
136 - O RING BDE-584706-00.A13 584706-00	£3.30	£3.96
137 - RAM BDE-489180-00.A8 489180-00	£24.39	£29.27
139 - BUSH BDE-478650-00.A21 478650-00	£2.26	£2.71
140 - SPRING BDE-584726-00.A9 584726-00	£2.26	£2.71
150 - SLEEVE BDE-489181-01.A12 489181-01	£45.14	£54.17
152 - SPACER BDE-479974-00.A21 479974-00	£1.50	£1.80
154 - BEARING BALL BDE-577745-02.A6 577745-02	£7.18	£8.62
155 - BEARING NEEDLE BDE-489245-00.A0 489245-00	£10.85	£13.02
157 - SEAL BDE-586022-00.A16 586022-00	£1.82	£2.19
158 - BEARING BDE-330003-39.A23 330003-39	£2.78	£3.34
159 - SEAL BDE-327141-08.A18 327141-08	£5.88	£7.06
160 - HOUSING GEAR BDE-490606-00 490606-00	£33.13	£39.76
200 - SEAL BDE-487238-01.A20 487238-01	£7.85	£9.42
201 - RING BDE-487205-00.A23 487205-00	£1.50	£1.80
202 - WASHER BDE-487241-00.A28 487241-00	£9.41	£11.29
203 - RUBBER BDE-487244-00.A2 487244-00	£3.80	£4.56
204 - SLEEVE BDE-487236-00.A11 487236-00	£7.85	£9.42
205 - LOCKING RING BDE-579784-00.A27 579784-00	£24.39	£29.27
206 - SPRING BDE-487218-00.A5 487218-00	£1.50	£1.80
207 - KEY BDE-489672-00.A27 489672-00	£7.18	£8.62
208 - BUSH BDE-487249-00.A28 487249-00	£9.41	£11.29
209 - GUIDE BUSH BDE-590377-00.A14 590377-00	£1.50	£1.80
210 - SPRING BDE-487216-00.A24 487216-00	£1.50	£1.80
220 - GUIDE BDE-584696-00.A15 584696-00	£3.30	£3.96
221 - COVER BDE-585167-01.A10 585167-01	£7.18	£8.62
223 - SCREW BDE-949886-32.A5 949886-32	£1.50	£1.80
224 - LIP SEAL BDE-327141-07.A2 327141-07	£2.78	£3.34
225 - BEARING SET BDE-488679-00.A13 488679-00	£24.39	£29.27
226 - RING BDE-488787-00.A0 488787-00	£1.50	£1.80
227 - HOUSING FRONT BDE-488678-00.A6 488678-00	£47.08	£56.49
228 - BUSH BDE-589096-00.A5 589096-00	£2.26	£2.71
229 - DAMPER BDE-589223-00.A5 589223-00	£1.50	£1.80
230 - BUSH BDE-584727-00.A12 584727-00	£2.26	£2.71
240 - O RING BDE-488546-00.A19 488546-00	£3.80	£4.56
250 - SPINDLE SA BDE-488676-00.A7 488676-00	£165.92	£199.11
251 - SEAL BDE-N014007.A22 N014007	£10.85	£13.02
252 - O RING BDE-1005597-00.A10 1005597-00	£3.30	£3.96
252 - O RING BDE-488546-00.A18 488546-00	£3.80	£4.56
253 - BEARING BDE-488685-00.A6 488685-00	£24.39	£29.27
254 - BEAT PIECE BDE-488681-00.A11 488681-00	£37.35	£44.82
255 - WASHER BDE-488680-00.A6 488680-00	£9.41	£11.29
256 - O RING BDE-577744-06.A7 577744-06	£7.85	£9.42
257 - BUSH BDE-488686-00.A9 488686-00	£18.91	£22.69
260 - HANDLE SIDE SA BDE-479321-00.A0 479321-00	£41.24	£49.49
261 - CLAMPING INSERT BDE-479319-00.A0 479319-00	£1.50	£1.80
262 - WASHER LOCK BDE-479317-00.A3 479317-00	£1.50	£1.80
263 - HANDLE BDE-487277-00.A11 487277-00	£18.91	£22.69
264 - BOLT BDE-487343-00.A14 487343-00	£3.80	£4.56
265 - WASHER CLAMP BDE-479320-00.A3 479320-00	£2.78	£3.34
266 - CLAMP BDE-479318-00.A2 479318-00	£9.41	£11.29
267 - KNOB SA BDE-487291-00.A11 487291-00	£5.88	£7.06
800 - GREASE 80 GMS BDE-578970-06.A31 578970-06	£55.32	£66.38
801 - BIT GREASE 50G BDE-328771-07.A54 328771-07	£7.18	£8.62
821 - NO LONGER AVAILABLE LX BDE-000000-00.A126829 000000-00	-
821 - RATING PLATE GB BDE-N041695 N041695	-
826 - LABEL BDE-487395-01.A53 487395-01	£1.50	£1.80
836 - S.T.CIRCLIP REMOVER BDE-559651-99.A14 559651-99	£131.46	£157.75
836 - S.T.CIRCLIP REMOVER BDE-559652-99.A8 559652-99	£24.39	£29.27
837 - S.T.BEARING EXTRACTOR BDE-559653-99.A14 559653-99	£12.17	£14.60
838 - S.T.BEARING EXTRACTOR BDE-559657-99.A9 559657-99	£60.94	£73.13
840 - S.T.SEAL FITTING TOOL BDE-559659-99.A13 559659-99	£24.39	£29.27
845 - S.T.SUPPORT JIG BDE-559656-99.A36 559656-99	£71.44	£85.73
847 - SERVICE KIT 230V GB BDE-491210-00.A1 491210-00	-
847 - SERVICE KIT 115V LX BDE-491211-00.A2 491211-00	£57.22	£68.66
856 - BIT BDE-351086-02.A3 351086-02	£24.39	£29.27
861 - KITBOX BDE-381297-94.A3 381297-94	£29.32	£35.18
