Dewalt D25830K Type 2 Chipping Hammer Spare Parts

Home Details Reviews Delivery

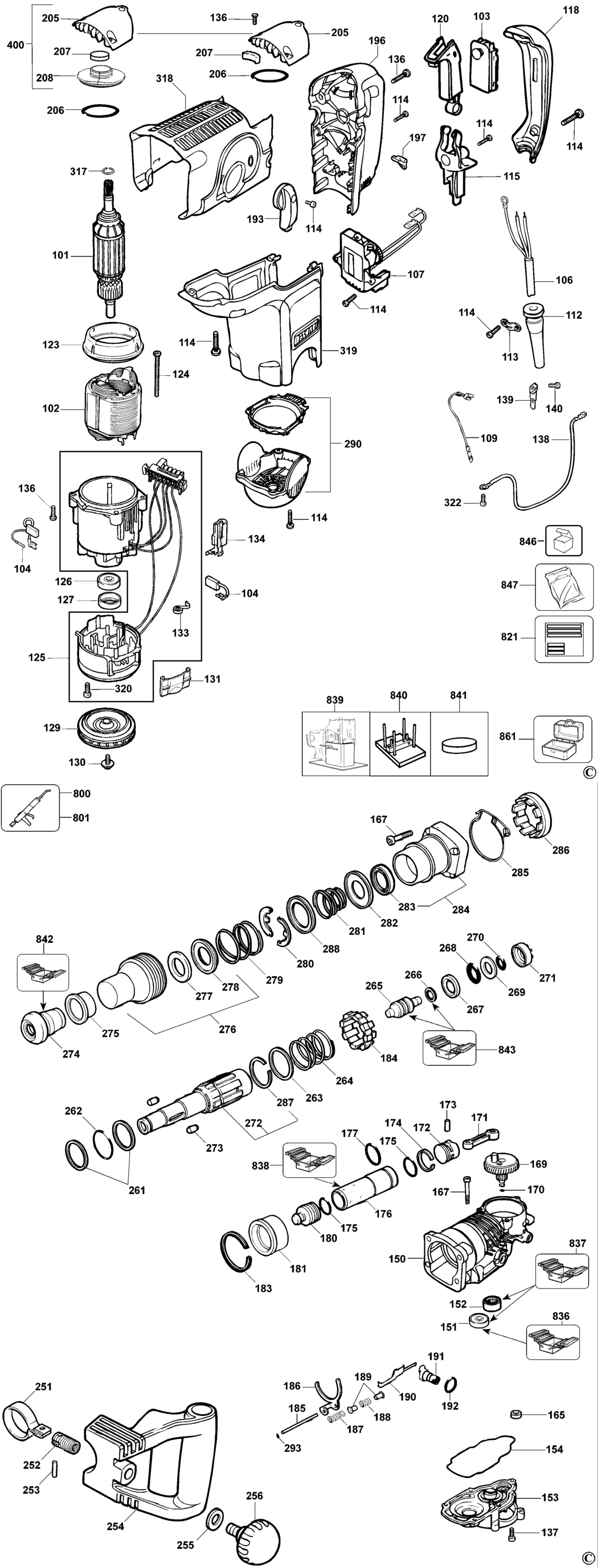

An exploded drawing and spare parts listing for the Dewalt D25830K Type 2 Chipping Hammer

	Ex VAT	Inc VAT
101 - ARMATURE 120V LX BDE-N030721.A6 N030721	-
101 - ARMATURE 230V GB BDE-N079385.A4 N079385	-
102 - NO LONGER AVAILABLE LX BDE-000000-00.A91685 000000-00	-
102 - FIELD 230V GB BDE-327430-04.A5 327430-04	£37.82	£45.38
103 - SWITCH BDE-581070-00.A11 581070-00	£20.50	£24.60
104 - BRUSH PAIR 230V GB BDE-N542573.A18 N542573	-
104 - BRUSH PAIR 120V LX BDE-582620-00.A2 582620-00	£33.13	£39.76
106 - CORDSET GB BDE-582319-02.A3 582319-02	£26.47	£31.76
106 - CORDSET LX BDE-324438-72.A9 324438-72	£20.50	£24.60
107 - ELECTRONIC 230V GB BDE-582574-00.A2 582574-00	-
107 - ELECTRONIC 120V LX BDE-582574-02.A4 582574-02	-
112 - CORD PROTECTOR BDE-323091-01.A32 323091-01	£1.66	£1.99
113 - CORD CLAMP BDE-821070.A376 821070	£1.66	£1.99
114 - SCREW BDE-330065-08.A252 330065-08	£1.66	£1.99
115 - NO LONGER AVAILABLE BDE-000000-00.A91686 000000-00	-
118 - HANDLE COVER BDE-577712-00.A5 577712-00	-
120 - TRIGGER LOCK-ON BDE-327325-00.A7 327325-00	£7.64	£9.17
123 - NO LONGER AVAILABLE BDE-000000-00.A91687 000000-00	-
124 - SCREW BDE-330065-11.A20 330065-11	£1.66	£1.99
125 - FIELDCASE SA BDE-582577-00.A7 582577-00	£69.63	£83.56
126 - BEARING BDE-577745-00.A6 577745-00	£8.08	£9.70
127 - SLEEVE BDE-325279-00.A30 325279-00	-
129 - FAN BDE-577736-00.A6 577736-00	-
130 - SCREW BDE-324119-02.A69 324119-02	£1.66	£1.99
131 - SHUTTER BDE-326579-00.A12 326579-00	£2.26	£2.71
133 - BRUSH SPRING BDE-326667-00.A28 326667-00	£1.66	£1.99
134 - HOLDER BDE-326933-01.A46 326933-01	£3.30	£3.96
136 - SCREW TORX BDE-324007-11.A103 324007-11	£1.66	£1.99
137 - SCREW TORX BDE-324007-11.A104 324007-11	£1.66	£1.99
150 - NO LONGER AVAILABLE BDE-000000-00.A91688 000000-00	-
151 - BEARING BALL BDE-577745-01.A39 577745-01	£8.08	£9.70
152 - BEARING BDE-330004-33.A11 330004-33	-
153 - GEARCASE COVER SA BDE-578486-01.A4 578486-01	£29.32	£35.18
154 - SEAL BDE-325936-00.A17 325936-00	£3.70	£4.44
165 - SEAL BDE-327141-05.A14 327141-05	£7.40	£8.88
167 - SCREW BDE-918825-02.A47 918825-02	£1.66	£1.99
169 - CRANKSHAFT BDE-582431-00.A14 582431-00	£60.94	£73.13
170 - O RING BDE-323711-26.A44 323711-26	£1.66	£1.99
171 - CON ROD BDE-325002-00.A13 325002-00	£3.39	£4.07
172 - PISTON BDE-N041843.A28 N041843	£12.53	£15.04
173 - PIN BDE-330041-22.A47 330041-22	£1.66	£1.99
174 - RETAINER BDE-325905-00.A10 325905-00	£1.66	£1.99
175 - O RING BDE-576232-01.A13 576232-01	£6.06	£7.27
176 - CYLINDER BDE-582576-00.A4 582576-00	£45.88	£55.06
177 - O RING BDE-577744-00.A78 577744-00	£1.88	£2.26
180 - RAM BDE-582575-00.A15 582575-00	£29.32	£35.18
181 - INSERT BDE-326008-00.A4 326008-00	£2.21	£2.65
183 - CIRCLIP BDE-323763-03.A42 323763-03	£1.66	£1.99
184 - SPINDLE LOCK BDE-1005697-00.A36 1005697-00	-
185 - SHAFT BDE-325880-02.A12 325880-02	£3.80	£4.56
186 - SELECTOR FORK BDE-325160-00.A41 325160-00	-
187 - SPRING BDE-323395-08.A36 323395-08	£1.82	£2.19
188 - SPRING BDE-323395-09.A12 323395-09	-
189 - SPACER BDE-326093-00.A9 326093-00	£1.82	£2.19
190 - LINK BDE-577731-00.A5 577731-00	£1.66	£1.99
191 - ECCENTRIC SA BDE-577718-00.A7 577718-00	£1.66	£1.99
192 - O RING BDE-323711-07.A50 323711-07	£1.88	£2.26
193 - LEVER SA BDE-N542443.A3 N542443	-
196 - HANDLE BDE-577711-00.A0 577711-00	-
197 - LENS BDE-577735-00.A7 577735-00	£1.66	£1.99
205 - COVER BDE-577710-01.A3 577710-01	£6.06	£7.27
205 - NO LONGER AVAILABLE BDE-000000-00.A91689 000000-00	-
206 - O RING BDE-323711-22.A19 323711-22	£1.66	£1.99
207 - FILTER BDE-581578-00.A2 581578-00	£1.66	£1.99
207 - FILTER BDE-487229-00.A1 487229-00	£1.66	£1.99
208 - COVER & SEAL BDE-491348-01.A3 491348-01	£3.22	£3.86
251 - COLLAR BDE-326555-00.A15 326555-00	£6.06	£7.27
252 - BUSH BDE-326552-00.A41 326552-00	£7.40	£8.88
253 - PIN BDE-N079374.A50 N079374	£1.66	£1.99
254 - SIDE HANDLE BDE-327146-00.A5 327146-00	£24.39	£29.27
255 - WASHER BDE-323753-18.A7 323753-18	£1.66	£1.99
256 - KNOB BDE-327351-00.A4 327351-00	£18.91	£22.69
261 - WASHER BDE-323753-11.A23 323753-11	£3.92	£4.70
262 - O RING BDE-577744-05.A15 577744-05	-
263 - WASHER BDE-323753-14.A26 323753-14	£1.66	£1.99
264 - SPRING BDE-323395-07.A18 323395-07	£1.66	£1.99
265 - BEAT PIECE BDE-582432-01.A5 582432-01	£44.00	£52.80
266 - SEAL BDE-577484-00.A28 577484-00	£16.52	£19.82
267 - WASHER BDE-582381-00.A33 582381-00	£5.88	£7.06
268 - O RING BDE-577744-02.A4 577744-02	£1.88	£2.26
269 - WASHER BDE-323753-16.A16 323753-16	£3.80	£4.56
270 - O RING BDE-N210233.A37 N210233	£1.66	£1.99
271 - CAP BDE-326044-01.A3 326044-01	£1.66	£1.99
272 - SPINDLE BDE-493133-00.A33 493133-00	£153.22	£183.86
273 - ROLLER BDE-325878-00.A46 325878-00	£1.66	£1.99
274 - LIP SEAL BDE-329816-00.A32 329816-00	£3.39	£4.07
275 - COLLAR BDE-326575-01.A18 326575-01	£6.06	£7.27
276 - SLEEVE SA BDE-479247-00.A35 479247-00	£7.40	£8.88
277 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A10 000000-03	-
278 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A11 000000-03	-
279 - SPRING BDE-323395-06.A39 323395-06	£1.66	£1.99
280 - HALF WASHER BDE-325929-00.A32 325929-00	£1.66	£1.99
281 - SPRING BDE-487118-00.A8 487118-00	£1.66	£1.99
282 - GUIDE BDE-N313860.A24 N313860	£4.83	£5.80
283 - SEAL BDE-327141-00.A34 327141-00	£1.88	£2.26
284 - HOUSING SA BDE-578489-00.A4 578489-00	£84.42	£101.30
285 - GASKET BDE-577727-01.A7 577727-01	£2.87	£3.44
286 - SPINDLE LOCK BDE-588560-00.A11 588560-00	-
287 - RING BDE-323763-04.A9 323763-04	-
288 - GUIDE BDE-327208-00.A32 327208-00	£1.66	£1.99
290 - END CAP BDE-578493-00.A10 578493-00	£16.03	£19.24
293 - NO LONGER AVAILABLE BDE-000000-00.A91690 000000-00	-
317 - RING BDE-577746-00.A44 577746-00	£1.66	£1.99
318 - COVER-TOP BDE-577708-01.A3 577708-01	-
319 - HOUSING LOWER BDE-577709-00.A0 577709-00	-
320 - SCREW BDE-323924-08.A17 323924-08	£1.66	£1.99
322 - SCREW BDE-326619-00.A17 326619-00	£1.66	£1.99
400 - COVER SA BDE-493136-01.A2 493136-01	-
800 - GREASE 100 GMS BDE-328771-02.A20 328771-02	£19.48	£23.37
801 - BIT GREASE 50G BDE-328771-07.A29 328771-07	£7.40	£8.88
836 - S.T.PULLER BDE-559632-99.A12 559632-99	£34.00	£40.80
837 - S.T.MANDREL BDE-559633-99.A6 559633-99	£24.39	£29.27
838 - S.T.PULLER BDE-559631-99.A6 559631-99	£80.98	£97.18
839 - S.T.SUPPORT JIG BDE-559656-99.A43 559656-99	£71.44	£85.73
840 - S.T.ASSEMBLY JIG BDE-559597-99.A18 559597-99	£38.80	£46.56
841 - S.T.BLOCK BDE-559598-99.A28 559598-99	-
842 - S.T.LIP SEAL REMOVER BDE-559644-99.A0 559644-99	£24.39	£29.27
843 - S.T.SEAL FITTING TOOL BDE-559645-99.A26 559645-99	£73.58	£88.30
846 - SERVICE KIT 230V GB BDE-N027353.A5 N027353	-
847 - SERVICE KIT 230V GB BDE-589301-00.A4 589301-00	-
847 - SERVICE KIT 120V LX BDE-589301-01.A1 589301-01	-
