Dewalt D25820K Type 1 Chipping Hammer Spare Parts

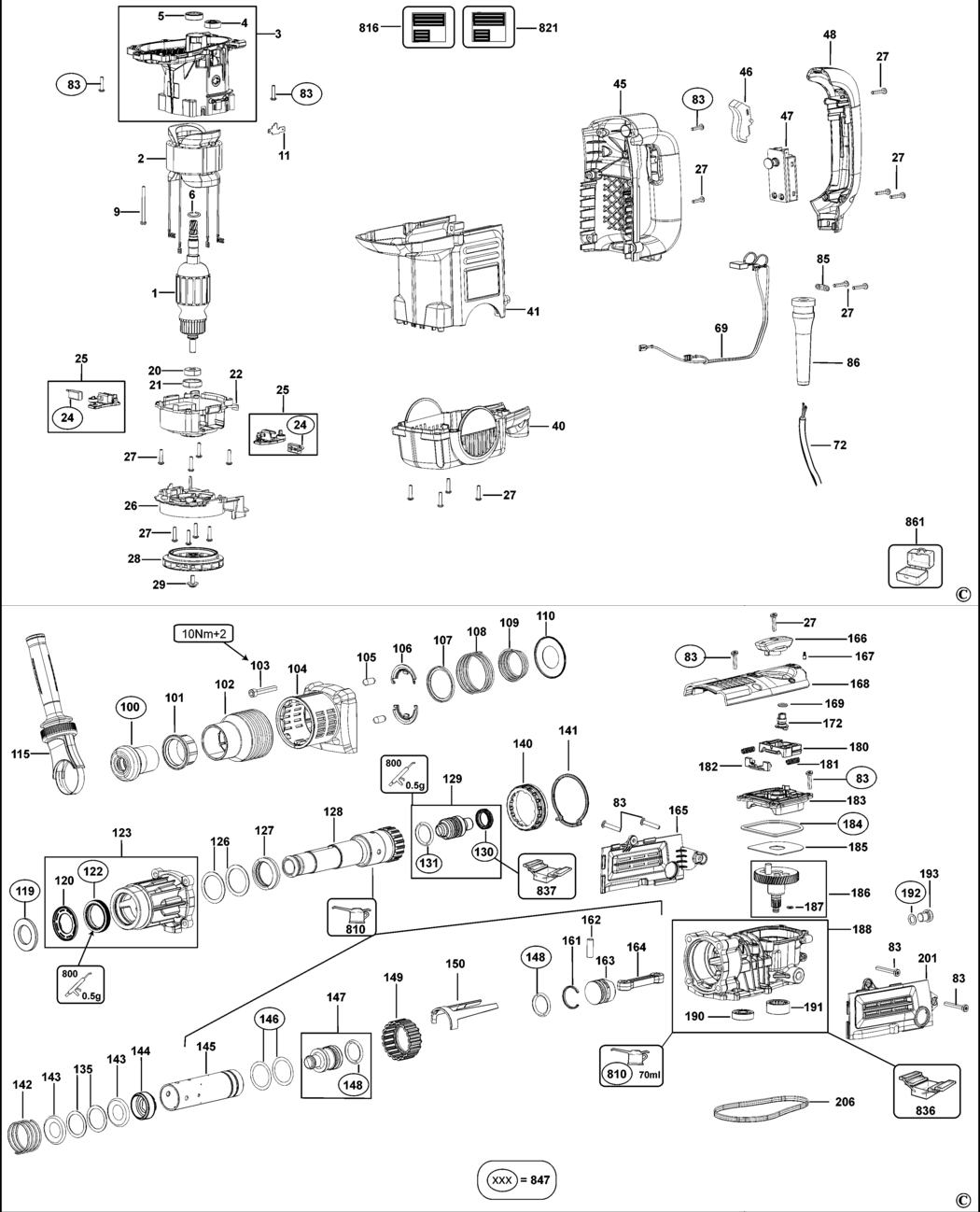

An exploded drawing and spare parts listing for the Dewalt D25820K Type 1 Chipping Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 230V GB BDE-N046420.A10 N046420	£144.10	£172.92
2 - FIELD 230V GB BDE-N041827.A3 N041827	£80.98	£97.18
3 - HOUSING MOTOR BDE-N082756.A0 N082756	£30.08	£36.10
4 - BEARING BDE-330003-39.A85 330003-39	£2.78	£3.34
5 - SEAL BDE-327141-03.A1 327141-03	£12.17	£14.60
6 - RING BDE-577746-00.A14 577746-00	£1.50	£1.80
9 - SCREW BDE-330065-21.A0 330065-21	£1.50	£1.80
11 - CONNECTOR BDE-1007970-00.A14 1007970-00	£1.50	£1.80
20 - BEARING BDE-330003-60.A19 330003-60	£2.78	£3.34
21 - SLEEVE BDE-1007732-00.A19 1007732-00	£1.50	£1.80
22 - BRIDGE BDE-1007798-00.A15 1007798-00	£7.18	£8.62
24 - BRUSH PAIR 230V GB BDE-N047426.A3 N047426	£14.57	£17.48
25 - BRUSH & HOLDER 230V GB BDE-N047446.A1 N047446	£14.57	£17.48
26 - BAFFLE FAN BDE-N016920.A0 N016920	£5.88	£7.06
27 - SCREW BDE-330065-08.A178 330065-08	£1.50	£1.80
28 - FAN BDE-1006592-00.A3 1006592-00	£12.17	£14.60
29 - SCREW BDE-324119-02.A21 324119-02	£1.50	£1.80
40 - END CAP BDE-N021935.A2 N021935	£10.85	£13.02
41 - MOTOR COVER BDE-1006576-02.A4 1006576-02	£14.57	£17.48
45 - HOUSING HANDLE BDE-1008798-00.A1 1008798-00	£14.19	£17.03
46 - TRIGGER BDE-488065-01.A2 488065-01	£2.26	£2.71
46 - TRIGGER BDE-587114-01.A19 587114-01	£1.50	£1.80
47 - SWITCH BDE-587274-00.A23 587274-00	£34.00	£40.80
48 - HANDLE COVER BDE-1008682-00.A8 1008682-00	£16.03	£19.24
69 - SET OF LEAD WIRES GB BDE-N047305.A3 N047305	£9.41	£11.29
72 - CORDSET GB BDE-582319-42.A11 582319-42	£34.00	£40.80
83 - SCREW TORX BDE-324007-11.A33 324007-11	£1.50	£1.80
85 - CORD CLAMP BDE-821070.A640 821070	£1.50	£1.80
86 - CORD PROTECTOR BDE-323091-01.A104 323091-01	£1.50	£1.80
100 - LIP SEAL BDE-329816-00.A12 329816-00	£3.30	£3.96
101 - COLLAR BDE-326575-01.A2 326575-01	£5.88	£7.06
102 - SLEEVE SA BDE-479247-00.A14 479247-00	£7.18	£8.62
103 - SCREW BDE-918825-02.A22 918825-02	£1.50	£1.80
104 - COVER BDE-1006572-00.A15 1006572-00	£5.88	£7.06
105 - ROLLER BDE-325878-00.A14 325878-00	£1.50	£1.80
106 - HALF WASHER BDE-325929-00.A12 325929-00	£1.50	£1.80
107 - GUIDE BDE-327208-00.A14 327208-00	£1.50	£1.80
108 - SPRING BDE-323395-06.A14 323395-06	£1.50	£1.80
109 - SPRING BDE-487118-00.A49 487118-00	£1.50	£1.80
110 - SPRING GUIDE BDE-325930-00.A24 325930-00	£1.50	£1.80
110 - GUIDE BDE-N313860.A3 N313860	£4.69	£5.63
115 - HANDLE SIDE SA BDE-N073109 N073109	£60.94	£73.13
119 - FELT BDE-N038151.A1 N038151	£1.50	£1.80
120 - BUSH BDE-N045793.A0 N045793	£1.50	£1.80
122 - SEAL BDE-1007828-00.A23 1007828-00	£16.03	£19.24
123 - HOUSING BDE-N041835.A0 N041835	£71.44	£85.73
126 - WASHER BDE-1005982-00.A23 1005982-00	£1.50	£1.80
127 - DAMPER BDE-496191-00.A15 496191-00	£2.26	£2.71
128 - SPINDLE BDE-N041834.A12 N041834	£165.92	£199.11
129 - BEAT PIECE BDE-N041847.A1 N041847	£71.44	£85.73
130 - SEAL BDE-577484-00.A7 577484-00	£16.03	£19.24
130 - SEAL BDE-N244259.A7 N244259	£7.85	£9.42
131 - O RING BDE-323711-10.A54 323711-10	£1.50	£1.80
135 - WASHER BDE-N064329.A15 N064329	£1.50	£1.80
140 - BUSH BDE-494857-00.A15 494857-00	£2.78	£3.34
141 - GASKET BDE-1006283-00.A15 1006283-00	£2.78	£3.34
142 - SPRING BDE-1005748-00.A15 1005748-00	£1.50	£1.80
143 - O RING BDE-N210233.A1 N210233	£1.50	£1.80
144 - BUSH BDE-1006778-00.A1 1006778-00	£1.50	£1.80
145 - CYLINDER BDE-N041846.A14 N041846	£41.24	£49.49
146 - O RING BDE-577744-00.A42 577744-00	£1.82	£2.19
147 - RAM BDE-N041845.A2 N041845	£38.80	£46.56
148 - O RING BDE-576232-01.A10 576232-01	£5.88	£7.06
149 - SLEEVE BDE-N041844.A14 N041844	£19.90	£23.88
150 - SELECTOR FORK BDE-1005749-00.A1 1005749-00	£1.50	£1.80
161 - RETAINER BDE-325905-00.A66 325905-00	£1.50	£1.80
162 - PIN BDE-330041-22.A0 330041-22	£1.50	£1.80
163 - PISTON BDE-N041843.A2 N041843	£12.17	£14.60
164 - CON ROD BDE-494724-00.A14 494724-00	£5.88	£7.06
165 - COVER RH BDE-1008393-00.A0 1008393-00	£4.69	£5.63
166 - SELECTOR BDE-1006786-00.A1 1006786-00	£2.26	£2.71
167 - DETENT BDE-326467-00.A145 326467-00	£1.50	£1.80
168 - COVER-TOP BDE-1006575-01.A0 1006575-01	£7.18	£8.62
169 - O RING BDE-323711-57.A29 323711-57	£1.50	£1.80
172 - ECCENTRIC BDE-496856-00.A1 496856-00	£1.50	£1.80
180 - SLIDER BDE-1006784-00.A1 1006784-00	£1.50	£1.80
181 - SPRING BDE-323395-32.A32 323395-32	£2.26	£2.71
182 - CONNECTOR BDE-1006783-00.A15 1006783-00	£1.50	£1.80
183 - COVER BDE-496857-00.A15 496857-00	£4.69	£5.63
184 - O RING BDE-323711-59.A15 323711-59	£1.50	£1.80
185 - PLATE BDE-1006785-00.A15 1006785-00	£3.30	£3.96
186 - CRANKSHAFT BDE-N041841.A2 N041841	£84.42	£101.30
187 - O RING BDE-323711-26.A105 323711-26	£1.50	£1.80
188 - HOUSING GEARBOX BDE-N082641.A0 N082641	£115.77	£138.92
190 - BEARING BALL BDE-577745-01.A12 577745-01	£7.85	£9.42
191 - BEARING NEEDLE BDE-586301-00.A22 586301-00	£9.41	£11.29
192 - O RING BDE-323711-57.A28 323711-57	£1.50	£1.80
193 - SCREW.SPECIAL BDE-1008427-00.A1 1008427-00	£1.50	£1.80
201 - COVER LH BDE-1008392-00.A1 1008392-00	£4.69	£5.63
206 - GASKET BDE-1006282-00.A2 1006282-00	£3.80	£4.56
800 - GREASE 90 GMS BDE-870889-02.A323 870889-02	£7.85	£9.42
800 - GREASE BDE-870889-03.A136 870889-03	£7.85	£9.42
810 - TUBE OIL BDE-N040237.A14 N040237	£30.08	£36.10
816 - BRAND LABEL BDE-N064908.A13 N064908	£1.50	£1.80
821 - RATING LABEL GB BDE-N383091 N383091	£1.50	£1.80
836 - SERVICE TOOL BDE-1003938-99.A2 1003938-99	£112.86	£135.43
837 - S.T.SEAL FITTING TOOL BDE-559645-99.A5 559645-99	£25.70	£30.84
847 - SERVICE KIT 230V GB BDE-N095941.A2 N095941	£110.62	£132.74
861 - KITBOX BDE-574931-23.A0 574931-23	£110.62	£132.74

Attribute Name	Value
Brand	Dewalt
