Dewalt D25810 Type 1 Chipping Hammer Spare Parts

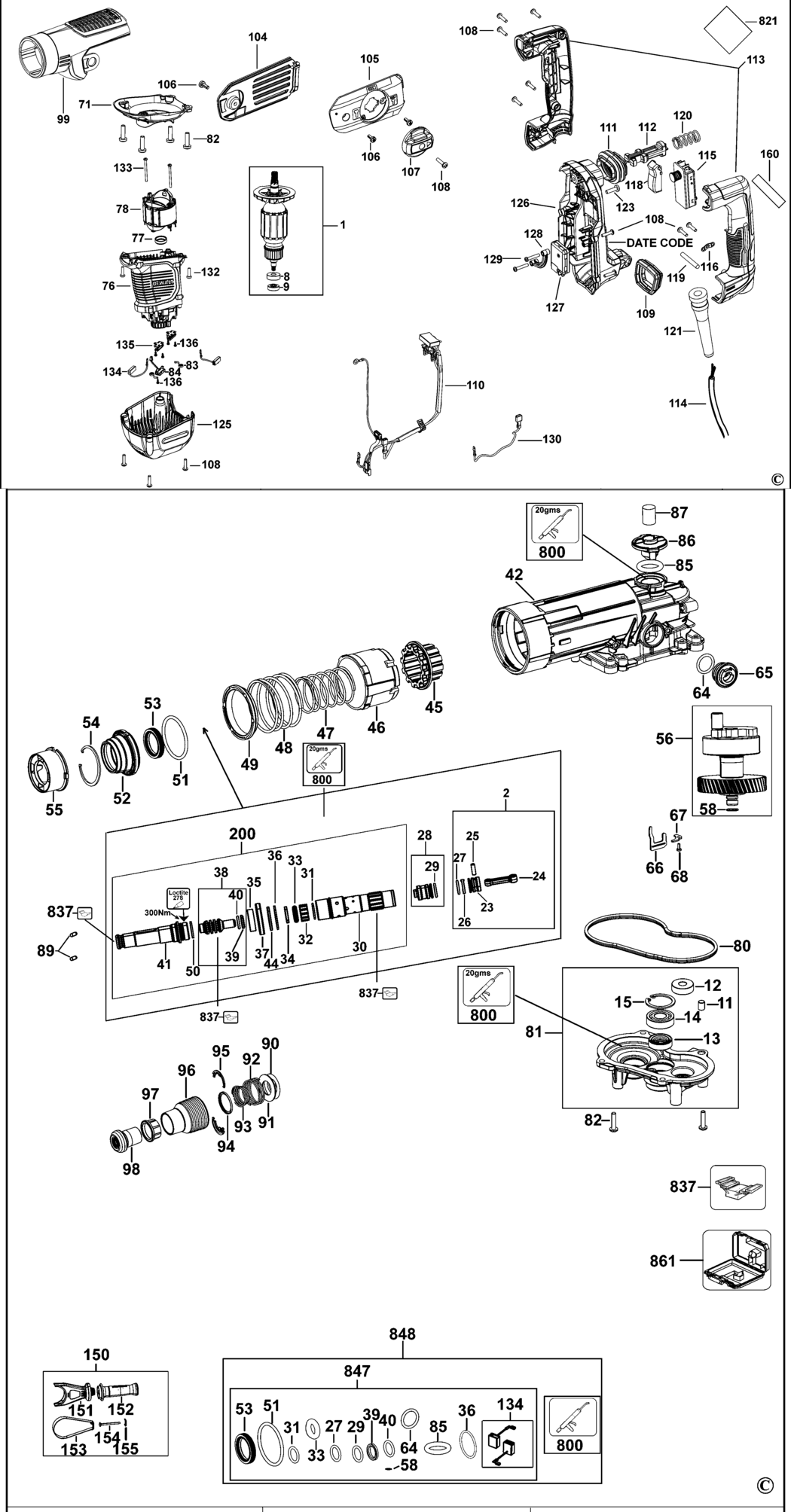

An exploded drawing and spare parts listing for the Dewalt D25810 Type 1 Chipping Hammer

	Ex VAT	Inc VAT
1 - ARMATURE 230V GB BDE-N491963.A1 N491963	£71.44	£85.73
1 - ARMATURE 120V LX BDE-N491976.A0 N491976	£71.44	£85.73
2 - PISTON SA BDE-N492871.A1 N492871	£18.91	£22.69
8 - BEARING BDE-330003-60.A135 330003-60	£2.78	£3.34
9 - MAGNET BDE-N466979.A3 N466979	£7.18	£8.62
11 - SLEEVE BDE-327575-00.A17 327575-00	£1.66	£1.99
12 - BEARING 608 BDE-N110358.A167 N110358	£3.32	£3.99
13 - SEAL BDE-N495599.A4 N495599	£3.80	£4.56
14 - BEARING BALL BDE-577745-01.A29 577745-01	£7.85	£9.42
15 - CIRCLIP BDE-488147-01.A4 488147-01	£1.66	£1.99
23 - PISTON BDE-N444288.A2 N444288	£12.17	£14.60
24 - CON ROD BDE-N922659.A4 N922659	£1.66	£1.99
25 - PIN BDE-N446699.A3 N446699	£1.66	£1.99
26 - PISTON RING BDE-N922676.A1 N922676	£1.66	£1.99
27 - O RING BDE-N446544.A3 N446544	£4.69	£5.63
28 - RAM SA BDE-N492863.A1 N492863	£16.03	£19.24
29 - O RING BDE-N446544.A2 N446544	£4.69	£5.63
30 - SPINDLE SA BDE-N567968.A1 N567968	£110.62	£132.74
31 - O RING BDE-N474624.A2 N474624	£1.66	£1.99
32 - BUSH BDE-N445510.A0 N445510	£2.78	£3.34
33 - DAMPER BDE-N460601.A2 N460601	£3.80	£4.56
34 - WASHER BDE-N462095.A2 N462095	£4.69	£5.63
35 - SPACER BDE-N539518.A1 N539518	£1.82	£2.19
36 - WASHER BDE-N526268.A2 N526268	£1.66	£1.99
37 - BEARING BDE-N526259.A0 N526259	£14.57	£17.48
38 - BEAT PIECE BDE-N492872.A0 N492872	£30.08	£36.10
39 - SEAL BDE-N244259.A1 N244259	£7.85	£9.42
40 - O RING BDE-N487314.A7 N487314	£4.69	£5.63
41 - SPINDLE SA BDE-N567968.A0 N567968	£110.62	£132.74
42 - HOUSING SA BDE-N506091.A2 N506091	£71.44	£85.73
44 - O RING BDE-N532520.A1 N532520	£2.78	£3.34
45 - SLEEVE BDE-N445599.A2 N445599	£9.41	£11.29
46 - SLEEVE BDE-N433094.A1 N433094	£3.30	£3.96
47 - SPRING BDE-N437808.A1 N437808	£1.66	£1.99
48 - SPRING BDE-N437814.A0 N437814	£1.66	£1.99
49 - SUPPORT BDE-N460603.A0 N460603	£1.66	£1.99
50 - RETAINER BDE-N539527.A0 N539527	£1.66	£1.99
51 - O RING BDE-N432556.A4 N432556	£3.80	£4.56
52 - SLEEVE BDE-N526257.A4 N526257	£1.82	£2.19
53 - O RING BDE-N446361.A1 N446361	£2.78	£3.34
54 - CIRCLIP BDE-N532870.A1 N532870	£1.66	£1.99
55 - CAP BDE-N464914 N464914	£1.66	£1.99
56 - CRANKSHAFT BDE-N492873.A1 N492873	£38.80	£46.56
58 - O RING BDE-323711-26.A63 323711-26	£1.66	£1.99
64 - O RING BDE-N553858.A1 N553858	£1.66	£1.99
65 - ECCENTRIC BDE-N435997.A3 N435997	£1.66	£1.99
66 - PLATE BDE-N422798.A4 N422798	£1.66	£1.99
67 - PLATE BDE-N422797.A0 N422797	£1.66	£1.99
68 - SCREW BDE-N445171.A33 N445171	£1.66	£1.99
71 - BAFFLE FAN BDE-N435623.A1 N435623	£1.66	£1.99
76 - HOUSING MOTOR BDE-N433780.A1 N433780	£19.90	£23.88
77 - COVER BEARING BDE-N449094.A2 N449094	£1.66	£1.99
78 - FIELD 120V LX BDE-N492848.A0 N492848	£38.80	£46.56
78 - FIELD 230V GB BDE-N492847.A1 N492847	£38.80	£46.56
80 - GASKET BDE-N422796.A4 N422796	£1.66	£1.99
81 - GEARCASE SA BDE-N492875.A2 N492875	£37.35	£44.82
82 - SCREW TORX BDE-324007-11.A130 324007-11	£1.66	£1.99
83 - BRUSH SPRING BDE-N444425.A0 N444425	£1.66	£1.99
84 - COIL BDE-N448156.A3 N448156	£14.57	£17.48
85 - O RING BDE-N504436.A3 N504436	£1.66	£1.99
86 - CAP BDE-N452721.A0 N452721	£1.66	£1.99
87 - FELT BDE-N395554.A4 N395554	£1.66	£1.99
89 - ROLLER BDE-325878-00.A60 325878-00	£1.66	£1.99
90 - FELT BDE-N038151.A13 N038151	£1.66	£1.99
91 - WASHER BDE-N465749.A3 N465749	£1.66	£1.99
92 - SPRING BDE-323395-06.A53 323395-06	£1.66	£1.99
93 - SPRING BDE-487118-00.A23 487118-00	£1.66	£1.99
94 - GUIDE BDE-N464690.A1 N464690	£1.66	£1.99
95 - LOCKING PIN BDE-N468172.A0 N468172	£1.66	£1.99
96 - SLEEVE BDE-N464913.A1 N464913	£12.17	£14.60
97 - COLLAR BDE-326575-01.A23 326575-01	£5.88	£7.06
98 - LIP SEAL BDE-N465586.A1 N465586	£18.91	£22.69
99 - COVER BDE-N429783.A2 N429783	£12.17	£14.60
104 - SIDE RH BDE-N463364.A0 N463364	£2.26	£2.71
105 - SIDE LH BDE-N452497.A1 N452497	£3.80	£4.56
106 - SCREW BDE-N445171.A32 N445171	£1.66	£1.99
107 - SELECTOR SA BDE-N464282.A3 N464282	£2.78	£3.34
108 - SCREW BDE-330065-08.A281 330065-08	£1.66	£1.99
109 - BELLOWS BDE-N452043.A3 N452043	£1.66	£1.99
110 - SET OF LEAD WIRES GB BDE-N452385.A3 N452385	£18.91	£22.69
110 - SET OF LEAD WIRES LX BDE-N452385.A4 N452385	£18.91	£22.69
111 - BELLOWS BDE-N452042.A0 N452042	£1.66	£1.99
112 - STOP BDE-N152623.A25 N152623	£5.88	£7.06
113 - CLAMSHELL SET BDE-N492860.A1 N492860	£17.48	£20.97
114 - CORDSET LX BDE-N469359.A1 N469359	£37.35	£44.82
114 - CORDSET GB BDE-N410113.A1 N410113	£17.48	£20.97
115 - SWITCH BDE-N467531.A0 N467531	£18.91	£22.69
116 - CORD CLAMP BDE-821070.A246 821070	£1.66	£1.99
118 - TRIGGER BDE-488065-01.A9 488065-01	£2.26	£2.71
119 - AXIS BDE-N159443.A14 N159443	£1.66	£1.99
120 - SPRING COMPRESSION BDE-N106188.A6 N106188	£1.66	£1.99
121 - CORD PROTECTOR BDE-323091-01.A46 323091-01	£1.66	£1.99
123 - SCREW TORX BDE-324007-11.A131 324007-11	£1.66	£1.99
125 - END CAP BDE-N438602.A1 N438602	£9.41	£11.29
126 - CLAMSHELL BDE-N438601.A1 N438601	£12.17	£14.60
127 - CONTROL MODULE SA LX BDE-N492876 N492876	£41.24	£49.49
127 - CONTROL MODULE SA GB BDE-N492877 N492877	£41.24	£49.49
128 - BRACKET BDE-N449848.A1 N449848	£1.66	£1.99
129 - SCREW BDE-N371839.A26 N371839	£1.66	£1.99
130 - LEAD SA BDE-N450546.A3 N450546	£3.30	£3.96
132 - SCREW TORX BDE-324007-11.A132 324007-11	£1.66	£1.99
133 - SCREW BDE-330065-10.A49 330065-10	£1.66	£1.99
134 - BRUSH PAIR 230V GB BDE-N492849.A1 N492849	£9.41	£11.29
134 - BRUSH PAIR 120V LX BDE-N492850.A1 N492850	£10.85	£13.02
135 - BRUSHBOX SA BDE-N450097.A1 N450097	£1.66	£1.99
136 - SCREW BDE-N086775.A10 N086775	£1.66	£1.99
150 - HANDLE SIDE SA BDE-N466680.A2 N466680	£34.00	£40.80
151 - CLAMP BDE-N466673.A2 N466673	£7.18	£8.62
152 - HANDLE SA BDE-N505367.A3 N505367	£16.03	£19.24
153 - CLAMP BDE-N466679.A1 N466679	£9.41	£11.29
154 - BOLT BDE-N466678.A3 N466678	£1.66	£1.99
155 - WASHER CLAMP BDE-N466677.A1 N466677	£1.66	£1.99
160 - LABEL BDE-N196274.A11 N196274	£1.66	£1.99
200 - SPINDLE SA BDE-N557838.A1 N557838	£157.18	£188.61
800 - GREASE 80 GMS BDE-578970-06.A50 578970-06	£55.32	£66.38
821 - RATING PLATE LX BDE-N495325 N495325	£1.66	£1.99
821 - RATING PLATE GB BDE-N495324 N495324	£1.66	£1.99
837 - S.T.SEAL FITTING TOOL BDE-1003964-99.A3 1003964-99	£30.08	£36.10
837 - S.T.SUPPORT PLATE BDE-1003961-99.A3 1003961-99	-
837 - S.T.SEAL FITTING TOOL BDE-1003965-99.A0 1003965-99	£17.48	£20.97
837 - S.T.DIS-ASSEMBLY JIG BDE-1003962-99.A0 1003962-99	-
837 - S.T.LIP SEAL REMOVER BDE-1003966-99.A3 1003966-99	£30.08	£36.10
847 - SERVICE KIT 230V GB BDE-N513646 N513646	£45.14	£54.17
847 - SERVICE KIT 115V LX BDE-N513621 N513621	£41.24	£49.49
848 - SERVICE KIT 230V GB BDE-1004727-68 1004727-68	£93.62	£112.35
848 - SERVICE KIT 115V LX BDE-1004727-69 1004727-69	£99.47	£119.36
861 - KITBOX BDE-N469730.A0 N469730	£60.94	£73.13
