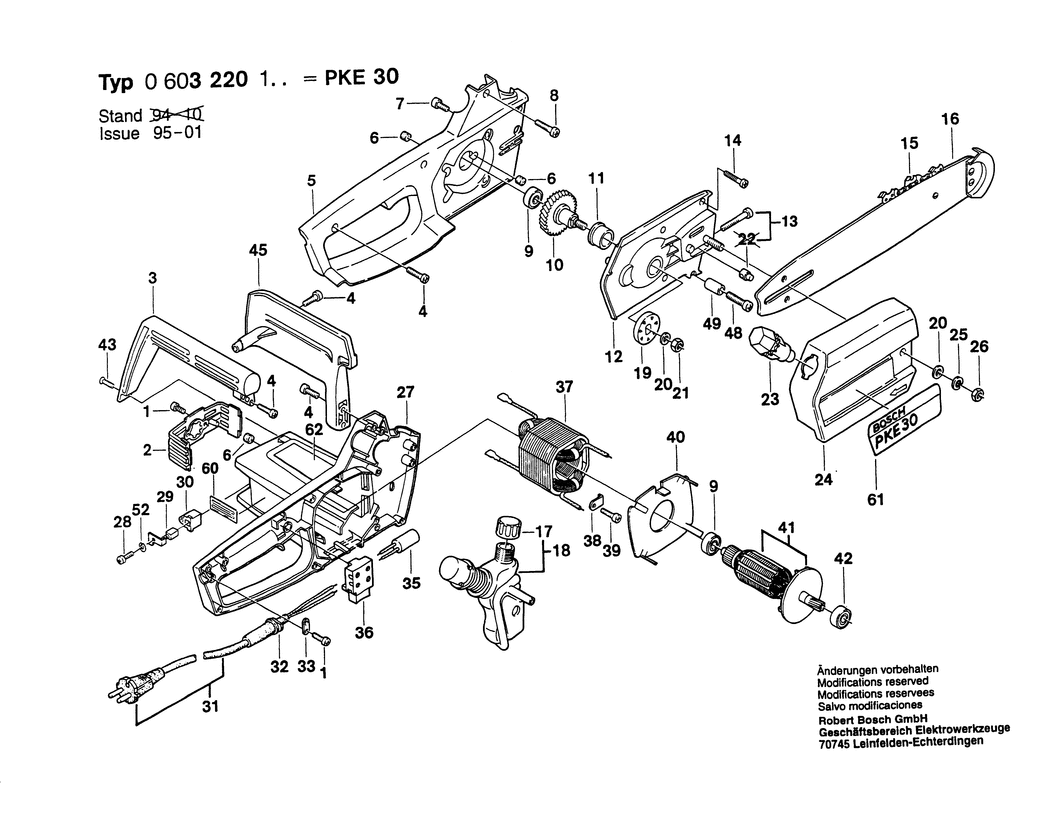

1 - SOCKET HEAD CAP SCREW
BSD-1609390251.A1
1609390251
|
-
|
|
|
|
2 - HOUSING COVER
BSD-1609390308.A5
1609390308
|
-
|
|
|
|
3 - HANDLE
BSD-1609390253.A5
1609390253
|
-
|
|
|
|
4 - SOCKET HEAD CAP SCREW
BSD-1609390254.A5
1609390254
|
-
|
|
|
|
5 - HOUSING HALF
BSD-1609390255.A5
1609390255
|
-
|
|
|
|
6 - RUBBER BUFFER
BSD-1609390256.A5
1609390256
|
-
|
|
|
|
7 - SOCKET HEAD CAP SCREW
BSD-1609390257.A5
1609390257
|
-
|
|
|
|
8 - SOCKET HEAD CAP SCREW
BSD-1609390258.A5
1609390258
|
-
|
|
|
|
9 - BALL BEARING 7x22x7
BSD-1900905018.A25
1900905018
|
£19.91
|
£23.89
|
|
|
10 - SPINDLE WITH GEAR
BSD-1609390259.A6
1609390259
|
-
|
|
|
|
11 - BUSHING
BSD-1609390260.A4
1609390260
|
-
|
|
|
|
12 - GEAR HOUSING
BSD-1609390261.A6
1609390261
|
-
|
|
|
|
13 - SOCKET HEAD CAP SCREW BM 5x30
BSD-1609390289.A3
1609390289
|
-
|
|
|
|
14 - SOCKET HEAD CAP SCREW dia 4x25 MM
BSD-1609390262.A3
1609390262
|
-
|
|
|
|
15 - SAW CHAIN
BSD-1609390238.A2
1609390238
|
-
|
|
|
|
16 - GUIDE RAIL
BSD-1609390239.A5
1609390239
|
-
|
|
|
|
17 - SEALING CAP
BSD-1609390265.A3
1609390265
|
-
|
|
|
|
18 - OIL RESERVOIR
BSD-1609390266.A7
1609390266
|
-
|
|
|
|
19 - .
BSD-1609390267.A3
1609390267
|
-
|
|
|
|
20 - PLAIN WASHER DIN 125-A 8.4-ST
BSD-2916011016.A97
2916011016
|
£1.84
|
£2.21
|
|
|
21 - HEX NUT M8
BSD-1609390268.A7
1609390268
|
-
|
|
|
|
23 - GRINDER
BSD-1609390240.A5
1609390240
|
-
|
|
|
|
23 - ABRASIVE PENCIL
BSD-1609390448.A2
1609390448
|
-
|
|
|
|
24 - PROTECTIVE COVER
BSD-1609390271.A5
1609390271
|
-
|
|
|
|
25 - SPRING LOCK WASHER DIN 128-A8-FST
BSD-2916690007.A0
2916690007
|
£1.75
|
£2.10
|
|
|
26 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A167
2915011009
|
£2.74
|
£3.29
|
|
|
27 - HOUSING HALF
BSD-1609390310.A4
1609390310
|
-
|
|
|
|
28 - OVAL-HEAD SCREW DIN 7985-M3x6-4.8
BSD-2910641048.A5
2910641048
|
-
|
|
|
|
29 - CARBON-BRUSH SET
BSD-1609390312.A7
1609390312
|
-
|
|
|
|
30 - BRUSH HOLDER
BSD-1609390307.A0
1609390307
|
-
|
|
|
|
31 - POWER SUPPLY CORD EU 230V 0.55m 2 x 1.0mm H07 RN-F
BSD-1604460242.A17
1604460242
|
£9.11
|
£10.93
|
|
|
32 - GROMMET
BSD-1609390270.A3
1609390270
|
-
|
|
|
|
33 - FASTENING CLAMP
BSD-1609390273.A4
1609390273
|
-
|
|
|
|
35 - SUPPRESSION CAPACITOR
BSD-1609390274.A6
1609390274
|
-
|
|
|
|
36 - ON-OFF SWITCH
BSD-1609390275.A4
1609390275
|
-
|
|
|
|
37 - POLE SHOE 220V
BSD-1609390276.A5
1609390276
|
-
|
|
|
|
38 - RETAINING BRACKET
BSD-1609390277.A3
1609390277
|
-
|
|
|
|
39 - SOCKET HEAD CAP SCREW dia 4x16 MM
BSD-1609390278.A7
1609390278
|
-
|
|
|
|
40 - AIR-DEFLECTOR RING
BSD-1609390279.A3
1609390279
|
-
|
|
|
|
41 - ARMATURE 220V
BSD-1609390309.A0
1609390309
|
-
|
|
|
|
42 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A200
1900905120
|
-
|
|
|
|
43 - COUNTERSUNK-HEAD SCREW M 3x10 DIN 963-5.8
BSD-2910771052.A28
2910771052
|
-
|
|
|
|
45 - PROTECTIVE SHIELD
BSD-1609390282.A7
1609390282
|
-
|
|
|
|
48 - SOCKET HEAD CAP SCREW dia 4x50 MM
BSD-1609390283.A3
1609390283
|
-
|
|
|
|
49 - RETAINING PIN
BSD-1609390284.A7
1609390284
|
-
|
|
|
|
52 - SPRING LOCK WASHER B 3 DIN 127
BSD-2916680003.A3
2916680003
|
-
|
|
|
|
60 - NAMEPLATE
BSD-160111A3H3.A4654
160111A3H3
|
£2.74
|
£3.29
|
|
|
61 - STICKER
BSD-1601110173.A2
1601110173
|
-
|
|
|
|
62 - REFERENCE PLATE
BSD-1601110170.A2
1601110170
|
-
|
|
|
|
650 - PROTECTIVE COVER dia 290 MM
BSD-1609390250.A1
1609390250
|
-
|
|
|
|
650 - PROTECTIVE COVER
BSD-1609390449.A6
1609390449
|
-
|
|
|
|
651 - SINGLE-HEAD ENG. WRENCH DIN 894 SW13
BSD-1907950507.A9
1907950507
|
-
|
|
|
|
652 - SCREWDRIVER GR. 2 DIN 52 628
BSD-1907959050.A6
1907959050
|
-
|
|
|
|
716 - GUIDE RAIL
BSD-1609390239.A3
1609390239
|
-
|
|
|
|
829 - CARBON-BRUSH SET
BSD-1609390312.A6
1609390312
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A119
1607000228
|
£23.86
|
£28.63
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4655
160111A3H3
|
£2.74
|
£3.29
|
|
