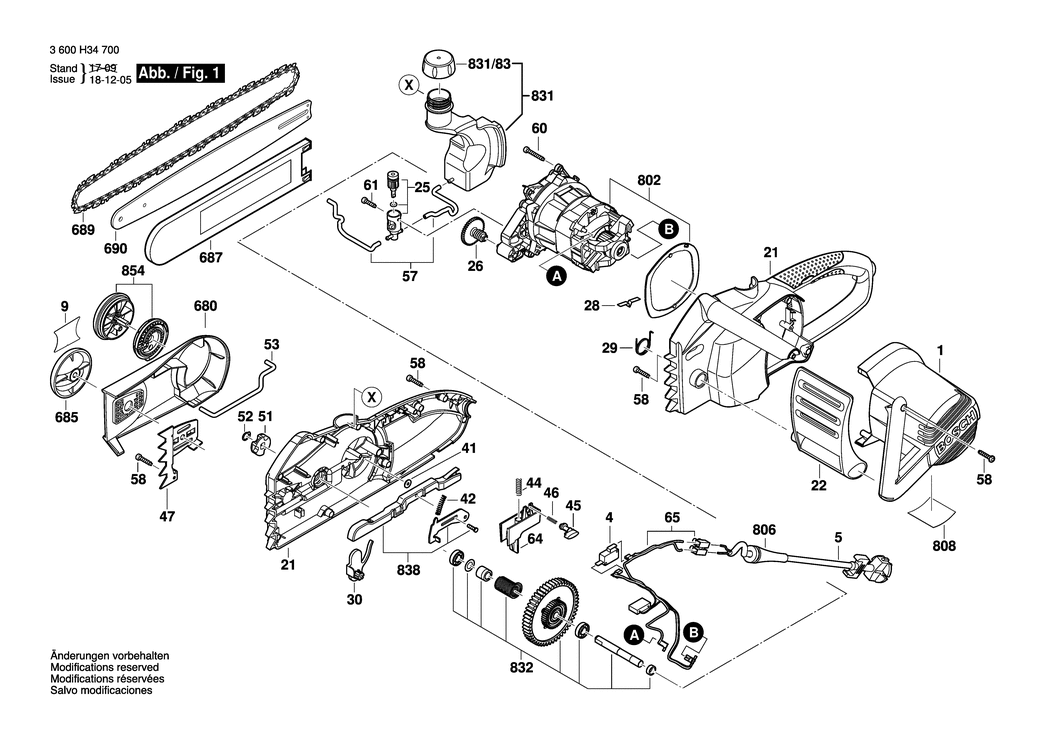

1 - MOTOR HOUSING
BSD-2609001023.A0
2609001023
|
£15.65
|
£18.78
|
|
|
4 - SWITCH
BSD-2609001096.A24
2609001096
|
£7.72
|
£9.27
|
|
|
5 - POWER SUPPLY CORD EU 0.4m 2 x 1.0mm H07 RN-F
BSD-2604460183.A20
2604460183
|
£8.67
|
£10.41
|
|
|
9 - MANUFACTURER'S NAMEPLATE AKE 45 S
BSD-2609006170.A0
2609006170
|
£2.74
|
£3.29
|
|
|
21 - HOUSING
BSD-2609001110.A0
2609001110
|
£57.05
|
£68.46
|
|
|
22 - PROTECTIVE SHIELD
BSD-2609001024.A24
2609001024
|
£10.61
|
£12.73
|
|
|
25 - PUMP
BSD-1600A009Y6.A19
1600A009Y6
|
£14.91
|
£17.89
|
|
|
26 - WORM-GEAR PAIR
BSD-2609001043.A24
2609001043
|
£8.67
|
£10.41
|
|
|
28 - SPRING
BSD-2609001047.A19
2609001047
|
£1.84
|
£2.21
|
|
|
29 - TORSION SPRING
BSD-2609006397.A12
2609006397
|
£1.75
|
£2.10
|
|
|
30 - LEVER
BSD-2609001032.A0
2609001032
|
£2.74
|
£3.29
|
|
|
41 - PLAIN WASHER DIN 9021-B 4.3-ST
BSD-2916011892.A35
2916011892
|
£1.84
|
£2.21
|
|
|
42 - SPRING
BSD-2609001093.A19
2609001093
|
£1.84
|
£2.21
|
|
|
44 - COMPRESSION SPRING
BSD-2609001048.A5
2609001048
|
£1.84
|
£2.21
|
|
|
45 - SAFETY SWITCH
BSD-2609001031.A24
2609001031
|
£2.94
|
£3.53
|
|
|
46 - COMPRESSION SPRING
BSD-2609001090.A5
2609001090
|
£1.84
|
£2.21
|
|
|
47 - MOUNTING PLATE
BSD-2609007270.A11
2609007270
|
£5.58
|
£6.70
|
|
|
51 - SPROCKET WHEEL
BSD-2609001036.A24
2609001036
|
£6.52
|
£7.83
|
|
|
52 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A191
2916650001
|
£2.74
|
£3.29
|
|
|
53 - ROD
BSD-2609001109.A11
2609001109
|
£8.67
|
£10.41
|
|
|
57 - PIPE
BSD-2609001086.A19
2609001086
|
£1.75
|
£2.10
|
|
|
58 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A219
2603490023
|
£1.84
|
£2.21
|
|
|
60 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A1014
2603490024
|
£1.84
|
£2.21
|
|
|
61 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A60
2603490021
|
£1.84
|
£2.21
|
|
|
64 - SWITCH SEGMENT
BSD-2609001029.A0
2609001029
|
£2.27
|
£2.72
|
|
|
65 - SUPPRESSION FILTER
BSD-2609004394.A22
2609004394
|
£7.72
|
£9.27
|
|
|
680 - PROTECTIVE COVER
BSD-2609001104.A11
2609001104
|
£17.22
|
£20.67
|
|
|
685 - WHEEL
BSD-2609001106.A0
2609001106
|
£5.57
|
£6.68
|
|
|
687 - CHAIN GUARD
BSD-2609006174.A0
2609006174
|
£8.49
|
£10.19
|
|
|
689 - SAW CHAIN
BSD-2609006172.A0
2609006172
|
£37.27
|
£44.72
|
|
|
690 - GUIDE RAIL
BSD-2609006173.A0
2609006173
|
£54.76
|
£65.71
|
|
|
802 - MOTOR
BSD-2609002728.A9
2609002728
|
£72.18
|
£86.62
|
|
|
806 - GROMMET
BSD-2609005766.A65
2609005766
|
£2.80
|
£3.36
|
|
|
808 - NAMEPLATE
BSD-160111A3VD.A0
160111A3VD
|
£2.61
|
£3.13
|
|
|
831 - OIL RESERVOIR
BSD-2609001599.A0
2609001599
|
£19.91
|
£23.89
|
|
|
831/83 - RESERVOIR CAP
BSD-2609001040.A1
2609001040
|
£2.61
|
£3.13
|
|
|
832 - CLUTCH
BSD-2609001100.A1
2609001100
|
£35.42
|
£42.51
|
|
|
838 - LINKAGE
BSD-2609001597.A24
2609001597
|
£16.41
|
£19.69
|
|
|
854 - WHEEL
BSD-2609004723.A2
2609004723
|
£17.22
|
£20.67
|
|
