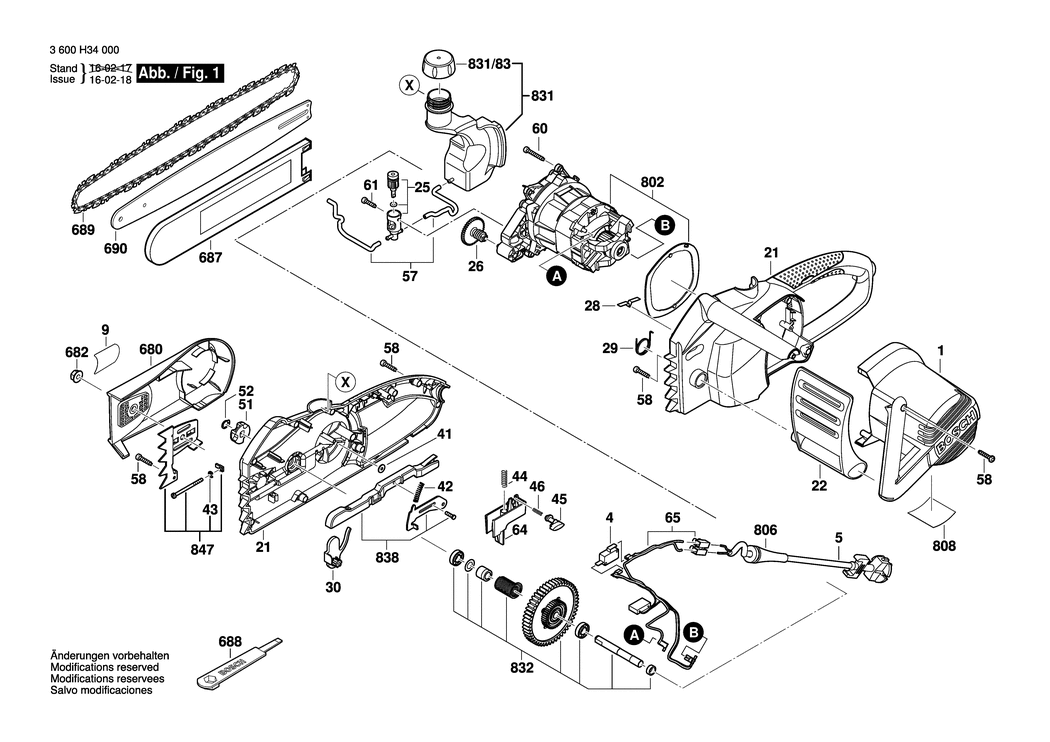

1 - MOTOR HOUSING
BSD-2609001023.A20
2609001023
|
£14.91
|
£17.89
|
|
|
4 - SWITCH
BSD-2609001096.A4
2609001096
|
£7.36
|
£8.83
|
|
|
5 - POWER SUPPLY CORD
BSD-1604460454.A10
1604460454
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE AKE 30. 1600W
BSD-2609001617.A1
2609001617
|
£3.34
|
£4.01
|
|
|
21 - HOUSING
BSD-2609001110.A18
2609001110
|
£57.05
|
£68.46
|
|
|
22 - PROTECTIVE SHIELD
BSD-2609001024.A4
2609001024
|
£10.10
|
£12.12
|
|
|
25 - PUMP
BSD-1600A009Y6.A4
1600A009Y6
|
£14.91
|
£17.89
|
|
|
26 - WORM-GEAR PAIR
BSD-2609001043.A5
2609001043
|
£8.67
|
£10.41
|
|
|
28 - SPRING
BSD-2609001047.A5
2609001047
|
£1.75
|
£2.10
|
|
|
29 - TORSION SPRING
BSD-2609006397.A5
2609006397
|
£1.75
|
£2.10
|
|
|
30 - LEVER
BSD-2609001032.A20
2609001032
|
£2.61
|
£3.13
|
|
|
41 - PLAIN WASHER DIN 9021-B 4.3-ST
BSD-2916011892.A47
2916011892
|
£1.75
|
£2.10
|
|
|
42 - SPRING
BSD-2609001093.A4
2609001093
|
£1.75
|
£2.10
|
|
|
43 - LOCKING WASHER DIN 6799-3.2
BSD-2916080906.A11
2916080906
|
£1.75
|
£2.10
|
|
|
44 - COMPRESSION SPRING
BSD-2609001048.A20
2609001048
|
£1.75
|
£2.10
|
|
|
45 - SAFETY SWITCH
BSD-2609001031.A3
2609001031
|
£2.80
|
£3.36
|
|
|
46 - COMPRESSION SPRING
BSD-2609001090.A20
2609001090
|
£1.75
|
£2.10
|
|
|
51 - SPROCKET WHEEL
BSD-2609001036.A3
2609001036
|
£6.52
|
£7.83
|
|
|
52 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A172
2916650001
|
£2.61
|
£3.13
|
|
|
57 - PIPE
BSD-2609001086.A5
2609001086
|
£1.75
|
£2.10
|
|
|
58 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A222
2603490023
|
£1.75
|
£2.10
|
|
|
60 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A983
2603490024
|
£1.75
|
£2.10
|
|
|
61 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A57
2603490021
|
£1.75
|
£2.10
|
|
|
64 - SWITCH SEGMENT
BSD-2609001029.A21
2609001029
|
£2.16
|
£2.59
|
|
|
65 - SUPPRESSION FILTER
BSD-2609004394.A4
2609004394
|
£7.36
|
£8.83
|
|
|
680 - PROTECTIVE COVER
BSD-2609001045.A8
2609001045
|
£16.41
|
£19.69
|
|
|
682 - HEX NUT
BSD-2609001307.A11
2609001307
|
£1.75
|
£2.10
|
|
|
687 - CHAIN GUARD
BSD-1605510329.A63
1605510329
|
£10.10
|
£12.12
|
|
|
688 - OFFSET SCREWDRIVER
BSD-2609001095.A8
2609001095
|
£4.26
|
£5.11
|
|
|
689 - SAW CHAIN AKE 30. AKE 30 LI
BSD-2609007363.A4
2609007363
|
£23.86
|
£28.63
|
|
|
690 - GUIDE RAIL 300 MM
BSD-1602317005.A11
1602317005
|
£21.52
|
£25.83
|
|
|
802 - MOTOR
BSD-2609002728.A21
2609002728
|
£72.18
|
£86.62
|
|
|
806 - GROMMET
BSD-2609005766.A44
2609005766
|
£2.80
|
£3.36
|
|
|
808 - NAMEPLATE
BSD-2609002996.A0
2609002996
|
£2.61
|
£3.13
|
|
|
831 - OIL RESERVOIR
BSD-2609001599.A22
2609001599
|
£18.96
|
£22.75
|
|
|
831/83 - RESERVOIR CAP
BSD-2609001040.A22
2609001040
|
£2.61
|
£3.13
|
|
|
832 - CLUTCH
BSD-2609001100.A21
2609001100
|
£33.74
|
£40.49
|
|
|
838 - LINKAGE
BSD-2609001597.A2
2609001597
|
£16.41
|
£19.69
|
|
|
847 - MOUNTING PLATE
BSD-1600A00318.A9
1600A00318
|
£7.36
|
£8.83
|
|
