Bosch AKE 30 . AKE 35. AKE 40 / 3600H34000 / EU 230 Volt Spare Parts

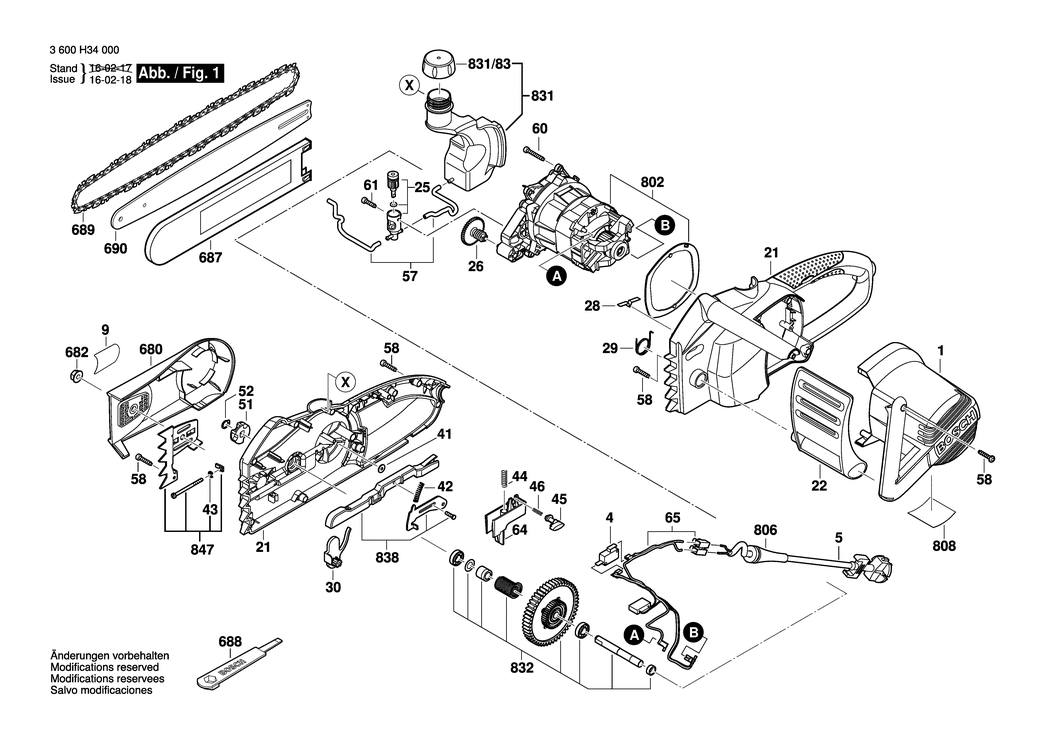

An exploded drawing and listing for the Bosch AKE 30 . AKE 35. AKE 40 / 3600H34000 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2609001023.A13 2609001023	£14.91	£17.89
4 - SWITCH BSD-2609001096.A11 2609001096	£7.36	£8.83
5 - POWER SUPPLY CORD EU 0.4m 2 x 1.0mm H07 RN-F BSD-2604460183.A24 2604460183	£8.67	£10.41
9 - MANUFACTURER'S NAMEPLATE AKE 30. 1600W BSD-2609001617.A5 2609001617	£3.34	£4.01
9 - MANUFACTURER'S NAMEPLATE AKE 35. 1600W BSD-2609001618.A0 2609001618	£3.34	£4.01
9 - MANUFACTURER'S NAMEPLATE AKE 40. 1600W BSD-2609001619.A5 2609001619	£1.95	£2.34
21 - HOUSING BSD-2609001110.A24 2609001110	£57.05	£68.46
22 - PROTECTIVE SHIELD BSD-2609001024.A11 2609001024	£10.10	£12.12
25 - PUMP BSD-1600A009Y6.A11 1600A009Y6	£14.91	£17.89
26 - WORM-GEAR PAIR BSD-2609001043.A11 2609001043	£8.67	£10.41
28 - SPRING BSD-2609001047.A11 2609001047	£1.75	£2.10
29 - TORSION SPRING BSD-2609006397.A0 2609006397	£1.75	£2.10
30 - LEVER BSD-2609001032.A13 2609001032	£2.61	£3.13
41 - PLAIN WASHER DIN 9021-B 4.3-ST BSD-2916011892.A42 2916011892	£1.75	£2.10
42 - SPRING BSD-2609001093.A7 2609001093	£1.75	£2.10
43 - LOCKING WASHER DIN 6799-3.2 BSD-2916080906.A2 2916080906	£1.75	£2.10
44 - COMPRESSION SPRING BSD-2609001048.A14 2609001048	£1.75	£2.10
45 - SAFETY SWITCH BSD-2609001031.A10 2609001031	£2.80	£3.36
46 - COMPRESSION SPRING BSD-2609001090.A17 2609001090	£1.75	£2.10
51 - SPROCKET WHEEL BSD-2609001036.A10 2609001036	£6.52	£7.83
52 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A181 2916650001	£2.61	£3.13
57 - PIPE BSD-2609001086.A9 2609001086	£1.75	£2.10
58 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A230 2603490023	£1.75	£2.10
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A974 2603490024	£1.75	£2.10
61 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A49 2603490021	£1.75	£2.10
64 - SWITCH SEGMENT BSD-2609001029.A14 2609001029	£2.16	£2.59
65 - SUPPRESSION FILTER BSD-2609004394.A0 2609004394	£7.36	£8.83
680 - PROTECTIVE COVER BSD-2609001045.A3 2609001045	£16.41	£19.69
682 - HEX NUT BSD-2609001307.A6 2609001307	£1.75	£2.10
687 - CHAIN GUARD BSD-1605510329.A59 1605510329	£10.10	£12.12
688 - OFFSET SCREWDRIVER BSD-2609001095.A3 2609001095	£4.26	£5.11
689 - SAW CHAIN AKE 30. AKE 30 LI BSD-2609007363.A0 2609007363	£23.86	£28.63
689 - SAW CHAIN AKE 35 BSD-2609007364.A22 2609007364	£23.86	£28.63
689 - SAW CHAIN AKE 40 BSD-2609007365.A0 2609007365	£27.31	£32.77
690 - GUIDE RAIL 300 MM BSD-1602317005.A7 1602317005	£21.52	£25.83
690 - GUIDE RAIL 350 MM BSD-1600A015H6.A8 1600A015H6	£33.45	£40.14
690 - GUIDE RAIL 400 MM BSD-1600A015H7.A13 1600A015H7	£46.82	£56.18
802 - MOTOR BSD-2609002728.A16 2609002728	£72.18	£86.62
806 - GROMMET BSD-2609005766.A35 2609005766	£2.80	£3.36
808 - NAMEPLATE BSD-2609001613.A0 2609001613	£3.72	£4.47
831 - OIL RESERVOIR BSD-2609001599.A15 2609001599	£18.96	£22.75
831/83 - RESERVOIR CAP BSD-2609001040.A15 2609001040	£2.61	£3.13
832 - CLUTCH BSD-2609001100.A15 2609001100	£33.74	£40.49
838 - LINKAGE BSD-2609001597.A9 2609001597	£16.41	£19.69
847 - MOUNTING PLATE BSD-1600A00318.A2 1600A00318	£7.36	£8.83
