Festool CTM 48 E LE EC/B22 R1 / 10018389 Spare Parts

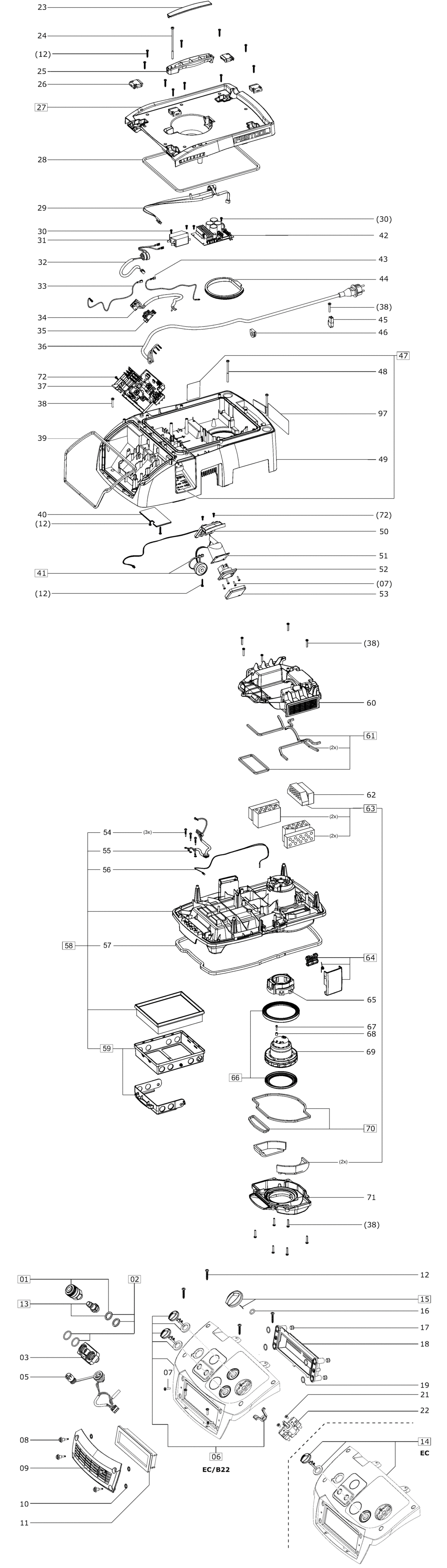

An exploded diagram and spare parts listing for the Festool CTM 48 E LE EC/B22 R1 / 10018389

	Ex VAT	Inc VAT
1 - QUICK-COUPLING SOCKET FSP-200473.A27 200473	£31.57	£37.88
2 - SEALING SET FSP-496573.A18 496573	£17.09	£20.51
3 - DISTRIBUTORS FSP-499289.A25 499289	£42.02	£50.43
5 - CABLE HARNESS FSP-498680.A5 498680	£77.63	£93.16
6 - CONVERSION KIT FSP-203982.A13 203982	£107.88	£129.45
7 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-452450.A173 452450	£2.00	£2.40
8 - TURN LOCK FASTENER FSP-200896.A7 200896	£13.61	£16.33
9 - AIR VENT FSP-203163.A8 203163	£12.98	£15.57
10 - RETAINING DISC FSP-460025.A22 460025	£2.00	£2.40
11 - AIR FILTER FSP-200816.A4 200816	£41.75	£50.10
12 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-400695.A83 400695	£2.00	£2.40
13 - COUPLING PIECE FSP-200846.A12 200846	£18.97	£22.76
15 - ROTARY KNOB AUTO/MAN/OFF FSP-496247.A40 496247	£18.84	£22.61
16 - O-RING FSP-10737044.A110 10737044	£2.00	£2.40
17 - NO LONGER AVAILABLE FSP-00000.A6416 00000	-
18 - FILTER ADAPTER FSP-201313.A8 201313	£18.84	£22.61
19 - O-RING FSP-702479.A3 702479	£5.90	£7.08
21 - FLAT HEAD SCREW M4 X 8 FSP-10737121.A131 10737121	£2.00	£2.40
22 - SWITCH FSP-496246.A63 496246	£21.53	£25.84
23 - HANDLE COVER FSP-200581.A19 200581	£11.92	£14.30
24 - CHEESE HEAD SCREW 5.0 X 119 MM FSP-10739634.A6 10739634	£2.00	£2.40
25 - GRIP FSP-204111.A3 204111	£18.22	£21.86
26 - LOCKING LATCH FSP-200873.A128 200873	£11.92	£14.30
27 - COVER FSP-10021262.A8 10021262	£68.34	£82.01
28 - COVER SEAL FSP-200820.A3 200820	£15.98	£19.17
29 - RIBBON CABLE FSP-498671.A19 498671	£65.99	£79.19
30 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A127 219071	£2.00	£2.40
31 - INTERFERENCE FILTER FSP-498672.A1 498672	£81.70	£98.04
32 - CABLE FSP-498673.A19 498673	£38.18	£45.81
33 - FLEXIBLE LEAD FSP-200840.A17 200840	£16.48	£19.77
34 - CABLE HARNESS FSP-200837.A3 200837	£28.58	£34.29
35 - CABLE HARNESS FSP-200628.A15 200628	£9.42	£11.31
36 - CABLE WITH PLUG FSP-200639.A32 200639	£64.02	£76.83
37 - CONVERSION KIT FSP-203982.A14 203982	£107.88	£129.45
38 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A26 452447	£2.00	£2.40
39 - GASKET FSP-200603.A7 200603	£20.09	£24.11
40 - END CAP FSP-200882.A14 200882	£44.05	£52.86
41 - SIGNAL GENERATOR FSP-498674.A1 498674	£44.92	£53.90
42 - CONTROL ELECTRONICS 220-240V FSP-498779.A6 498779	£342.74	£411.29
43 - FLEXIBLE LEAD FSP-200841.A2 200841	£16.35	£19.62
44 - GASKET FSP-200821.A17 200821	£23.82	£28.59
45 - CABLE CLAMP FSP-200536.A7 200536	£13.73	£16.48
46 - RUBBER SLEEVE FSP-200819.A17 200819	£21.33	£25.60
47 - STICKER FSP-498675.A19 498675	£34.44	£41.33
48 - RAISED-HEAD SCREW 5.0 X 80 MM FSP-452448.A18 452448	£2.00	£2.40
49 - HOUSING FSP-10021263.A6 10021263	£116.45	£139.74
50 - SIDE PANEL FSP-201314.A6 201314	£19.68	£23.61
51 - CUP SEAL FSP-200848.A0 200848	£21.97	£26.36
52 - SOCKET FSP-201316.A3 201316	£73.45	£88.14
53 - COVER FSP-200504.A40 200504	£12.85	£15.42
54 - RAISED-HEAD SCREW FSP-467456.A159 467456	£2.00	£2.40
55 - CABLE HARNESS FSP-498678.A18 498678	£39.46	£47.35
56 - CABLE HARNESS CT/CTL FSP-496252.A28 496252	£22.58	£27.10
57 - CONTAINER SEAL FSP-201007.A23 201007	£26.55	£31.86
58 - FILTER HOUSING FSP-201794.A38 201794	£80.35	£96.42
59 - FILTER HOLDER FSP-496255.A103 496255	£27.65	£33.18
60 - HOOD FSP-496257.A7 496257	£32.94	£39.53
61 - SUCTION HOOD FSP-496250.A38 496250	£39.98	£47.97
62 - NOISE-DAMPING ELEMENT FSP-200879.A20 200879	£12.85	£15.42
63 - NOISE INSULATION FSP-496258.A42 496258	£39.34	£47.21
64 - CLAMP FSP-496262.A131 496262	£20.09	£24.11
65 - GASKET FSP-200858.A3 200858	£39.55	£47.46
66 - SEALING SET FSP-496263.A14 496263	£26.14	£31.37
67 - CHEESE HEAD SCREW FSP-702520.A7 702520	£2.00	£2.40
68 - SLEEVE FSP-200897.A6 200897	£14.60	£17.52
69 - TURBINE 220-240V FSP-498780.A14 498780	£303.75	£364.50
70 - SEAL KIT FSP-496256.A70 496256	£22.58	£27.10
72 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A52 228713	£2.00	£2.40
76 - BRACKET FSP-500314.A132 500314	£17.98	£21.57
77 - HOLDER FSP-200591.A119 200591	£7.87	£9.44
78 - GASKET FSP-200574.A22 200574	£4.06	£4.87
79 - CONTACT FSP-496221.A112 496221	£24.46	£29.35
80 - SLEEVE FSP-200568.A106 200568	£12.42	£14.90
81 - RAISED-HEAD SCREW FSP-467456.A158 467456	£2.00	£2.40
82 - SCREEN CT36 FSP-496267.A36 496267	£20.09	£24.11
86 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A25 452447	£2.00	£2.40
87 - SUPPORT FSP-200593.A37 200593	£9.80	£11.76
87 - SUPPORT FSP-200824.A2 200824	£7.99	£9.59
88 - ROLLER FSP-452840.A200 452840	£19.35	£23.22
89 - CONTAINER CT B22/EC FSP-498669.A15 498669	£216.36	£259.63
90 - PIPE FSP-200823.A39 200823	£21.08	£25.30
91 - WHEEL FSP-496230.A27 496230	£33.93	£40.72
92 - TOOTH RING FSP-202484.A16 202484	£2.87	£3.44
93 - WHEEL COVER FSP-200570.A111 200570	£9.49	£11.39
94 - BLANKING PLUG FSP-452899.A149 452899	£12.72	£15.27
95 - HANDLE FSP-497295.A62 497295	£122.53	£147.04
96 - HANDLE FSP-500253.A104 500253	£58.72	£70.47
97 - WARNING PLATE FSP-477177.A47 477177	£3.12	£3.75
98 - ROTARY KNOB FSP-201662.A6 201662	£22.25	£26.70
99 - COVER FSP-201975.A142 201975	£45.25	£54.30
100 - PEDAL FSP-500317.A53 500317	£26.82	£32.19
101 - CONTAINER FSP-202342.A7 202342	£197.48	£236.97
9999 - NO LONGER AVAILABLE FSP-00000.A6409 00000	-
