Festool CTL MINI GB 110V / 456884 Spare Parts

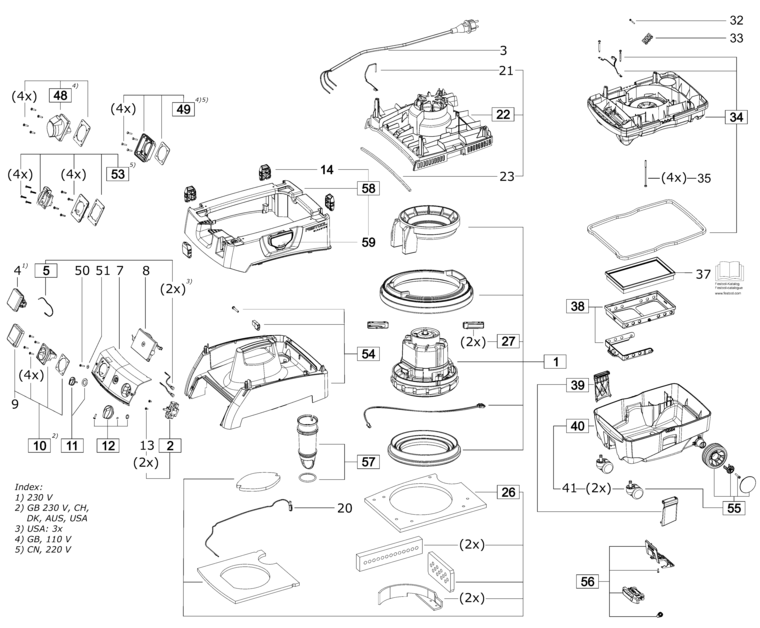

An exploded diagram and spare parts listing for the Festool CTL MINI GB 110V / 456884

	Ex VAT	Inc VAT
1 - TURBINE USA 120V FSP-10568456.A5 10568456	£144.41	£173.29
2 - SWITCH 120V FSP-456827.A2 456827	-
3 - MAINS CABLE GB 110V FSP-456837.A1 456837	£64.02	£76.83
4 - SOCKET FSP-200531.A87 200531	£24.33	£29.20
5 - FLEXIBLE LEAD FSP-456822.A6 456822	£17.22	£20.66
6 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-452450.A182 452450	£2.00	£2.40
7 - SCREEN USA FSP-200432.A2 200432	£38.39	£46.07
8 - ELECTRONIC 110V FSP-456828.A0 456828	£60.23	£72.28
9 - COVER FSP-200504.A23 200504	£12.85	£15.42
10 - SOCKET GB 240V FSP-454799.A7 454799	£44.10	£52.92
11 - ROTARY KNOB FSP-456813.A22 456813	£8.55	£10.26
12 - ROTARY KNOB FSP-456814.A2 456814	£16.10	£19.32
13 - FLAT HEAD SCREW M4 X 8 FSP-10737121.A123 10737121	£2.00	£2.40
14 - LOCKING LATCH FSP-200534.A43 200534	£8.99	£10.79
16 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A24 452447	£2.00	£2.40
17 - CABLE CLAMP FSP-200536.A11 200536	£13.73	£16.48
18 - HOUSING WITH TURN LOCK FASTENER FSP-499748.A2 499748	£69.38	£83.26
19 - INTAKE PIPE FSP-499725.A22 499725	£25.58	£30.69
20 - SPRING PLATE FSP-200425.A8 200425	£14.35	£17.22
21 - PTC RESISTOR FSP-200422.A3 200422	£20.94	£25.13
22 - HOUSING 230 V FSP-456810.A22 456810	£40.68	£48.81
23 - GASKET FSP-200423.A20 200423	£11.55	£13.86
24 - GASKET FSP-456065.A8 456065	£9.91	£11.89
25 - GASKET FSP-452029.A8 452029	£11.54	£13.85
26 - INSULATING MAT FSP-456821.A16 456821	£38.92	£46.71
27 - CARBON SET 100-120V FSP-496269.A8 496269	£42.10	£50.52
28 - CABLE HARNESS 230 V FSP-456771.A8 456771	£14.38	£17.25
29 - GASKET FSP-456066.A0 456066	£9.59	£11.51
30 - RAISED-HEAD SCREW FSP-454640.A7 454640	£3.62	£4.34
31 - CABLE HARNESS FSP-200424.A1 200424	£16.72	£20.06
32 - RAISED-HEAD SCREW 3.5 X 30 MM FSP-400669.A16 400669	£2.00	£2.40
33 - TERMINAL FSP-452099.A87 452099	£6.55	£7.86
34 - FILTER HOUSING FSP-456824.A6 456824	£71.98	£86.38
35 - CHEESE HEAD SCREW 5.0 X 119 MM FSP-10739634.A1 10739634	£2.00	£2.40
36 - CONTAINER SEAL FSP-201008.A8 201008	£22.52	£27.02
37 - MAIN FILTER FSP-456790.A0 456790	£19.42	£23.31
38 - SIDE PANEL FSP-456820.A6 456820	£17.68	£21.22
39 - CLAMP FSP-456812.A0 456812	£12.42	£14.90
40 - CONTAINER FSP-204880.A4 204880	£64.57	£77.48
41 - ROLLER FSP-452945.A1 452945	£18.84	£22.61
42 - BRACKET FSP-499689.A21 499689	£30.82	£36.99
43 - PEDAL FSP-200541.A1 200541	£11.01	£13.21
44 - TORSION SPRING FSP-200539.A1 200539	£3.00	£3.60
45 - WHEEL FSP-456886.A1 456886	£12.42	£14.90
46 - PLASTIC PLUG FSP-200538.A8 200538	£9.86	£11.83
47 - PLASTIC PLUG FSP-200532.A1 200532	£8.61	£10.33
48 - SOCKET GB 110V FSP-492720.A2 492720	£48.98	£58.77
49 - FLANGE GB 110V FSP-492721.A10 492721	£21.33	£25.60
50 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-400584.A6 400584	£2.00	£2.40
51 - WASHER FSP-400848.A10 400848	£2.00	£2.40
52 - GASKET FSP-200813.A8 200813	£20.72	£24.86
54 - HOUSING WITH TURN LOCK FASTENER FSP-499748.A6 499748	£69.38	£83.26

Attribute Name	Value
Brand	Festool
