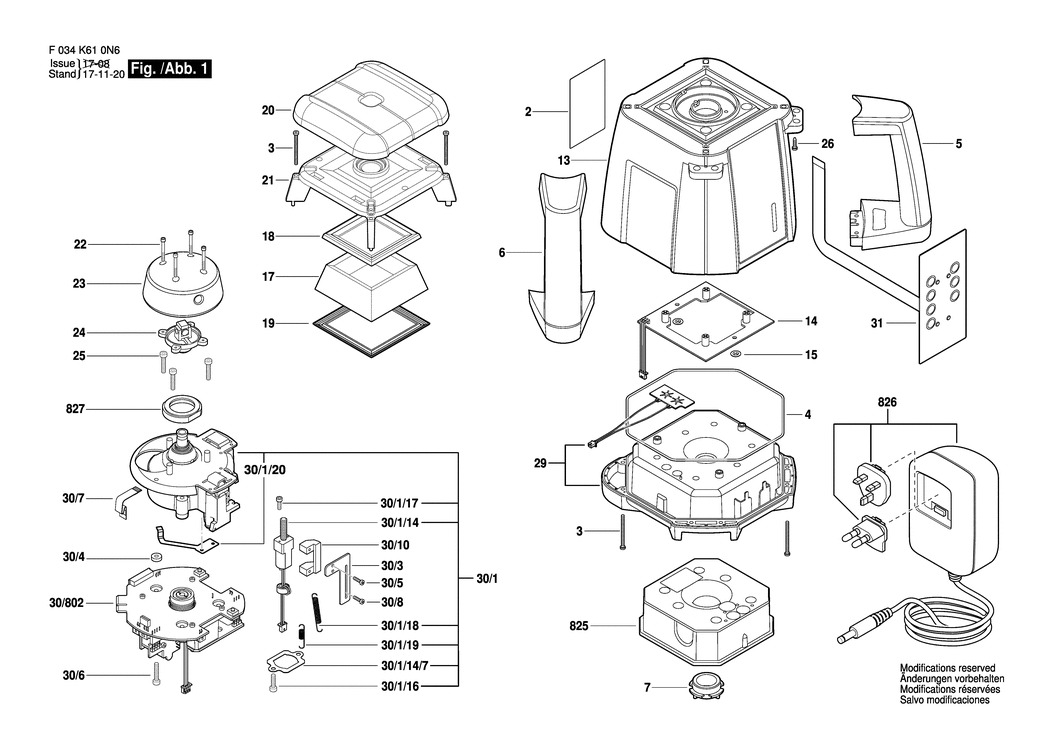

2 - NAMEPLATE
BSD-2609135946.A0
2609135946
|
-
|
|
|
|
3 - SCREW
BSD-2610A07331.A3
2610A07331
|
£1.75
|
£2.10
|
|
|
4 - O-RING
BSD-2610A14930.A2
2610A14930
|
£3.72
|
£4.47
|
|
|
5 - HANDLE
BSD-2610A14933.A1
2610A14933
|
£16.41
|
£19.69
|
|
|
6 - HANDLE
BSD-2610A14934.A2
2610A14934
|
£16.41
|
£19.69
|
|
|
7 - SCREW PLUG
BSD-2610A06843.A1
2610A06843
|
£7.78
|
£9.33
|
|
|
13 - HOUSING
BSD-2610A14919.A2
2610A14919
|
£54.42
|
£65.30
|
|
|
14 - PRINTED-BOARD ASSEMBLY
BSD-2610A14956.A3
2610A14956
|
-
|
|
|
|
15 - RETAINING PUSH RING
BSD-2610A15759.A1
2610A15759
|
£6.52
|
£7.83
|
|
|
17 - WINDOW
BSD-2610A06622.A1
2610A06622
|
£71.84
|
£86.21
|
|
|
18 - RUBBER GASKET
BSD-2610A13364.A2
2610A13364
|
£11.30
|
£13.56
|
|
|
19 - RUBBER GASKET
BSD-2610A13365.A3
2610A13365
|
£11.30
|
£13.56
|
|
|
20 - COVER PANEL
BSD-2610A15208.A1
2610A15208
|
£16.41
|
£19.69
|
|
|
21 - CAGE
BSD-2610A15203.A0
2610A15203
|
£21.52
|
£25.83
|
|
|
22 - HEX SOCKET HEAD CAP SCREW
BSD-2610A12362.A3
2610A12362
|
£1.75
|
£2.10
|
|
|
23 - ROTATING BEACON
BSD-2610A14598.A4
2610A14598
|
£31.64
|
£37.97
|
|
|
24 - LENS MOUNT
BSD-2610A12298.A8
2610A12298
|
£66.68
|
£80.01
|
|
|
25 - HEX SOCKET HEAD CAP SCREW
BSD-2610A12284.A1
2610A12284
|
£1.84
|
£2.21
|
|
|
26 - SCREW
BSD-2610A14967.A0
2610A14967
|
£1.75
|
£2.10
|
|
|
29 - HOUSING
BSD-2610A14922.A0
2610A14922
|
£63.50
|
£76.20
|
|
|
30/1 - MOTOR HOUSING
BSD-2610A12237.A6
2610A12237
|
£263.33
|
£316.00
|
|
|
30/1/14 - MOTOR-GEARBOX ASSEMBLY
BSD-2610A13249.A3
2610A13249
|
£35.42
|
£42.51
|
|
|
30/1/14/7 - MOTOR PLATE
BSD-2610A12302.A15
2610A12302
|
-
|
|
|
|
30/1/16 - TAPPING SCREW
BSD-2610A12301.A2
2610A12301
|
£1.84
|
£2.21
|
|
|
30/1/17 - HEX SOCKET HEAD CAP SCREW
BSD-2610A12275.A0
2610A12275
|
£1.84
|
£2.21
|
|
|
30/1/18 - EXTENSION SPRING
BSD-2610A12283.A15
2610A12283
|
£1.75
|
£2.10
|
|
|
30/1/19 - EXTENSION SPRING
BSD-2610A13065.A12
2610A13065
|
£1.75
|
£2.10
|
|
|
30/1/20 - BRAKE SPRING
BSD-2610A14394.A2
2610A14394
|
£1.84
|
£2.21
|
|
|
30/3 - LIMIT SWITCH
BSD-2610A13397.A12
2610A13397
|
£1.84
|
£2.21
|
|
|
30/4 - SPECIAL WASHER
BSD-2610A12269.A0
2610A12269
|
£2.74
|
£3.29
|
|
|
30/5 - HEX SOCKET HEAD CAP SCREW
BSD-2610A12272.A15
2610A12272
|
£1.75
|
£2.10
|
|
|
30/6 - HEX SOCKET HEAD CAP SCREW
BSD-2610A12284.A0
2610A12284
|
£1.84
|
£2.21
|
|
|
30/7 - FLEXIBLE PCB
BSD-2610A12359.A12
2610A12359
|
£3.51
|
£4.21
|
|
|
30/8 - TAPPING SCREW
BSD-2610A12301.A1
2610A12301
|
£1.84
|
£2.21
|
|
|
30/10 - LIMIT SWITCH
BSD-2610A13399.A3
2610A13399
|
£1.84
|
£2.21
|
|
|
30/802 - LEVELING ELEMENT
BSD-2610A16119.A0
2610A16119
|
£218.41
|
£262.09
|
|
|
31 - PRINTED-BOARD ASSEMBLY
BSD-2610A15201.A1
2610A15201
|
£27.23
|
£32.68
|
|
|
825 - BATTERY CASE
BSD-2610A14924.A0
2610A14924
|
£19.45
|
£23.34
|
|
|
826 - BATTERY CHARGER
BSD-2610A15290.A2
2610A15290
|
£25.05
|
£30.06
|
|
|
827 - BALL SLEEVE
BSD-2610A16051.A0
2610A16051
|
£9.11
|
£10.93
|
|
