CST Berger PLP-140 Profile / F034K61007 / EU Spare Parts

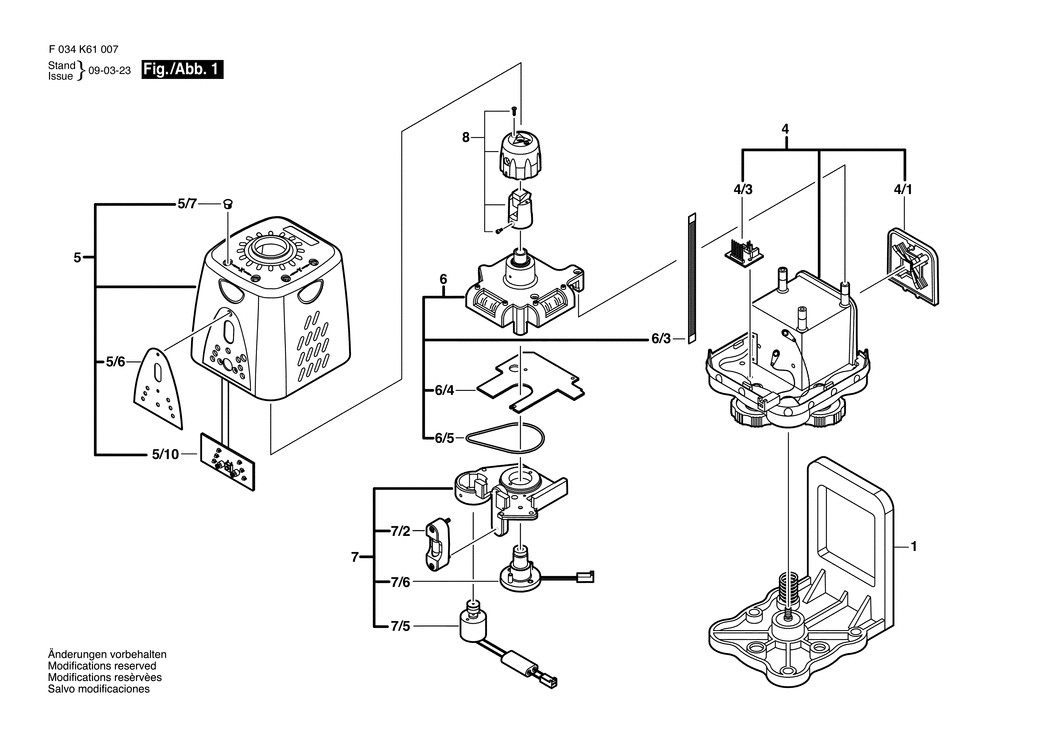

An exploded drawing and listing for the CST Berger PLP-140 Profile / F034K61007 / EU

	Ex VAT	Inc VAT
1 - BASE PLATE BSD-2610A07201.A1 2610A07201	£14.91	£17.89
4 - BATTERY BOX ASSEMBLY BSD-2610A07164.A1 2610A07164	£54.42	£65.30
4/1 - BATTERY COVER BSD-2610A06691.A1 2610A06691	£11.30	£13.56
4/3 - PRINTED CIRCUIT BOARD BSD-2610A07176.A0 2610A07176	£23.86	£28.63
5 - HOUSING BSD-2610A03540.A0 2610A03540	-
5/6 - KEYBOARD BSD-2610A03535.A0 2610A03535	-
5/7 - PLUG BSD-2610A07146.A1 2610A07146	£1.75	£2.10
5/10 - SWITCHBOARD BSD-2610A07175.A1 2610A07175	£27.23	£32.68
6 - TOP PLATE BSD-2610A07163.A0 2610A07163	£93.88	£112.65
6/3 - CONNECTING CABLE BSD-2610A06539.A0 2610A06539	£4.26	£5.11
6/4 - MOTHERBOARD BSD-2610A07174.A1 2610A07174	£48.38	£58.06
6/5 - O-RING BSD-2610A06662.A1 2610A06662	£3.72	£4.47
7 - MOUNTING PLATE BSD-2610A07168.A1 2610A07168	£135.25	£162.30
7/2 - BUBBLE LEVEL BSD-2610A07173.A0 2610A07173	£11.30	£13.56
7/5 - MOTOR BSD-2610A07234.A0 2610A07234	-
7/6 - LASER MODULE BSD-2610A06729.A0 2610A06729	-
8 - PRISM BSD-2610A07167.A0 2610A07167	£63.50	£76.20

Attribute Name	Value
Brand	CST Berger
