CST Berger LMH-CU / F034K61700 / EU Spare Parts

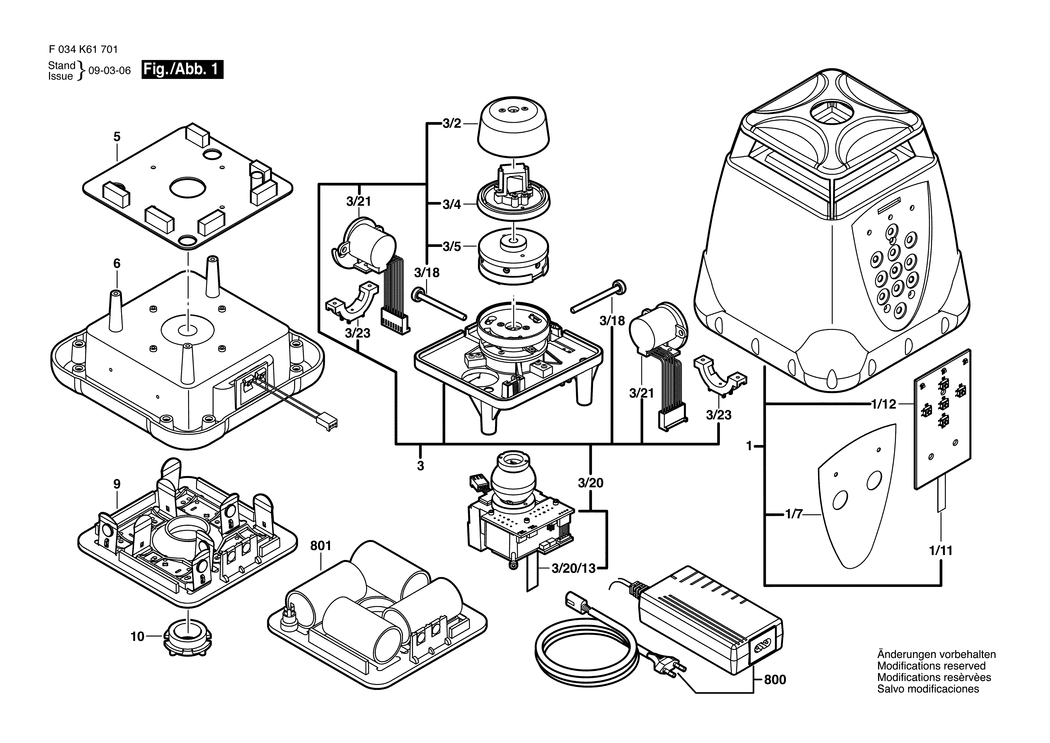

An exploded drawing and listing for the CST Berger LMH-CU / F034K61700 / EU

	Ex VAT	Inc VAT
1 - HOUSING BSD-2610A07090.A0 2610A07090	£458.51	£550.21
1/7 - KEYBOARD BSD-2610A07118.A0 2610A07118	-
1/11 - CABLE BSD-2610A06535.A12 2610A06535	£3.72	£4.47
1/12 - PRINTED CIRCUIT BOARD BSD-2610A07219.A0 2610A07219	£63.50	£76.20
3 - ASSEMBLY BSD-2610A07359.A5 2610A07359	-
3/2 - CAP BSD-2610A07662.A5 2610A07662	£11.30	£13.56
3/4 - BASE BSD-2610A07339.A7 2610A07339	£179.37	£215.24
3/5 - MOTOR BSD-2610A08094.A5 2610A08094	£81.81	£98.17
3/18 - BEARING BSD-2610A07490.A12 2610A07490	£16.41	£19.69
3/20 - LASER MODULE BSD-2610A07348.A5 2610A07348	£357.27	£428.72
3/20/13 - CONNECTING CABLE BSD-2610A06534.A11 2610A06534	£6.52	£7.83
3/21 - MOTOR BSD-2610A07457.A1 2610A07457	£57.02	£68.42
3/23 - CLAMP BSD-2610A07294.A5 2610A07294	£2.52	£3.02
5 - MOTHERBOARD BSD-2610A07444.A9 2610A07444	£243.45	£292.14
6 - BATTERY HOUSING BSD-2610A06984.A2 2610A06984	£103.14	£123.77
9 - BATTERY HOUSING BSD-2610A06898.A2 2610A06898	£45.67	£54.80
10 - SCREW PLUG BSD-2610A06843.A17 2610A06843	£7.78	£9.33
800 - CHARGER 110V; USA BSD-2610A15129.A8 2610A15129	£57.02	£68.42
800 - CHARGER 230V; EU BSD-2610A15131.A8 2610A15131	-
800 - CHARGER 110V; GB BSD-2610A15132.A10 2610A15132	-
800 - CHARGER 230V; AUS BSD-2610A15130.A10 2610A15130	-
801 - BATTERY PACK NiMH BSD-2610A01249.A4 2610A01249	-
