Bostitch N50FN Type REV 0 Finish Nailer Spare Parts

Home Details Reviews Delivery

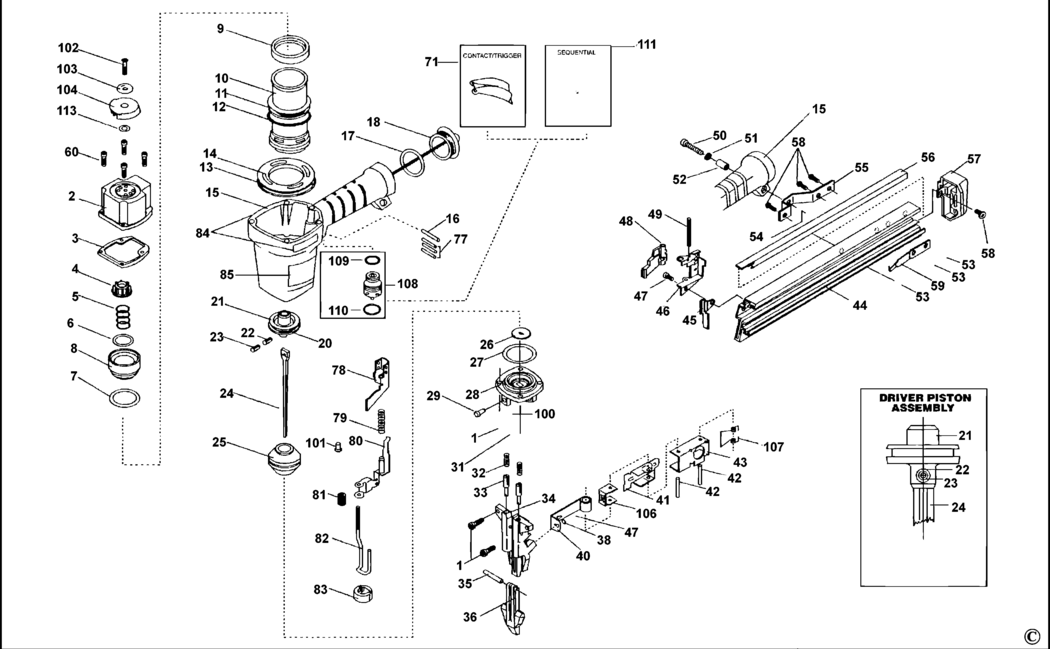

An exploded drawing and spare parts listing for the Bostitch N50FN Type REV 0 Finish Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSC5080-20.A45 MSC5080-20	£1.66	£1.99
2 - NO LONGER AVAILABLE BDE-000000-00.A30913 000000-00	-
3 - SEAL BDE-N50013.A0 N50013	£1.66	£1.99
4 - STOP BDE-T50002.A6 T50002	-
5 - NO LONGER AVAILABLE BDE-000000-00.A30912 000000-00	-
6 - O RING BDE-MRG039231.A6 MRG039231	£18.00	£21.60
7 - O RING BDE-RG183109.A3 RG183109	£18.42	£22.10
8 - VALVE BDE-T50003.A3 T50003	-
9 - SEAL BDE-N70151.A2 N70151	-
10 - NO LONGER AVAILABLE BDE-000000-00.A30914 000000-00	-
11 - O RING BDE-850605.A5 850605	£1.66	£1.99
12 - SEAL BDE-N50034.A11 N50034	£7.01	£8.41
13 - O RING BDE-850683.A14 850683	£1.66	£1.99
14 - NO LONGER AVAILABLE BDE-000000-00.A30915 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A30916 000000-00	-
16 - PIN BDE-MPP030020.A68 MPP030020	£1.66	£1.99
17 - O RING BDE-850235.A8 850235	£1.66	£1.99
18 - END CAP BDE-11346-0954302.A17 11346-0954302	£15.01	£18.01
20 - O RING BDE-851547.A5 851547	-
21 - NO LONGER AVAILABLE BDE-000000-00.A30917 000000-00	-
22 - PIN BDE-UB3808.3.A1 UB3808.3	-
23 - PIN BDE-UB2108.5.A1 UB2108.5	-
24 - NO LONGER AVAILABLE BDE-000000-00.A30918 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A30919 000000-00	-
26 - NO LONGER AVAILABLE BDE-000000-00.A30920 000000-00	-
27 - O RING BDE-851483-S.A21 851483-S	£1.66	£1.99
28 - NO LONGER AVAILABLE BDE-000000-00.A30921 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A30922 000000-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A30923 000000-00	-
32 - SPRING COMPRESSION BDE-N60032.A2 N60032	-
33 - NO LONGER AVAILABLE BDE-000000-00.A30924 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A30925 000000-00	-
35 - PIN BDE-UB3817.A2 UB3817	-
36 - NO LONGER AVAILABLE BDE-000000-00.A30931 000000-00	-
38 - WASHER SPECIAL BDE-LW10.A2 LW10	-
40 - NO LONGER AVAILABLE BDE-000000-00.A30926 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A30927 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A30928 000000-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A30929 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A30930 000000-00	-
45 - GUARD BDE-N50058 N50058	-
46 - NO LONGER AVAILABLE BDE-000000-00.A30932 000000-00	-
47 - BOLT BDE-MSC5080-8.A3 MSC5080-8	£1.66	£1.99
48 - NO LONGER AVAILABLE BDE-000000-00.A30933 000000-00	-
49 - PIN BDE-N60101.A1 N60101	-
50 - SCREW BDE-MSC6100-30.A30 MSC6100-30	£1.66	£1.99
51 - WASHER BDE-MPW6.2.A1 MPW6.2	£1.66	£1.99
52 - BUSHING BDE-N70143.A18 N70143	£1.66	£1.99
53 - LOCK-NUT BDE-MHE5080-100.A13 MHE5080-100	£1.66	£1.99
54 - NUT BDE-MHE6100-100.A54 MHE6100-100	£1.66	£1.99
55 - NO LONGER AVAILABLE BDE-000000-00.A30934 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A30935 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A30936 000000-00	-
58 - SCREW BDE-MSB5080-10.A0 MSB5080-10	-
59 - SPRING BDE-N60020.A1 N60020	-
60 - SCREW BDE-MSC5080-25.A10 MSC5080-25	£1.66	£1.99
71 - KIT BDE-CNTK2.A37 CNTK2	£6.06	£7.27
77 - PIN BDE-102549.A6 102549	£1.66	£1.99
78 - NO LONGER AVAILABLE BDE-000000-00.A30937 000000-00	-
79 - SPRING BDE-N60038.A1 N60038	-
80 - NO LONGER AVAILABLE BDE-000000-00.A30938 000000-00	-
81 - TRIP SA BDE-N60011.A0 N60011	-
82 - NO LONGER AVAILABLE BDE-000000-00.A30939 000000-00	-
83 - TIP BDE-N60013.A1 N60013	-
85 - WARNING LABEL BDE-159912.A14 159912	£1.66	£1.99
100 - NO LONGER AVAILABLE BDE-000000-00.A30940 000000-00	-
101 - STOP BDE-N60084.A1 N60084	-
102 - SCREW BDE-MSF6100-20.A1 MSF6100-20	-
103 - WASHER BDE-T50104.A7 T50104	-
104 - NO LONGER AVAILABLE BDE-000000-00.A30941 000000-00	-
105 - NO LONGER AVAILABLE BDE-000000-00.A30942 000000-00	-
106 - NO LONGER AVAILABLE BDE-000000-00.A30943 000000-00	-
107 - NO LONGER AVAILABLE BDE-000000-00.A30944 000000-00	-
108 - VALVE BDE-TVA6.A58 TVA6	£16.52	£19.82
109 - O RING BDE-86459.A29 86459	£1.66	£1.99
110 - O RING BDE-851554.A12 851554	£4.69	£5.63
111 - KIT BDE-SEQ6.A49 SEQ6	£11.18	£13.41
113 - WASHER BDE-MPW6.A5 MPW6	£2.78	£3.34
151 - GRIP BDE-107490.A12 107490	£4.83	£5.80

Attribute Name	Value
Brand	Bostitch
