Bostitch P88SJ-E Type REV C Pneumatic Stapler Spare Parts

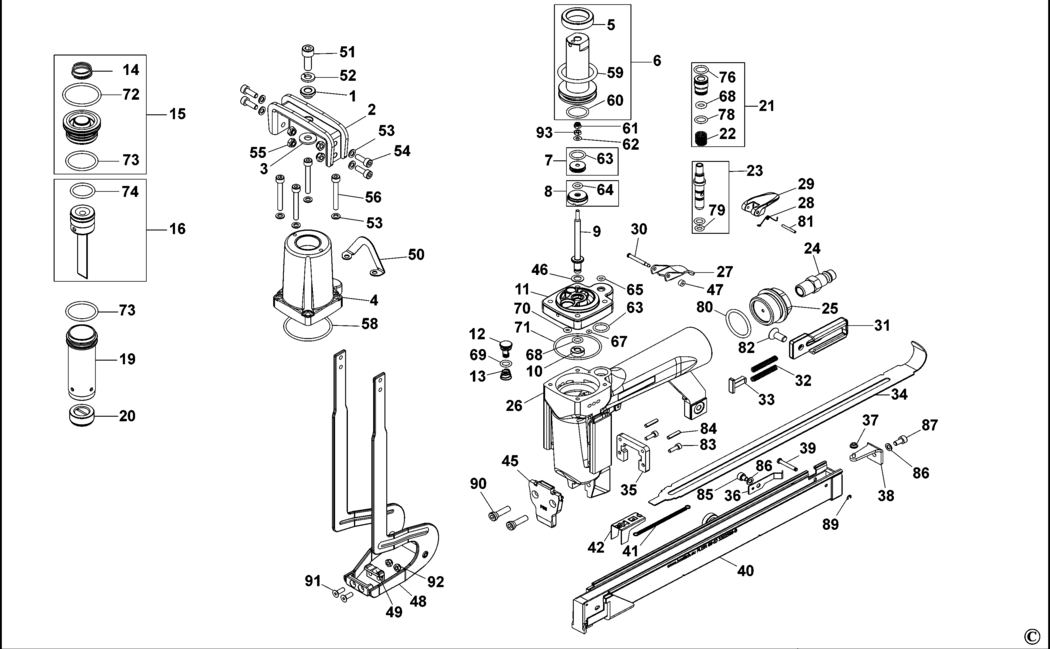

An exploded drawing and spare parts listing for the Bostitch P88SJ-E Type REV C Pneumatic Stapler

	Ex VAT	Inc VAT
1 - BUSHING BDE-A61608201.A1 A61608201	£4.83	£5.80
2 - BRIDGE BDE-A61601501.A1 A61601501	£11.18	£13.41
3 - WASHER BDE-A61604701.A1 A61604701	£1.66	£1.99
4 - HOUSING BDE-A61600401A.A1 A61600401A	£48.48	£58.17
5 - WASHER BDE-A61604501.A1 A61604501	£4.83	£5.80
6 - PISTON SA UPPER PISTON BDE-C6163001.A1 C6163001	£56.97	£68.36
7 - PISTON INNER PISTON BDE-C6163004.A0 C6163004	£3.92	£4.70
8 - STOP NUT BDE-C6163005.A1 C6163005	£11.18	£13.41
9 - SHAFT BDE-A61607601A.A1 A61607601A	£30.98	£37.18
10 - NUT BDE-A61607801.A0 A61607801	£9.69	£11.63
11 - DIAPHRAGM BDE-A61600501A.A0 A61600501A	£26.47	£31.76
12 - VALVE BDE-A61606001.A1 A61606001	£11.18	£13.41
13 - SPRING BDE-A61606201.A0 A61606201	£1.66	£1.99
14 - SPRING BDE-A61608601.A0 A61608601	£1.66	£1.99
15 - VALVES & SEALS KIT BDE-C6163002.A0 C6163002	£80.46	£96.55
16 - PISTON SA P88 BDE-P88-P5 P88-P5	£46.49	£55.79
19 - CYLINDER BDE-A61607101.A0 A61607101	£107.43	£128.92
20 - BUMPER BDE-A61603701.A1 A61603701	£6.06	£7.27
21 - VALVE BODY BDE-C6163003.A0 C6163003	£20.50	£24.60
22 - SPRING BDE-A61608401.A0 A61608401	£1.66	£1.99
23 - SHAFT SA BDE-C6163006.A0 C6163006	£15.01	£18.01
24 - CONNECTOR MALE BDE-A00100805.A2 A00100805	£3.39	£4.07
25 - END CAP BDE-P88-P7-1.A0 P88-P7-1	£30.98	£37.18
27 - TRIGGER BDE-A61602701.A1 A61602701	£3.39	£4.07
28 - SPRING BDE-A61609001.A1 A61609001	£1.66	£1.99
29 - STOP PLATE BDE-A61602901.A0 A61602901	£7.40	£8.88
30 - PIN BDE-A61606801.A0 A61606801	£3.39	£4.07
31 - PLATE BDE-A61601402.A0 A61601402	£16.52	£19.82
32 - SPRING COMPRESSION BDE-A61608801.A1 A61608801	£1.66	£1.99
33 - BLOCK BDE-A61600701.A0 A61600701	£8.08	£9.70
34 - COVER BDE-A61600801.A1 A61600801	£12.53	£15.04
35 - PLATE BDE-A61604601.A0 A61604601	£11.18	£13.41
36 - STOP BDE-A61601801.A1 A61601801	£1.88	£2.26
37 - BUSHING BDE-A61608701.A0 A61608701	£2.32	£2.78
38 - REAR BRACKET BDE-A61604101A.A5 A61604101A	£12.53	£15.04
39 - PIN BDE-A61607001.A1 A61607001	£4.83	£5.80
40 - MAGAZINE P88 BDE-C6163007 C6163007	£265.84	£319.01
41 - SPRING TORSION BDE-A61609101.A0 A61609101	£4.83	£5.80
42 - PAWL P88 BDE-A61600201 A61600201	£3.92	£4.70
45 - GUIDE P88 BDE-A61605401A A61605401A	£48.48	£58.17
46 - WASHER BDE-A61608901.A0 A61608901	£1.66	£1.99
47 - RING BDE-A50500501.A0 A50500501	£1.66	£1.99
48 - JAW BDE-A61601901A.A0 A61601901A	£119.24	£143.09
49 - ANVIL BDE-A61601702.A0 A61601702	£25.12	£30.15
50 - BRACKET BDE-A61605301.A0 A61605301	£3.39	£4.07
51 - BOLT BDE-BAC0406162.A0 BAC0406162	£1.66	£1.99
52 - WASHER BDE-BAE01062.A2 BAE01062	£1.66	£1.99
53 - WASHER BDE-A61609301.A2 A61609301	£1.66	£1.99
54 - BOLT BDE-BAC0404122.A0 BAC0404122	£1.66	£1.99
55 - NUT BDE-BAD01041.A0 BAD01041	£1.66	£1.99
56 - BOLT BDE-BAC0404302.A1 BAC0404302	£1.66	£1.99
58 - O RING BDE-BAB020350.A1 BAB020350	£1.66	£1.99
59 - O RING BDE-BAB035281.A0 BAB035281	£1.66	£1.99
60 - O RING BDE-BAB019160.A0 BAB019160	£1.66	£1.99
61 - NUT BDE-BAD01031.A1 BAD01031	£1.66	£1.99
62 - WASHER BDE-A61609601.A1 A61609601	£1.66	£1.99
63 - O RING BDE-BAB017108.A0 BAB017108	£1.66	£1.99
64 - O RING BDE-BAB018048.A1 BAB018048	£1.66	£1.99
65 - O RING BDE-BAB017036.A0 BAB017036	£1.66	£1.99
67 - O RING BDE-BAB015018.A1 BAB015018	£1.66	£1.99
68 - O RING BDE-BAB017060.A0 BAB017060	£1.66	£1.99
69 - O RING BDE-BAB017067.A1 BAB017067	£1.66	£1.99
70 - O RING BDE-BAB019034.A1 BAB019034	£1.66	£1.99
71 - O RING BDE-BAB017378.A1 BAB017378	£1.66	£1.99
72 - O RING BDE-BAB026345.A1 BAB026345	£1.66	£1.99
73 - O RING BDE-BAB026282.A0 BAB026282	£1.66	£1.99
74 - O RING BDE-BAB026202.A0 BAB026202	£1.66	£1.99
76 - O RING BDE-BAB017092.A1 BAB017092	£1.66	£1.99
78 - O RING BDE-BAB017076.A0 BAB017076	£1.66	£1.99
79 - O RING BDE-BAB017044.A1 BAB017044	£1.66	£1.99
80 - O RING BDE-BAB026250.A1 BAB026250	£1.66	£1.99
81 - PIN BDE-BAA020016.A1 BAA020016	£1.66	£1.99
82 - BOLT BDE-BAC0206122.A0 BAC0206122	£1.66	£1.99
83 - BOLT BDE-BAC0403102.A1 BAC0403102	£1.66	£1.99
84 - SPRING BDE-BAA030010.A19 BAA030010	£1.66	£1.99
85 - BOLT BDE-BAC0404062.A0 BAC0404062	£1.66	£1.99
86 - WASHER BDE-A61609301.A3 A61609301	£1.66	£1.99
87 - BOLT BDE-BAC0404102.A7 BAC0404102	£1.66	£1.99
89 - CIRCLIP BDE-BAF10252.A10 BAF10252	£1.66	£1.99
90 - BOLT BDE-A61609401.A0 A61609401	£1.66	£1.99
91 - SCREW BDE-BAC0204142.A1 BAC0204142	£1.66	£1.99
92 - NUT BDE-BAD01041.A1 BAD01041	£1.66	£1.99
93 - NUT BDE-BAD04031.A1 BAD04031	£1.66	£1.99

Attribute Name	Value
Brand	Bostitch
