Bostitch N70CB-1-E Type Rev J Coil Nailer Spare Parts

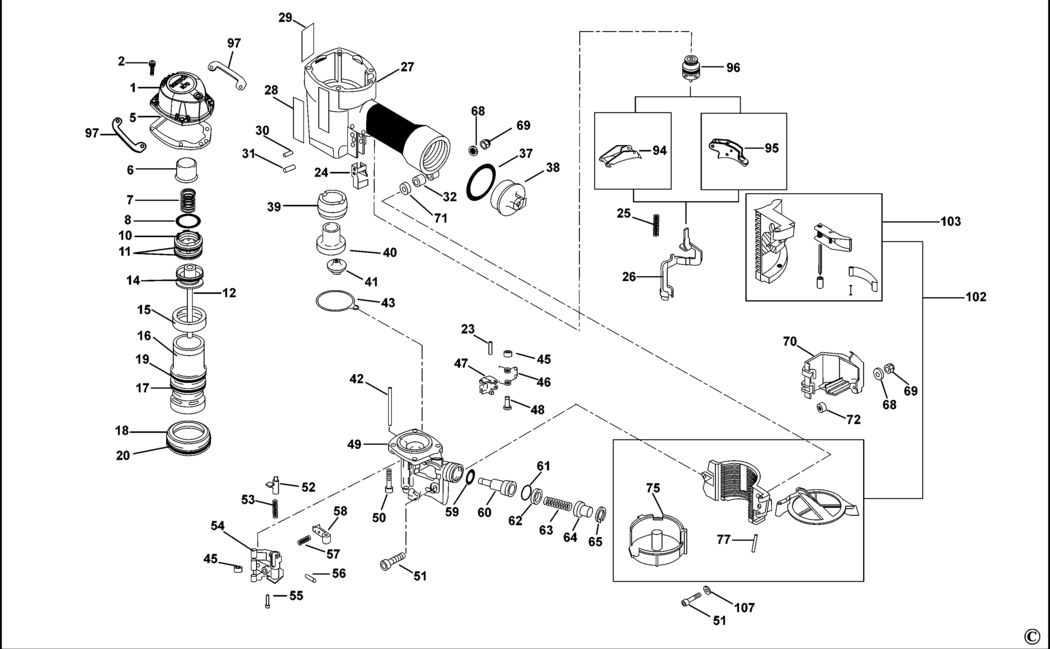

An exploded drawing and spare parts listing for the Bostitch N70CB-1-E Type Rev J Coil Nailer

	Ex VAT	Inc VAT
1 - END CAP BDE-CN31652.A0 CN31652	£60.94	£73.13
2 - SCREW BDE-MSC6100-30.A60 MSC6100-30	£1.50	£1.80
5 - SEAL BDE-9R199852.A0 9R199852	£3.80	£4.56
6 - STOP BDE-N70153.A1 N70153	£2.26	£2.71
7 - SPRING COMPRESSION BDE-101256.A10 101256	£1.50	£1.80
8 - O RING BDE-MRG041630.A27 MRG041630	£5.88	£7.06
10 - VALVE BDE-N80337.A5 N80337	£7.85	£9.42
11 - O RING BDE-851438.A5 851438	£7.18	£8.62
12 - PISTON SA BDE-102630.A1 102630	£99.47	£119.36
14 - O RING BDE-851439.A9 851439	£2.26	£2.71
15 - SEAL BDE-N70155.A10 N70155	£1.50	£1.80
16 - SLEEVE BDE-N70171.A0 N70171	£25.70	£30.84
17 - SEAL BDE-N80169.A3 N80169	£1.50	£1.80
18 - RING BDE-N80168.A6 N80168	£2.78	£3.34
19 - O RING BDE-101236.A0 101236	£1.50	£1.80
20 - O RING BDE-MRG084431.A1 MRG084431	£1.50	£1.80
23 - SPIROL PIN BDE-MPP030016.A3 MPP030016	£1.50	£1.80
24 - GUIDE BDE-N70145.A3 N70145	£1.82	£2.19
25 - SPRING COMPRESSION BDE-102080.A0 102080	£1.50	£1.80
26 - ARM BDE-N70168 N70168	£10.85	£13.02
28 - LABEL BDE-112767.A5 112767	£1.50	£1.80
30 - PIN BDE-MPP030020.A37 MPP030020	£1.50	£1.80
31 - PIN BDE-102549.A13 102549	£1.50	£1.80
32 - BUSHING BDE-N70143.A20 N70143	£1.50	£1.80
37 - O RING BDE-MRG049431.A14 MRG049431	£1.50	£1.80
38 - END CAP BDE-N70167.A14 N70167	£10.85	£13.02
39 - BUMPER BDE-N70156.A1 N70156	£10.85	£13.02
40 - BUMPER BDE-N70157.A10 N70157	£7.85	£9.42
41 - GUIDE BDE-N80130.A2 N80130	£9.41	£11.29
42 - PIN BDE-N70164.A2 N70164	£3.30	£3.96
43 - SEAL BDE-107834.A1 107834	£1.50	£1.80
45 - WASHER BDE-854004.A20 854004	£1.50	£1.80
46 - SPRING TORSION BDE-854023.A3 854023	£1.50	£1.80
47 - PAWL BDE-167087.A0 167087	£58.69	£70.43
48 - PIN BDE-N50087.A18 N50087	£1.50	£1.80
49 - NOSE BDE-167086 167086	£209.59	£251.51
50 - SCREW BDE-MSC8125-28.A3 MSC8125-28	£1.50	£1.80
51 - SCREW BDE-MSC6100-40.A21 MSC6100-40	£1.50	£1.80
52 - LATCH BDE-N70150.A3 N70150	£5.88	£7.06
53 - SPRING COMPRESSION BDE-101408.A0 101408	£1.50	£1.80
54 - DOOR BDE-N70122.A0 N70122	£19.90	£23.88
55 - PIN BDE-N70140.A0 N70140	£1.50	£1.80
56 - ROLL PIN BDE-MPP030012.A9 MPP030012	£1.50	£1.80
57 - SPRING COMPRESSION BDE-854011.A15 854011	£1.50	£1.80
58 - PAWL BDE-N70149.A14 N70149	£3.80	£4.56
59 - O RING BDE-MRG009824.A9 MRG009824	£5.88	£7.06
60 - PISTON BDE-N70166.A0 N70166	£14.57	£17.48
61 - O RING BDE-851437.A5 851437	£14.57	£17.48
62 - STOP BDE-N70162.A2 N70162	£1.50	£1.80
63 - SPRING COMPRESSION BDE-854039.A1 854039	£1.50	£1.80
64 - COLLAR BDE-N70163.A0 N70163	£1.50	£1.80
65 - RETAINER BDE-MRB026.A3 MRB026	£1.50	£1.80
68 - WASHER BDE-MPW6.2.A27 MPW6.2	£1.50	£1.80
69 - NUT BDE-MHE6100-100.A43 MHE6100-100	£1.50	£1.80
70 - GUARD BDE-N70160.A0 N70160	£3.30	£3.96
71 - SPACER BDE-N80107.A3 N80107	£1.50	£1.80
72 - SPACER BDE-105973.A5 105973	£1.50	£1.80
75 - CANISTER BDE-N80103.A5 N80103	£10.85	£13.02
77 - SPIROL PIN BDE-UB5130.A2 UB5130	£1.50	£1.80
94 - KIT BDE-CNTK2.A22 CNTK2	£5.88	£7.06
95 - KIT BDE-SEQ6.A33 SEQ6	£10.85	£13.02
96 - VALVE BDE-TVA6.A37 TVA6	£16.03	£19.24
97 - PROTECTOR BDE-102473.A2 102473	£2.26	£2.71
102 - CANISTER BDE-121635.A2 121635	£34.00	£40.80
103 - BRACKET SA BDE-121632.A5 121632	£25.70	£30.84
107 - WASHER BDE-MPW6.3.A21 MPW6.3	£1.50	£1.80

Attribute Name	Value
Brand	Bostitch
