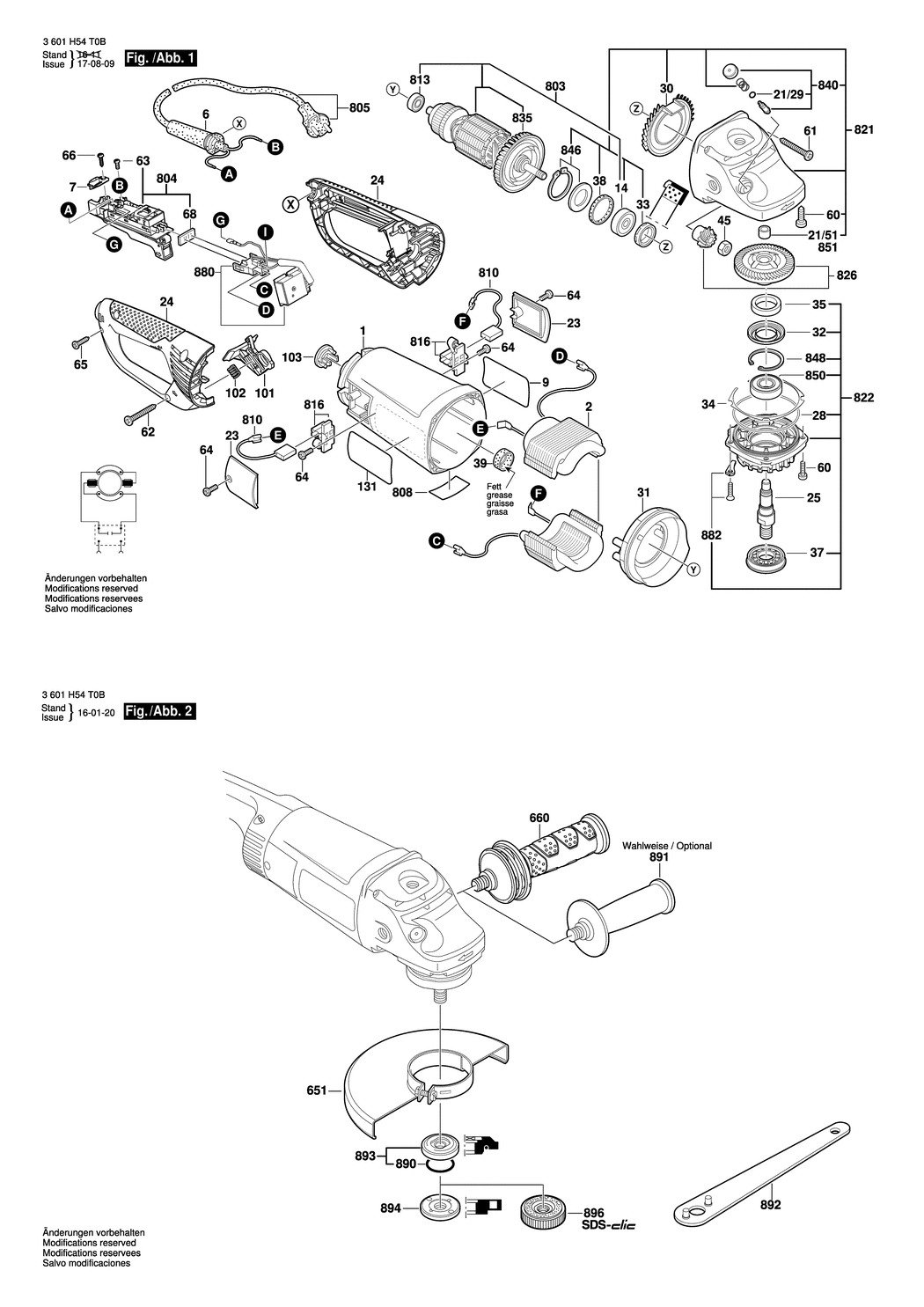

1 - MOTOR HOUSING
BSD-1605108211.A1
1605108211
|
£23.86
|
£28.63
|
|
|
2 - FIELD 220-240V
BSD-1604220381.A102
1604220381
|
£37.72
|
£45.27
|
|
|
6 - GROMMET dia10.5-dia11.0x100 MM
BSD-1600703036.A40
1600703036
|
£2.16
|
£2.59
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A211
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE WKS 230 E
BSD-1601118S66.A2
1601118S66
|
£3.72
|
£4.47
|
|
|
14 - GROOVE BALL BEARING
BSD-1600905028.A286
1600905028
|
£12.04
|
£14.45
|
|
|
21/29 - O-RING 8.0x1.0 MM
BSD-1600210045.A296
1600210045
|
£1.75
|
£2.10
|
|
|
21/51 - PLAIN BEARING dia14 MM
BSD-1600200031.A33
1600200031
|
£2.80
|
£3.36
|
|
|
23 - SEALING CAP
BSD-1605500245.A4
1605500245
|
-
|
|
|
|
24 - HANDLE
BSD-1605132152.A3
1605132152
|
£14.91
|
£17.89
|
|
|
25 - GRINDING SPINDLE
BSD-160312305U.A45
160312305U
|
£13.12
|
£15.75
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A433
1600210033
|
£1.75
|
£2.10
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591029.A259
1600591029
|
£2.61
|
£3.13
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591028.A79
1600591028
|
£2.33
|
£2.80
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A249
1600290019
|
£1.75
|
£2.10
|
|
|
33 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A198
1600290064
|
£2.16
|
£2.59
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A454
1600190020
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A373
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A454
1600190022
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.2 MM
BSD-1600190037.A281
1600190037
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.25 MM
BSD-1600190038.A106
1600190038
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.35 MM
BSD-1600190039.A281
1600190039
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.4 MM
BSD-1600190040.A106
1600190040
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A535
1600205034
|
£1.75
|
£2.10
|
|
|
37 - SEAL RING
BSD-1600290036.A367
1600290036
|
£2.16
|
£2.59
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A246
1600206020
|
£1.75
|
£2.10
|
|
|
39 - RUBBER RING
BSD-1600206030.A480
1600206030
|
£1.75
|
£2.10
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A356
1603300019
|
£1.75
|
£2.10
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A463
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A449
2912401038
|
£1.75
|
£2.10
|
|
|
62 - OVAL-HEAD SCREW
BSD-1603415006.A26
1603415006
|
£2.16
|
£2.59
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A513
1603410014
|
£1.75
|
£2.10
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A191
1603435042
|
£1.75
|
£2.10
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A1182
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1261
2910211019
|
£1.75
|
£2.10
|
|
|
68 - SEALING PLATE
BSD-1601006011.A195
1601006011
|
£2.61
|
£3.13
|
|
|
101 - CATCH SLIDE
BSD-1601990014.A35
1601990014
|
£2.80
|
£3.36
|
|
|
102 - COMPRESSION SPRING
BSD-1604616022.A129
1604616022
|
£1.75
|
£2.10
|
|
|
103 - CABLE ROUTING
BSD-1602388035.A102
1602388035
|
£1.75
|
£2.10
|
|
|
131 - MANUFACTURER'S NAMEPLATE WKS 230 E
BSD-160111C01M.A0
160111C01M
|
-
|
|
|
|
651 - PROTECTIVE COVER
BSD-1600A0136M.A0
1600A0136M
|
£46.82
|
£56.18
|
|
|
660 - AUXILIARY HANDLE M 14
BSD-1602025043.A6
1602025043
|
£31.64
|
£37.97
|
|
|
803 - ARMATURE 220-240V
BSD-1604011932.A37
1604011932
|
£80.61
|
£96.73
|
|
|
804 - ON-OFF SWITCH
BSD-1607000C14.A35
1607000C14
|
£30.28
|
£36.33
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A469
1607000228
|
£23.86
|
£28.63
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A160
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A407
1607014171
|
£14.91
|
£17.89
|
|
|
813 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A482
1600905011
|
£5.58
|
£6.70
|
|
|
816 - BRUSH HOLDER
BSD-1604336048.A175
1604336048
|
£7.36
|
£8.83
|
|
|
821 - GEAR HOUSING
BSD-1607000C03.A53
1607000C03
|
£48.38
|
£58.06
|
|
|
822 - BEARING FLANGE dia230 MM
BSD-1607000C24.A20
1607000C24
|
£27.31
|
£32.77
|
|
|
826 - BEVEL GEAR SET
BSD-1600A012VU.A28
1600A012VU
|
-
|
|
|
|
835 - FAN
BSD-1600A00J93.A107
1600A00J93
|
£2.80
|
£3.36
|
|
|
840 - PUSH-BUTTON
BSD-1607000354.A273
1607000354
|
£6.52
|
£7.83
|
|
|
846 - RETAINING WASHER
BSD-1607000C3E.A46
1607000C3E
|
£12.04
|
£14.45
|
|
|
848 - RETAINING CLIP
BSD-1600119010.A213
1600119010
|
£1.75
|
£2.10
|
|
|
850 - GROOVE BALL BEARING 17x40x12
BSD-1600905026.A15
1600905026
|
£8.67
|
£10.41
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A1062
2600910001
|
£4.26
|
£5.11
|
|
|
880 - ELECTRONICS MODULE
BSD-1607233319.A34
1607233319
|
£40.80
|
£48.96
|
|
|
882 - STOPPER
BSD-1619P06597.A122
1619P06597
|
£4.26
|
£5.11
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A225
1600210039
|
£2.16
|
£2.59
|
|
|
891 - AUXILIARY HANDLE M14
BSD-1602025022.A445
1602025022
|
£13.41
|
£16.09
|
|
|
892 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A201
1607950061
|
£5.42
|
£6.50
|
|
|
893 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A1074
2605703014
|
£7.36
|
£8.83
|
|
|
894 - ROUND NUT M14
BSD-1603345043.A608
1603345043
|
£8.67
|
£10.41
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A469
1603340027
|
£46.82
|
£56.18
|
|
