Bosch WB 100 / 0603006001 / EU Spare Parts

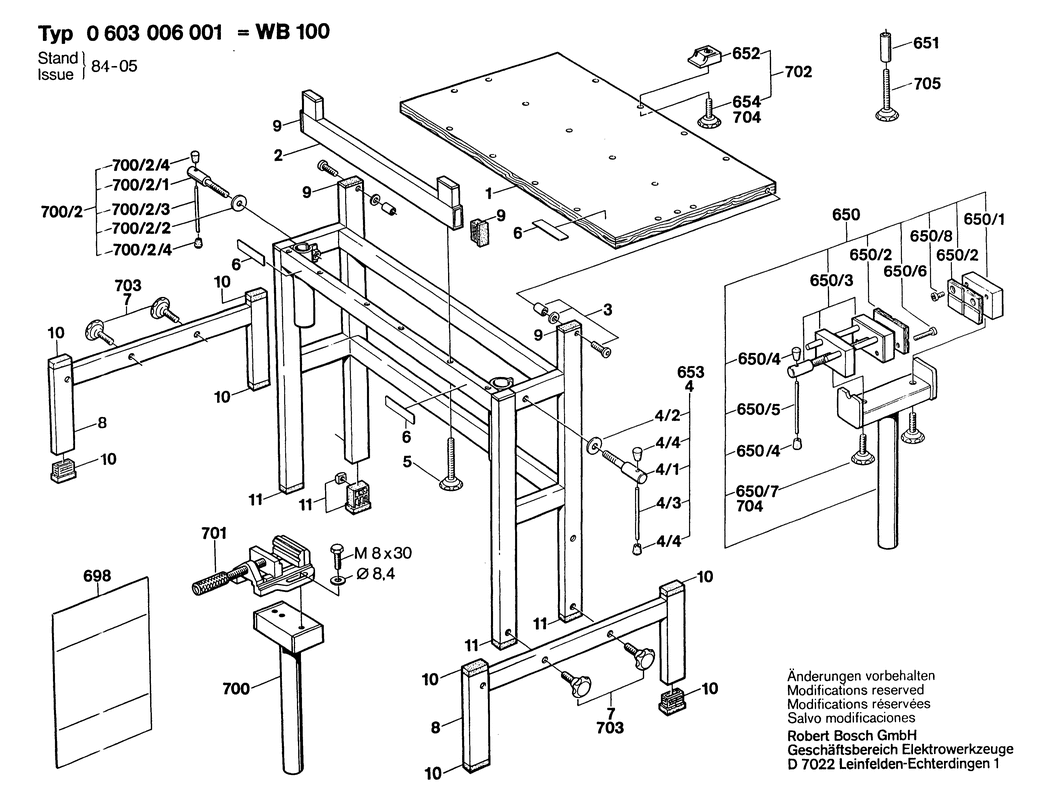

An exploded drawing and listing for the Bosch WB 100 / 0603006001 / EU

	Ex VAT	Inc VAT
1 - TABLE TOP BSD-1609201340.A0 1609201340	-
2 - SWIVEL ARM BSD-1609201341.A0 1609201341	-
3 - ROUND-HEAD SCREW BSD-1609201342.A0 1609201342	-
4 - TOMMY SCREW BSD-1609201339.A2 1609201339	-
4/1 - THREADED FITTING BSD-1609201344.A0 1609201344	-
4/2 - PLAIN WASHER BSD-1609201345.A1 1609201345	-
4/3 - STRAIGHT PIN BSD-1609201346.A0 1609201346	-
4/4 - PROTECTIVE CAP BSD-1609201347.A2 1609201347	-
6 - MANUFACTURER'S NAMEPLATE BSD-1601110013.A231 1601110013	-
8 - TABLE LEG BSD-1609201343.A0 1609201343	-
9 - PLUG BSD-1609201527.A0 1609201527	-
10 - PLUG BSD-1609201528.A0 1609201528	-
11 - PLUG BSD-1609201529.A0 1609201529	-
650 - DRILL PRESS VICE BSD-1609201295.A0 1609201295	-
650/1 - CLAMPING JAWS BSD-1609201349.A0 1609201349	-
650/2 - CLAMPING PLATE BSD-1609201350.A0 1609201350	-
650/3 - HEADSTOCK BSD-1609201351.A0 1609201351	-
650/4 - PROTECTIVE CAP BSD-1609201347.A1 1609201347	-
650/5 - STRAIGHT PIN BSD-1609201346.A2 1609201346	-
650/6 - HEX SOCKET HEAD CAP SCREW DIN 7984-M6x30-8.8 BSD-2910135205.A0 2910135205	-
650/7 - STAR KNOB SCREW BSD-1609201292.A1 1609201292	-
650/8 - HEX SOCKET HEAD CAP SCREW DIN 7984-M6x10-8.8 BSD-2910135191.A0 2910135191	-
651 - SPACER SLEEVE BSD-1609201337.A0 1609201337	-
652 - CLAMPING JAWS BSD-1609201338.A0 1609201338	-
653 - TOMMY SCREW BSD-1609201339.A0 1609201339	-
700 - MOUNTING PIECE BSD-1609201294.A0 1609201294	-
700/2 - TOMMY SCREW BSD-1609201339.A1 1609201339	-
700/2/1 - THREADED FITTING BSD-1609201344.A1 1609201344	-
700/2/2 - PLAIN WASHER BSD-1609201345.A0 1609201345	-
700/2/3 - STRAIGHT PIN BSD-1609201346.A1 1609201346	-
700/2/4 - PROTECTIVE CAP BSD-1609201347.A0 1609201347	-
701 - DRILL PRESS VICE BSD-1609201295.A1 1609201295	-
702 - DRILL PRESS VICE BSD-1609201336.A0 1609201336	-
703 - STAR KNOB SCREW BSD-1609201291.A0 1609201291	-
704 - STAR KNOB SCREW BSD-1609201292.A0 1609201292	-
705 - STAR KNOB SCREW BSD-1609201293.A0 1609201293	-
