Bosch USW(J)77..S 3 / 0601301004 / EU 240 Volt Spare Parts

Bosch USW(J⥷..S 3 / 0601301004 / EU 240 Volt Spare Parts

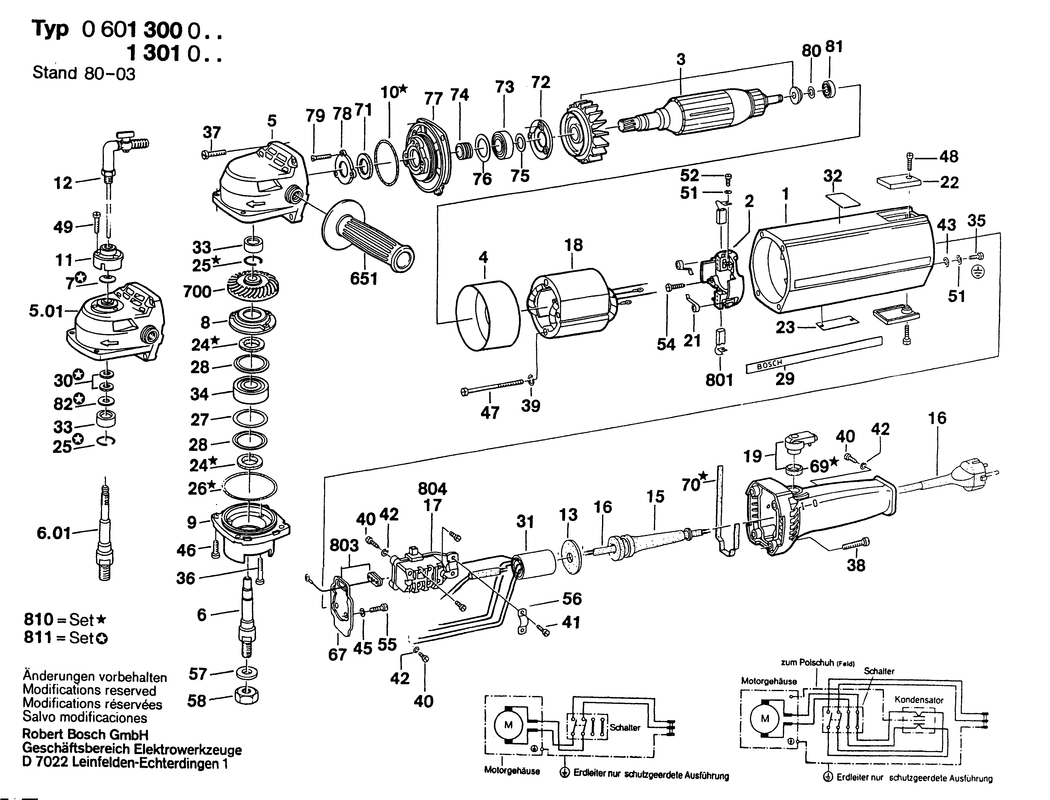

An exploded drawing and listing for the Bosch USW(J)77..S 3 / 0601301004 / EU 240 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108042.A49 1605108042	-
2 - BRUSH HOLDER BSD-1604336006.A76 1604336006	-
3 - ARMATURE 240V BSD-1604010037.A5 1604010037	-
4 - AIR-DEFLECTOR RING BSD-1600209002.A340 1600209002	£5.30	£6.36
5 - GEAR HOUSING BSD-3605806132.A20 3605806132	-
6 - GRINDING SPINDLE BSD-1603523034.A43 1603523034	-
6/01 - GRINDING SPINDLE 5/8-UNC-2A BSD-1603523091.A39 1603523091	-
7 - CUPPED WASHER BSD-1600109002.A10 1600109002	-
8 - CONICAL SPRING WASHER BSD-1600521013.A167 1600521013	-
9 - BEARING FLANGE BSD-3607030375.A12 3607030375	£205.02	£246.03
10 - O-RING 45x3MM BSD-1900210146.A277 1900210146	£4.48	£5.37
11 - CONNECTING FLANGE BSD-1600328012.A26 1600328012	-
12 - SHUT-OFF TAP BSD-1607415002.A28 1607415002	-
13 - SEAL BSD-1600113002.A194 1600113002	£1.75	£2.10
14 - HANDLE BSD-3605132048.A357 3605132048	£63.50	£76.20
14/1 - SEALING CORD BSD-1601014000.A358 1601014000	£2.80	£3.36
15 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A130 3600703011	£2.94	£3.53
16 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07RN-F BSD-1604460203.A55 1604460203	£33.74	£40.49
17 - SWITCH KIT BSD-1607000034.A417 1607000034	-
18 - POLE SHOE 240V BSD-1604220032.A9 1604220032	-
19 - CONTROL LEVER BSD-1602026030.A433 1602026030	£10.10	£12.12
21 - SPIRAL SPRING BSD-1604652015.A539 1604652015	£2.94	£3.53
22 - SEALING CAP BSD-3605500057.A7 3605500057	-
23 - NAMEPLATE BSD-160111A3H3.A4948 160111A3H3	£2.74	£3.29
24 - SEALING DISK BSD-1600108048.A207 1600108048	£1.75	£2.10
25 - RETAINING RING dia22 MM BSD-2916620011.A58 2916620011	£1.84	£2.21
26 - O-RING 66.0x3.0 MM BSD-1600210005.A16 1600210005	£2.80	£3.36
27 - SHIM 0.05 MM BSD-1600102638.A94 1600102638	£3.51	£4.21
27 - SHIM 0.1 MM BSD-1600102639.A140 1600102639	-
27 - SHIM 0.15 MM BSD-1600102640.A94 1600102640	-
28 - SPRING RETAINING RING 47x1.75MM. DIN 472 BSD-2916660021.A35 2916660021	£4.48	£5.37
29 - MANUFACTURER'S NAMEPLATE BSD-1601110003.A343 1601110003	-
31 - SUPPRESSION CAPACITOR BSD-1607329005.A120 1607329005	-
33 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A458 2600910001	£4.48	£5.37
34 - GROOVE BALL BEARING 17x47x14 BSD-1900900352.A121 1900900352	£28.59	£34.31
35 - PAN HEAD SCREW DIN 85 AM 4x6-MS BSD-2910110116.A395 2910110116	£1.84	£2.21
36 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-5.8 BSD-2910011164.A119 2910011164	-
37 - SOCKET HEAD CAP SCREW AM 5x18 DIN 84-5.8 BSD-2910011160.A7 2910011160	-
38 - SOCKET HEAD CAP SCREW DIN 84-AM5x28-8.8 BSD-2910021165.A22 2910021165	-
39 - SPRING LOCK WASHER DIN 128-A5-FST BSD-2916690004.A51 2916690004	£1.75	£2.10
40 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8 BSD-2910021050.A64 2910021050	£1.75	£2.10
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-5.8 BSD-2910011122.A172 2910011122	-
42 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A120 2916060003	£1.32	£1.58
43 - PLAIN WASHER A 4.3 DIN 125-ST BSD-2916010410.A287 2916010410	-
45 - PLAIN WASHER DIN 125-A3.2-ST BSD-2916011006.A90 2916011006	£1.75	£2.10
46 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A539 2910011157	-
47 - SOCKET HEAD CAP SCREW BSD-1603410008.A156 1603410008	-
48 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A604 2910021125	£1.75	£2.10
49 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8 BSD-2910021130.A75 2910021130	£1.84	£2.21
51 - SPRING WASHER DIN 137-A4 BSD-1600150006.A566 1600150006	-
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8 BSD-2910011120.A27 2910011120	£1.75	£2.10
54 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A676 2910211019	£1.84	£2.21
55 - TAPPING SCREW DIN 7971-BZ2.9x6.5 BSD-2910211004.A260 2910211004	-
56 - FASTENING CLAMP BSD-1601302013.A447 1601302013	£1.84	£2.21
57 - O-RING BSD-1000202026.A24 1000202026	-
58 - HEX NUT DIN 934-M 14-6G BSD-2915011012.A13 2915011012	-
69 - FELT WASHER BSD-1600205008.A463 1600205008	£1.75	£2.10
70 - SEALING CORD BSD-1601014000.A357 1601014000	£2.80	£3.36
71 - FELT DISC BSD-1600108018.A386 1600108018	£2.61	£3.13
72 - BEARING COVER BSD-1600501019.A106 1600501019	£25.05	£30.06
73 - GROOVE BALL BEARING 17x35x10 BSD-1600900020.A41 1600900020	-
74 - THREADED RING BSD-1603344030.A80 1603344030	£59.53	£71.44
75 - SHIM 0.3 MM BSD-1600101641.A122 1600101641	£3.72	£4.47
76 - SHIM 0.1 MM BSD-1600101648.A1 1600101648	£1.84	£2.21
76 - SHIM 0.15 MM BSD-1600101649.A78 1600101649	-
76 - SHIM 0.05 MM BSD-1600101650.A1 1600101650	£2.61	£3.13
76 - SHIM BSD-1600102002.A57 1600102002	-
77 - BEARING FLANGE BSD-3605820064.A156 3605820064	£71.84	£86.21
78 - COVER DISC BSD-1600501024.A320 1600501024	£17.22	£20.67
79 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x20-8.8 BSD-2910511130.A22 2910511130	-
80 - SHIM 0.10 MM BSD-1420100023.A231 1420100023	-
81 - BALL BEARING 7x22x7 BSD-1900905018.A266 1900905018	£19.91	£23.89
651 - AUXILIARY HANDLE M14 BSD-1602025022.A1278 1602025022	£13.41	£16.09
651 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1044 1602025030	£18.96	£22.75
700 - BEVEL GEAR Z=54 BSD-1606333082.A22 1606333082	£120.11	£144.13
801 - CARBON-BRUSH SET BSD-1607014102.A195 1607014102	-
803 - SEALING PLATE BSD-1602388007.A88 1602388007	£12.64	£15.17
810 - SEAL KIT BSD-1607000058.A6 1607000058	-
811 - SEAL KIT BSD-1607000044.A97 1607000044	£9.49	£11.39
