Bosch USW(J)77 / 0601300019 / EU 250 Volt Spare Parts

Bosch USW(J⥷ / 0601300019 / EU 250 Volt Spare Parts

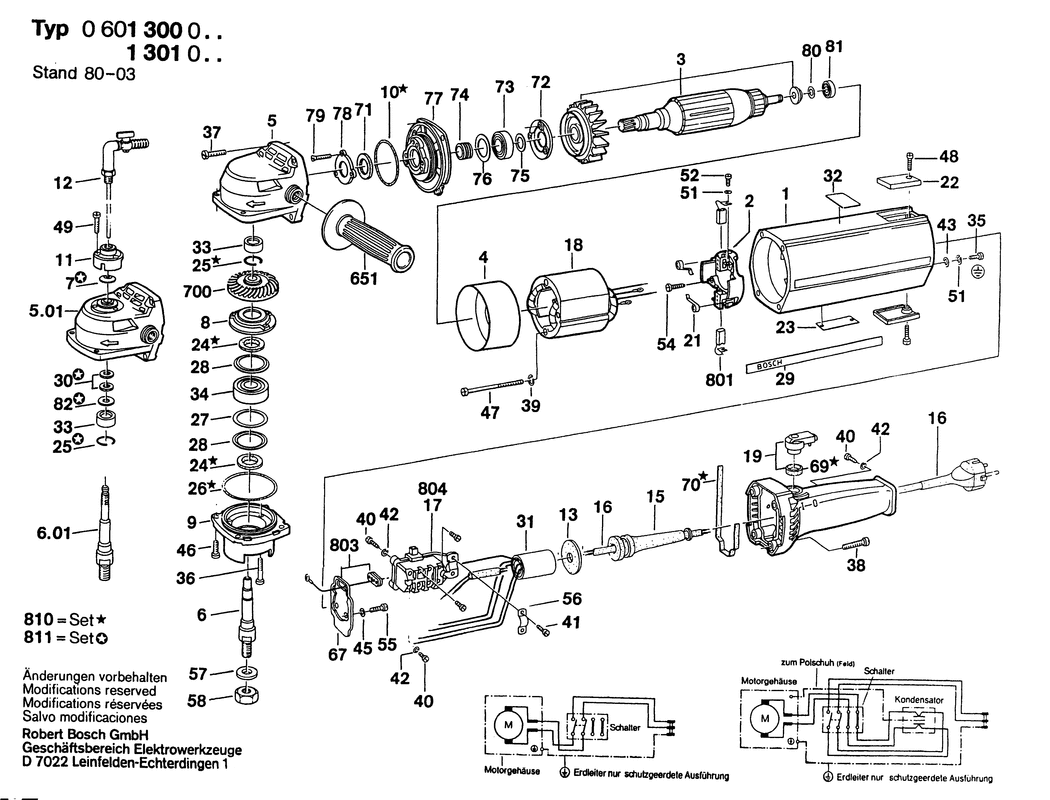

An exploded drawing and listing for the Bosch USW(J)77 / 0601300019 / EU 250 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108042.A99 1605108042	-
2 - BRUSH HOLDER BSD-1604336006.A221 1604336006	-
3 - ARMATURE 42V BSD-1604010072.A0 1604010072	-
4 - AIR-DEFLECTOR RING BSD-1600209002.A215 1600209002	£5.30	£6.36
5 - GEAR HOUSING BSD-3605806104.A5 3605806104	-
6 - GRINDING SPINDLE M14x1.5 MM BSD-1603523032.A165 1603523032	£37.27	£44.72
6/01 - GRINDING SPINDLE 5/8-UNC-2A BSD-1603523091.A156 1603523091	-
7 - CUPPED WASHER BSD-1600109002.A57 1600109002	-
8 - CONICAL SPRING WASHER BSD-1600521013.A99 1600521013	-
9 - BEARING FLANGE BSD-3607030375.A64 3607030375	£195.26	£234.31
10 - O-RING 45x3MM BSD-1900210146.A7 1900210146	£4.26	£5.11
11 - CONNECTING FLANGE BSD-1600328012.A128 1600328012	-
12 - SHUT-OFF TAP BSD-1607415002.A129 1607415002	-
13 - SEAL BSD-1600113002.A350 1600113002	£1.75	£2.10
14 - HANDLE BSD-3605132048.A199 3605132048	£63.50	£76.20
15 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1449 3600703011	£2.80	£3.36
17 - SWITCH KIT BSD-1607000034.A184 1607000034	-
18 - POLE SHOE 42V BSD-1604220067.A0 1604220067	-
19 - CONTROL LEVER BSD-1602026030.A167 1602026030	£10.10	£12.12
21 - SPIRAL SPRING BSD-1604652015.A72 1604652015	£2.80	£3.36
22 - SEALING CAP BSD-3605500057.A259 3605500057	-
23 - NAMEPLATE BSD-160111A3H3.A2309 160111A3H3	£2.61	£3.13
24 - SEALING DISK BSD-1600108048.A23 1600108048	£1.75	£2.10
25 - RETAINING RING dia22 MM BSD-2916620011.A240 2916620011	£1.75	£2.10
26 - O-RING 66.0x3.0 MM BSD-1600210005.A90 1600210005	£2.80	£3.36
27 - SHIM 0.05 MM BSD-1600102638.A158 1600102638	£3.34	£4.01
27 - SHIM 0.1 MM BSD-1600102639.A76 1600102639	-
27 - SHIM 0.15 MM BSD-1600102640.A158 1600102640	-
28 - SPRING RETAINING RING 47x1.75MM. DIN 472 BSD-2916660021.A60 2916660021	£4.26	£5.11
29 - MANUFACTURER'S NAMEPLATE BSD-1601110003.A136 1601110003	-
31 - SUPPRESSION CAPACITOR BSD-1607329005.A42 1607329005	-
32 - MANUFACTURER'S NAMEPLATE BSD-1601110003.A137 1601110003	-
33 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A549 2600910001	£4.26	£5.11
34 - GROOVE BALL BEARING 17x47x14 BSD-1900900352.A256 1900900352	£27.23	£32.68
35 - PAN HEAD SCREW DIN 85 AM 4x6-MS BSD-2910110116.A130 2910110116	£1.75	£2.10
36 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-5.8 BSD-2910011164.A209 2910011164	-
37 - SOCKET HEAD CAP SCREW AM 5x18 DIN 84-5.8 BSD-2910011160.A35 2910011160	-
38 - SOCKET HEAD CAP SCREW DIN 84-AM5x28-8.8 BSD-2910021165.A9 2910021165	-
39 - SPRING LOCK WASHER DIN 128-A5-FST BSD-2916690004.A163 2916690004	£1.75	£2.10
40 - SOCKET HEAD CAP SCREW DIN 84-AM3x8-8.8 BSD-2910021050.A341 2910021050	£1.75	£2.10
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-5.8 BSD-2910011122.A48 2910011122	-
42 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A307 2916060003	£1.32	£1.58
43 - PLAIN WASHER A 4.3 DIN 125-ST BSD-2916010410.A107 2916010410	-
45 - PLAIN WASHER DIN 125-A3.2-ST BSD-2916011006.A6 2916011006	£1.75	£2.10
46 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A233 2910011157	-
47 - SOCKET HEAD CAP SCREW BSD-1603410008.A172 1603410008	-
48 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A155 2910021125	£1.75	£2.10
49 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8 BSD-2910021130.A208 2910021130	£1.75	£2.10
51 - SPRING WASHER DIN 137-A4 BSD-1600150006.A184 1600150006	-
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-5.8 BSD-2910011120.A215 2910011120	£1.75	£2.10
54 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2364 2910211019	£1.75	£2.10
55 - TAPPING SCREW DIN 7971-BZ2.9x6.5 BSD-2910211004.A337 2910211004	-
56 - FASTENING CLAMP BSD-1601302013.A292 1601302013	£1.75	£2.10
57 - O-RING BSD-1000202026.A13 1000202026	-
58 - HEX NUT DIN 934-M 14-6G BSD-2915011012.A48 2915011012	-
69 - FELT WASHER BSD-1600205008.A7 1600205008	£1.75	£2.10
70 - SEALING CORD BSD-1601014000.A172 1601014000	£2.80	£3.36
71 - FELT DISC BSD-1600108018.A128 1600108018	£2.61	£3.13
72 - BEARING COVER BSD-1600501019.A330 1600501019	£23.86	£28.63
73 - GROOVE BALL BEARING 17x35x10 BSD-1600900020.A110 1600900020	-
74 - THREADED RING BSD-1603344030.A0 1603344030	£59.53	£71.44
75 - SHIM 0.3 MM BSD-1600101641.A64 1600101641	£3.72	£4.47
76 - SHIM 0.1 MM BSD-1600101648.A65 1600101648	£1.75	£2.10
76 - SHIM 0.15 MM BSD-1600101649.A22 1600101649	-
76 - SHIM 0.05 MM BSD-1600101650.A65 1600101650	£2.61	£3.13
76 - SHIM BSD-1600102002.A8 1600102002	-
77 - BEARING FLANGE BSD-3605820064.A39 3605820064	£68.42	£82.10
78 - COVER DISC BSD-1600501024.A176 1600501024	£16.41	£19.69
79 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x20-8.8 BSD-2910511130.A79 2910511130	-
80 - SHIM 0.10 MM BSD-1420100023.A73 1420100023	-
81 - BALL BEARING 7x22x7 BSD-1900905018.A1069 1900905018	£18.96	£22.75
651 - AUXILIARY HANDLE M14 BSD-1602025022.A885 1602025022	£13.41	£16.09
651 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A68 1602025030	£18.96	£22.75
700 - BEVEL GEAR Z=54 BSD-1606333082.A43 1606333082	£120.11	£144.13
801 - CARBON-BRUSH SET BSD-1607014102.A62 1607014102	-
803 - SEALING PLATE BSD-1602388007.A341 1602388007	£12.04	£14.45
810 - SEAL KIT BSD-1607000058.A34 1607000058	-
811 - SEAL KIT BSD-1607000044.A69 1607000044	£9.49	£11.39
