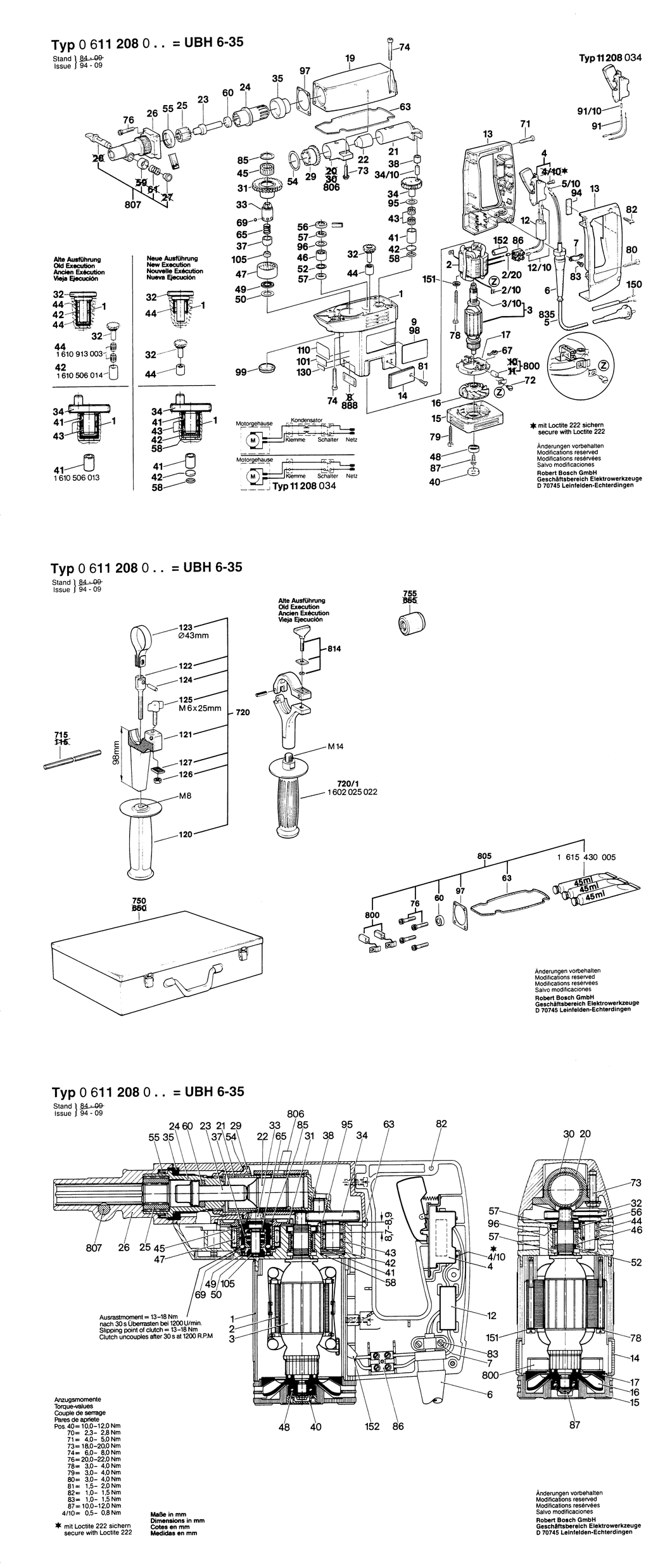

1 - MOTOR HOUSING
BSD-1615102138.A3
1615102138
|
-
|
|
|
|
2 - FIELD 240V
BSD-1614220057.A0
1614220057
|
-
|
|
|
|
2/10 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A83
1901350003
|
£1.75
|
£2.10
|
|
|
2/20 - END SPLICE dia1.3xdia1.6x10 MM
BSD-1610452003.A1
1610452003
|
-
|
|
|
|
3 - ARMATURE 240V
BSD-1614010016.A0
1614010016
|
-
|
|
|
|
3/10 - BUSHING
BSD-1610300045.A14
1610300045
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1617200017.A17
1617200017
|
-
|
|
|
|
5/10 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A32
1900452003
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A618
3600703011
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A20
1601302014
|
£2.61
|
£3.13
|
|
|
8 - NAMEPLATE
BSD-1611104001.A1
1611104001
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1611110477.A4
1611110477
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1617328002.A10
1617328002
|
-
|
|
|
|
12/10 - END SPLICE
BSD-3604477009.A24
3604477009
|
£2.61
|
£3.13
|
|
|
13 - HANDLE
BSD-1615132019.A19
1615132019
|
-
|
|
|
|
14 - SEALING CAP
BSD-1615500283.A11
1615500283
|
-
|
|
|
|
15 - BEARING COVER
BSD-1615808070.A5
1615808070
|
-
|
|
|
|
16 - FAN
BSD-1616610053.A9
1616610053
|
-
|
|
|
|
17 - BRUSH HOLDER
BSD-1614336000.A6
1614336000
|
-
|
|
|
|
19 - GEAR HOUSING
BSD-1615806026.A4
1615806026
|
-
|
|
|
|
21 - HAMMER PISTON
BSD-1618700041.A4
1618700041
|
-
|
|
|
|
22 - STRIKER
BSD-1618710038.A14
1618710038
|
-
|
|
|
|
23 - STRIKER PIN
BSD-1613124029.A2
1613124029
|
-
|
|
|
|
24 - GUIDE BUSHING
BSD-1616490007.A2
1616490007
|
-
|
|
|
|
25 - CARRIER
BSD-1616490005.A12
1616490005
|
-
|
|
|
|
26 - TOOLHOLDER
BSD-1618597023.A8
1618597023
|
-
|
|
|
|
29 - BEVEL GEAR Z=31
BSD-1616333015.A2
1616333015
|
-
|
|
|
|
31 - CYLINDRICAL GEAR Z=51
BSD-1616303001.A16
1616303001
|
-
|
|
|
|
32 - TOOTHED SHAFT Z=14/22
BSD-1616312000.A14
1616312000
|
-
|
|
|
|
33 - BEVEL GEAR Z=8
BSD-1616333011.A16
1616333011
|
-
|
|
|
|
34 - ECCENTRIC SHAFT Z=36
BSD-1616110025.A20
1616110025
|
-
|
|
|
|
34/10 - BEARING BOLT
BSD-1613100011.A16
1613100011
|
£3.72
|
£4.47
|
|
|
35 - GUIDE SLEEVE
BSD-1610328011.A14
1610328011
|
-
|
|
|
|
37 - GUIDE SLEEVE
BSD-1610506015.A4
1610506015
|
-
|
|
|
|
38 - BUSHING
BSD-1610300046.A10
1610300046
|
-
|
|
|
|
40 - THREADED RING
BSD-1613344002.A10
1613344002
|
-
|
|
|
|
41 - BEARING SLEEVE
BSD-1610400029.A6
1610400029
|
-
|
|
|
|
42 - COVER DISC
BSD-1610000002.A20
1610000002
|
-
|
|
|
|
43 - NEEDLE-ROLLER ASSEMBLY dia13 MM
BSD-1610913004.A19
1610913004
|
£3.80
|
£4.56
|
|
|
44 - NEEDLE BEARING
BSD-1610910067.A6
1610910067
|
-
|
|
|
|
45 - NEEDLE-ROLLER ASSEMBLY
BSD-1610913002.A2
1610913002
|
-
|
|
|
|
46 - NEEDLE BEARING
BSD-1600910011.A4
1600910011
|
£16.41
|
£19.69
|
|
|
47 - NEEDLE BEARING
BSD-1610910058.A14
1610910058
|
-
|
|
|
|
48 - BALL BEARING 9x26x8
BSD-1900905025.A73
1900905025
|
£21.52
|
£25.83
|
|
|
49 - THRUST NEEDLE RIM
BSD-1610920001.A22
1610920001
|
£3.72
|
£4.47
|
|
|
50 - THRUST BEARING DISC
BSD-1610101608.A0
1610101608
|
£2.16
|
£2.59
|
|
|
52 - SUPPORTING DISC 1.5 MM
BSD-1610101607.A24
1610101607
|
-
|
|
|
|
54 - SUPPORTING DISC 1.0 MM
BSD-1610102614.A16
1610102614
|
-
|
|
|
|
55 - SEAL RING
BSD-1610283013.A16
1610283013
|
-
|
|
|
|
56 - RETAINING SNAP RING
BSD-1610500004.A65
1610500004
|
-
|
|
|
|
57 - FELT WASHER
BSD-1610205002.A2
1610205002
|
£1.75
|
£2.10
|
|
|
58 - O-RING 20.0x1.5 MM
BSD-1610210075.A79
1610210075
|
£2.61
|
£3.13
|
|
|
60 - BACKUP RING
BSD-1610290003.A16
1610290003
|
-
|
|
|
|
63 - SEALING FRAME
BSD-1611015018.A4
1611015018
|
-
|
|
|
|
65 - COMPRESSION SPRING
BSD-1614619004.A6
1614619004
|
-
|
|
|
|
67 - SPIRAL SPRING
BSD-1604652006.A258
1604652006
|
£1.75
|
£2.10
|
|
|
69 - BALL DIN 5401-6 G28
BSD-1903230011.A385
1903230011
|
£2.61
|
£3.13
|
|
|
71 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-5.8
BSD-2910011164.A60
2910011164
|
-
|
|
|
|
72 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A20
2910021118
|
£1.75
|
£2.10
|
|
|
73 - HEX SCREW
BSD-1613454002.A18
1613454002
|
-
|
|
|
|
74 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8
BSD-2910141168.A84
2910141168
|
£3.80
|
£4.56
|
|
|
76 - HEX SOCKET HEAD CAP SCREW M 6X30
BSD-1613414006.A2
1613414006
|
-
|
|
|
|
78 - TAPPING SCREW BZ4.8x63 MM
BSD-1603435008.A172
1603435008
|
£1.32
|
£1.58
|
|
|
79 - TAPPING SCREW DIN 7971-BZ4.8x32
BSD-2910211037.A101
2910211037
|
£1.75
|
£2.10
|
|
|
80 - TAPPING SCREW DIN 7971-ST4.8x25-F
BSD-2910211036.A44
2910211036
|
£1.75
|
£2.10
|
|
|
81 - TAPPING SCREW DIN 7972-B3.9x13
BSD-2910601118.A2
2910601118
|
£1.75
|
£2.10
|
|
|
82 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A478
2910211019
|
£1.75
|
£2.10
|
|
|
83 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A496
2910211018
|
£1.75
|
£2.10
|
|
|
85 - SPRING RETAINING RING 30x1.2MM. DIN 472
BSD-2916660012.A5
2916660012
|
£1.75
|
£2.10
|
|
|
86 - STRIP TERMINAL
BSD-1901091110.A59
1901091110
|
£1.75
|
£2.10
|
|
|
87 - HEX SCREW
BSD-1613454001.A6
1613454001
|
-
|
|
|
|
91/10 - END SPLICE dia1.3xdia1.6x10 MM
BSD-1610452003.A0
1610452003
|
-
|
|
|
|
94 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A272
1602381001
|
-
|
|
|
|
95 - SUPPORTING DISC 0.5 MM
BSD-1610101609.A24
1610101609
|
-
|
|
|
|
96 - SUPPORTING DISC 1.5 MM
BSD-1610102017.A2
1610102017
|
£1.95
|
£2.34
|
|
|
97 - SEALING PLATE
BSD-1611015020.A20
1611015020
|
£1.75
|
£2.10
|
|
|
98 - MANUFACTURER'S NAMEPLATE
BSD-1611110476.A10
1611110476
|
-
|
|
|
|
99 - SEALING CAP
BSD-1615500222.A2
1615500222
|
-
|
|
|
|
101 - REFERENCE PLATE
BSD-1611110387.A28
1611110387
|
£1.75
|
£2.10
|
|
|
105 - SPRING RETAINING RING
BSD-1610502005.A2
1610502005
|
-
|
|
|
|
120 - AUXILIARY HANDLE M8
BSD-1612025019.A475
1612025019
|
£6.52
|
£7.83
|
|
|
121 - SUPPORT CLAMP
BSD-1618040077.A21
1618040077
|
-
|
|
|
|
122 - STUD BOLT M8
BSD-1613521001.A30
1613521001
|
£5.58
|
£6.70
|
|
|
123 - CLAMPING BAND dia43 MM
BSD-1611316003.A12
1611316003
|
£2.61
|
£3.13
|
|
|
124 - STRAIGHT PIN
BSD-1613100012.A11
1613100012
|
£2.61
|
£3.13
|
|
|
125 - WING SCREW M6x25 MM
BSD-1613480009.A17
1613480009
|
£1.88
|
£2.25
|
|
|
126 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A371
2915011007
|
-
|
|
|
|
127 - CLAMPING PLATE
BSD-1611030009.A40
1611030009
|
-
|
|
|
|
150 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A116
1900452012
|
£1.75
|
£2.10
|
|
|
151 - SPRING WASHER DIN 137-B5-FST
BSD-2916060011.A3
2916060011
|
-
|
|
|
|
152 - GROMMET
BSD-1610703051.A3
1610703051
|
-
|
|
|
|
655 - PROTECTIVE CAP
BSD-2600508019.A8
2600508019
|
£1.75
|
£2.10
|
|
|
706 - BIT HOLDER 1/2 - 20 UNF-2 A
BSD-1618598094.A15
1618598094
|
-
|
|
|
|
708 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A449
1608571069
|
£23.86
|
£28.63
|
|
|
715 - DEPTH-GAUGE SW 6x330 MM
BSD-1613001008.A103
1613001008
|
£8.67
|
£10.41
|
|
|
720 - AUXILIARY HANDLE
BSD-1612025020.A12
1612025020
|
£26.12
|
£31.35
|
|
|
720/1 - AUXILIARY HANDLE M14
BSD-1602025022.A1368
1602025022
|
£13.41
|
£16.09
|
|
|
750 - CARRYING CASE
BSD-1615438142.A5
1615438142
|
-
|
|
|
|
755 - PROTECTIVE CAP
BSD-1610508014.A14
1610508014
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-1617014108.A18
1617014108
|
£18.96
|
£22.75
|
|
|
805 - WEAR AND TEAR PART SET
BSD-1617000057.A1
1617000057
|
-
|
|
|
|
806 - BEARING PEDESTAL
BSD-1615819002.A17
1615819002
|
-
|
|
|
|
807 - LOCKING BOLT SET
BSD-1617000014.A83
1617000014
|
£24.45
|
£29.34
|
|
|
814 - PARTS SET
BSD-1617000038.A7
1617000038
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A159
1607000228
|
£23.86
|
£28.63
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3104
160111A3H3
|
£2.61
|
£3.13
|
|
