Bosch UBH 3/16 / 0611207041 / GB 110 Volt Spare Parts

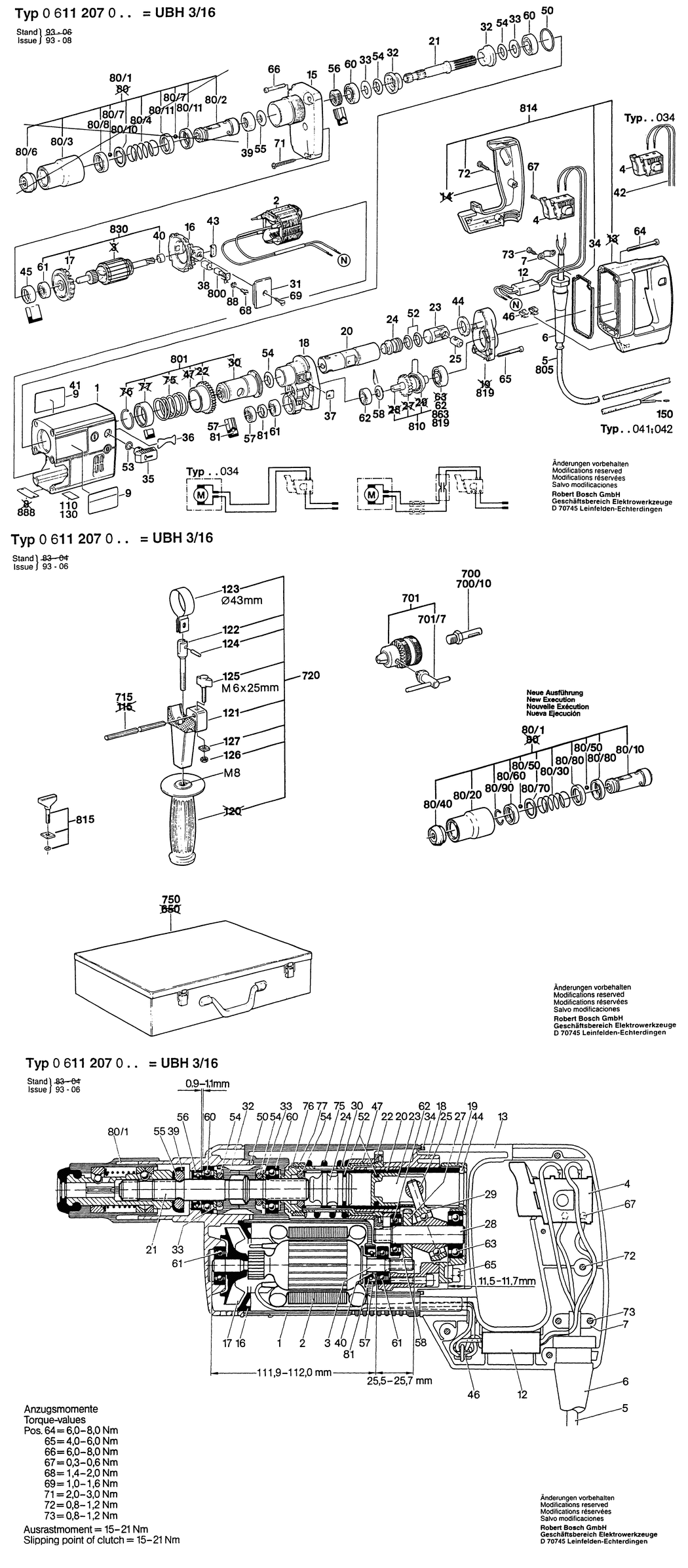

An exploded drawing and listing for the Bosch UBH 3/16 / 0611207041 / GB 110 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108008.A6 1615108008	-
2 - POLE SHOE 110V BSD-1614220067.A0 1614220067	-
4 - SWITCH BSD-2607200110.A8 2607200110	-
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1489 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302014.A635 1601302014	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE BSD-1611110155.A2 1611110155	-
12 - SUPPRESSION FILTER BSD-1617328020.A19 1617328020	-
15 - HOUSING COVER BSD-1615500277.A8 1615500277	-
16 - AIR-DEFLECTOR RING BSD-1615820059.A27 1615820059	-
17 - FAN BSD-2606610059.A18 2606610059	-
18 - BEARING PEDESTAL BSD-1615820058.A2 1615820058	-
20 - GUIDE TUBE BSD-1615806031.A2 1615806031	-
21 - DRILLING SPINDLE BSD-1618597030.A2 1618597030	-
23 - HAMMER PISTON BSD-1618700045.A18 1618700045	-
24 - STRIKER PIN BSD-1618710040.A16 1618710040	-
25 - PISTON PIN BSD-1613105012.A2 1613105012	£3.72	£4.47
31 - SEALING CAP BSD-1615500278.A10 1615500278	-
32 - SPACER BUSHING BSD-1610329000.A18 1610329000	-
33 - SUPPORTING DISC 2.0 MM BSD-1610101611.A2 1610101611	-
34 - SEALING FRAME BSD-1611015022.A2 1611015022	-
35 - CLAMP HANDLE BSD-1612026017.A0 1612026017	-
36 - HOLDING SPRING BSD-1614680002.A2 1614680002	-
37 - SEALING PLATE BSD-1611031004.A29 1611031004	-
38 - BRUSH HOLDER BSD-1614336003.A16 1614336003	-
39 - BACKUP RING BSD-1610508006.A2 1610508006	-
40 - INTERMEDIATE RING BSD-1610200011.A29 1610200011	-
42 - CONNECTING CABLE BSD-1614431011.A5 1614431011	-
43 - RUBBER BUFFER BSD-1611091004.A6 1611091004	-
44 - RUBBER RING BSD-1610109015.A1 1610109015	-
45 - RUBBER RING BSD-1610206017.A8 1610206017	-
46 - CONTACT SPRING BSD-1611329003.A0 1611329003	-
50 - O-RING 33.0x3.5 MM BSD-1610210087.A21 1610210087	£1.75	£2.10
52 - O-RING 16.0x3.15 MM BSD-1610210038.A29 1610210038	-
53 - O-RING 10.5x2.7 MM BSD-1610210046.A246 1610210046	£2.16	£2.59
54 - O-RING 16.0x5.0 MM BSD-1610210040.A0 1610210040	-
55 - O-RING 11.0x7.0 MM BSD-1610210035.A0 1610210035	£2.52	£3.02
56 - ROTARY SHAFT LIP SEAL dia 26x15x7.5 MM BSD-1610283015.A11 1610283015	£4.75	£5.70
57 - ROTARY SHAFT LIP SEAL dia13.8xdia26x7.5 MM BSD-1610283014.A59 1610283014	-
58 - DISC SPRING BSD-1610550026.A2 1610550026	-
60 - GROOVE BALL BEARING 15x32x9 BSD-1900900272.A40 1900900272	-
61 - BALL BEARING 9x26x8 BSD-1900905025.A127 1900905025	£21.52	£25.83
62 - GROOVE BALL BEARING 12x28x8 BSD-1900900287.A2 1900900287	£21.68	£26.01
64 - HEX SOCKET HEAD CAP SCREW M 5x50 DIN 912-8.8 BSD-2910141174.A29 2910141174	£2.33	£2.80
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A21 2910141168	£3.80	£4.56
66 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A22 2910141168	£3.80	£4.56
67 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1354 2603410001	£1.75	£2.10
68 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1481 2910021118	£1.75	£2.10
69 - TAPPING SCREW DIN 7972-B3.9x13 BSD-2910601118.A110 2910601118	£1.75	£2.10
71 - TAPPING SCREW DIN 7971-ST4.8x38-F BSD-2910211038.A116 2910211038	£1.75	£2.10
72 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A875 2910211021	£1.75	£2.10
73 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A18 2910211018	£1.75	£2.10
80/1 - BIT HOLDER BSD-1618598131.A41 1618598131	-
80/20 - PROTECTION SLEEVE BSD-1610499009.A36 1610499009	-
80/30 - COMPRESSION SPRING BSD-1614632000.A0 1614632000	-
80/40 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A329 1610508008	£2.16	£2.59
80/50 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A36 1903230013	£2.16	£2.59
80/60 - THRUST RING BSD-1610251002.A46 1610251002	-
80/70 - HOLDING PLATE BSD-1610190007.A37 1610190007	-
80/80 - RETAINING SNAP RING BSD-1610250003.A2 1610250003	£5.58	£6.70
80/90 - RETAINING RING DIN 7993-A22 BSD-2916540012.A1 2916540012	-
81 - LUBRICATING FELT BSD-1610205003.A6 1610205003	-
121 - SUPPORT CLAMP BSD-1618040077.A119 1618040077	-
122 - STUD BOLT M8 BSD-1613521001.A177 1613521001	£5.58	£6.70
123 - CLAMPING BAND dia43 MM BSD-1611316003.A162 1611316003	£2.61	£3.13
124 - STRAIGHT PIN BSD-1613100012.A178 1613100012	£2.61	£3.13
125 - WING SCREW M6x25 MM BSD-1613480009.A124 1613480009	£1.88	£2.25
126 - HEX NUT M6 BSD-1613300006.A136 1613300006	£1.32	£1.58
127 - CLAMPING PLATE BSD-1611030009.A85 1611030009	-
150 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A607 1900452012	£1.75	£2.10
700 - DRILL CHUCK SHANK BSD-1617000132.A171 1617000132	£16.84	£20.21
700/10 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A37 2603421226	£1.75	£2.10
701 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A213 1608571069	£23.86	£28.63
701/7 - CHUCK WRENCH SG2. SW4 BSD-1607950044.A46 1607950044	£6.12	£7.34
715 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A660 1613001009	£3.72	£4.47
720 - AUXILIARY HANDLE BSD-1612025020.A86 1612025020	£26.12	£31.35
750 - CARRYING CASE BSD-1615438075.A5 1615438075	-
800 - CARBON BRUSH BSD-1617014118.A11 1617014118	-
801 - OVERLOAD CLUTCH BSD-1617031017.A18 1617031017	-
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A391 1607000227	£23.86	£28.63
810 - ASSEMBLY OF SERVICE PARTS BSD-1617000902.A1 1617000902	-
814 - PARTS SET BSD-1617000924.A23 1617000924	-
815 - PARTS SET BSD-1617000038.A40 1617000038	-
819 - PARTS SET BSD-1617000926.A18 1617000926	-
830 - ARMATURE 110-115V BSD-1614010033.A0 1614010033	-
863 - GROOVE BALL BEARING 12x32x10 BSD-1900900302.A111 1900900302	-
888 - NAMEPLATE BSD-160111A3H3.A2880 160111A3H3	£2.61	£3.13
