Bosch UBH 12/50 / 0611209148 / F 220 Volt Spare Parts

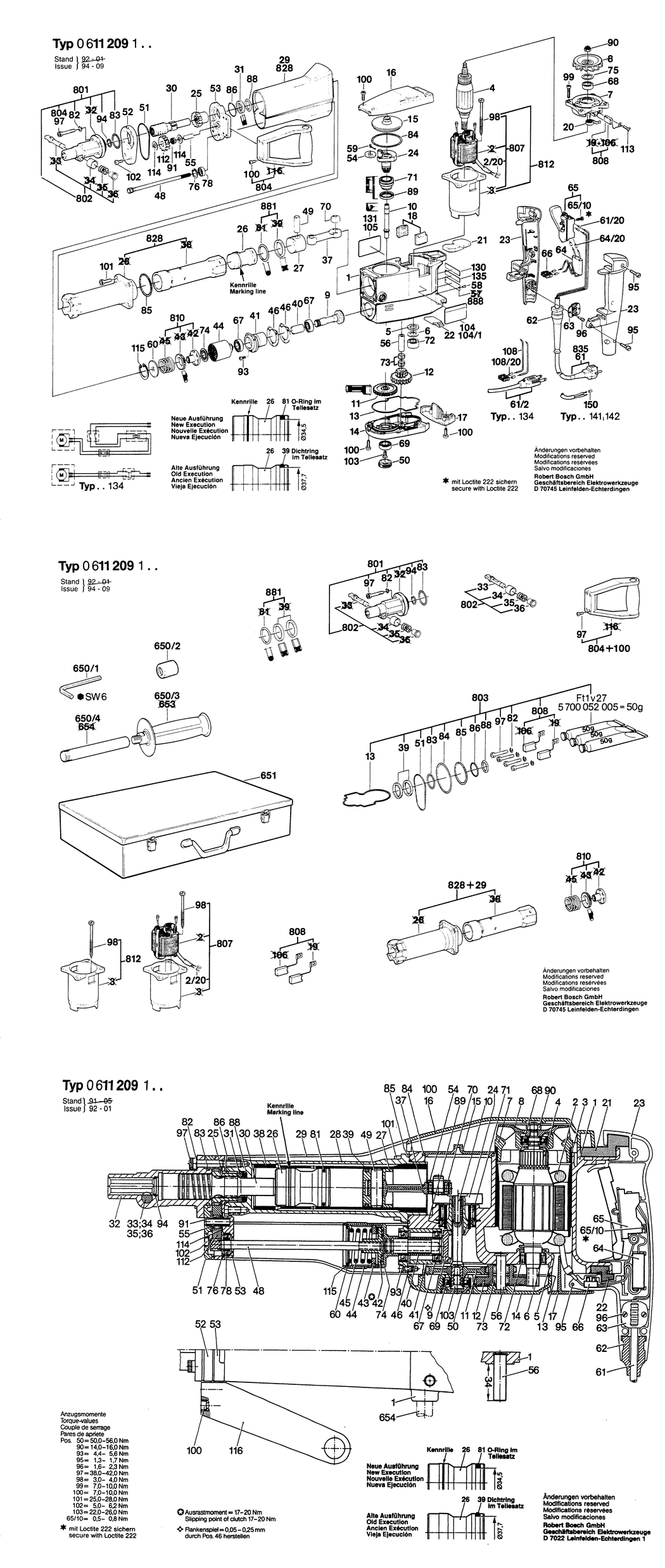

An exploded drawing and listing for the Bosch UBH 12/50 / 0611209148 / F 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615106036.A10 1615106036	-
2/20 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A151 1900452012	£1.75	£2.10
4 - ARMATURE 220-230V BSD-1614011019.A16 1614011019	-
5 - SEALING DISK BSD-1610108012.A48 1610108012	£1.75	£2.10
6 - SHIM 1.0 MM BSD-1610102013.A49 1610102013	£1.75	£2.10
7 - BEARING FLANGE BSD-1615805060.A31 1615805060	-
8 - FAN BSD-1616610047.A31 1616610047	-
9 - BEVEL GEAR Z=28 BSD-1616333016.A10 1616333016	£68.42	£82.10
10 - WHEEL SHAFT BSD-1613159007.A13 1613159007	£46.82	£56.18
11 - CYLINDRICAL GEAR Z=45 BSD-1616317029.A2 1616317029	-
12 - CYLINDRICAL GEAR Z=47/21 BSD-1616328025.A22 1616328025	-
13 - SEALING FRAME BSD-1611015023.A10 1611015023	£4.75	£5.70
14 - GEAR COVER BSD-1615808050.A3 1615808050	£54.42	£65.30
15 - SEALING CAP BSD-1615500168.A17 1615500168	£2.52	£3.02
16 - FAN COVER BSD-1615500276.A51 1615500276	£52.15	£62.58
17 - SWITCH COVER BSD-1615500261.A10 1615500261	£7.78	£9.33
18 - SEALING CAP BSD-1615500282.A17 1615500282	£2.33	£2.80
20 - SPIRAL SPRING BSD-1614652000.A67 1614652000	-
21 - RUBBER PLATE BSD-1612392001.A10 1612392001	£3.80	£4.56
22 - RUBBER PLATE BSD-1612392000.A57 1612392000	£3.80	£4.56
23 - HANDLE BSD-1615133025.A11 1615133025	£23.86	£28.63
24 - ECCENTRIC COG WHEEL Z=36 BSD-1616110029.A13 1616110029	-
25 - CARRIER Z=11/31 BSD-1616490024.A10 1616490024	£68.42	£82.10
26 - STRIKER BSD-1618710058.A10 1618710058	£41.62	£49.95
27 - HAMMER PISTON BSD-1618700047.A10 1618700047	£27.23	£32.68
29 - PROTECTIVE TUBE BSD-1615190019.A4 1615190019	-
30 - BIT HOLDER Z=12 BSD-1618598100.A9 1618598100	£80.61	£96.73
31 - STOP DISC BSD-3606100101.A9 3606100101	£12.04	£14.45
37 - CONNECTING ROD BSD-1612001029.A29 1612001029	-
40 - SPACER SLEEVE BSD-1610400020.A3 1610400020	£2.52	£3.02
41 - BUSHING BSD-1615801022.A3 1615801022	-
44 - CLUTCH ELEMENT SW22 BSD-1616409005.A1 1616409005	£72.18	£86.62
46 - SHIM dia40.2xdia60x0.3 MM BSD-1610134004.A11 1610134004	£3.80	£4.56
48 - TOOTHED SHAFT Z= 8/8 BSD-1613060009.A3 1613060009	-
49 - PISTON PIN BSD-1610300058.A29 1610300058	£2.80	£3.36
50 - SCREW PLUG BSD-1613465003.A11 1613465003	£13.12	£15.75
51 - SEAL RING BSD-1610210048.A10 1610210048	£2.80	£3.36
52 - GEAR HOUSING BSD-1615806066.A4 1615806066	-
53 - GEAR HOUSING BSD-1615806064.A3 1615806064	£179.37	£215.24
54 - COVER DISC dia12xdia26x2.0 MM BSD-1610113005.A47 1610113005	£1.75	£2.10
55 - BEARING BOLT BSD-1610300052.A13 1610300052	£5.30	£6.36
56 - BEARING BOLT BSD-1610300057.A0 1610300057	£4.75	£5.70
58 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A143 2917721034	£1.75	£2.10
59 - SPLIT PIN 3.2x18 DIN 94-ST BSD-1904681350.A70 1904681350	£1.75	£2.10
60 - COVER DISC 2.0 MM BSD-1610101010.A11 1610101010	£2.80	£3.36
61/20 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A149 1900452012	£1.75	£2.10
62 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A621 3600703011	£2.80	£3.36
63 - FASTENING CLAMP BSD-1611302006.A3 1611302006	-
64 - SUPPRESSION CAPACITOR BSD-1617328019.A5 1617328019	-
64/20 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A148 1900452012	£1.75	£2.10
65 - ON-OFF SWITCH BSD-1617200017.A30 1617200017	-
66 - CONNECTING TERMINAL BSD-1611091002.A32 1611091002	£1.75	£2.10
67 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A128 1900905163	£11.30	£13.56
68 - GROOVE BALL BEARING 10x32x12 BSD-1610905001.A15 1610905001	£14.91	£17.89
69 - GROOVE BALL BEARING 12x32x10 BSD-1900900302.A78 1900900302	-
70 - NEEDLE-ROLLER BEARING BSD-1610910049.A8 1610910049	£37.26	£44.71
71 - NEEDLE-ROLLER BEARING BSD-1610910060.A11 1610910060	£31.64	£37.97
72 - NEEDLE-ROLLER BEARING BSD-1610910007.A65 1610910007	£21.68	£26.01
73 - NEEDLE-ROLLER ASSEMBLY BSD-1610913001.A17 1610913001	£11.30	£13.56
74 - THRUST NEEDLE RIM BSD-1600920000.A42 1600920000	£5.30	£6.36
75 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A805 2916660013	£2.16	£2.59
76 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A15 2916660010	£1.75	£2.10
78 - GROOVE BALL BEARING 10x26x8 BSD-1900905159.A9 1900905159	£27.23	£32.68
82 - SPRING LOCK WASHER DIN 128-A8-FST BSD-2916690007.A34 2916690007	£1.75	£2.10
83 - O-RING 35x2.5MM BSD-1900210136.A4 1900210136	£3.72	£4.47
84 - O-RING 70x3 MM BSD-1900210160.A49 1900210160	£5.58	£6.70
85 - O-RING 55x3 MM BSD-1900210152.A11 1900210152	£3.72	£4.47
86 - O-RING 30x2 MM BSD-1900210130.A56 1900210130	£3.72	£4.47
88 - O-RING 22.0x6.0 MM BSD-1610210042.A37 1610210042	£1.75	£2.10
89 - SHAFT SEAL A 30x42x7 DIN 3760 BSD-2916740053.A3 2916740053	£13.41	£16.09
90 - HEX NUT DIN 985-M8-8 BSD-2915061005.A92 2915061005	£2.61	£3.13
91 - NEEDLE-ROLLER ASSEMBLY BSD-1610913006.A12 1610913006	£4.75	£5.70
93 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A126 2910141158	£1.75	£2.10
94 - RETAINING RING DIN 9045-24 BSD-2916601012.A8 2916601012	£2.52	£3.02
95 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A63 2914201506	£1.75	£2.10
95 - THREAD-FORMING TAP. SCREW BSD-1603435035.A4 1603435035	-
96 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A34 2910021118	£1.75	£2.10
97 - HEX SOCKET HEAD CAP SCREW M 8x50 MM BSD-1613414007.A6 1613414007	£2.16	£2.59
98 - TAPPING SCREW B 4.8x68 MM BSD-1613412001.A37 1613412001	£1.75	£2.10
99 - SOCKET HEAD CAP SCREW DIN 84-AM6x30-8.8 BSD-2910021205.A3 2910021205	-
100 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A233 2910141201	£2.61	£3.13
101 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A96 2910141244	£1.75	£2.10
102 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A125 2910141158	£1.75	£2.10
103 - COUNTERSUNK-HEAD SCREW M 8x16 DIN 7991-8.8 BSD-2910540238.A12 2910540238	-
104 - MANUFACTURER'S NAMEPLATE BSD-1611110487.A5 1611110487	-
105 - REFERENCE PLATE BSD-1611110489.A7 1611110489	£3.34	£4.01
112 - CYLINDRICAL GEAR Z=31 BSD-1616317027.A8 1616317027	-
114 - SHIM 0.3 MM BSD-1600101641.A136 1600101641	£3.72	£4.47
115 - SPRING RETAINING RING DIN 472-45x1.75MM BSD-2916660020.A5 2916660020	£1.66	£1.99
130 - REFERENCE PLATE BSD-1611110126.A2 1611110126	-
650/1 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A261 1907950007	£5.30	£6.36
650/2 - PROTECTIVE CAP BSD-1610508014.A6 1610508014	-
650/2 - PROTECTIVE CAP BSD-2600508019.A22 2600508019	£1.75	£2.10
650/3 - AUXILIARY HANDLE M14 BSD-1602025022.A1387 1602025022	£13.41	£16.09
650/3 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1394 1602025030	£18.96	£22.75
651 - CARRYING CASE BSD-1615438107.A10 1615438107	-
801 - TOOL HOLDER SET BSD-1617000100.A3 1617000100	-
802 - LOCKING BOLT SET BSD-1617000014.A75 1617000014	£24.45	£29.34
803 - WEAR AND TEAR PART SET BSD-1617000099.A2 1617000099	-
804 - PARTS SET BSD-1617000101.A4 1617000101	£27.23	£32.68
808 - CARBON-BRUSH SET BSD-1617014110.A69 1617014110	£18.96	£22.75
810 - PARTS SET BSD-1617000091.A9 1617000091	£81.81	£98.17
812 - POLE HOUSING BSD-1617000059.A31 1617000059	-
828 - PARTS SET BSD-1617000916.A0 1617000916	£500.46	£600.55
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A154 1607000228	£23.86	£28.63
881 - SEAL KIT BSD-1617000172.A18 1617000172	-
888 - NAMEPLATE BSD-160111A3H3.A3126 160111A3H3	£2.61	£3.13
