Bosch UBH 12/50 / 0611209050 / I 220 Volt Spare Parts

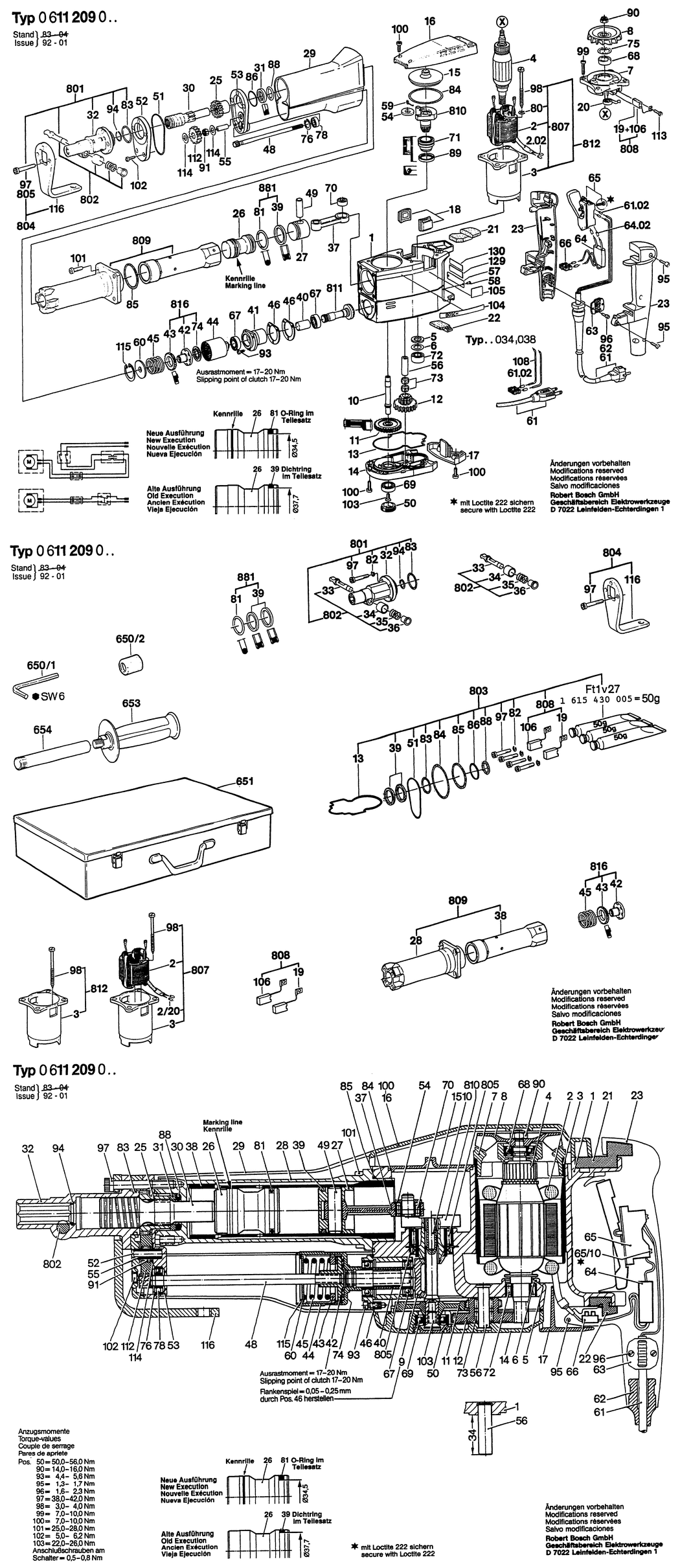

An exploded drawing and listing for the Bosch UBH 12/50 / 0611209050 / I 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615106036.A7 1615106036	-
2 - FIELD 220-230V BSD-1617031009.A23 1617031009	-
2/20 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A134 1900452012	£1.75	£2.10
4 - ARMATURE 220-230V BSD-1614011019.A20 1614011019	-
5 - SEALING DISK BSD-1610108012.A58 1610108012	£1.75	£2.10
6 - SHIM 1.0 MM BSD-1610102013.A54 1610102013	£1.75	£2.10
7 - BEARING FLANGE BSD-1615805060.A25 1615805060	-
8 - FAN BSD-1616610047.A24 1616610047	-
10 - WHEEL SHAFT BSD-1613159007.A7 1613159007	£46.82	£56.18
11 - CYLINDRICAL GEAR Z=45 BSD-1616317029.A5 1616317029	-
12 - CYLINDRICAL GEAR Z=47/21 BSD-1616328025.A30 1616328025	-
13 - SEALING FRAME BSD-1611015023.A8 1611015023	£4.75	£5.70
14 - GEAR COVER BSD-1615808050.A8 1615808050	£54.42	£65.30
15 - SEALING CAP BSD-1615500168.A10 1615500168	£2.52	£3.02
16 - FAN COVER BSD-1615500276.A41 1615500276	£52.15	£62.58
17 - SWITCH COVER BSD-1615500261.A8 1615500261	£8.17	£9.80
18 - SEALING CAP BSD-1615500282.A15 1615500282	£2.45	£2.94
20 - SPIRAL SPRING BSD-1614652000.A84 1614652000	-
21 - RUBBER PLATE BSD-1612392001.A14 1612392001	£3.99	£4.79
22 - RUBBER PLATE BSD-1612392000.A53 1612392000	£3.80	£4.56
23 - HANDLE BSD-1615133025.A5 1615133025	£25.05	£30.06
25 - CARRIER Z=11/31 BSD-1616490024.A5 1616490024	£68.42	£82.10
26 - STRIKER BSD-1618710058.A5 1618710058	£43.71	£52.45
27 - HAMMER PISTON BSD-1618700047.A5 1618700047	£27.23	£32.68
29 - PROTECTIVE TUBE BSD-1615190006.A0 1615190006	-
30 - BIT HOLDER Z=12 BSD-1618598100.A5 1618598100	£80.61	£96.73
31 - STOP DISC BSD-3606100101.A5 3606100101	£12.04	£14.45
32 - TOOLHOLDER BSD-1618597036.A3 1618597036	-
37 - CONNECTING ROD BSD-1612001029.A23 1612001029	-
39 - SEAL RING BSD-1610280004.A4 1610280004	-
40 - SPACER SLEEVE BSD-1610400020.A11 1610400020	£2.64	£3.17
41 - BUSHING BSD-1615801022.A9 1615801022	-
44 - CLUTCH ELEMENT SW22 BSD-1616409005.A6 1616409005	£75.79	£90.95
45 - COMPRESSION SPRING BSD-1614619006.A5 1614619006	-
46 - SHIM dia40.2xdia60x0.3 MM BSD-1610134004.A9 1610134004	£3.80	£4.56
48 - TOOTHED SHAFT Z= 8/8 BSD-1613060009.A11 1613060009	-
49 - PISTON PIN BSD-1610300058.A23 1610300058	£2.94	£3.53
50 - SCREW PLUG BSD-1613465003.A7 1613465003	£13.12	£15.75
51 - SEAL RING BSD-1610210048.A6 1610210048	£2.80	£3.36
52 - GEAR HOUSING BSD-1615806040.A3 1615806040	-
53 - GEAR HOUSING BSD-1615806042.A2 1615806042	-
54 - COVER DISC dia12xdia26x2.0 MM BSD-1610113005.A37 1610113005	£1.84	£2.21
55 - BEARING BOLT BSD-1610300052.A6 1610300052	£5.30	£6.36
56 - BEARING BOLT BSD-1610300057.A7 1610300057	£4.99	£5.99
57 - NAMEPLATE BSD-160111A3H3.A3111 160111A3H3	£2.74	£3.29
58 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A139 2917721034	£1.75	£2.10
59 - SPLIT PIN 3.2x18 DIN 94-ST BSD-1904681350.A64 1904681350	£1.75	£2.10
60 - COVER DISC 2.0 MM BSD-1610101010.A8 1610101010	£2.80	£3.36
61 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A595 1607000227	£23.86	£28.63
61/02 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A133 1900452012	£1.75	£2.10
62 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A602 3600703011	£2.94	£3.53
63 - FASTENING CLAMP BSD-1611302006.A9 1611302006	-
64 - SUPPRESSION FILTER BSD-1617328002.A21 1617328002	-
65 - ON-OFF SWITCH BSD-1617200017.A21 1617200017	-
66 - CONNECTING TERMINAL BSD-1611091002.A24 1611091002	£1.84	£2.21
67 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A133 1900905163	£11.30	£13.56
68 - GROOVE BALL BEARING 10x32x12 BSD-1610905001.A9 1610905001	£14.91	£17.89
69 - GROOVE BALL BEARING 12x32x10 BSD-1900900302.A71 1900900302	-
70 - NEEDLE-ROLLER BEARING BSD-1610910049.A3 1610910049	£39.12	£46.95
71 - NEEDLE-ROLLER BEARING BSD-1610910060.A4 1610910060	£33.22	£39.87
72 - NEEDLE-ROLLER BEARING BSD-1610910007.A71 1610910007	£22.76	£27.31
73 - NEEDLE-ROLLER ASSEMBLY BSD-1610913001.A14 1610913001	£11.30	£13.56
74 - THRUST NEEDLE RIM BSD-1600920000.A36 1600920000	£5.57	£6.68
75 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A799 2916660013	£2.16	£2.59
76 - SPRING RETAINING RING DIN 472-26x1.2 MM BSD-2916660010.A12 2916660010	£1.75	£2.10
78 - GROOVE BALL BEARING 10x26x8 BSD-1900905159.A5 1900905159	£28.59	£34.31
80 - SPRING LOCK WASHER DIN 127-B 5 BSD-2916680006.A5 2916680006	-
81 - SPRING WASHER DIN 137-A4 BSD-1600150006.A825 1600150006	-
83 - O-RING 35x2.5MM BSD-1900210136.A11 1900210136	£3.72	£4.47
84 - O-RING 70x3 MM BSD-1900210160.A56 1900210160	£5.58	£6.70
85 - O-RING 55x3 MM BSD-1900210152.A4 1900210152	£3.91	£4.69
86 - O-RING 30x2 MM BSD-1900210130.A48 1900210130	£3.72	£4.47
88 - O-RING 22.0x6.0 MM BSD-1610210042.A33 1610210042	£1.75	£2.10
89 - SHAFT SEAL A 30x42x7 DIN 3760 BSD-2916740053.A7 2916740053	£13.41	£16.09
90 - HEX NUT DIN 985-M8-8 BSD-2915061005.A73 2915061005	£2.61	£3.13
91 - NEEDLE-ROLLER ASSEMBLY BSD-1610913006.A9 1610913006	£4.75	£5.70
93 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8 BSD-2910141154.A22 2910141154	£1.75	£2.10
93 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A141 2910141122	£2.27	£2.72
94 - RETAINING RING DIN 9045-24 BSD-2916601012.A13 2916601012	£2.64	£3.17
95 - TAPPING SCREW DIN 7971-B 3.9x19 BSD-2910211220.A170 2910211220	-
96 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A10 2910021118	£1.84	£2.21
98 - SOCKET HEAD CAP SCREW DIN 84-B5x65-5.8 BSD-2910011179.A16 2910011179	-
99 - SOCKET HEAD CAP SCREW DIN 84-AM6x28-8.8 BSD-2910021204.A21 2910021204	-
100 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x18-8.8 BSD-2910141199.A22 2910141199	£3.72	£4.47
101 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A100 2910141244	£1.84	£2.21
102 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A111 2910141158	£1.84	£2.21
103 - COUNTERSUNK-HEAD SCREW M 8x16 DIN 7991-8.8 BSD-2910540238.A2 2910540238	-
104 - MANUFACTURER'S NAMEPLATE BSD-1611110162.A5 1611110162	-
105 - REFERENCE PLATE BSD-1601110058.A195 1601110058	£1.75	£2.10
112 - CYLINDRICAL GEAR Z=31 BSD-1616317027.A3 1616317027	-
113 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910021120.A183 2910021120	£1.84	£2.21
114 - SHIM 0.3 MM BSD-1600101641.A131 1600101641	£3.72	£4.47
115 - SPRING RETAINING RING DIN 472-45x1.75MM BSD-2916660020.A7 2916660020	£1.66	£1.99
650/1 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A254 1907950007	£5.57	£6.68
650/2 - PROTECTIVE CAP BSD-2600508019.A11 2600508019	£1.75	£2.10
651 - CARRYING CASE BSD-1615438107.A3 1615438107	-
652 - PROTECTIVE CAP BSD-2600508019.A12 2600508019	£1.75	£2.10
653 - AUXILIARY HANDLE M14 BSD-1602025022.A1374 1602025022	£13.41	£16.09
653 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1398 1602025030	£18.96	£22.75
801 - TOOL HOLDER SET BSD-1617000056.A2 1617000056	-
802 - LOCKING BOLT SET BSD-1617000014.A91 1617000014	£24.45	£29.34
803 - PARTS SET BSD-1617000055.A3 1617000055	-
804 - PARTS SET BSD-1617000080.A2 1617000080	-
805 - PARTS SET BSD-1617000081.A3 1617000081	-
807 - FIELD 220-230V BSD-1617031009.A25 1617031009	-
808 - CARBON-BRUSH SET BSD-1617014110.A52 1617014110	£19.91	£23.89
809 - PARTS SET BSD-1617031014.A5 1617031014	-
810 - ECCENTRIC COG WHEEL Z=36 BSD-1616110029.A9 1616110029	-
811 - BEVEL GEAR Z=28 BSD-1616333016.A7 1616333016	£68.42	£82.10
812 - POLE HOUSING BSD-1617000059.A24 1617000059	-
816 - PARTS SET BSD-1617000091.A2 1617000091	£81.81	£98.17
