Bosch GSF 100 A / 0601367742 / GB 240 Volt Spare Parts

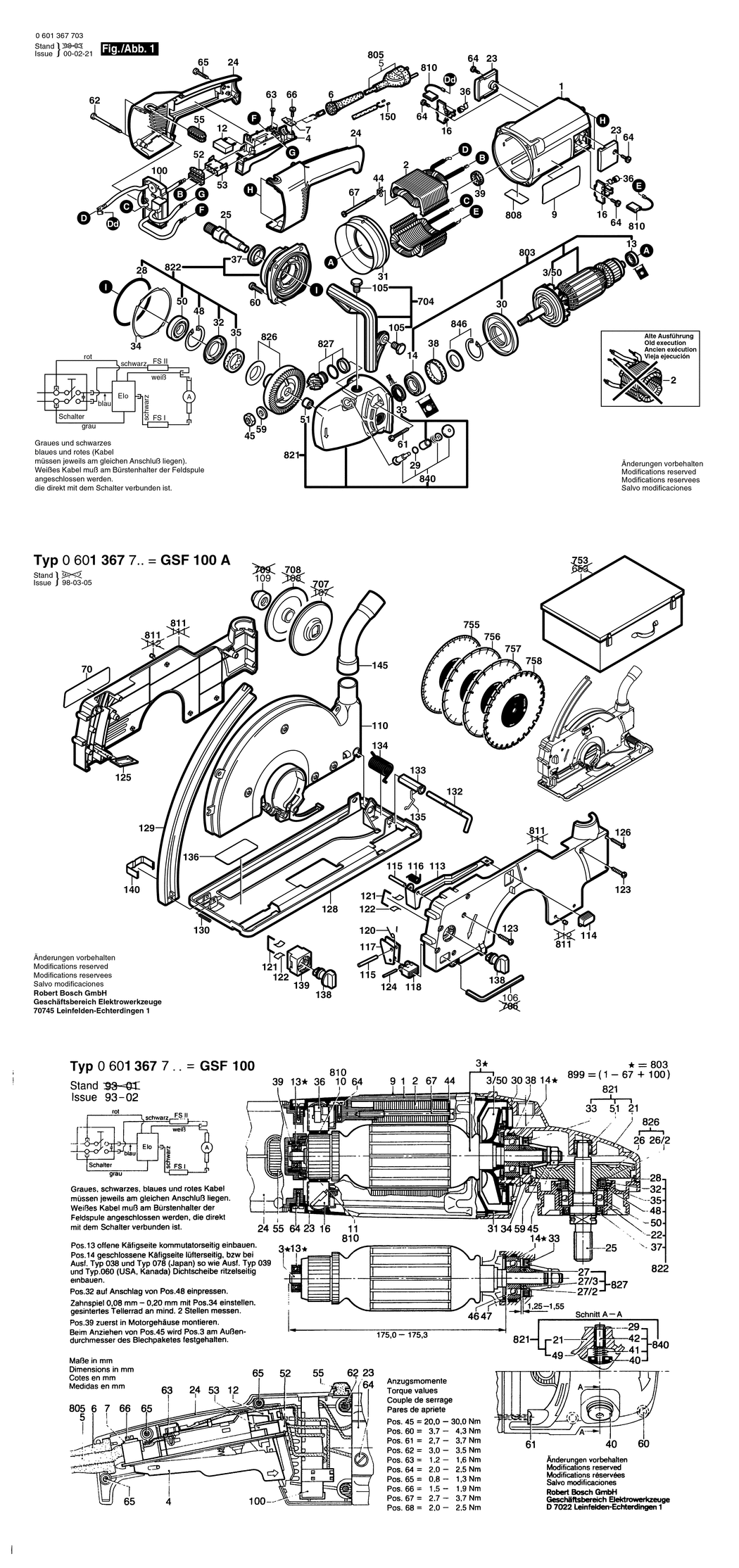

An exploded drawing and listing for the Bosch GSF 100 A / 0601367742 / GB 240 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1605108145.A25 1605108145	£23.86	£28.63
2 - FIELD 230-240V BSD-1604220388.A6 1604220388	£54.42	£65.30
3/50 - FAN BSD-1606610127.A202 1606610127	£2.80	£3.36
4 - SWITCH BSD-3607200064.A1 3607200064	£37.27	£44.72
6 - GROMMET dia 10.5-dia11.0x100 MM BSD-1600703023.A38 1600703023	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302018.A814 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-3601119293.A2 3601119293	£3.34	£4.01
12 - SUPPRESSION FILTER BSD-1607328035.A121 1607328035	£4.26	£5.11
13 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A582 1600905011	£5.58	£6.70
14 - GROOVE BALL BEARING 10x35x11 BSD-1600905023.A151 1600905023	£12.04	£14.45
16 - BRUSH HOLDER BSD-1604336021.A103 1604336021	£2.80	£3.36
23 - SEALING CAP BSD-1605500150.A80 1605500150	£3.72	£4.47
24 - HANDLE BSD-1605132122.A8 1605132122	£14.91	£17.89
25 - GRINDING SPINDLE M14 BSD-1603523107.A3 1603523107	£45.67	£54.80
28 - O-RING 79.0x1.78 MM BSD-1600210033.A664 1600210033	£1.75	£2.10
29 - O-RING 4.0x1.0 MM BSD-1600210034.A76 1600210034	£1.75	£2.10
30 - AIR-DEFLECTOR RING BSD-1600591010.A113 1600591010	£2.16	£2.59
31 - AIR-DEFLECTOR RING BSD-1600591011.A65 1600591011	£1.75	£2.10
32 - RETAINING SNAP RING BSD-1600290019.A636 1600290019	£1.75	£2.10
33 - ROTARY SHAFT LIP SEAL 18.7 MM BSD-1600290013.A183 1600290013	£2.61	£3.13
34 - SHIM 0.15 MM BSD-1600190020.A25 1600190020	£1.75	£2.10
34 - SHIM 0.3 MM BSD-1600190021.A802 1600190021	£2.61	£3.13
34 - SHIM 0.1 MM BSD-1600190022.A25 1600190022	£1.75	£2.10
35 - FELT WASHER BSD-1600205034.A38 1600205034	£1.75	£2.10
36 - SPIRAL SPRING BSD-1604652015.A334 1604652015	£2.80	£3.36
37 - SEAL RING BSD-1600290020.A45 1600290020	£1.75	£2.10
38 - RUBBER RING 7 MM BSD-1600206020.A678 1600206020	£1.75	£2.10
39 - RUBBER RING BSD-1600206030.A17 1600206030	£1.75	£2.10
44 - HOLDING BRACKET BSD-1601334008.A43 1601334008	£2.61	£3.13
45 - HEX NUT BSD-3603300016.A3 3603300016	£5.87	£7.04
48 - RETAINING CLIP BSD-1600119010.A646 1600119010	£1.75	£2.10
50 - GROOVE BALL BEARING BSD-3600905134.A109 3600905134	£11.30	£13.56
51 - NEEDLE-ROLLER BEARING dia14 MM BSD-2600910001.A158 2600910001	£4.26	£5.11
52 - CABLE ROUTING BSD-1602388027.A327 1602388027	£2.61	£3.13
53 - SOCKET HOUSING BSD-1605190038.A28 1605190038	£1.75	£2.10
55 - STORAGE LEDGE BSD-1602388029.A271 1602388029	£1.75	£2.10
59 - PLAIN WASHER 1.8 MM BSD-1600101655.A9 1600101655	£1.75	£2.10
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM BSD-1603435023.A17 1603435023	£2.16	£2.59
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST BSD-2912401038.A5 2912401038	£1.75	£2.10
62 - TAPPING SCREW C4.8x63 MM BSD-1603435024.A236 1603435024	£1.75	£2.10
63 - PAN HEAD SCREW M 3.5x10 MM BSD-3603410009.A8 3603410009	£1.32	£1.58
64 - PLASTIC-CUTTING SCREW St3.9x12 BSD-1603435042.A613 1603435042	£1.75	£2.10
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A85 2912401020	£2.16	£2.59
66 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A197 2910211019	£1.75	£2.10
67 - TAPPING SCREW BZ 4.8x78 MM BSD-1603435019.A56 1603435019	-
70 - STICKER BSD-3601110270.A3 3601110270	£4.26	£5.11
100 - SPEED GOVERNOR 220-240V BSD-1607233040.A3 1607233040	£68.42	£82.10
105 - HEX SCREW M14x16x1.5 MM BSD-2603450007.A337 2603450007	£5.58	£6.70
106 - OFFSET SCREWDRIVER DIN 911 SW10 BSD-1907950009.A89 1907950009	£21.68	£26.01
109 - ROUND NUT BSD-1603345042.A3 1603345042	-
110 - PROTECTIVE COVER BSD-1605510227.A3 1605510227	£187.56	£225.07
113 - LOCKING LEVER BSD-1601990002.A3 1601990002	£14.72	£17.67
114 - CAP-HANDLE BSD-1600591015.A3 1600591015	£3.34	£4.01
115 - STRAIGHT PIN DIN 6325-5M6x45 BSD-2917550133.A17 2917550133	£2.33	£2.80
116 - COILED SPRING BSD-3604651008.A0 3604651008	-
117 - SAFETY CATCH BSD-1601990001.A2 1601990001	-
118 - PUSH-BUTTON BSD-1600591016.A2 1600591016	£13.41	£16.09
120 - COILED SPRING BSD-3604651010.A0 3604651010	£1.75	£2.10
121 - CLIP BSD-3604651012.A0 3604651012	-
122 - LEAF SPRING BSD-1601290008.A4 1601290008	-
123 - TAPPING SCREW BSD-1603435046.A5 1603435046	£1.75	£2.10
124 - STRAIGHT PIN BSD-2917501081.A3 2917501081	£1.75	£2.10
125 - GUIDE PLATE BSD-1601015027.A5 1601015027	£24.45	£29.34
126 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z BSD-2912401022.A43 2912401022	£1.75	£2.10
128 - GUIDE BLOCK BSD-1608135008.A3 1608135008	£46.82	£56.18
129 - GUIDE RAIL BSD-1608040114.A4 1608040114	£33.45	£40.14
130 - HEAV-DUTY CLAMPING PIN BSD-3603101009.A4 3603101009	£1.75	£2.10
132 - SWIVELLING AXIS BSD-3603101007.A1 3603101007	£21.42	£25.71
133 - SPRING SLEEVE BSD-3600400016.A3 3600400016	£16.74	£20.09
134 - TORSION SPRING BSD-3604651009.A4 3604651009	-
135 - HOLDING SPRING BSD-3604651013.A4 3604651013	£6.61	£7.93
136 - REFERENCE PLATE BSD-3601110282.A1 3601110282	£2.33	£2.80
138 - CONTROL KNOB BSD-1602026064.A2 1602026064	£2.52	£3.02
139 - HOUSING BSD-1605190048.A5 1605190048	£1.95	£2.34
140 - PICKUP CLIP BSD-3604651011.A4 3604651011	£5.30	£6.36
145 - SUCTION TUBE BSD-1600795008.A4 1600795008	£33.45	£40.14
150 - END SPLICE DIN 46 228-A1-6 BSD-1900452012.A16 1900452012	£1.75	£2.10
704 - PARTS SET BSD-3607031335.A1 3607031335	£58.76	£70.51
707 - CLAMPING-FLANGE SW 17.dia22.2xdia100 MM BSD-2605703017.A3 2605703017	-
708 - CONICAL SPRING WASHER dia 22.2x100x6.4 MM BSD-2605703016.A11 2605703016	-
753 - UW CASE BSD-2605438349.A3 2605438349	-
755 - DIAMOND CUTTING BLADE dia22.2xdia300MM BSD-2608600074.A4 2608600074	-
756 - DIAMOND CUTTING BLADE dia22.2xdia300MM BSD-2608600084.A1 2608600084	-
757 - DIAMOND CUTTING BLADE dia22.2xdia300MM BSD-2608600132.A4 2608600132	-
758 - DIAMOND CUTTING BLADE dia22.2xdia300MM BSD-2608600136.A1 2608600136	-
803 - ARMATURE 220-240V BSD-3604010064.A4 3604010064	£154.03	£184.84
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F BSD-1607000228.A281 1607000228	£23.86	£28.63
808 - NAMEPLATE BSD-160111A3H3.A3664 160111A3H3	£2.61	£3.13
810 - CARBON-BRUSH SET BSD-1607014171.A493 1607014171	£14.91	£17.89
811 - PROTECTIVE HOUSING BSD-3605190183.A1 3605190183	£51.22	£61.47
821 - GEAR HOUSING BSD-3607031336.A4 3607031336	£37.72	£45.27
822 - PARTS SET BSD-3607000082.A4 3607000082	£24.45	£29.34
826 - CROWN GEAR Z=61 BSD-1606333260.A3 1606333260	£72.18	£86.62
827 - BEVEL GEAR Z=9 BSD-1606333262.A2 1606333262	-
840 - PUSH-BUTTON BSD-1607000206.A180 1607000206	£11.30	£13.56
846 - RETAINING WASHER DIN 472 38X1.5 BSD-1607000316.A1 1607000316	£4.26	£5.11
