Bosch UBH 4/26 SE / 0611211732 / CH 220 Volt Spare Parts

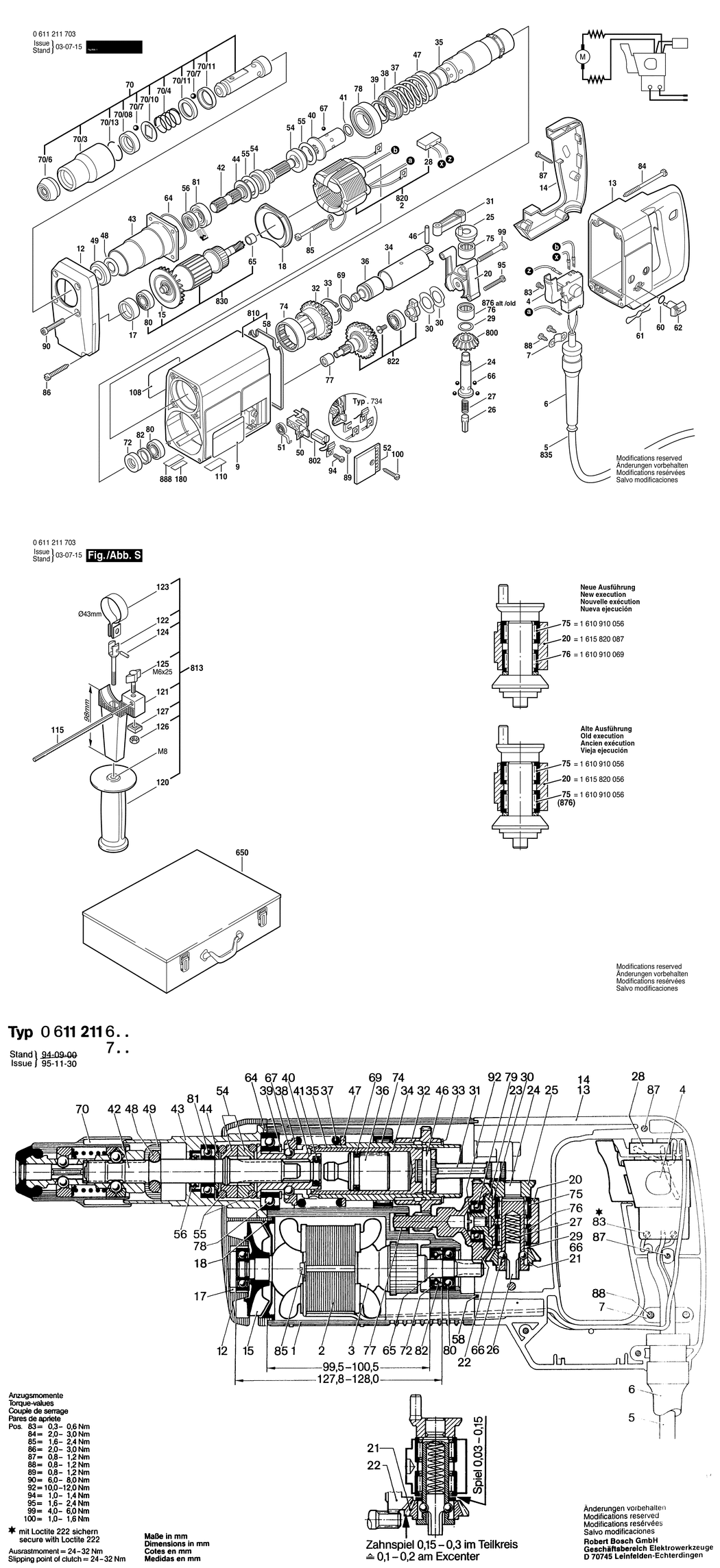

An exploded drawing and listing for the Bosch UBH 4/26 SE / 0611211732 / CH 220 Volt

	Ex VAT	Inc VAT
4 - ON-OFF SWITCH BSD-2607200371.A36 2607200371	-
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460440.A44 1604460440	£21.52	£25.83
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A642 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302014.A30 1601302014	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE BSD-1611110463.A3 1611110463	-
12 - HOUSING COVER BSD-1615500280.A7 1615500280	-
13 - GEAR HOUSING BSD-1615806055.A7 1615806055	-
14 - HANDLE COVER BSD-1615132024.A8 1615132024	-
15 - FAN BSD-1616610052.A40 1616610052	-
17 - RUBBER RING BSD-1610206017.A67 1610206017	-
18 - AIR-DEFLECTOR RING BSD-1610522005.A7 1610522005	-
20 - BEARING PEDESTAL BSD-1615820087.A9 1615820087	-
24 - CRANKSHAFT BSD-1613124019.A4 1613124019	-
25 - ECCENTRIC BOLT BSD-1613180002.A11 1613180002	-
26 - PRESSURE SPINDLE BSD-1613105010.A4 1613105010	-
27 - COMPRESSION SPRING BSD-1604612002.A6 1604612002	-
28 - SUPPRESSION FILTER BSD-1607328028.A191 1607328028	£5.30	£6.36
29 - SHIM WASHER 1.8 MM BSD-1610101610.A5 1610101610	-
30 - SHIM 0.2 MM BSD-1610132004.A5 1610132004	-
31 - CONNECTING ROD BSD-1612001030.A4 1612001030	-
32 - CYLINDRICAL GEAR Z=53/6 BSD-1616317025.A10 1616317025	-
33 - SPRING RETAINING RING DIN 471-32x1.5-FSt BSD-2916650018.A7 2916650018	-
34 - HAMMER PISTON BSD-1618700051.A3 1618700051	-
35 - HOLLOW SHAFT Z=6 BSD-1616130005.A11 1616130005	-
36 - STRIKER BSD-1618710046.A11 1618710046	-
37 - COMPRESSION SPRING BSD-1614618001.A15 1614618001	-
38 - BACKUP RING BSD-1610328010.A10 1610328010	-
39 - SPRING RETAINING RING DIN 471 25x1.2 BSD-2916650014.A115 2916650014	£1.75	£2.10
40 - BEARING SLEEVE BSD-1616334009.A5 1616334009	-
41 - O-RING 62.0x4.0 MM BSD-1610210089.A15 1610210089	-
42 - DRILLING SPINDLE Z=6 BSD-1618597041.A3 1618597041	-
43 - BEARING SLEEVE BSD-1618597040.A11 1618597040	-
44 - FRICTION WASHER BSD-1610120023.A8 1610120023	-
46 - STRAIGHT PIN BSD-1613101004.A11 1613101004	-
47 - SUPPORTING DISC 3.0 MM BSD-1610102016.A16 1610102016	-
48 - O-RING 11.0x7.0 MM BSD-1610210035.A20 1610210035	£2.52	£3.02
49 - BACKUP RING BSD-1610508006.A21 1610508006	-
50 - BRUSH HOLDER BSD-1604336017.A95 1604336017	£7.36	£8.83
51 - SPIRAL SPRING BSD-1604652006.A253 1604652006	£1.75	£2.10
52 - HOUSING COVER BSD-1615500281.A26 1615500281	-
54 - BACKUP RING BSD-1610220011.A4 1610220011	-
55 - O-RING 24.0x5.0 MM BSD-1610210061.A4 1610210061	-
56 - ROTARY SHAFT LIP SEAL dia 26x15x7.5 MM BSD-1610283015.A18 1610283015	£4.75	£5.70
58 - SEALING FRAME BSD-1611015025.A12 1611015025	-
60 - O-RING 14.0x2.3 MM BSD-1610210026.A35 1610210026	£1.75	£2.10
61 - HOLDING SPRING BSD-1614680000.A12 1614680000	-
62 - CONTROL LEVER BSD-1612026015.A12 1612026015	-
64 - O-RING 45x2.5MM BSD-1900210145.A44 1900210145	£1.75	£2.10
65 - INTERMEDIATE RING BSD-1610300051.A8 1610300051	-
66 - BALL DIN 5401-5 G28 BSD-1903230009.A563 1903230009	£1.75	£2.10
67 - BALL DIN 5401-6 G28 BSD-1903230011.A368 1903230011	£2.61	£3.13
69 - O-RING 18.0x3.0 MM BSD-1610210058.A100 1610210058	£2.61	£3.13
70 - BIT HOLDER BSD-1618598131.A36 1618598131	-
70/08 - THRUST RING BSD-1610251002.A7 1610251002	-
70/3 - PROTECTION SLEEVE BSD-1610499009.A26 1610499009	-
70/4 - COMPRESSION SPRING BSD-1614632000.A14 1614632000	-
70/6 - PROTECTIVE CAP L=17 MM. SDS-PLUS BSD-1610508008.A71 1610508008	£2.16	£2.59
70/7 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A428 1903230013	£2.16	£2.59
70/10 - HOLDING PLATE BSD-1610190007.A29 1610190007	-
70/11 - RETAINING SNAP RING BSD-1610250003.A43 1610250003	£5.58	£6.70
70/13 - RETAINING RING DIN 7993-A22 BSD-2916540012.A391 2916540012	-
72 - ROTARY SHAFT LIP SEAL dia13.8xdia26x7.5 MM BSD-1610283014.A26 1610283014	-
74 - NEEDLE BEARING dia35xdia42x12 MM BSD-1610910051.A51 1610910051	-
75 - NEEDLE BEARING dia14xdia22x13 MM BSD-1610910056.A16 1610910056	-
76 - NEEDLE BEARING BSD-1610910069.A6 1610910069	-
77 - NEEDLE BEARING dia8xdia12x10 MM BSD-1610910057.A53 1610910057	£2.80	£3.36
78 - GROOVE BALL BEARING 25x47x12 BSD-1900900275.A43 1900900275	-
80 - GROOVE BALL BEARING 10x26x8 BSD-1610905002.A32 1610905002	-
81 - GROOVE BALL BEARING BSD-1900900410.A2 1900900410	-
82 - LUBRICATING FELT BSD-1610205003.A47 1610205003	-
83 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2688 2603410001	£1.75	£2.10
84 - TAPPING SCREW B 4.8x68 MM BSD-1613412001.A52 1613412001	£1.75	£2.10
85 - SCREW B 4.8x45 MM BSD-3603415560.A206 3603415560	£1.75	£2.10
86 - TAPPING SCREW DIN 7971-BZ4.8x32 BSD-2910211037.A112 2910211037	£1.75	£2.10
87 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A211 2910211021	£1.75	£2.10
88 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A468 2910211018	£1.75	£2.10
89 - TAPPING SCREW DIN 7971-BZ3.9x9.5 BSD-2910211017.A134 2910211017	-
90 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8 BSD-2910141166.A87 2910141166	£1.75	£2.10
94 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A42 2910021118	£1.75	£2.10
95 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8 BSD-2910021134.A173 2910021134	£1.75	£2.10
99 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x40-8.8 BSD-2910141170.A104 2910141170	£2.61	£3.13
100 - TAPPING SCREW BZ 3.9x19 DIN 7972 BSD-2910601120.A28 2910601120	-
108 - MANUFACTURER'S NAMEPLATE BSD-1611110464.A5 1611110464	-
115 - DEPTH-GAUGE SW 6x330 MM BSD-1613001003.A19 1613001003	£4.25	£5.10
120 - AUXILIARY HANDLE M8 BSD-1612025019.A367 1612025019	£6.52	£7.83
121 - SUPPORT CLAMP BSD-1618040077.A2 1618040077	-
122 - STUD BOLT M8 BSD-1613521001.A39 1613521001	£5.58	£6.70
123 - CLAMPING BAND dia43 MM BSD-1611316003.A74 1611316003	£2.61	£3.13
124 - STRAIGHT PIN BSD-1613100012.A80 1613100012	£2.61	£3.13
125 - WING SCREW M6x25 MM BSD-1613480009.A46 1613480009	£1.88	£2.25
126 - HEX NUT M6 BSD-1613300006.A67 1613300006	£1.32	£1.58
127 - CLAMPING PLATE BSD-1611030009.A15 1611030009	-
650 - CARRYING CASE BSD-1615438144.A6 1615438144	-
800 - BEVEL GEAR Z=33 BSD-1616333005.A17 1616333005	-
802 - CARBON-BRUSH SET BSD-1617014106.A8 1617014106	£21.52	£25.83
810 - PARTS SET BSD-1617000082.A1 1617000082	-
813 - AUXILIARY HANDLE BSD-1612025020.A25 1612025020	£26.12	£31.35
820 - PARTS SET 220-230V BSD-1617000140.A6 1617000140	-
822 - PARTS SET Z=9/48 BSD-1617000929.A6 1617000929	-
830 - ARMATURE 220-230V BSD-1614010027.A9 1614010027	-
876 - NEEDLE BEARING dia14xdia22x13 MM BSD-1610910056.A17 1610910056	-
888 - NAMEPLATE BSD-160111A3H3.A3146 160111A3H3	£2.61	£3.13
