Bosch TBH 260 / 3611B74080 / --- 220 Volt Spare Parts

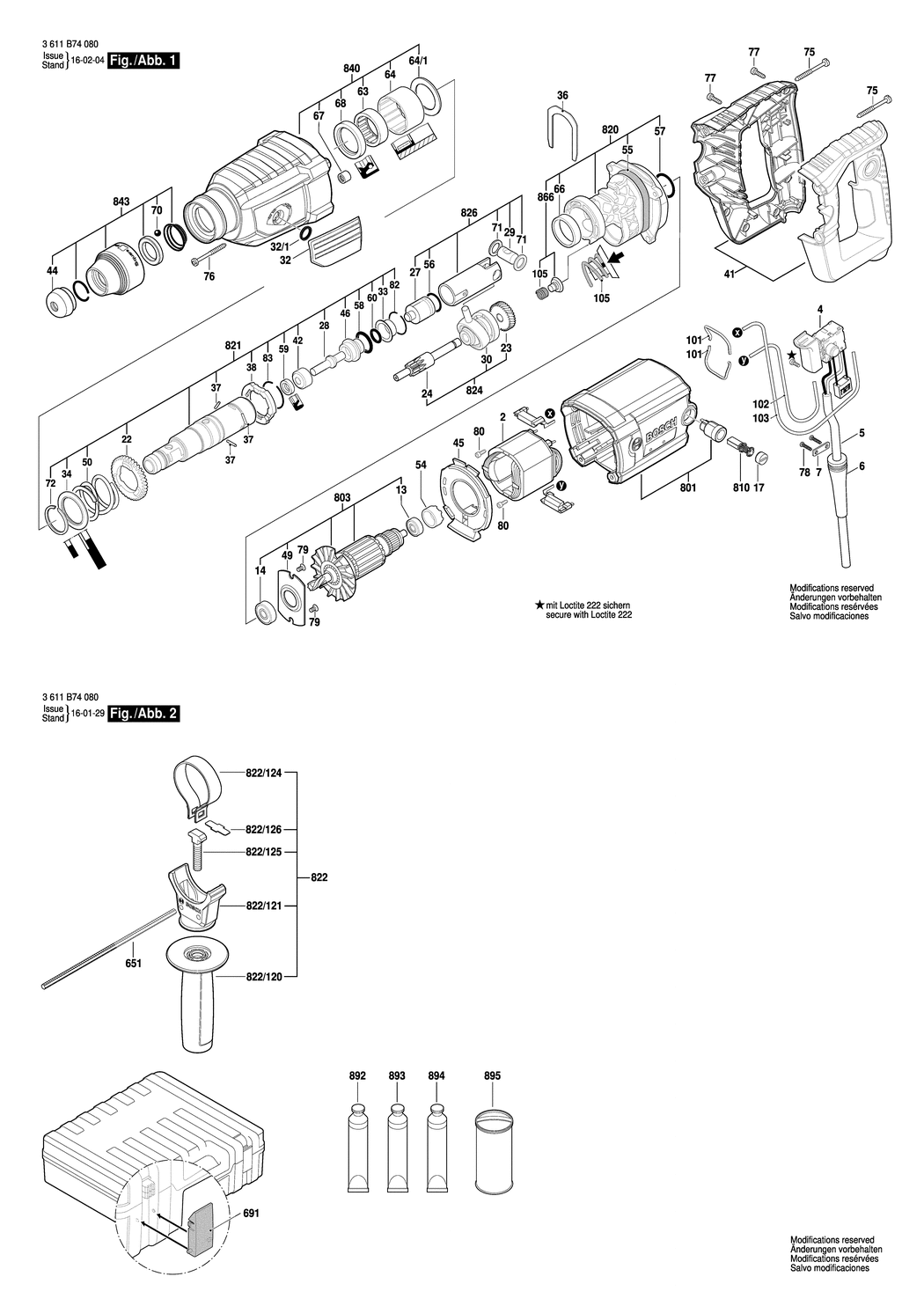

An exploded drawing and listing for the Bosch TBH 260 / 3611B74080 / --- 220 Volt

	Ex VAT	Inc VAT
2 - FIELD BSD-1619P20211.A0 1619P20211	£18.96	£22.75
4 - SWITCH BSD-1607200330.A0 1607200330	£8.49	£10.19
5 - POWER SUPPLY CORD CN 2.65m 2 x 1.00mm H07 RN-F BSD-1614460076.A0 1614460076	-
6 - GROMMET dia7.3-dia8.6x76 MM BSD-2600703018.A26 2600703018	£2.61	£3.13
13 - GROOVE BALL BEARING 7x19x6 BSD-1610905031.A5 1610905031	£6.52	£7.83
14 - GROOVE BALL BEARING 9x24x7 BSD-1610905048.A115 1610905048	£8.67	£10.41
17 - INSULATING CAP BSD-1619P20194.A0 1619P20194	£1.75	£2.10
22 - CYLINDRICAL GEAR BSD-1616312004.A98 1616312004	£12.04	£14.45
23 - CYLINDRICAL GEAR BSD-1619P20179.A0 1619P20179	£8.67	£10.41
24 - TOOTHED SHAFT BSD-1619P20177.A0 1619P20177	£10.10	£12.12
27 - STRIKER BSD-1610311018.A47 1610311018	£18.96	£22.75
28 - STRIKER PIN BSD-1613124081.A53 1613124081	£10.10	£12.12
29 - PISTON PIN BSD-1613105012.A55 1613105012	£3.72	£4.47
30 - DRIVE BEARING BSD-1619P20175.A0 1619P20175	£21.52	£25.83
32 - CLAMP COVER BSD-1619P20197.A0 1619P20197	£1.75	£2.10
32/1 - O-RING 10.5x2.7 MM BSD-1610210046.A440 1610210046	£2.16	£2.59
33 - HOLDING JACKET BSD-1610590014.A38 1610590014	£2.16	£2.59
34 - SUPPORTING DISC BSD-1619P12280.A0 1619P12280	£2.16	£2.59
36 - HOLDING PLATE BSD-1611016003.A60 1611016003	£2.16	£2.59
37 - STRAIGHT PIN DIN6325-2.5x12-RIKO BSD-1613100019.A245 1613100019	£1.75	£2.10
38 - CATCH DISK BSD-1610190048.A2 1610190048	£5.30	£6.36
41 - HANDLE COVER BSD-1619P20188.A0 1619P20188	£13.12	£15.75
42 - THRUST RING BSD-1610102073.A28 1610102073	£5.30	£6.36
44 - PROTECTIVE CAP BSD-1619P20184.A0 1619P20184	£1.75	£2.10
45 - AIR-DEFLECTOR RING BSD-1619P20189.A0 1619P20189	£1.75	£2.10
46 - GUIDE BUSHING BSD-2608670714.A1 2608670714	£5.30	£6.36
49 - END SHIELD BSD-1615700044.A167 1615700044	£2.16	£2.59
50 - COMPRESSION SPRING BSD-1614611020.A84 1614611020	£2.80	£3.36
54 - RUBBER BUSHING BSD-1610502016.A10 1610502016	£1.75	£2.10
55 - SEAL RING 53.0x7.0 MM BSD-1610290226.A86 1610290226	£3.72	£4.47
56 - O-RING BSD-1616B00086.A10 1616B00086	£2.16	£2.59
57 - O-RING 24.0x2.5 MM BSD-1610210068.A368 1610210068	£1.75	£2.10
58 - O-RING BSD-1610210178.A109 1610210178	£1.75	£2.10
59 - ROTARY SHAFT LIP SEAL BSD-1610283035.A19 1610283035	£5.58	£6.70
60 - O-RING 9.0x3.5 MM BSD-1610210176.A71 1610210176	£1.75	£2.10
63 - NEEDLE BEARING dia30xdia37x12 MM BSD-1610910063.A263 1610910063	£5.58	£6.70
64 - BUSHING BSD-1619P10546.A0 1619P10546	£3.72	£4.47
64/1 - SUPPORTING DISC BSD-1619P12278.A1 1619P12278	£1.75	£2.10
66 - PLAIN BEARING BSD-1610202021.A91 1610202021	£2.61	£3.13
67 - NEEDLE BEARING dia7 MM BSD-2600910006.A22 2600910006	£3.72	£4.47
68 - ROTARY SHAFT LIP SEAL BSD-1610283017.A1 1610283017	£7.36	£8.83
70 - BALL DIN 5401-dia7MM-III-ST BSD-1903230013.A224 1903230013	£2.16	£2.59
71 - SHIM WASHER 1.2 MM BSD-1610101011.A436 1610101011	£1.75	£2.10
72 - RETAINING RING BSD-1604601027.A131 1604601027	£1.75	£2.10
75 - TORX OVAL-HEAD SCREW BSD-1619P09645.A11 1619P09645	£1.75	£2.10
76 - THREAD-FORMING TAP. SCREW BSD-1613435022.A2 1613435022	£1.75	£2.10
77 - SCREW 4x16 BSD-2603490022.A471 2603490022	£1.75	£2.10
78 - TORX OVAL-HEAD SCREW 3x10 BSD-1619P00220.A200 1619P00220	£1.75	£2.10
79 - THREAD-FORMING TAP. SCREW BSD-1613435023.A123 1613435023	£1.75	£2.10
80 - THREAD-FORMING TAP. SCREW BSD-1619P08803.A2 1619P08803	£1.75	£2.10
82 - RETAINING RING BSD-1614601034.A70 1614601034	£2.16	£2.59
83 - RETAINING RING A22 DIN 7993 BSD-1604601028.A154 1604601028	£1.75	£2.10
101 - CONNECTING CABLE BSD-1619P20205.A0 1619P20205	£1.75	£2.10
102 - CONNECTING CABLE BSD-1619P20206.A0 1619P20206	£1.75	£2.10
103 - CONNECTING CABLE BSD-1619P20207.A0 1619P20207	£1.75	£2.10
105 - COMPRESSION SPRING BSD-1619P20182.A0 1619P20182	£1.75	£2.10
651 - DEPTH-GAUGE SW 6x210 MM BSD-1613001009.A499 1613001009	£3.72	£4.47
691 - LOCK BSD-1615438409.A30 1615438409	£6.52	£7.83
691 - LOCK BSD-1615438426.A16 1615438426	£5.87	£7.04
691 - LOCK BSD-1615438431.A17 1615438431	£6.52	£7.83
801 - MOTOR HOUSING BSD-1619P20253.A0 1619P20253	£21.52	£25.83
803 - ARMATURE SET BSD-1619P20254.A0 1619P20254	£37.27	£44.72
810 - CARBON-BRUSH SET BSD-1619P20255.A0 1619P20255	£5.30	£6.36
820 - INTERMEDIATE FLANGE BSD-1619P20256.A0 1619P20256	£21.52	£25.83
821 - HAMMER PIPE BSD-1619P20257.A0 1619P20257	£48.38	£58.06
822 - AUXILIARY HANDLE BSD-1619P20258.A0 1619P20258	£10.10	£12.12
822/120 - AUXILIARY HANDLE BSD-1619P20196.A0 1619P20196	£2.80	£3.36
822/121 - SUPPORT CLAMP BSD-1619P20191.A0 1619P20191	£1.75	£2.10
822/124 - CLAMPING BAND dia50 MM BSD-1611316021.A25 1611316021	£2.80	£3.36
822/125 - T-HEAD BOLT M8x40 MM BSD-1613490002.A31 1613490002	£4.26	£5.11
822/126 - HOLDING PLATE BSD-1619P20190.A0 1619P20190	£1.75	£2.10
824 - TOOTHED SHAFT BSD-1619P20259.A0 1619P20259	£31.64	£37.97
826 - HAMMER PISTON BSD-1617000557.A31 1617000557	£36.63	£43.96
840 - GEAR HOUSING BSD-1619P20260.A0 1619P20260	£23.86	£28.63
843 - PROTECTION SLEEVE BSD-1619P20261.A0 1619P20261	£4.26	£5.11
866 - PLAIN BEARING BSD-1619P20262.A0 1619P20262	£1.75	£2.10
892 - GREASE TUBE 225 ML BSD-1615430001.A83 1615430001	£23.86	£28.63
893 - GREASE TUBE 225 ML BSD-1615430002.A1 1615430002	£45.67	£54.80
894 - GREASE TUBE 225 ML BSD-1615430020.A61 1615430020	£21.52	£25.83
895 - OIL RESERVOIR 1000 ML BSD-1615430019.A19 1615430019	£59.53	£71.44
