Bosch USH 27 / 0611304050 / I 220 Volt Spare Parts

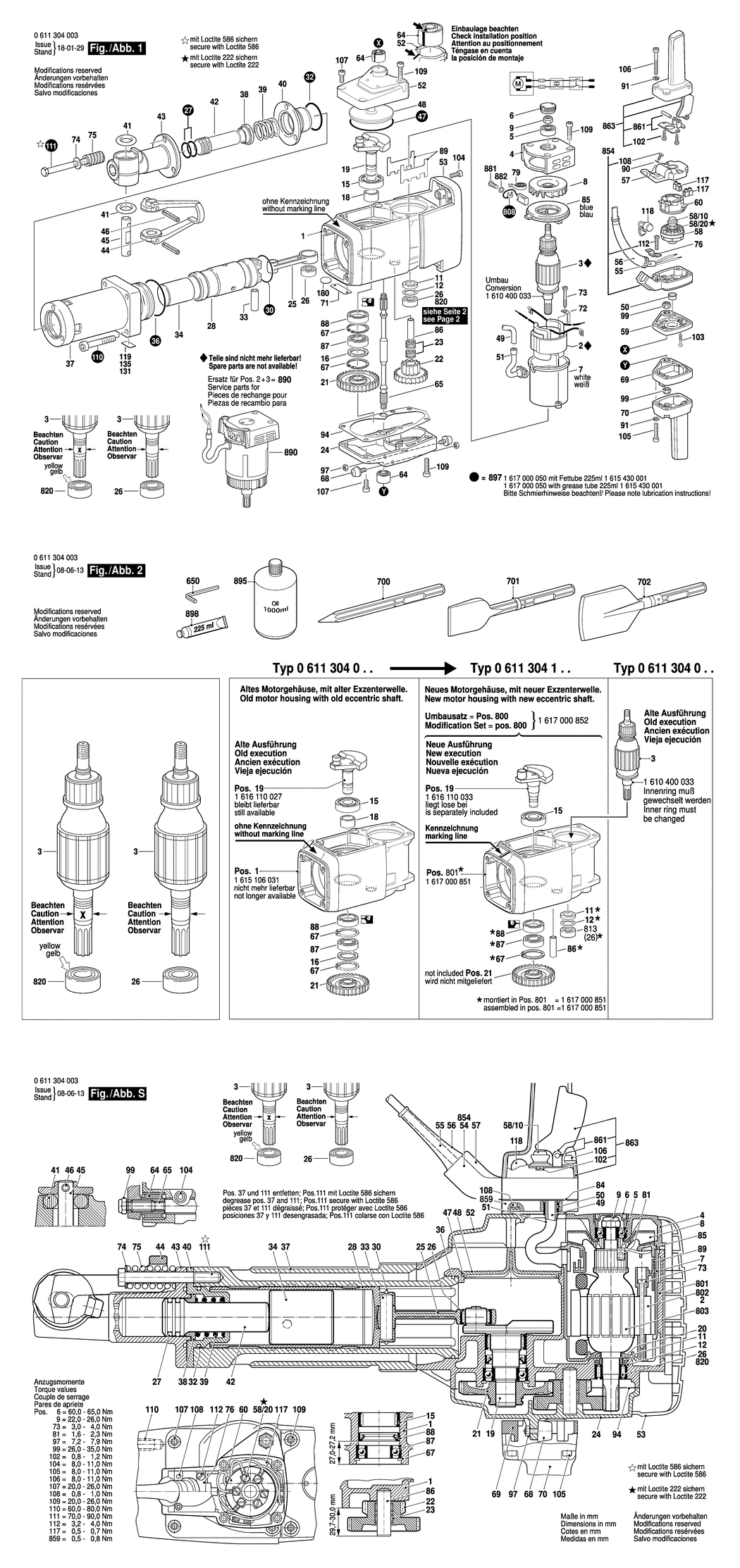

An exploded drawing and listing for the Bosch USH 27 / 0611304050 / I 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1617000851.A5 1617000851	£798.41	£958.09
2 - FIELD 220-240V BSD-1614220059.A0 1614220059	-
3 - ARMATURE 220-230V BSD-2610991398.A0 2610991398	-
4 - BEARING COVER BSD-1615805068.A7 1615805068	£81.81	£98.17
5 - GROOVE BALL BEARING 12x37x12 BSD-1610900015.A6 1610900015	£23.86	£28.63
6 - SCREW PLUG BSD-1615500214.A3 1615500214	£21.68	£26.01
7 - INSULATING HOUSING BSD-1615108006.A1 1615108006	-
8 - FAN BSD-1616610056.A6 1616610056	-
9 - HEX NUT DIN 985-M12X1 BSD-1613313000.A30 1613313000	£2.80	£3.36
11 - FELT WASHER BSD-1610108013.A13 1610108013	£2.16	£2.59
12 - SUPPORTING DISC 1.0 MM BSD-1610102616.A11 1610102616	£2.80	£3.36
15 - CYL. ROLLER BEARING DIN 5412-62x30x16 BSD-1610910012.A5 1610910012	-
16 - SHIM 2.5 MM BSD-1610102010.A11 1610102010	£2.80	£3.36
18 - SPACER BUSHING BSD-1610300034.A6 1610300034	£33.74	£40.49
19 - ECCENTRIC SHAFT BSD-1616110027.A6 1616110027	£167.68	£201.22
21 - CYLINDRICAL GEAR Z=45 BSD-1616318009.A10 1616318009	£116.15	£139.38
22 - CYLINDRICAL GEAR Z=19/52 BSD-1616328036.A13 1616328036	£179.37	£215.24
23 - NEEDLE-ROLLER ASSEMBLY BSD-1610913005.A6 1610913005	£8.67	£10.41
24 - GEAR COVER BSD-1615500323.A7 1615500323	£135.25	£162.30
25 - CONNECTING ROD BSD-1612001040.A11 1612001040	£72.18	£86.62
26 - NEEDLE-ROLLER BEARING D20xD37x17 BSD-1610910035.A14 1610910035	£23.86	£28.63
27 - O-RING 36.0x5.0 MM BSD-1610210033.A8 1610210033	£2.61	£3.13
28 - HAMMER PISTON BSD-1618700043.A5 1618700043	£357.27	£428.72
30 - RETAINING RING dia54.2xdia2.8 BSD-1614601039.A0 1614601039	£2.16	£2.59
30 - O-RING 40x3MM BSD-1900210143.A5 1900210143	£3.72	£4.47
32 - O-RING 60x4 MM BSD-1900210156.A16 1900210156	£8.67	£10.41
33 - PISTON PIN BSD-3613101500.A9 3613101500	£7.36	£8.83
34 - STRIKER BSD-1618710039.A6 1618710039	£63.50	£76.20
36 - O-RING 80x3 MM BSD-1900210166.A36 1900210166	£5.30	£6.36
37 - GUIDE TUBE BSD-1615806029.A3 1615806029	£306.81	£368.17
38 - GUIDE BUSHING BSD-1610220009.A7 1610220009	£21.68	£26.01
39 - COMPRESSION SPRING BSD-1614619005.A10 1614619005	£6.52	£7.83
40 - INTERMEDIATE FLANGE BSD-1615700017.A4 1615700017	£135.25	£162.30
41 - O-RING 17.3x17.7 MM BSD-1610210008.A16 1610210008	£5.58	£6.70
42 - STRIKER PIN BSD-1613123003.A4 1613123003	£120.11	£144.13
43 - TOOLHOLDER BSD-1617000428.A6 1617000428	£458.51	£550.21
44 - RETAINING BRACKET BSD-1618045026.A16 1618045026	£179.37	£215.24
45 - LOCKING BOLT BSD-1613103004.A19 1613103004	£54.42	£65.30
46 - SLOTTED SPRING PIN 8x55 DIN 1481 BSD-2917760187.A18 2917760187	£2.80	£3.36
47 - O-RING 100x3 MM BSD-1900210172.A1 1900210172	£10.10	£12.12
48 - SEALING CAP BSD-1610516007.A6 1610516007	£14.75	£17.70
49 - INSULATION TUBING BSD-1610707000.A3 1610707000	£1.66	£1.99
50 - PROTECTION SLEEVE BSD-3600421500.A24 3600421500	£2.61	£3.13
51 - CORD GUARD BSD-1610703019.A17 1610703019	£4.75	£5.70
52 - FAN COVER BSD-1615500324.A3 1615500324	£63.50	£76.20
53 - COVERING HOOD BSD-1600A00C0N.A20 1600A00C0N	£72.18	£86.62
55 - POWER SUPPLY CORD BR 4.15m 2 x 1.0mm H07RN-F BSD-1614460093.A3 1614460093	£27.23	£32.68
56 - GROMMET BSD-1610703011.A8 1610703011	£14.91	£17.89
57 - SWITCH COVER BSD-1615500212.A7 1615500212	£11.30	£13.56
58 - SWITCH BSD-1617200108.A5 1617200108	£59.53	£71.44
58/10 - PROTECTIVE CAP BSD-1610591001.A4 1610591001	£21.52	£25.83
58/20 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A163 2910091118	£1.75	£2.10
59 - INTERMEDIATE PLATE BSD-1615700041.A7 1615700041	£93.88	£112.65
60 - INSULATING CAP BSD-1615500330.A7 1615500330	£4.26	£5.11
64 - RUBBER TORSION-BAR BSD-1616334000.A8 1616334000	£27.23	£32.68
65 - TOOTHED SHAFT BSD-1613060005.A23 1613060005	£54.42	£65.30
67 - SPRING RETAINING RING DIN 472 52x2MM BSD-2916660023.A68 2916660023	£5.30	£6.36
68 - RUBBER BUFFER BSD-1613465001.A6 1613465001	£5.58	£6.70
69 - INTERMEDIATE PLATE BSD-1615700042.A15 1615700042	£103.14	£123.77
70 - HANDLE BSD-1615132011.A18 1615132011	£37.27	£44.72
71 - NAMEPLATE BSD-160111A3H3.A3041 160111A3H3	£2.61	£3.13
72 - HOLDING BRACKET BSD-1601331032.A191 1601331032	-
73 - TAPPING SCREW BZ4.8x63 MM BSD-1603435008.A144 1603435008	£1.32	£1.58
74 - DISC SPRING DIN 2093-A25X12.2X1.5 BSD-2916160009.A7 2916160009	£3.72	£4.47
75 - COMPRESSION SPRING BSD-3614640501.A3 3614640501	£10.10	£12.12
76 - FASTENING CLAMP BSD-1611302011.A6 1611302011	£7.78	£9.33
79 - SPIRAL SPRING BSD-1614652001.A9 1614652001	£3.72	£4.47
85 - BRUSH HOLDER BSD-1614336002.A0 1614336002	-
86 - BEARING BOLT BSD-1610300033.A19 1610300033	£21.52	£25.83
87 - GROOVE BALL BEARING 6205 DIN 625 BSD-1900900307.A6 1900900307	-
88 - ROTARY SHAFT LIP SEAL BSD-1610283004.A1 1610283004	-
89 - INSULATING PLATE BSD-1611099004.A5 1611099004	£1.75	£2.10
90 - SPRING LOCK WASHER B 4 DIN 127 BSD-2916681005.A4 2916681005	£1.75	£2.10
91 - SPRING LOCK WASHER M6 BSD-2916690005.A144 2916690005	-
94 - SEALING PLATE BSD-1611015021.A8 1611015021	£2.80	£3.36
97 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A356 2915011007	-
99 - HEX NUT DIN 985-10-M10x1 BSD-3613313500.A17 3613313500	£2.80	£3.36
102 - TAPPING SCREW DIN 7971-BZ4.2x13 BSD-2910211025.A63 2910211025	£1.75	£2.10
103 - TAPPING SCREW DIN 7971-BZ3.9x25 BSD-2910211022.A93 2910211022	£1.75	£2.10
104 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A151 2910141201	£2.61	£3.13
105 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x30-8.8 BSD-2910141205.A7 2910141205	£2.61	£3.13
106 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x55-8.8 BSD-2910141215.A17 2910141215	£3.72	£4.47
107 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A113 2910141242	£1.75	£2.10
108 - TAPPING SCREW DIN 7971-B 3.9x19 BSD-2910211220.A186 2910211220	-
109 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x35-8.8 BSD-2910141248.A9 2910141248	£1.75	£2.10
110 - HEX SOCKET HEAD CAP SCREW DIN-M12x70-8.8 BSD-2910141356.A6 2910141356	£2.61	£3.13
111 - MICROENCAPSULATED SCREW DIN EN-24014-M12x110-12.9 BSD-2914550034.A12 2914550034	£3.72	£4.47
112 - TAPPING SCREW DIN 7971-ST4.8x25-C BSD-2910211236.A35 2910211236	£1.75	£2.10
114 - TAPPING SCREW dia 1.7 MM BSD-3603435503.A5 3603435503	-
117 - STRIP TERMINAL BSD-1901091110.A69 1901091110	£1.75	£2.10
118 - SUPPRESSION FILTER BSD-1617328002.A37 1617328002	-
135 - REFERENCE PLATE BSD-3611119512.A4 3611119512	-
650 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A889 1907950006	£4.26	£5.11
700 - POINTED CHISEL 400 MM BSD-1618660000.A7 1618660000	£44.87	£53.84
701 - WIDE CHISEL 400 MM X 80 MM BSD-1618661000.A5 1618661000	£81.62	£97.94
702 - BROAD CHISEL 400 MM X 125 MM BSD-1618662000.A1 1618662000	£173.35	£208.02
800 - MODIFICATION SET 110-240V BSD-1617000852.A5 1617000852	£777.57	£933.08
808 - CARBON-BRUSH SET BSD-1617014111.A4 1617014111	£21.52	£25.83
820 - NEEDLE-ROLLER BEARING D25xD37x17 BSD-1610910094.A5 1610910094	£27.31	£32.77
854 - SWITCH HOUSING BSD-1617000858.A7 1617000858	£33.74	£40.49
861 - FIXING PLATE BSD-1617000429.A7 1617000429	£12.04	£14.45
863 - PARTS SET BSD-1617000A10.A8 1617000A10	£48.38	£58.06
881 - TORX OVAL-HEAD SCREW M4x10 BSD-1613490005.A5 1613490005	£2.61	£3.13
882 - SPRING LOCK WASHER BSD-1610151007.A6 1610151007	£1.75	£2.10
890 - UN. FLANGE-MTD. MOTOR 220-240V BSD-1617000849.A4 1617000849	£608.95	£730.74
895 - GREASE 1000 ML BSD-1615430007.A7 1615430007	£68.42	£82.10
897 - WEAR AND TEAR PART SET BSD-1617000050.A6 1617000050	-
898 - GREASE TUBE 225 ML BSD-1615430001.A11 1615430001	£23.86	£28.63
