Bosch MH 12-SE / 0611313761 / I 230 Volt Spare Parts

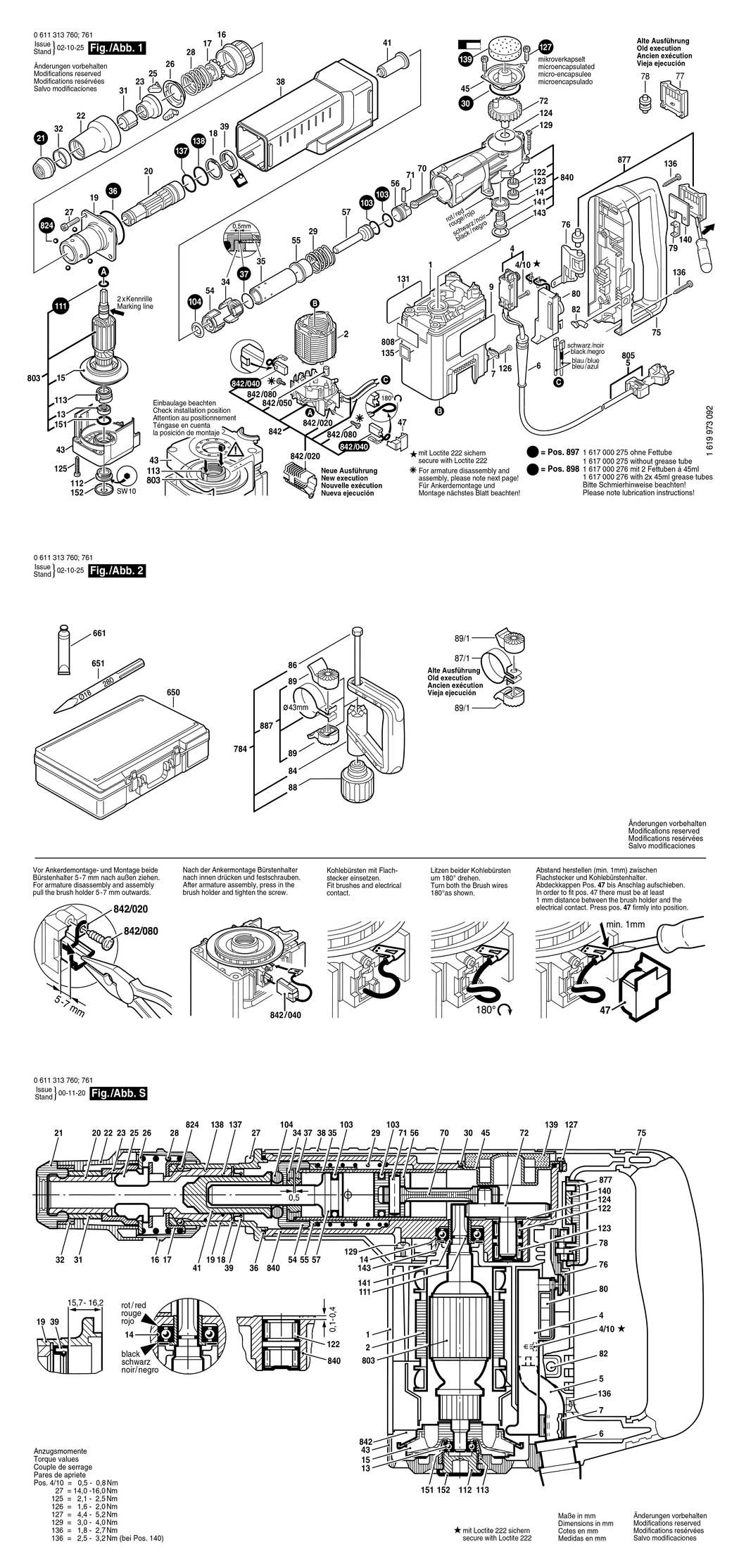

An exploded drawing and listing for the Bosch MH 12-SE / 0611313761 / I 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615102148.A2 1615102148	-
2 - FIELD 220-230V BSD-1604220343.A83 1604220343	£33.74	£40.49
4 - SWITCH BSD-1617200048.A113 1617200048	£18.96	£22.75
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A140 2910011088	£1.75	£2.10
5 - POWER SUPPLY CORD IL 4.15m 2 x 1.0mm H07 RN-F BSD-1614460047.A9 1614460047	£18.96	£22.75
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A178 1610703053	£2.61	£3.13
6 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A753 3600703011	£2.80	£3.36
7 - FASTENING CLAMP BSD-1601302018.A774 1601302018	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1611110811.A0 1611110811	-
13 - GROOVE BALL BEARING 7x22x7 BSD-1610900025.A157 1610900025	£16.41	£19.69
14 - GROOVE BALL BEARING 15x32x9 BSD-1610905027.A16 1610905027	-
15 - FAN BSD-1616610071.A51 1616610071	£9.49	£11.39
16 - RATCHET SLEEVE BSD-1610499016.A7 1610499016	-
17 - RETAINING SNAP RING BSD-1610590002.A24 1610590002	£3.72	£4.47
18 - SPRING RETAINING RING DIN 472 37x1.5MM BSD-2916660016.A29 2916660016	£2.61	£3.13
19 - CLAMPING-FLANGE BSD-1615700033.A21 1615700033	-
20 - TOOLHOLDER BSD-1618597069.A15 1618597069	-
21 - PROTECTIVE CAP BSD-1610508017.A74 1610508017	£3.72	£4.47
22 - PROTECTION SLEEVE BSD-1610499015.A24 1610499015	-
23 - STOP SLEEVE BSD-1610520001.A123 1610520001	£12.04	£14.45
25 - STOPPING DEVICE BSD-1612300027.A41 1612300027	£11.30	£13.56
26 - INDEXING DISK BSD-1610290025.A102 1610290025	£6.52	£7.83
27 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A172 2910141201	£2.61	£3.13
28 - COMPRESSION SPRING BSD-1614621000.A114 1614621000	£2.80	£3.36
29 - COMPRESSION SPRING BSD-1614615002.A21 1614615002	£1.95	£2.34
30 - O-RING 60.0x2.5 MM BSD-1610210136.A10 1610210136	-
31 - SPACER TUBE BSD-1610390015.A23 1610390015	-
32 - CYLINDER SLEEVE BSD-1610202016.A70 1610202016	-
34 - SPACER TUBE BSD-1610390030.A24 1610390030	-
35 - HAMMER PIPE BSD-1615806086.A31 1615806086	-
36 - O-RING 48.0x2.0 MM BSD-1610210022.A26 1610210022	£1.66	£1.99
37 - O-RING 30x2.5 MM BSD-1900210131.A57 1900210131	£4.26	£5.11
38 - COVERING HOOD BSD-1615190036.A1 1615190036	-
39 - ROTARY SHAFT LIP SEAL BSD-1610283027.A23 1610283027	£4.75	£5.70
41 - STRIKER PIN BSD-1618710052.A20 1618710052	£16.74	£20.09
43 - BEARING COVER BSD-1615808079.A0 1615808079	-
45 - HOUSING COVER BSD-1615500294.A3 1615500294	-
47 - COVER BSD-1610591012.A58 1610591012	£1.75	£2.10
54 - CONTROL DISC BSD-1610190010.A26 1610190010	-
55 - CONTROL BUSHING BSD-1610420004.A15 1610420004	-
56 - HAMMER PISTON BSD-1618700057.A27 1618700057	-
57 - STRIKER BSD-1618710077.A28 1618710077	-
70 - CONNECTING ROD BSD-1612001031.A24 1612001031	-
71 - STRAIGHT PIN BSD-1613101005.A14 1613101005	£1.32	£1.58
72 - ECCENTRIC COG WHEEL Z=43 BSD-1616317051.A13 1616317051	-
75 - HANDLE BSD-1615132043.A14 1615132043	-
76 - CONTROL LEVER BSD-1612026029.A25 1612026029	£5.30	£6.36
79 - BEARING PEDESTAL BSD-1615819016.A20 1615819016	-
80 - SPEED GOVERNOR 220-240V BSD-1617233026.A33 1617233026	£46.82	£56.18
82 - LIGHT CONDUCTOR BSD-1615510000.A22 1615510000	£2.16	£2.59
84 - STRAP-SHAPED HANDLE BSD-1615132044.A7 1615132044	£14.91	£17.89
86 - HEX SCREW DIN 931-M8x130-8.8 BSD-2911011270.A65 2911011270	£4.26	£5.11
88 - STAR KNOB M8 BSD-1619P16922.A15 1619P16922	£6.45	£7.74
89 - CLAMPING PIECE BSD-1618040068.A3 1618040068	£5.01	£6.01
103 - O-RING 24.0x4.0 MM BSD-1610210091.A25 1610210091	£3.72	£4.47
104 - O-RING 17.0x8.0 MM BSD-1610210093.A21 1610210093	£1.75	£2.10
111 - O-RING 10.0x1.0 MM BSD-1610210081.A62 1610210081	£3.72	£4.47
112 - THREADED RING M24x1.5MM. SW10 BSD-1613461001.A24 1613461001	-
113 - BUSHING BSD-1610501036.A31 1610501036	£8.67	£10.41
122 - NEEDLE BEARING BSD-1610910088.A10 1610910088	£5.58	£6.70
123 - NOZZLE SOCKET BSD-1610910087.A5 1610910087	-
124 - THRUST BEARING DISC 1.0 MM BSD-1610101008.A79 1610101008	-
125 - TAPPING SCREW DIN7981-ST4.8x25-C-Z BSD-2912401036.A64 2912401036	£1.32	£1.58
126 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A616 2910211019	£1.75	£2.10
127 - MICROENCAPSULATED SCREW DIN 912-M 5x12-8.8 BSD-2914551117.A14 2914551117	£1.75	£2.10
129 - TAPPING SCREW DIN7981-ST4.8x25-C-Z BSD-2912401036.A65 2912401036	£1.32	£1.58
131 - MANUFACTURER'S NAMEPLATE BSD-1611110812.A1 1611110812	-
135 - REFERENCE PLATE BSD-1611110387.A65 1611110387	£1.75	£2.10
136 - TAPPING SCREW DIN 7971-ST4.8x25-C BSD-2910211236.A14 2910211236	£1.75	£2.10
137 - O-RING 26.0x2.0 MM BSD-1610210101.A15 1610210101	£2.80	£3.36
138 - O-RING 33.0x2.0 MM BSD-1610210103.A22 1610210103	£2.61	£3.13
139 - FELT WASHER BSD-1610108021.A10 1610108021	-
139 - FELT WASHER BSD-1610108021.A11 1610108021	-
140 - SUPPORT PLATE BSD-1611098004.A25 1611098004	-
141 - HEADED BUSH BSD-1613344005.A5 1613344005	-
143 - FELT WASHER BSD-1610108024.A5 1610108024	-
151 - O-RING 21.0x2.0 MM BSD-2600210028.A13 2600210028	£1.32	£1.58
152 - COVER BSD-1610508030.A10 1610508030	-
650 - CARRYING CASE BSD-1615438215.A1 1615438215	-
651 - POINTED CHISEL BSD-1618600020.A0 1618600020	-
661 - OIL SPRAY TIN BSD-1615439012.A23 1615439012	£11.30	£13.56
784 - AUXILIARY HANDLE dia 43 MM BSD-2602025063.A7 2602025063	£35.92	£43.10
803 - ARMATURE 220-240V BSD-1614010186.A24 1614010186	£103.14	£123.77
808 - NAMEPLATE BSD-160111A3H3.A2991 160111A3H3	£2.61	£3.13
824 - BALL DIN 5401-5 MM-III-ST BSD-1617000239.A18 1617000239	-
840 - ASSEMBLY OF SERVICE PARTS BSD-1617000804.A7 1617000804	-
842 - BRUSH HOLDER BSD-1614336009.A57 1614336009	-
842/020 - BRUSH GUIDE BSD-1614336043.A68 1614336043	-
842/040 - CARBON-BRUSH SET BSD-1617014122.A59 1617014122	£18.96	£22.75
842/050 - RUBBER BUFFER BSD-1613212004.A75 1613212004	£3.72	£4.47
842/080 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z BSD-2912401005.A301 2912401005	£1.75	£2.10
877 - SHIFT PLATE BSD-1617000298.A4 1617000298	-
887 - CLAMPING BAND dia 43 MM BSD-1617000171.A36 1617000171	-
897 - WEAR AND TEAR PART SET BSD-1617000275.A1 1617000275	-
898 - WEAR AND TEAR PART SET BSD-1617000276.A0 1617000276	£33.45	£40.14
