Bosch MH 10-SE / 0611316760 / EU 230 Volt Spare Parts

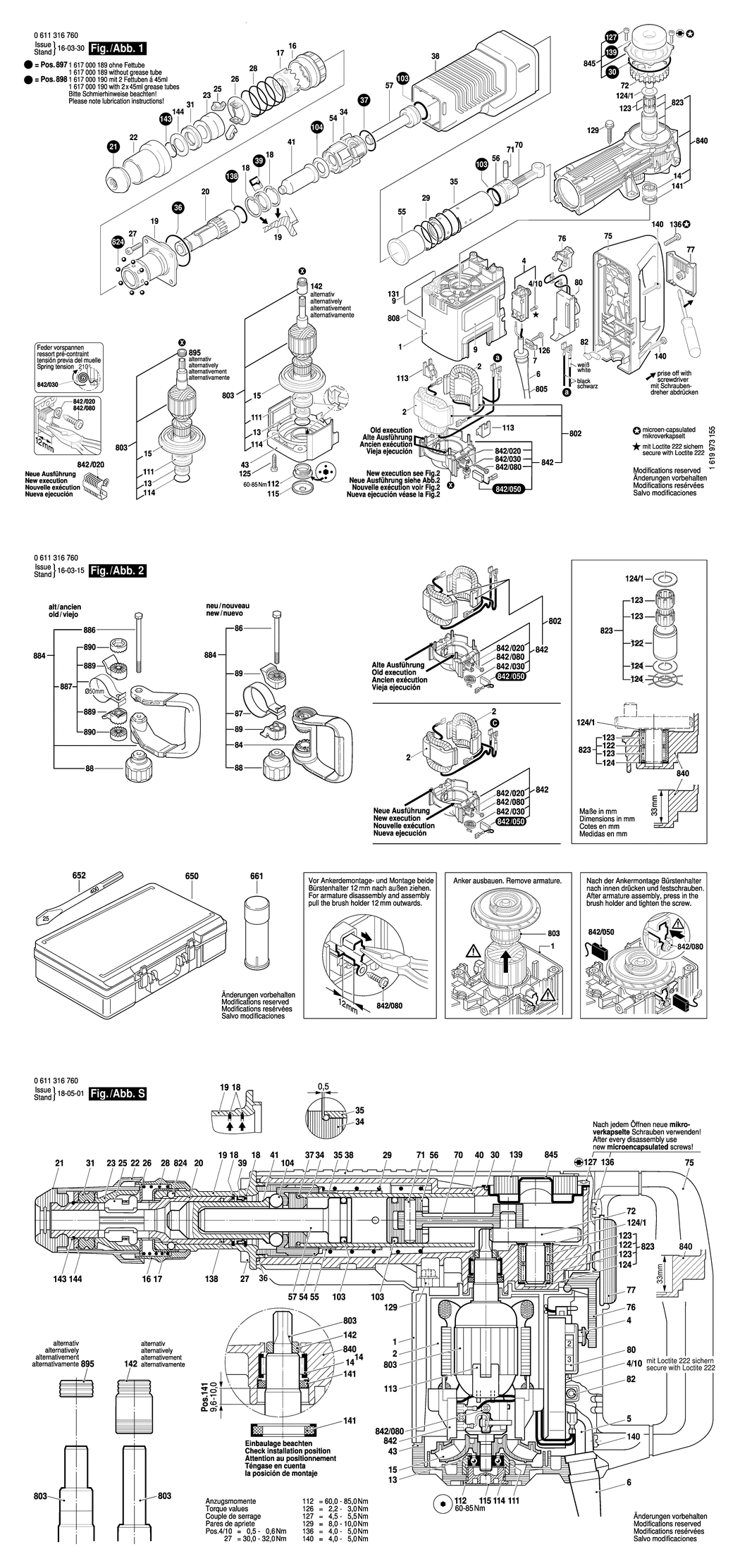

An exploded drawing and listing for the Bosch MH 10-SE / 0611316760 / EU 230 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615108092.A0 1615108092	£27.23	£32.68
2 - FIELD 230V BSD-160422052J.A7 160422052J	£68.42	£82.10
4 - SWITCH BSD-1617200048.A70 1617200048	£18.96	£22.75
4/10 - SOCKET HEAD CAP SCREW DIN 84-AM3.5x12-5.8 BSD-2910011088.A117 2910011088	£1.75	£2.10
6 - GROMMET dia9.7-dia12x89 MM BSD-1610703053.A215 1610703053	£2.61	£3.13
7 - FASTENING CLAMP BSD-1601302019.A10 1601302019	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-160111C02P.A0 160111C02P	-
13 - GROOVE BALL BEARING BSD-2610909310.A8 2610909310	£16.41	£19.69
14 - NEEDLE-ROLLER BEARING BSD-1610910089.A30 1610910089	-
15 - FAN BSD-1616610083.A14 1616610083	£21.52	£25.83
16 - RATCHET SLEEVE BSD-1610499022.A17 1610499022	£3.72	£4.47
17 - RETAINING SNAP RING BSD-1610590004.A5 1610590004	£12.04	£14.45
18 - SPRING RETAINING RING BSD-1610119010.A9 1610119010	£3.72	£4.47
19 - CLAMPING-FLANGE BSD-1615700034.A16 1615700034	£70.24	£84.29
20 - TOOLHOLDER BSD-1618597067.A17 1618597067	£81.81	£98.17
21 - PROTECTIVE CAP BSD-1610508025.A9 1610508025	£4.26	£5.11
22 - PROTECTION SLEEVE BSD-1610499023.A3 1610499023	£3.72	£4.47
23 - STOP SLEEVE BSD-1610521011.A16 1610521011	£18.96	£22.75
25 - STOPPING DEVICE BSD-1612300025.A3 1612300025	£8.67	£10.41
26 - INDEXING DISK BSD-1610290027.A11 1610290027	£3.72	£4.47
27 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x30-10.9 BSD-2910151246.A4 2910151246	£2.61	£3.13
28 - COMPRESSION SPRING BSD-1614621002.A16 1614621002	£2.16	£2.59
29 - COMPRESSION SPRING BSD-1614621003.A4 1614621003	£2.80	£3.36
30 - O-RING 79.5x2.65 MM BSD-1610210147.A3 1610210147	£2.61	£3.13
31 - DAMPING RING BSD-1610290026.A9 1610290026	£2.80	£3.36
34 - SPACER TUBE BSD-1610390029.A9 1610390029	£18.96	£22.75
35 - HAMMER PIPE BSD-1615806108.A13 1615806108	£72.18	£86.62
36 - O-RING 64.0x2.5 MM BSD-1610210127.A4 1610210127	£1.75	£2.10
37 - O-RING 35.0x3.0 MM BSD-1610210128.A16 1610210128	£2.16	£2.59
38 - COVERING HOOD BSD-1615190070.A2 1615190070	£18.96	£22.75
39 - ROTARY SHAFT LIP SEAL BSD-1600A01MK9.A16 1600A01MK9	-
41 - STRIKER PIN BSD-1618710071.A4 1618710071	£21.68	£26.01
43 - BEARING COVER BSD-1615808084.A0 1615808084	£21.68	£26.01
54 - CONTROL DISC BSD-1610190019.A12 1610190019	£8.67	£10.41
55 - CONTROL BUSHING BSD-1610420005.A4 1610420005	£21.68	£26.01
56 - HAMMER PISTON BSD-1618700064.A5 1618700064	£12.04	£14.45
57 - STRIKER BSD-1618710062.A16 1618710062	£59.53	£71.44
70 - CONNECTING ROD BSD-1612001033.A5 1612001033	£12.04	£14.45
71 - STRAIGHT PIN BSD-1613101006.A5 1613101006	£2.80	£3.36
72 - ECCENTRIC COG WHEEL Z=60 BSD-1616317045.A16 1616317045	£70.24	£84.29
75 - HANDLE BSD-1615132051.A10 1615132051	£37.27	£44.72
76 - CONTROL LEVER BSD-1612026049.A6 1612026049	£3.12	£3.75
77 - SHIFT PLATE BSD-1612026063.A2 1612026063	£8.67	£10.41
80 - SPEED GOVERNOR 220-240V BSD-1617233055.A6 1617233055	£61.98	£74.38
82 - LIGHT CONDUCTOR BSD-1615510000.A10 1615510000	£2.16	£2.59
84 - AUXILIARY HANDLE BSD-160202508D.A30 160202508D	£18.96	£22.75
86 - HEX SCREW BSD-2911021267.A18 2911021267	£3.72	£4.47
87 - CLAMPING BAND BSD-1611316010.A11 1611316010	£6.52	£7.83
88 - STAR KNOB M8 BSD-1619P16922.A25 1619P16922	£6.45	£7.74
89 - CLAMPING PIECE BSD-1600A00748.A3 1600A00748	£2.80	£3.36
103 - O-RING 30.0x5.0 MM BSD-1610210122.A3 1610210122	£6.52	£7.83
104 - O-RING 22.0x11.0 MM BSD-1610210123.A17 1610210123	£2.80	£3.36
111 - BUSHING BSD-3610501500.A29 3610501500	£21.68	£26.01
112 - THREADED RING BSD-3613461500.A15 3613461500	£12.04	£14.45
113 - SPACER BSD-1610009007.A21 1610009007	£2.16	£2.59
114 - O-RING 30.0x2.5 MM BSD-1610210139.A38 1610210139	£2.61	£3.13
115 - PROTECTIVE CAP BSD-1610508027.A26 1610508027	£2.80	£3.36
123 - NEEDLE-ROLLER ASSEMBLY BSD-1610913013.A9 1610913013	£8.67	£10.41
124 - THRUST BEARING DISC BSD-1610101608.A28 1610101608	£2.16	£2.59
125 - TORX OVAL-HEAD SCREW 5.5x25 BSD-1613435010.A31 1613435010	£2.16	£2.59
126 - SCREW 4x16 BSD-2603490022.A2977 2603490022	£1.75	£2.10
127 - MICROENCAPSULATED SCREW DIN 912-M 5x12-8.8 BSD-2914551117.A31 2914551117	£1.75	£2.10
129 - SCREW AND WASHER ASSEMBLY 6.3x32 BSD-1613433001.A41 1613433001	£1.75	£2.10
131 - MANUFACTURER'S NAMEPLATE BSD-160111C02R.A0 160111C02R	-
136 - TORX OVAL-HEAD SCREW M6x30 BSD-1613490029.A13 1613490029	£1.75	£2.10
138 - O-RING 32.0x2.5 MM BSD-1610210130.A11 1610210130	£7.36	£8.83
139 - FELT WASHER BSD-1610108020.A15 1610108020	£8.67	£10.41
140 - TORX OVAL-HEAD SCREW 5.5x25 BSD-1613435010.A30 1613435010	£2.16	£2.59
141 - ROTARY SHAFT LIP SEAL BSD-1610290028.A8 1610290028	£3.72	£4.47
142 - BUSHING BSD-1610300063.A4 1610300063	£16.41	£19.69
143 - RETAINING RING DIN 7993 A 30 BSD-2916540017.A26 2916540017	£2.16	£2.59
144 - SUPPORTING DISC BSD-1610102029.A17 1610102029	£3.72	£4.47
650 - CARRYING CASE BSD-1615438246.A1 1615438246	-
652 - COLD CHISEL dia 25x400 MM BSD-1618600207.A1 1618600207	-
661 - OIL SPRAY TIN BSD-1615439012.A21 1615439012	£11.30	£13.56
802 - SUBASSEMBLY BSD-1607000C3V.A1 1607000C3V	£93.88	£112.65
803 - ARMATURE 220-240V BSD-1614011072.A13 1614011072	£187.56	£225.07
805 - POWER SUPPLY CORD BSD-1617000723.A86 1617000723	£27.23	£32.68
808 - NAMEPLATE BSD-160111A3HC.A155 160111A3HC	£2.61	£3.13
823 - NEEDLE-ROLLER ASSEMBLY BSD-1617000403.A6 1617000403	£21.68	£26.01
824 - BALL DIN 5401-6.5MM-III-ST BSD-1617000240.A5 1617000240	£3.72	£4.47
840 - IMPACT MECHANISM HOUSING BSD-1617000969.A15 1617000969	£195.26	£234.31
842 - BRUSH HOLDER BSD-1600A005AF.A9 1600A005AF	£40.80	£48.96
842/020 - BRUSH GUIDE BSD-1614336017.A14 1614336017	£12.04	£14.45
842/030 - SPIRAL SPRING BSD-1614652004.A23 1614652004	£7.36	£8.83
842/050 - CARBON-BRUSH SET BSD-1617014126.A22 1617014126	£14.91	£17.89
842/080 - TAPPING SCREW DIN 7981-ST3.5x16-C-H BSD-2910611012.A62 2910611012	-
845 - HOUSING COVER BSD-1617000418.A13 1617000418	£12.04	£14.45
884 - AUXILIARY HANDLE BSD-160202508E.A5 160202508E	£40.80	£48.96
886 - HEX SCREW DIN 931-M8x130-8.8 BSD-2911011270.A41 2911011270	£4.26	£5.11
887 - CLAMPING BAND dia50 MM BSD-1617000188.A14 1617000188	£10.10	£12.12
889 - CLAMPING PIECE BSD-1618040053.A19 1618040053	£3.72	£4.47
890 - CATCH DISK BSD-1610190053.A18 1610190053	£2.49	£2.99
892 - GREASE TUBE 45 ML BSD-1615430014.A6 1615430014	£11.30	£13.56
895 - OIL RETURN RING BSD-3613344500.A5 3613344500	£10.10	£12.12
897 - WEAR AND TEAR PART SET BSD-1617000189.A6 1617000189	£37.27	£44.72
898 - WEAR AND TEAR PART SET BSD-1617000190.A10 1617000190	£59.53	£71.44
