Bosch GSB 12 VE-2 / 0601952503 / EU 12 Volt Spare Parts

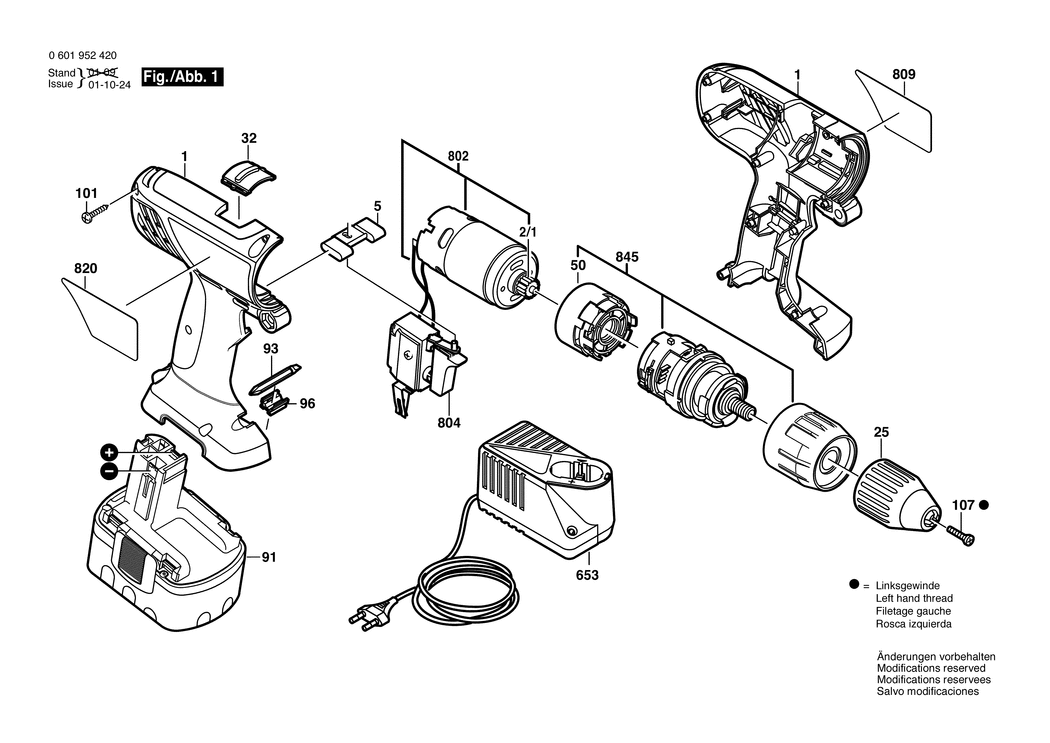

An exploded drawing and listing for the Bosch GSB 12 VE-2 / 0601952503 / EU 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605105027.A1 2605105027	£19.45	£23.34
2/1 - PINION Z=19 BSD-2606316180.A9 2606316180	£2.61	£3.13
5 - ADJUSTING SLIDE BSD-2601099085.A63 2601099085	-
25 - KEYLESS CHUCK dia 2-13 MM.1/2 BSD-2608572088.A35 2608572088	£41.62	£49.95
32 - ADJUSTING SLIDE BSD-2601099086.A10 2601099086	£2.16	£2.59
50 - INTERMEDIATE FLANGE BSD-2605719901.A44 2605719901	-
91 - SLIDE-IN ACCU PACKAGE 12V.2.6Ah.NiMh BSD-2607335683.A19 2607335683	£154.03	£184.84
93 - SCREWDRIVER BLADE BSD-2608521018.A24 2608521018	£5.01	£6.01
96 - SUPPORT BSD-2608040131.A83 2608040131	£1.95	£2.34
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A551 2603490018	£1.75	£2.10
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A348 2603421229	£1.75	£2.10
653 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A319 2607224701	£88.07	£105.68
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A217 2607224425	£88.07	£105.68
802 - DC MOTOR 12V BSD-2607022875.A0 2607022875	-
804 - ON-OFF SWITCH BSD-2607200421.A21 2607200421	£48.38	£58.06
809 - MANUFACTURER'S NAMEPLATE BSD-2601116140.A5 2601116140	£1.32	£1.58
820 - REFERENCE PLATE BSD-2601116141.A1 2601116141	£1.32	£1.58
845 - PLANETARY GEAR TRAIN BSD-2606200926.A6 2606200926	£80.61	£96.73
899 - CORDLESS IMPACT DRILL BSD-0601952520.A0 0601952520	-
