Bosch GSR 9.6 VPE-2 / 0601946603 / EU 9.6 Volt Spare Parts

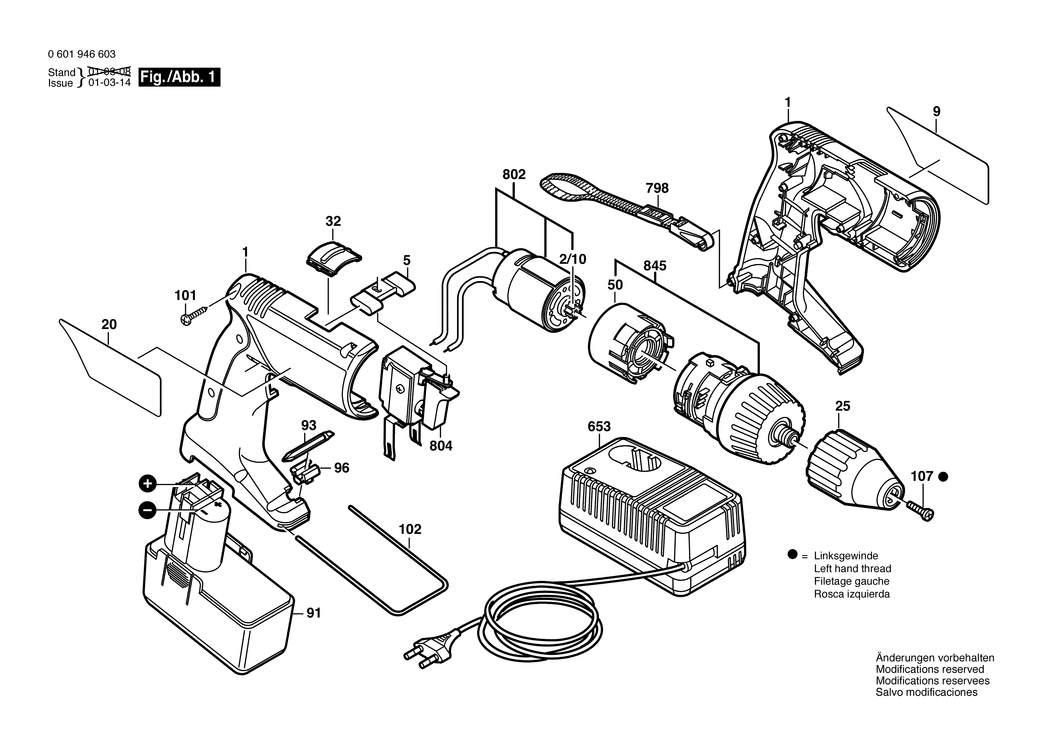

An exploded drawing and listing for the Bosch GSR 9.6 VPE-2 / 0601946603 / EU 9.6 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605104624.A0 2605104624	-
2/10 - PINION BSD-2606316182.A27 2606316182	£1.75	£2.10
5 - ADJUSTING SLIDE BSD-2601099082.A5 2601099082	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601119596.A5 2601119596	-
20 - REFERENCE PLATE BSD-2601119597.A0 2601119597	-
25 - KEYLESS CHUCK BSD-2608572164.A0 2608572164	-
32 - ADJUSTING SLIDE BSD-2601099078.A31 2601099078	£1.32	£1.58
50 - INTERMEDIATE FLANGE BSD-2605719027.A38 2605719027	£2.61	£3.13
91 - SLIDE-IN ACCU PACKAGE 9.6V.2.0Ah.NiCd BSD-2607335149.A0 2607335149	-
93 - SCREWDRIVER BLADE BSD-2608521018.A68 2608521018	£5.01	£6.01
96 - SUPPORT BSD-2608040131.A39 2608040131	£1.95	£2.34
101 - TORX OVAL-HEAD SCREW 3x18 BSD-2603490018.A516 2603490018	£1.75	£2.10
102 - RETAINING BRACKET BSD-2601329041.A190 2601329041	£2.33	£2.80
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A365 2603421229	£1.75	£2.10
653 - FAST CHARGER EU 230/7.2-24V. 1h BSD-2607224425.A200 2607224425	£88.07	£105.68
653 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN. BSD-2607224701.A349 2607224701	£88.07	£105.68
798 - CARRYING LOOP BSD-2601398009.A69 2601398009	-
802 - DC MOTOR 9.6V BSD-2607022965.A0 2607022965	-
804 - ON-OFF SWITCH BSD-2607200421.A46 2607200421	£48.38	£58.06
845 - PLANETARY GEAR TRAIN BSD-2606200908.A18 2606200908	-
899 - CORDLESS DRILL DRIVER BSD-0601946627.A0 0601946627	-
