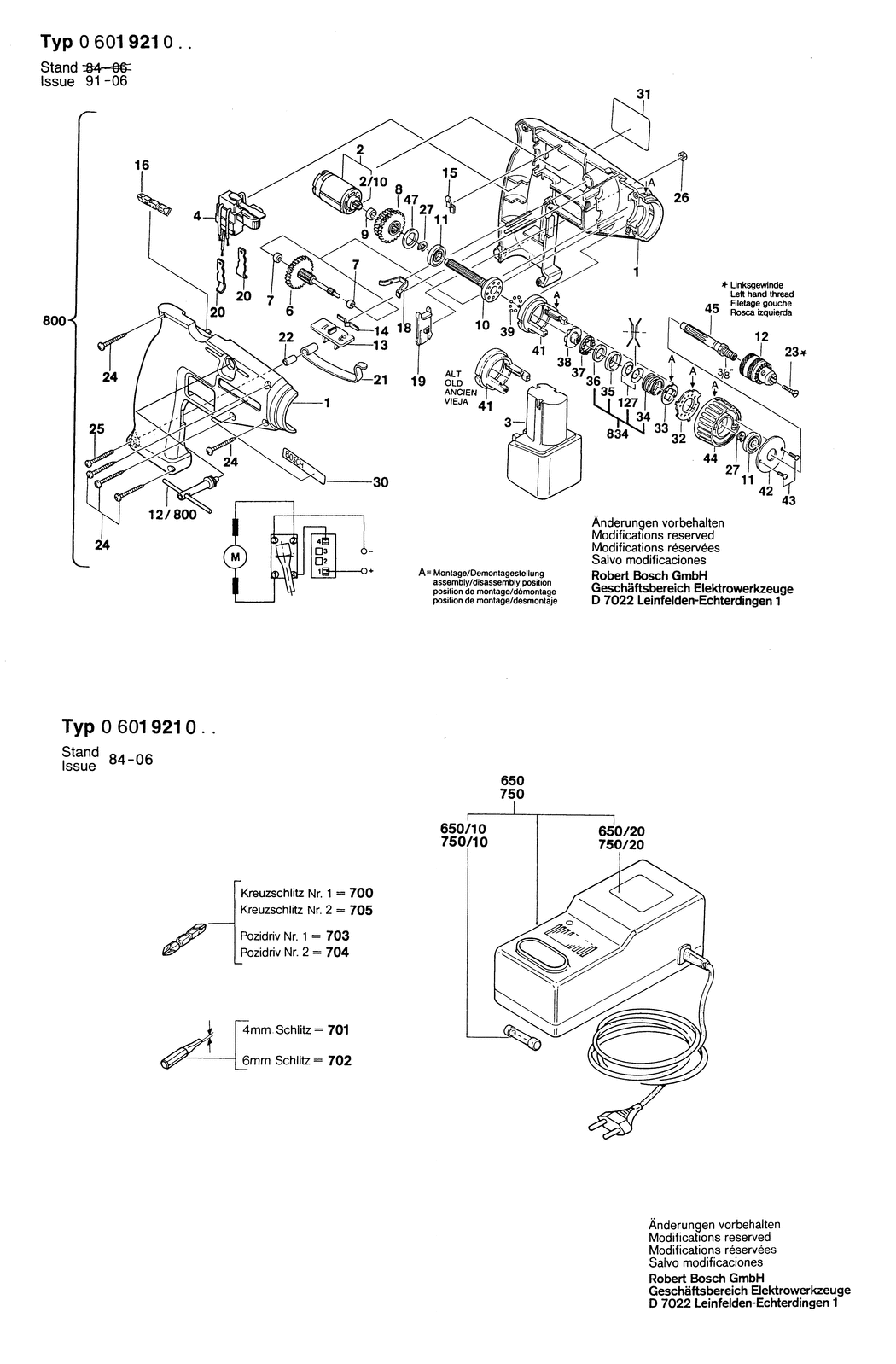

1 - MOTOR HOUSING
BSD-1609340022.A0
1609340022
|
-
|
|
|
|
2 - DC MOTOR 7.2V
BSD-1609340003.A34
1609340003
|
-
|
|
|
|
2/10 - PINION Z=11
BSD-2606316112.A58
2606316112
|
£4.26
|
£5.11
|
|
|
3 - BATTERY PACK 7.2V
BSD-1609340000.A7
1609340000
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200294.A15
2607200294
|
£14.91
|
£17.89
|
|
|
6 - TOOTHED SHAFT Z=10/19/81
BSD-1609340005.A63
1609340005
|
£16.74
|
£20.09
|
|
|
7 - SINTERED-METAL BUSHING
BSD-2600302002.A311
2600302002
|
£1.75
|
£2.10
|
|
|
8 - SET OF GEARS Z=58/67
BSD-1609340007.A228
1609340007
|
£14.91
|
£17.89
|
|
|
9 - SINTERED-METAL BUSHING
BSD-2600301011.A353
2600301011
|
£1.75
|
£2.10
|
|
|
10 - CAMSHAFT
BSD-1609340023.A11
1609340023
|
-
|
|
|
|
11 - GROOVE BALL BEARING 6000 DIN 625
BSD-1900900270.A55
1900900270
|
-
|
|
|
|
12 - KEY CHUCK dia1-10 MM. 3/8
BSD-1608571058.A16
1608571058
|
£13.99
|
£16.79
|
|
|
12/800 - CHUCK WRENCH SG 1. dia4x60 MM
BSD-1607950042.A24
1607950042
|
£3.49
|
£4.19
|
|
|
13 - ADJUSTING SLIDE
BSD-1609340010.A5
1609340010
|
-
|
|
|
|
14 - RATCHET SPRING
BSD-1609340011.A10
1609340011
|
-
|
|
|
|
15 - HOLDING SPRING
BSD-1609340012.A4
1609340012
|
-
|
|
|
|
16 - SCREWDRIVER BLADE 6 MM
BSD-1609200147.A37
1609200147
|
£3.72
|
£4.47
|
|
|
18 - CLAMP SPRING
BSD-2601250003.A19
2601250003
|
-
|
|
|
|
19 - LOCKING LEVER 32.7 MM
BSD-1609340014.A11
1609340014
|
-
|
|
|
|
20 - CONTACT SPRING
BSD-2601324012.A32
2601324012
|
£1.75
|
£2.10
|
|
|
21 - SPRING CLIP dia 6.2 MM
BSD-1609340016.A13
1609340016
|
-
|
|
|
|
22 - SPACER SLEEVE dia 6 MM
BSD-1609340017.A10
1609340017
|
-
|
|
|
|
23 - COUNTERSUNK-HEAD SCREW M5x20
BSD-2609110721.A225
2609110721
|
£2.16
|
£2.59
|
|
|
24 - SOCKET HEAD CAP SCREW
BSD-1609340019.A7
1609340019
|
-
|
|
|
|
25 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8
BSD-2910021130.A189
2910021130
|
£1.75
|
£2.10
|
|
|
26 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A410
2915011005
|
£1.75
|
£2.10
|
|
|
27 - LOCKING WASHER
BSD-1609340020.A11
1609340020
|
-
|
|
|
|
30 - MANUFACTURER'S NAMEPLATE
BSD-1601110217.A8
1601110217
|
-
|
|
|
|
32 - PERFORATED PANEL
BSD-1609340024.A2
1609340024
|
-
|
|
|
|
33 - LOCATING WASHER
BSD-1609340025.A11
1609340025
|
-
|
|
|
|
34 - COMPRESSION SPRING
BSD-2604618000.A42
2604618000
|
-
|
|
|
|
35 - SUPPORTING DISC
BSD-1609340027.A2
1609340027
|
-
|
|
|
|
36 - SUPPORT DISC
BSD-1609340028.A11
1609340028
|
-
|
|
|
|
37 - D-GROOVE BALL THR BEARING
BSD-1609340029.A2
1609340029
|
-
|
|
|
|
38 - DISC CAM
BSD-1609340030.A11
1609340030
|
-
|
|
|
|
39 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A71
1903230007
|
£1.75
|
£2.10
|
|
|
41 - ADJUSTING SLEEVE
BSD-1609340032.A2
1609340032
|
-
|
|
|
|
42 - RETAINING WASHER
BSD-1609340033.A11
1609340033
|
-
|
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM5x8-8.8
BSD-2910021150.A4
2910021150
|
-
|
|
|
|
44 - SETTING RING
BSD-2605190014.A9
2605190014
|
-
|
|
|
|
45 - THREADED SPINDLE 1/2
BSD-1609340035.A2
1609340035
|
-
|
|
|
|
47 - SHIM
BSD-1609340053.A11
1609340053
|
-
|
|
|
|
650 - FAST CHARGER EU 230/7.2-24V. 1h
BSD-2607224425.A403
2607224425
|
£88.07
|
£105.68
|
|
|
650 - FAST CHARGER EU 230/7.2-14.4V. 30 MIN.
BSD-2607224701.A36
2607224701
|
£88.07
|
£105.68
|
|
|
702 - SCREWDRIVER BLADE 6 MM
BSD-1609200329.A1
1609200329
|
-
|
|
|
|
800 - CORDLESS SCREWDRIVER
BSD-0601921023.A0
0601921023
|
-
|
|
|
|
800 - BATT-OPER DRILL
BSD-0601921061.A4
0601921061
|
-
|
|
|
