Bosch GAS 18V-10L / 3601JC6300 / --- 18 Volt Spare Parts

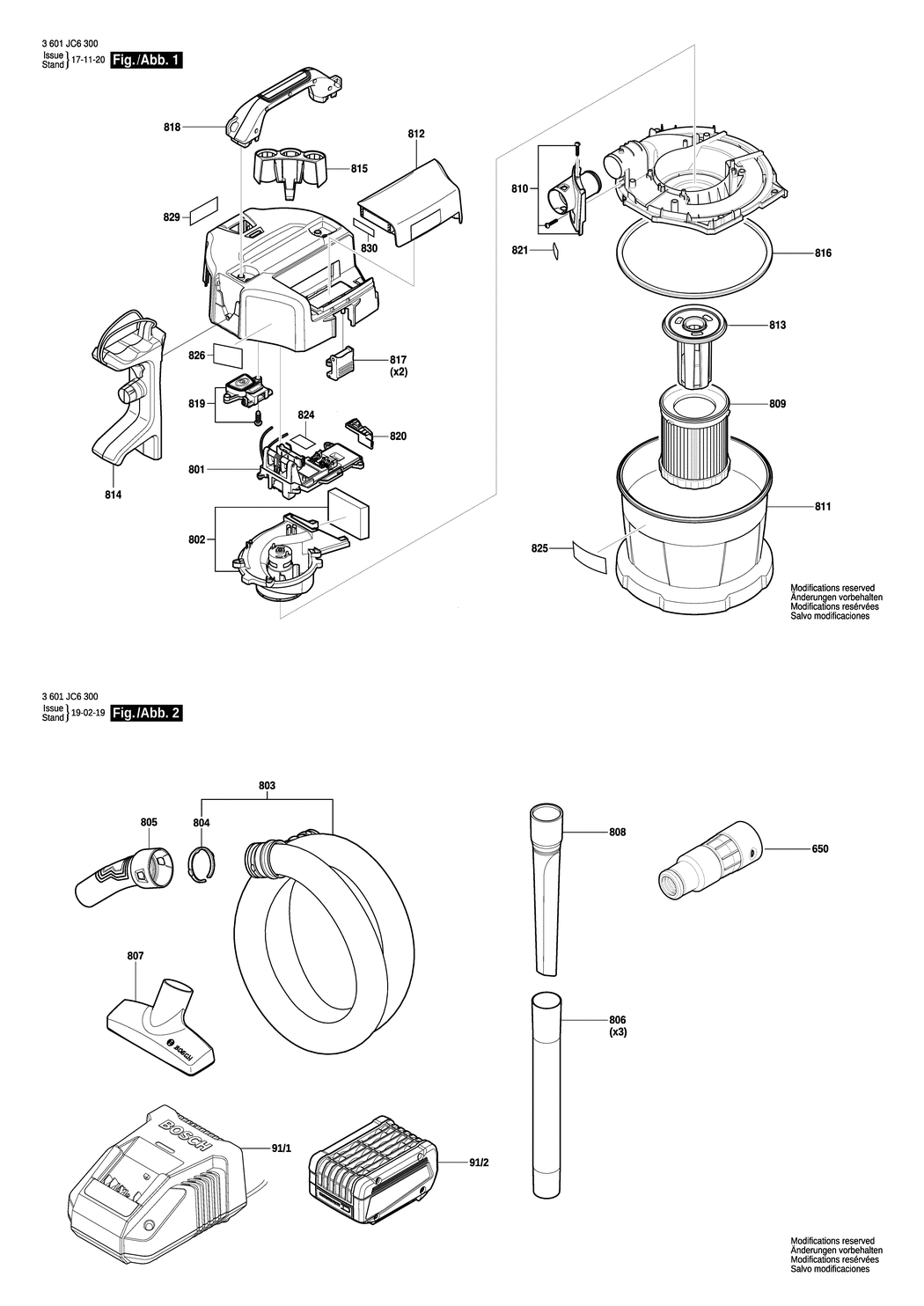

An exploded drawing and listing for the Bosch GAS 18V-10L / 3601JC6300 / --- 18 Volt

	Ex VAT	Inc VAT
91/1 - CHARGER EU GAL 1880 CV 230/14.4-18V BSD-2607225921.A25 2607225921	£134.16	£160.99
91/2 - BATTERY PACK BBS MR. 18V. 5.0 Ah 48 S BSD-2607337069.A21 2607337069	£116.15	£139.38
650 - ADAPTER BSD-1619PA7326.A3 1619PA7326	£8.32	£9.99
654 - SOCKET BSD-1600A014MR.A0 1600A014MR	£40.80	£48.96
801 - ELECTRONICS MODULE BSD-1600A011G2.A0 1600A011G2	£52.15	£62.58
802 - MOTOR ASSEMBLY BSD-1600A011S9.A0 1600A011S9	£57.05	£68.46
803 - HOSE BSD-1600A011RL.A0 1600A011RL	£33.74	£40.49
804 - CLAMPING RING BSD-1600A011RM.A0 1600A011RM	£2.16	£2.59
805 - ELBOW BSD-1600A011RN.A0 1600A011RN	£5.30	£6.36
806 - NOZZLE EACH (3 REQUIRED FOR FULL SET) BSD-1600A011RP.A0 1600A011RP	£16.41	£19.69
807 - NOZZLE BSD-1600A011RR.A0 1600A011RR	£7.36	£8.83
808 - SUCTION NOZZLE BSD-1600A011RS.A0 1600A011RS	-
809 - FILTER BSD-1600A011RT.A0 1600A011RT	£31.64	£37.97
810 - HOSE COUPLING PIPE BSD-1600A011RU.A0 1600A011RU	£7.36	£8.83
811 - DUST CONTAINER BSD-160541101H.A0 160541101H	£33.74	£40.49
812 - BATTERY COVER BSD-1600A011S7.A0 1600A011S7	£8.67	£10.41
813 - FLOAT BSD-1600A011RW.A0 1600A011RW	-
814 - HOSE HOLDER BSD-1600A011RX.A0 1600A011RX	£14.91	£17.89
815 - HOSE HOLDER BSD-1600A011S8.A0 1600A011S8	£6.52	£7.83
816 - SEAL BSD-1600A011RY.A0 1600A011RY	£8.67	£10.41
817 - LATCH BSD-1600A011RZ.A0 1600A011RZ	£12.04	£14.45
818 - HANDLE BSD-160513217B.A0 160513217B	£7.36	£8.83
819 - SWITCH COVER BSD-1600A01268.A0 1600A01268	£6.52	£7.83
820 - RELEASE PIN BSD-1600A012YT.A0 1600A012YT	£3.72	£4.47
821 - NAMEPLATE BSD-160111A5BE.A0 160111A5BE	£2.61	£3.13
824 - STICKER BSD-160111C299.A0 160111C299	-
825 - STICKER BSD-160111C21W.A0 160111C21W	£2.61	£3.13
829 - MANUFACTURER'S NAMEPLATE BSD-160111C21T.A0 160111C21T	£2.61	£3.13
830 - MANUFACTURER'S NAMEPLATE BSD-160111C21G.A0 160111C21G	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
