Bosch ---- / 0607950922 / --- Spare Parts

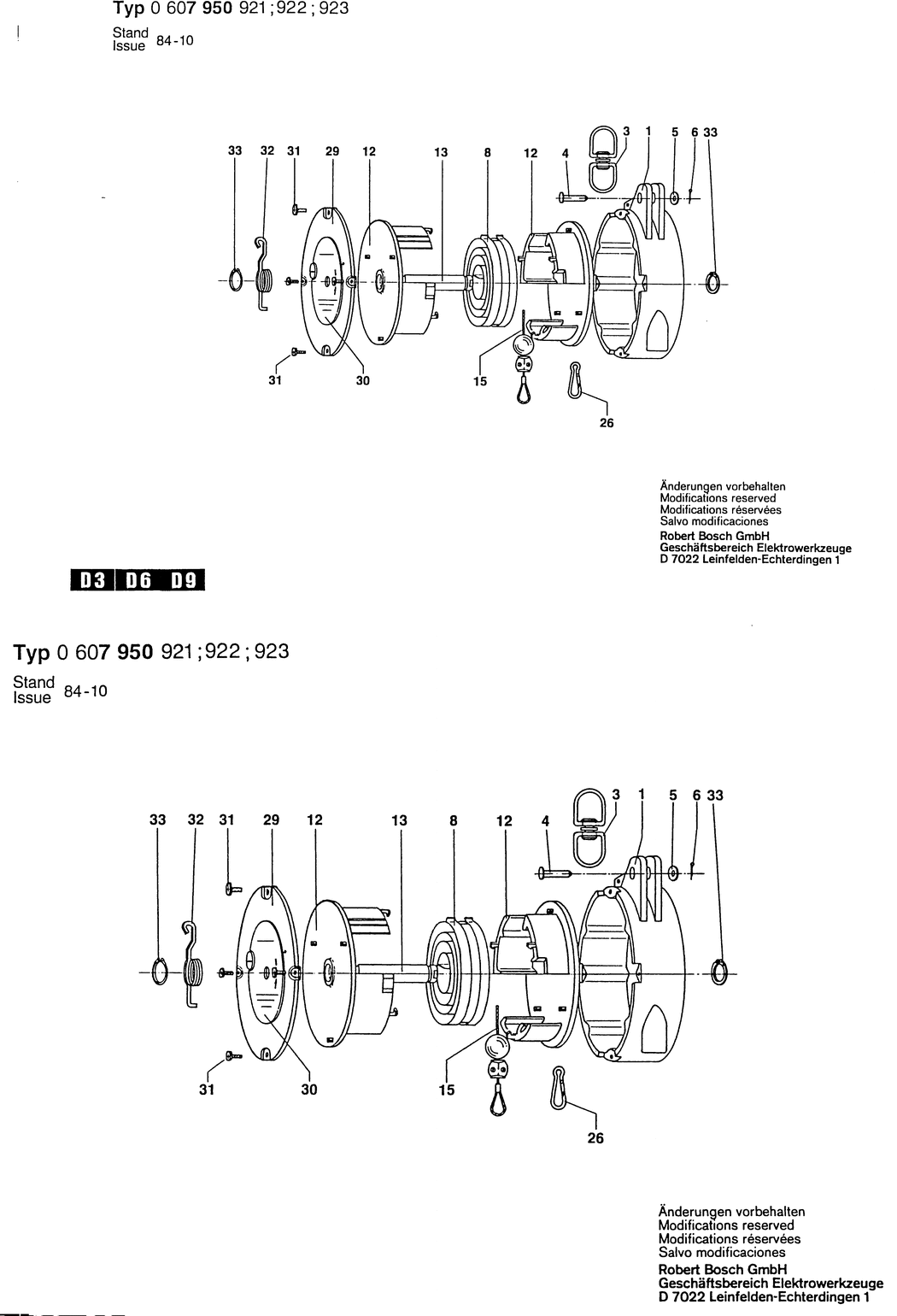

An exploded drawing and listing for the Bosch ---- / 0607950922 / ---

	Ex VAT	Inc VAT
1 - HOUSING BSD-3609200438.A6 3609200438	-
3 - CHAIN LINK BSD-3609201219.A7 3609201219	-
4 - PIVOT PIN BSD-3609200362.A7 3609200362	£8.67	£10.41
5 - PLAIN WASHER DIN 125-A6.4-A2 BSD-2918650008.A1 2918650008	-
6 - SPLIT PIN 1.6x12 DIN 94-ST BSD-1904681090.A7 1904681090	-
8 - SPIRAL SPRING BSD-3609200418.A0 3609200418	£93.88	£112.65
12 - HALF DRUM BSD-3609200462.A6 3609200462	-
13 - AXLE BSD-3609200360.A1 3609200360	£14.72	£17.67
15 - CABLE CONTROL BSD-3609200386.A8 3609200386	-
26 - SPRING HOOK BSD-3609200479.A8 3609200479	£18.96	£22.75
29 - HOUSING COVER BSD-3609200415.A2 3609200415	-
30 - NAMEPLATE BSD-3609200452.A0 3609200452	-
31 - OVAL-HEAD SCREW BSD-3609200359.A7 3609200359	-
32 - BRAKE SPRING BSD-3609200398.A2 3609200398	£14.75	£17.70
33 - SPRING RETAINING RING DIN 471-12x1-FSt BSD-2916650003.A193 2916650003	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601119236.A419 3601119236	£3.72	£4.47

Attribute Name	Value
Brand	Bosch
