Bosch ---- / 0607950904 / --- Spare Parts

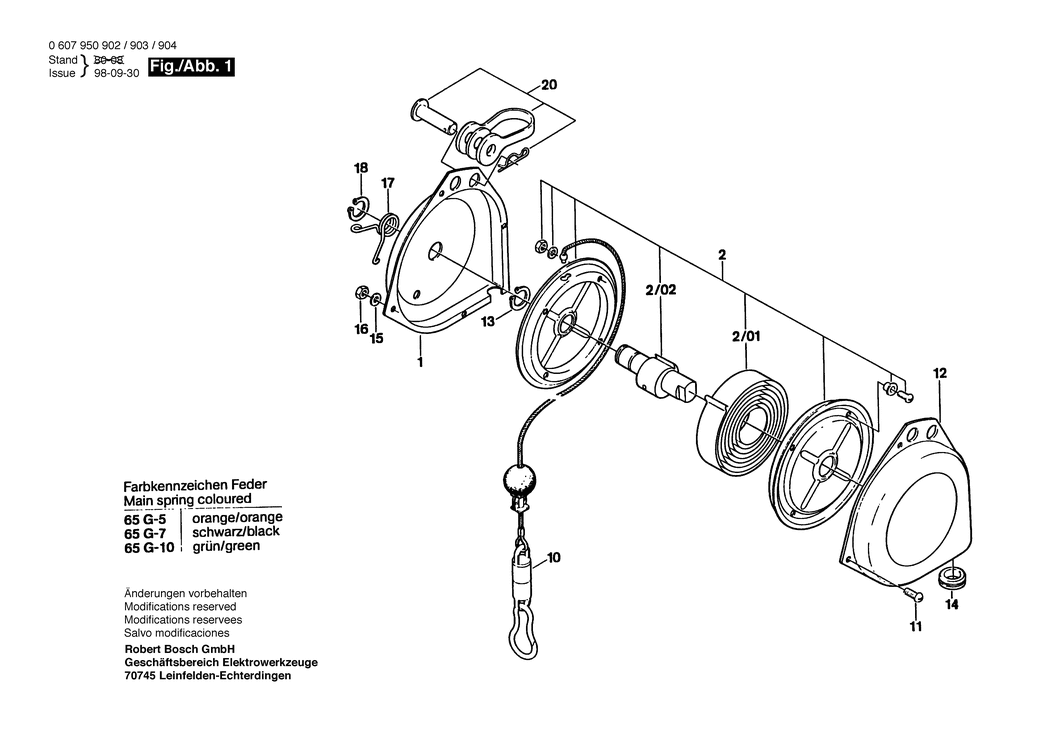

An exploded drawing and listing for the Bosch ---- / 0607950904 / ---

	Ex VAT	Inc VAT
1 - HOUSING BASE BSD-1609320015.A1 1609320015	-
2 - SPRING PACK BSD-1609320022.A0 1609320022	-
2 - SPIRAL SPRING BSD-1609320023.A0 1609320023	-
2 - CAMSHAFT BSD-1609320025.A0 1609320025	-
10 - CABLE CONTROL BSD-1609320019.A0 1609320019	-
11 - OVAL-HEAD SCREW DIN 7985-M 4x8-4.8 BSD-2910650118.A2 2910650118	-
12 - UPPER HOUSING BSD-1609320018.A0 1609320018	-
13 - SPRING RETAINING RING DIN 471 16x1MM BSD-2916650007.A13 2916650007	-
14 - GUIDE BUSHING BSD-1609320048.A0 1609320048	-
15 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A294 2916011010	£1.75	£2.10
16 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A372 2915011005	£1.75	£2.10
17 - COILED SPRING BSD-1609320020.A2 1609320020	-
18 - SPRING RETAINING RING DIN 471 16x1MM BSD-2916650007.A10 2916650007	-
20 - RETAINING BRACKET BSD-1609320049.A2 1609320049	-

Attribute Name	Value
Brand	Bosch
