Bosch 550 WATT-SERIE / 0607452607 / --- Spare Parts

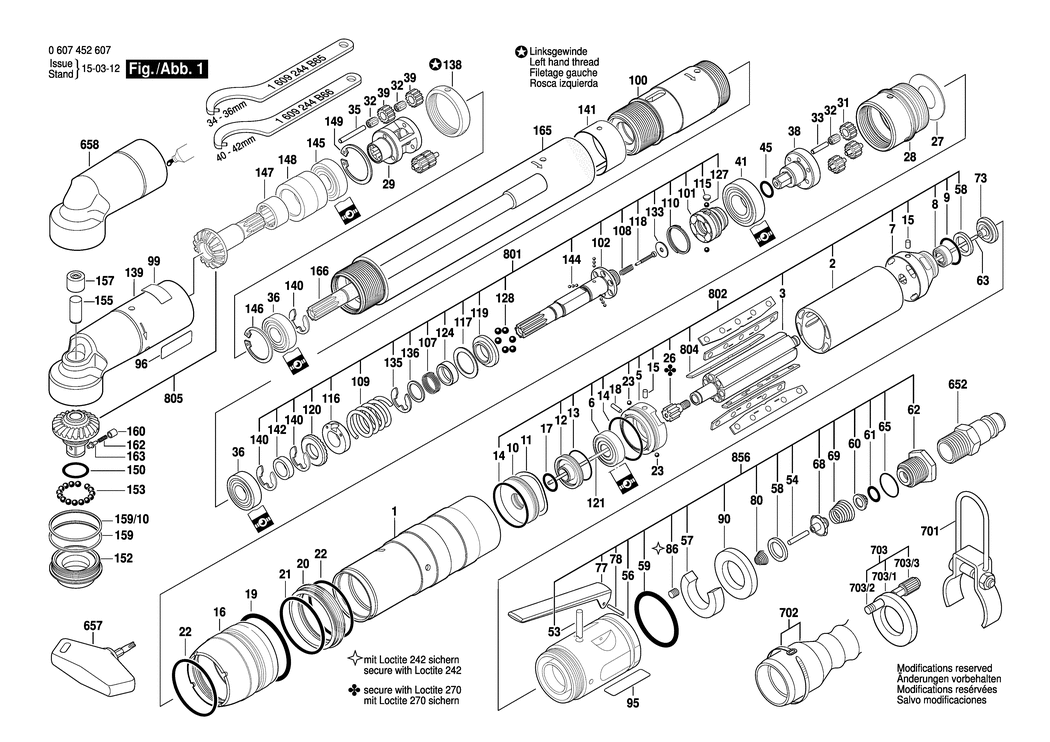

An exploded drawing and listing for the Bosch 550 WATT-SERIE / 0607452607 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3600760113.A0 3600760113	£306.65	£367.98
2 - STATOR BSD-3604090064.A0 3604090064	£218.41	£262.09
3 - ROTOR BSD-3604220159.A0 3604220159	£283.50	£340.20
5 - BEARING FLANGE BSD-3605700175.A4 3605700175	£81.81	£98.17
6 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A179 3600905039	£12.04	£14.45
7 - BEARING FLANGE BSD-3605700191.A0 3605700191	£156.22	£187.46
8 - GROOVE BALL BEARING 7x14x5 BSD-1900905030.A54 1900905030	£33.74	£40.49
9 - O-RING 15.6x1.8 MM BSD-3600210003.A13 3600210003	£1.75	£2.10
10 - BEARING FLANGE BSD-3605700174.A0 3605700174	£40.80	£48.96
11 - SHIM BSD-3609202A05.A0 3609202A05	£11.30	£13.56
12 - BEARING FLANGE BSD-3605700177.A0 3605700177	£48.38	£58.06
13 - O-RING 20.0x1.5 MM BSD-1610210075.A87 1610210075	£2.61	£3.13
14 - O-RING 27.0x1.5 MM BSD-1610210100.A58 1610210100	£3.72	£4.47
15 - STRAIGHT PIN BSD-3609201579.A4 3609201579	£2.16	£2.59
16 - SLEEVE BSD-3600409010.A4 3600409010	£179.37	£215.24
17 - O-RING 10.82x1.78 MM BSD-2600210004.A10 2600210004	£4.26	£5.11
18 - STRAIGHT PIN DIN 28734-2.5x8 BSD-2917850055.A4 2917850055	£1.75	£2.10
19 - O-RING 35.0x3.0 MM BSD-1610210128.A21 1610210128	£2.16	£2.59
20 - SEALING SLEEVE BSD-3600409011.A0 3600409011	£102.57	£123.08
21 - O-RING 41.0x1.78 MM BSD-3600210006.A42 3600210006	£2.16	£2.59
22 - O-RING 39.0x2.0 MM BSD-3600210022.A9 3600210022	£3.72	£4.47
23 - BALL 1.5 MMIIIDIN 5401-ST BSD-1903230026.A15 1903230026	£1.75	£2.10
26 - PINION BSD-3606300144.A0 3606300144	£93.88	£112.65
27 - STOP DISC BSD-3600101001.A196 3600101001	£2.61	£3.13
28 - RING GEAR BSD-3606334095.A0 3606334095	£195.26	£234.31
29 - PLANETARY-GEAR CARRIER BSD-3606337221.A1 3606337221	£156.22	£187.46
31 - CYLINDRICAL GEAR Z=16 BSD-3606316099.A52 3606316099	£21.68	£26.01
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A111 3600913000	£4.26	£5.11
33 - STRAIGHT PIN ISO 8734-5x16-A-ST BSD-2917850119.A0 2917850119	£1.75	£2.10
35 - STRAIGHT PIN DIN 6325-3M6x24 BSD-2917530083.A3 2917530083	£1.75	£2.10
36 - GROOVE BALL BEARING BSD-3600905023.A25 3600905023	£21.52	£25.83
38 - PLANETARY-GEAR CARRIER BSD-3606337226.A2 3606337226	£63.50	£76.20
39 - CYLINDRICAL GEAR BSD-3606316100.A84 3606316100	£21.52	£25.83
41 - GROOVE BALL BEARING BSD-3600905027.A13 3600905027	£16.41	£19.69
45 - O-RING 7.65x1.78 MM BSD-2600210001.A15 2600210001	£2.16	£2.59
53 - BOLT BSD-3603201085.A0 3603201085	£27.23	£32.68
54 - STRAIGHT PIN DIN 6325-3M6x20 BSD-2917530081.A0 2917530081	£2.16	£2.59
56 - VALVE HOUSING BSD-3605190195.A0 3605190195	£410.78	£492.94
57 - NON-WOVEN FABRIC BSD-3601010046.A0 3601010046	£7.36	£8.83
58 - VALVE BUSHING BSD-3600209004.A23 3600209004	£2.16	£2.59
59 - O-RING 33.0x3.5 MM BSD-1610210087.A4 1610210087	£1.75	£2.10
60 - STRAINER BSD-3600002000.A34 3600002000	£3.72	£4.47
61 - O-RING 10x2 MM BSD-1900210306.A36 1900210306	£1.75	£2.10
62 - FITTING BSD-3603458008.A81 3603458008	£8.67	£10.41
63 - CONNECTING ROD BSD-3603100030.A4 3603100030	£10.10	£12.12
65 - O-RING 16x1.25 MM BSD-3600210036.A22 3600210036	£2.16	£2.59
68 - VALVE CONE BSD-3603231017.A4 3603231017	£16.41	£19.69
69 - COMPRESSION SPRING BSD-3604616008.A50 3604616008	-
73 - VALVE CONE BSD-3608750040.A5 3608750040	£3.72	£4.47
77 - CONTROL LEVER BSD-3601902001.A34 3601902001	£6.52	£7.83
78 - GROOVED PIN DIN 8742-2x16 BSD-2917710039.A0 2917710039	£1.75	£2.10
80 - COMPRESSION SPRING BSD-3604643010.A5 3604643010	£2.61	£3.13
86 - SET SCREW M 5x5-DIN 913-45H BSD-2912041147.A6 2912041147	£2.16	£2.59
90 - SILENCER BSD-3600105013.A2 3600105013	£12.04	£14.45
92 - REFERENCE PLATE BSD-3601110574.A61 3601110574	£2.61	£3.13
95 - NAMEPLATE BSD-160111A3HF.A605 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601110331.A0 3601110331	£3.72	£4.47
99 - REFERENCE PLATE BSD-3601119236.A405 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125062.A0 3605125062	£179.37	£215.24
101 - CLUTCH ELEMENT BSD-3606445043.A104 3606445043	£102.57	£123.08
102 - OUTPUT SHAFT BSD-3603124031.A1 3603124031	£179.37	£215.24
107 - COMPRESSION SPRING BSD-3604615004.A28 3604615004	£1.75	£2.10
108 - COMPRESSION SPRING BSD-3604610057.A41 3604610057	£2.16	£2.59
109 - COMPRESSION SPRING BSD-3604619020.A15 3604619020	£5.58	£6.70
110 - RETAINING RING BSD-3600224053.A94 3600224053	£1.75	£2.10
115 - SEALING PLATE BSD-3601023011.A171 3601023011	£2.61	£3.13
116 - SETTING RING BSD-3600134016.A21 3600134016	£59.53	£71.44
117 - PLAIN WASHER 0.5 MM BSD-1600101023.A56 1600101023	£1.75	£2.10
118 - ROD BSD-3603003005.A31 3603003005	£13.12	£15.75
119 - SUPPORT DISC BSD-3600190038.A37 3600190038	£18.96	£22.75
120 - CATCH DISK BSD-3603344046.A49 3603344046	£33.74	£40.49
121 - STRAIGHT PIN BSD-3603201077.A4 3603201077	£11.30	£13.56
122 - SHIM WASHER BSD-3600101052.A39 3600101052	£8.67	£10.41
124 - RING BSD-3600250004.A42 3600250004	£8.67	£10.41
127 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A5 1903230006	£2.16	£2.59
128 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A9 1903230008	£1.75	£2.10
133 - WASHER BSD-3600190024.A21 3600190024	£2.16	£2.59
135 - RETAINING RING BSD-3600224059.A14 3600224059	£3.72	£4.47
136 - PLAIN WASHER BSD-2600101513.A22 2600101513	£1.75	£2.10
138 - THREADED RING BSD-3603344062.A0 3603344062	£18.96	£22.75
139 - SPINDLE HOUSING BSD-3605106093.A17 3605106093	£500.46	£600.55
140 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A46 2916080012	£1.75	£2.10
141 - PROTECTION SLEEVE BSD-3600400032.A0 3600400032	£6.52	£7.83
142 - SPACER RING BSD-3600200055.A3 3600200055	£13.12	£15.75
144 - BALL 2 MM III DIN 5401 ST BSD-1903230002.A110 1903230002	£2.16	£2.59
145 - GROOVE BALL BEARING BSD-3600905015.A59 3600905015	£16.41	£19.69
146 - SPRING RETAINING RING BSD-3600118006.A24 3600118006	£2.61	£3.13
147 - NEEDLE BEARING BSD-3600917020.A22 3600917020	£14.91	£17.89
148 - SPACER BSD-3608874921.A14 3608874921	£18.96	£22.75
149 - SPRING RETAINING RING DIN 472-28x1.2 MM BSD-2916660011.A154 2916660011	£1.75	£2.10
150 - O-RING 14.0x2.0 MM BSD-1610210116.A54 1610210116	£2.80	£3.36
152 - BEARING FLANGE BSD-3605700190.A3 3605700190	£59.53	£71.44
153 - BALL 4.5 MM III DIN 5401-ST BSD-1903230008.A10 1903230008	£1.75	£2.10
155 - STRAIGHT PIN BSD-2917530174.A0 2917530174	-
157 - NEEDLE BEARING INA 8.00x12.00x10.00 BSD-3608874669.A3 3608874669	£13.12	£15.75
159 - SHIM 0.1 BSD-3608874923.A3 3608874923	£14.91	£17.89
159/10 - SHIM 0.05 BSD-3608874924.A14 3608874924	£16.41	£19.69
160 - GUIDE SLEEVE BSD-3600320016.A55 3600320016	£14.91	£17.89
162 - COMPRESSION SPRING BSD-1604611004.A22 1604611004	£2.80	£3.36
163 - PRESSURE SPINDLE BSD-1603124060.A15 1603124060	£5.58	£6.70
165 - HOUSING BSD-3609202A20.A0 3609202A20	£251.67	£302.00
166 - OUTPUT SHAFT BSD-3609202A22.A1 3609202A22	£218.41	£262.09
652 - HOSE FITTING BSD-3603386063.A3 3603386063	£27.23	£32.68
657 - SCREWDRIVER BSD-3607950027.A207 3607950027	£14.91	£17.89
658 - PROTECTIVE CAP BSD-3609202A29.A0 3609202A29	£13.12	£15.75
701 - SUSPENSION LOOP BSD-3601310000.A3 3601310000	£27.23	£32.68
702 - AIR HOSE BSD-3607000027.A47 3607000027	£33.74	£40.49
703 - PRESSURE MONITOR BSD-3609202A08.A3 3609202A08	£102.57	£123.08
703/1 - SILENCER BSD-3609202A07.A0 3609202A07	-
703/2 - DISTANCE PIPE BSD-3609202A06.A3 3609202A06	-
703/3 - THREADED JOINT BSD-2121004050.A3 2121004050	-
801 - CUTOFF COUPLING SP SET BSD-3609202A18.A1 3609202A18	£306.65	£367.98
802 - ASSEMBLY OF SERVICE PARTS BSD-3609202986.A2 3609202986	£798.41	£958.09
804 - ASSEMBLY OF SERVICE PARTS BSD-3609202988.A0 3609202988	£16.41	£19.69
805 - BEVEL GEAR BSD-3609202B05.A17 3609202B05	£458.51	£550.21
856 - ASSEMBLY OF SERVICE PARTS BSD-3609202989.A4 3609202989	£500.46	£600.55
