Bosch 370 WATT-SERIE / 0607451608 / --- Spare Parts

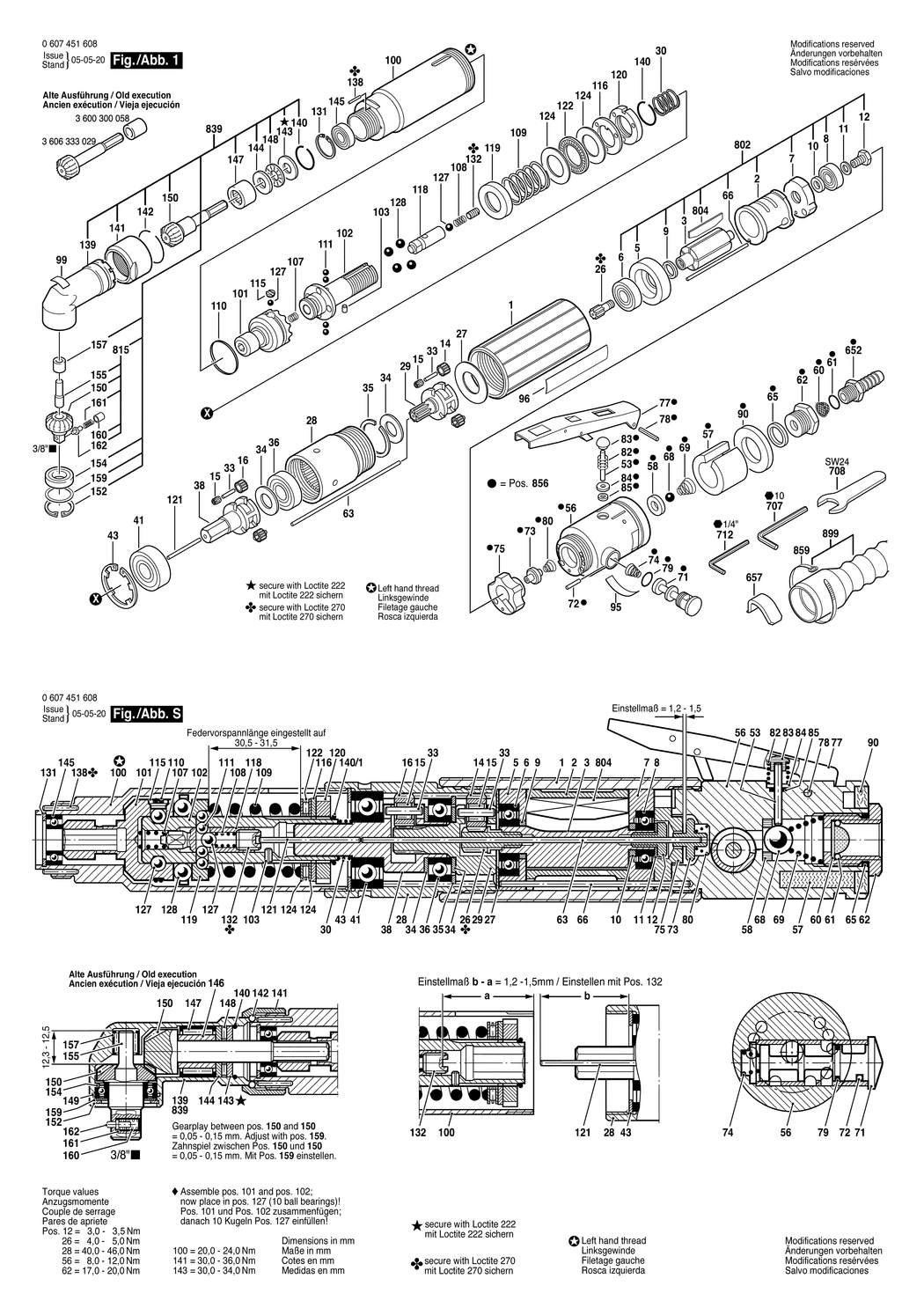

An exploded drawing and listing for the Bosch 370 WATT-SERIE / 0607451608 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3600760015.A65 3600760015	£93.88	£112.65
2 - STATOR 370W BSD-3604090002.A10 3604090002	£81.81	£98.17
3 - ROTOR BSD-3604220002.A2 3604220002	£93.88	£112.65
5 - BEARING FLANGE BSD-3605700005.A3 3605700005	£54.42	£65.30
6 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A303 3600905039	£12.04	£14.45
7 - BEARING FLANGE BSD-3605700006.A57 3605700006	£72.18	£86.62
8 - GROOVE BALL BEARING DIN 625-7x19x6 BSD-3600905148.A23 3600905148	£8.49	£10.19
9 - SPACER RING BSD-2600202013.A20 2600202013	£8.67	£10.41
10 - SPACER RING BSD-2600202014.A176 2600202014	£11.30	£13.56
11 - PLAIN WASHER DIN 125-A5.3-ST BSD-2916011012.A131 2916011012	£1.75	£2.10
12 - HEX SCREW BSD-3603450007.A8 3603450007	£21.52	£25.83
14 - CYLINDRICAL GEAR BSD-3606316101.A63 3606316101	£21.68	£26.01
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A303 3600913000	£4.26	£5.11
16 - CYLINDRICAL GEAR BSD-3606316100.A27 3606316100	£21.52	£25.83
26 - PINION BSD-3606300165.A5 3606300165	£31.64	£37.97
27 - STOP DISC BSD-3600101001.A82 3600101001	£2.61	£3.13
28 - RING GEAR Z=49 BSD-3606334000.A93 3606334000	£102.57	£123.08
29 - PLANETARY-GEAR CARRIER BSD-3606337009.A1 3606337009	£102.57	£123.08
30 - COMPRESSION SPRING BSD-3604617000.A60 3604617000	£1.75	£2.10
33 - NEEDLE ROLLER BSD-3603201000.A159 3603201000	£1.75	£2.10
34 - SHIM WASHER BSD-3600103002.A97 3600103002	£3.72	£4.47
35 - RETAINING RING BSD-3600224000.A97 3600224000	£1.75	£2.10
36 - GROOVE BALL BEARING 12x28x8 BSD-1900900287.A93 1900900287	£21.68	£26.01
38 - PLANETARY-GEAR CARRIER BSD-3606337005.A49 3606337005	£120.11	£144.13
41 - GROOVE BALL BEARING BSD-3600905069.A60 3600905069	£16.41	£19.69
43 - SPRING RETAINING RING BSD-3600119000.A50 3600119000	£10.10	£12.12
53 - NEEDLE ROLLER BSD-3603201057.A2 3603201057	£6.52	£7.83
56 - VALVE HOUSING BSD-3605190133.A1 3605190133	£458.51	£550.21
57 - SILENCER BSD-3601010002.A60 3601010002	£2.80	£3.36
58 - SEALING DISK BSD-3600206006.A10 3600206006	-
60 - STRAINER BSD-3600002000.A219 3600002000	£3.72	£4.47
61 - O-RING 10x2 MM BSD-1900210306.A162 1900210306	£1.75	£2.10
62 - FITTING BSD-3603458008.A38 3603458008	£8.67	£10.41
63 - STRAIGHT PIN BSD-3604710029.A10 3604710029	£12.04	£14.45
65 - O-RING 16x1.25 MM BSD-3600210036.A58 3600210036	£2.16	£2.59
66 - STRAIGHT PIN BSD-3604710051.A1 3604710051	£10.10	£12.12
68 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A3 1903230528	£1.75	£2.10
69 - COMPRESSION SPRING BSD-3604616008.A15 3604616008	-
71 - CONTROL PISTON BSD-3608750026.A3 3608750026	£81.81	£98.17
72 - COILED SPRING PIN 2x12 DIN 7343 BSD-2917800037.A10 2917800037	£2.16	£2.59
73 - VALVE CONE BSD-3603203012.A8 3603203012	£16.41	£19.69
74 - COMPRESSION SPRING BSD-3604611006.A35 3604611006	£2.16	£2.59
75 - INTERMEDIATE PIECE BSD-3600290003.A3 3600290003	£63.50	£76.20
77 - CONTROL LEVER BSD-3601902003.A1 3601902003	£72.18	£86.62
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A46 2917700040	£2.80	£3.36
79 - O-RING 9.0x1.2 MM BSD-3600210038.A29 3600210038	£2.61	£3.13
80 - COMPRESSION SPRING BSD-3604643010.A23 3604643010	£2.61	£3.13
82 - COMPRESSION SPRING BSD-3604611006.A36 3604611006	£2.16	£2.59
83 - VALVE CONE BSD-3603132000.A74 3603132000	£2.80	£3.36
84 - PLAIN WASHER DIN 125-A3.2-ST BSD-2916011006.A23 2916011006	£1.75	£2.10
85 - O-RING 2.4x1.9 MM BSD-2600210007.A65 2600210007	£2.16	£2.59
90 - SILENCER BSD-3600105002.A10 3600105002	£10.10	£12.12
95 - NAMEPLATE BSD-160111A3HF.A45 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A251 1601110481	£2.16	£2.59
99 - REFERENCE PLATE BSD-3601119236.A1472 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125029.A3 3605125029	£135.25	£162.30
101 - CLUTCH ELEMENT BSD-3606445030.A36 3606445030	£102.57	£123.08
102 - DRIVE SHAFT BSD-3606122008.A83 3606122008	£120.11	£144.13
103 - COILED SPRING PIN DIN 7343-2x5 BSD-2917800033.A23 2917800033	£1.75	£2.10
107 - COMPRESSION SPRING BSD-3604610003.A20 3604610003	£3.72	£4.47
108 - COMPRESSION SPRING BSD-3604610002.A137 3604610002	£3.72	£4.47
109 - COMPRESSION SPRING BSD-3604619004.A43 3604619004	£6.52	£7.83
110 - RETAINING RING BSD-3604601001.A152 3604601001	£2.16	£2.59
111 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A352 1903230007	£1.75	£2.10
115 - SEALING PLATE BSD-3609992353.A20 3609992353	£2.80	£3.36
116 - ADJUSTING DISC BSD-3600134000.A50 3600134000	£2.80	£3.36
118 - LOCKING BOLT BSD-3603150203.A152 3603150203	£45.67	£54.80
119 - COUPLING PLATE BSD-3600114001.A43 3600114001	£18.96	£22.75
120 - ROUND NUT BSD-3603301004.A56 3603301004	£21.68	£26.01
121 - STRAIGHT PIN 37.0 MM BSD-3603201025.A13 3603201025	£5.58	£6.70
122 - ROLLER THRUST BEARING BSD-3600921000.A127 3600921000	£6.52	£7.83
124 - SUPPORT DISC BSD-3600101002.A92 3600101002	£2.16	£2.59
127 - BALL DIN 5401-5 G28 BSD-1903230009.A324 1903230009	£1.75	£2.10
128 - BALL DIN 5401-6 G28 BSD-1903230011.A252 1903230011	£2.61	£3.13
131 - SPRING RETAINING RING 16x1 MM. DIN 472 BSD-2916660003.A72 2916660003	£1.75	£2.10
132 - SET SCREW BSD-3603400001.A22 3603400001	£2.80	£3.36
138 - STRAIGHT PIN DIN 6325-5M2.5x12 BSD-2917530057.A31 2917530057	£1.75	£2.10
139 - SPINDLE HOUSING BSD-3605106071.A28 3605106071	£135.25	£162.30
140 - RETAINING RING 7 DIN 9045 BSD-2916600004.A1 2916600004	-
141 - UNION NUT BSD-3603342002.A5 3603342002	£16.41	£19.69
142 - RETAINING RING DIN 9045-24 BSD-2916600013.A6 2916600013	-
143 - SUPPORT DISC BSD-3600100094.A37 3600100094	£18.96	£22.75
144 - SUPPORT DISC BSD-3600100095.A0 3600100095	£18.96	£22.75
145 - GROOVE BALL BEARING BSD-1280905004.A31 1280905004	£31.64	£37.97
147 - NEEDLE BEARING BSD-3600917019.A46 3600917019	£11.30	£13.56
148 - ROLLER THRUST BEARING BSD-3600929003.A46 3600929003	£21.52	£25.83
150 - BEVEL GEAR BSD-3606333077.A4 3606333077	-
152 - SPRING RETAINING RING DIN 472-21x1MM BSD-2916660045.A30 2916660045	£1.75	£2.10
154 - GROOVE BALL BEARING BSD-3600900018.A39 3600900018	£23.86	£28.63
155 - BEARING BOLT BSD-3603120003.A12 3603120003	£37.27	£44.72
157 - NEEDLE BEARING BSD-9001140359.A44 9001140359	£6.52	£7.83
159 - SHIM 0.05 MM BSD-1600101650.A110 1600101650	£2.61	£3.13
159 - SHIM 0.1 MM BSD-1600101648.A128 1600101648	£1.75	£2.10
160 - GUIDE SLEEVE BSD-3600320016.A32 3600320016	£14.91	£17.89
161 - COMPRESSION SPRING BSD-1604611004.A27 1604611004	£2.80	£3.36
162 - PRESSURE SPINDLE BSD-1603124060.A52 1603124060	£5.58	£6.70
652 - HOSE FITTING BSD-2603386002.A276 2603386002	£5.30	£6.36
657 - ANGLE PIECE BSD-3601329007.A61 3601329007	£4.26	£5.11
707 - OFFSET SCREWDRIVER DIN 911 SW10 BSD-1907950009.A49 1907950009	£21.68	£26.01
708 - SINGLE-HEAD ENG. WRENCH DIN 894 SW24 BSD-1907950513.A73 1907950513	£16.41	£19.69
712 - HEXAGON-SOCKET KEY BSD-3607950001.A246 3607950001	£2.80	£3.36
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031018.A18 3607031018	£410.78	£492.94
804 - ASSEMBLY OF SERVICE PARTS BSD-3607030248.A70 3607030248	£31.64	£37.97
815 - ASSEMBLY OF SERVICE PARTS BSD-3607030151.A0 3607030151	£283.50	£340.20
839 - ANGLE SCREWDRIVER HEAD 3/8 BSD-3607020165.A2 3607020165	£798.41	£958.09
856 - VALVE GATE MODULE BSD-3607020164.A1 3607020164	£653.78	£784.53
859 - HOLDING BELT BSD-3604710062.A62 3604710062	£1.75	£2.10
899 - AIR HOSE BSD-3607000027.A11 3607000027	£33.74	£40.49
