Bosch 370 WATT-SERIE / 0607451414 / --- Spare Parts

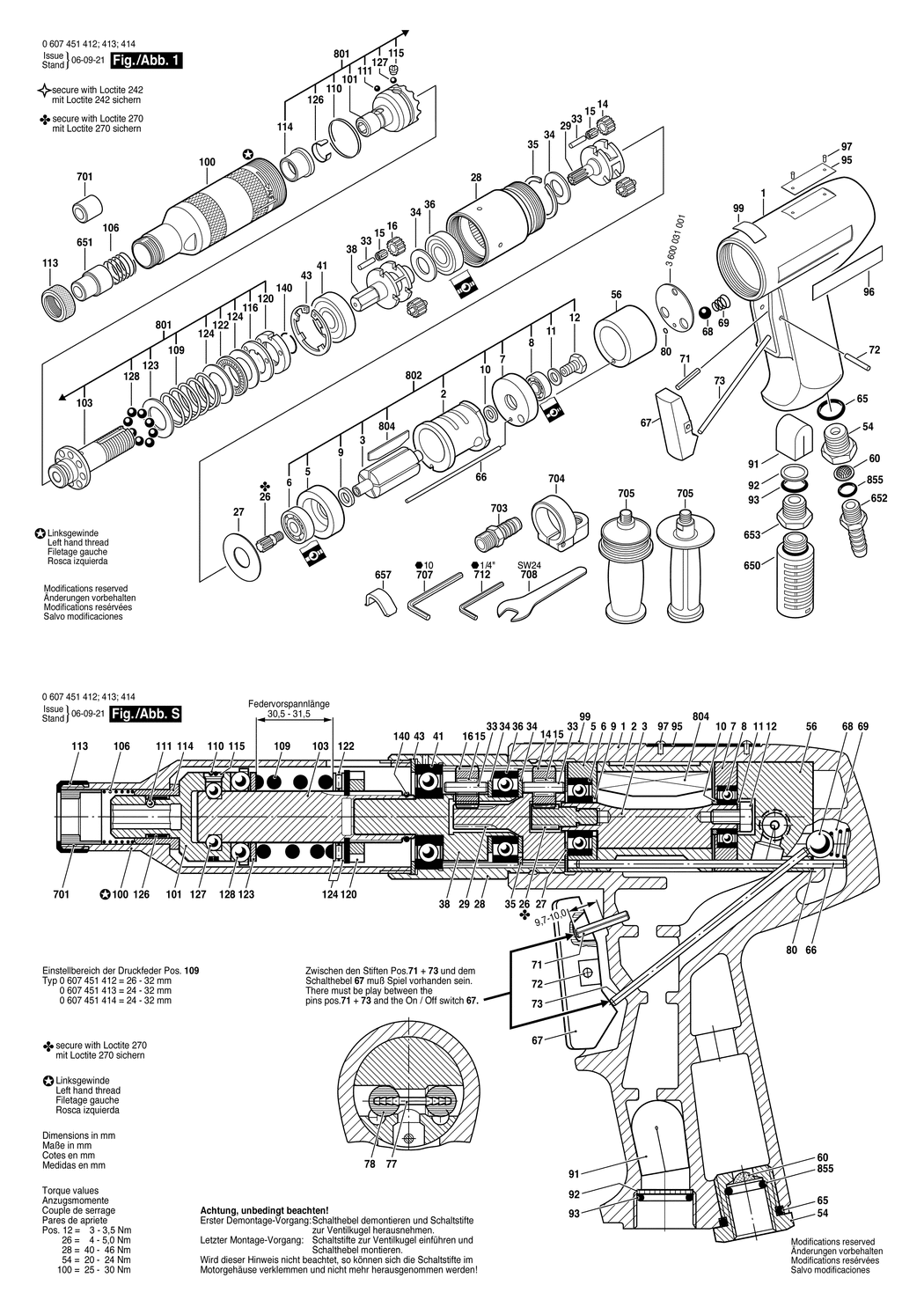

An exploded drawing and listing for the Bosch 370 WATT-SERIE / 0607451414 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605108025.A6 3605108025	-
2 - STATOR 370W BSD-3604090003.A7 3604090003	£93.88	£112.65
3 - ROTOR BSD-3604220003.A0 3604220003	£81.81	£98.17
5 - BEARING FLANGE BSD-3605700005.A189 3605700005	£54.42	£65.30
6 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A31 3600905039	£12.04	£14.45
7 - BEARING FLANGE BSD-3605700008.A0 3605700008	-
8 - BALL BEARING 7x19x6 BSD-2600905032.A1705 2600905032	£5.30	£6.36
9 - SPACER RING BSD-2600202013.A167 2600202013	£8.67	£10.41
10 - SPACER RING BSD-2600202014.A24 2600202014	£11.30	£13.56
11 - PLAIN WASHER DIN 125-A5.3-ST BSD-2916011012.A206 2916011012	£1.75	£2.10
12 - HEX SCREW DIN 933-M5x8-8.8 BSD-2911061150.A39 2911061150	£2.61	£3.13
14 - CYLINDRICAL GEAR Z=12 BSD-3606316098.A72 3606316098	£27.23	£32.68
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A253 3600913000	£4.26	£5.11
16 - CYLINDRICAL GEAR Z=16 BSD-3606316099.A5 3606316099	£21.68	£26.01
26 - PINION Z=23 BSD-3606300002.A24 3606300002	£23.86	£28.63
27 - STOP DISC BSD-3600101001.A129 3600101001	£2.61	£3.13
28 - RING GEAR Z=49 BSD-3606334000.A31 3606334000	£102.57	£123.08
29 - PLANETARY-GEAR CARRIER BSD-3606337002.A15 3606337002	£93.88	£112.65
33 - NEEDLE ROLLER BSD-3603201000.A470 3603201000	£1.75	£2.10
34 - SHIM WASHER BSD-3600103002.A71 3600103002	£3.72	£4.47
35 - RETAINING RING BSD-3600224000.A79 3600224000	£1.75	£2.10
36 - GROOVE BALL BEARING 12x28x8 BSD-1900900287.A222 1900900287	£21.68	£26.01
38 - PLANETARY-GEAR CARRIER BSD-3606337014.A22 3606337014	-
41 - GROOVE BALL BEARING 12x32x10 BSD-1600905007.A39 1600905007	£11.30	£13.56
43 - SPRING RETAINING RING BSD-3600119000.A91 3600119000	£10.10	£12.12
54 - FITTING BSD-3603458008.A115 3603458008	£8.67	£10.41
56 - VALVE BODY BSD-3605190008.A0 3605190008	-
60 - STRAINER BSD-3600002000.A113 3600002000	£3.72	£4.47
65 - O-RING 15.6x1.8 MM BSD-3600210003.A25 3600210003	£1.75	£2.10
66 - STRAIGHT PIN BSD-3604710006.A4 3604710006	£8.67	£10.41
67 - CONTROL LEVER BSD-3602053001.A18 3602053001	£2.80	£3.36
68 - BALL dia9 MM BSD-3603230004.A9 3603230004	£3.72	£4.47
69 - COMPRESSION SPRING BSD-3604616002.A95 3604616002	£2.16	£2.59
71 - STRAIGHT GROOVED PIN 2.5x16 DIN 1473 BSD-2917601059.A23 2917601059	£1.75	£2.10
72 - STRAIGHT PIN 3M6x24 DIN 7-C35K BSD-2917610083.A34 2917610083	£1.75	£2.10
73 - STRAIGHT PIN BSD-3604710003.A69 3604710003	£6.52	£7.83
80 - O-RING 1.8x1.0 MM BSD-3600210002.A61 3600210002	£2.61	£3.13
91 - SILENCER BSD-3601010001.A88 3601010001	£2.16	£2.59
92 - FILTER SCREEN BSD-3600002004.A110 3600002004	£2.80	£3.36
93 - O-RING 14.0x3.0 MM BSD-3600210009.A57 3600210009	£1.32	£1.58
95 - NAMEPLATE BSD-160111A3HF.A344 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A589 1601110481	£2.16	£2.59
97 - GROOVED NAIL BSD-3603133000.A596 3603133000	£2.61	£3.13
99 - REFERENCE PLATE BSD-3601119236.A957 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125013.A27 3605125013	-
101 - CLUTCH ELEMENT BSD-3606445030.A28 3606445030	£102.57	£123.08
103 - DRIVE SHAFT BSD-3606122013.A28 3606122013	£81.81	£98.17
106 - COMPRESSION SPRING BSD-3604615000.A54 3604615000	£1.75	£2.10
109 - COMPRESSION SPRING dia 3.5 MM BSD-3604619005.A33 3604619005	£7.36	£8.83
110 - RETAINING RING BSD-3604601001.A67 3604601001	£2.16	£2.59
111 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A246 1903230003	£2.61	£3.13
113 - UNION NUT BSD-3603340000.A57 3603340000	£4.26	£5.11
114 - BUSHING BSD-3600322002.A3 3600322002	£5.30	£6.36
115 - SEALING PLATE BSD-3600001000.A121 3600001000	£2.80	£3.36
116 - ADJUSTING DISC BSD-3600134000.A136 3600134000	£2.80	£3.36
120 - ROUND NUT BSD-3603301004.A108 3603301004	£21.68	£26.01
122 - ROLLER THRUST BEARING BSD-3600921000.A50 3600921000	£6.52	£7.83
123 - SUPPORT DISC BSD-3600103004.A27 3600103004	£13.12	£15.75
124 - SUPPORT DISC BSD-3600101002.A35 3600101002	£2.16	£2.59
126 - LEAF SPRING BSD-2601250001.A95 2601250001	£3.72	£4.47
127 - BALL DIN 5401-5 G28 BSD-1903230009.A639 1903230009	£1.75	£2.10
128 - BALL DIN 5401-6 G28 BSD-1903230011.A353 1903230011	£2.61	£3.13
140 - RETAINING RING 14 DIN 9045 BSD-2916600008.A136 2916600008	£2.80	£3.36
650 - SILENCER BSD-3607000073.A55 3607000073	£18.96	£22.75
651 - GUIDE SLEEVE BSD-3600329000.A42 3600329000	£7.36	£8.83
652 - HOSE FITTING BSD-2603386002.A37 2603386002	£5.30	£6.36
653 - SILENCER BSD-3603462000.A216 3603462000	£16.41	£19.69
657 - ANGLE PIECE BSD-3601329007.A226 3601329007	£4.26	£5.11
701 - GUIDE SLEEVE BSD-3600328003.A30 3600328003	-
703 - HOSE FITTING dia 8 MM BSD-3603386001.A29 3603386001	£16.41	£19.69
704 - SUPPORT CLAMP BSD-3608040000.A101 3608040000	-
705 - AUXILIARY HANDLE M14 BSD-1602025022.A1350 1602025022	£13.41	£16.09
705 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1419 1602025030	£18.96	£22.75
707 - OFFSET SCREWDRIVER DIN 911 SW10 BSD-1907950009.A105 1907950009	£21.68	£26.01
708 - SINGLE-HEAD ENG. WRENCH DIN 894 SW24 BSD-1907950513.A34 1907950513	£16.41	£19.69
712 - HEXAGON-SOCKET KEY BSD-3607950001.A61 3607950001	£2.80	£3.36
801 - ASSEMBLY OF SERVICE PARTS BSD-3607031106.A2 3607031106	-
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031023.A10 3607031023	-
804 - ASSEMBLY OF SERVICE PARTS BSD-3607030248.A29 3607030248	£31.64	£37.97
855 - O-RING 10x2 MM BSD-1900210306.A92 1900210306	£1.75	£2.10

Attribute Name	Value
Brand	Bosch
