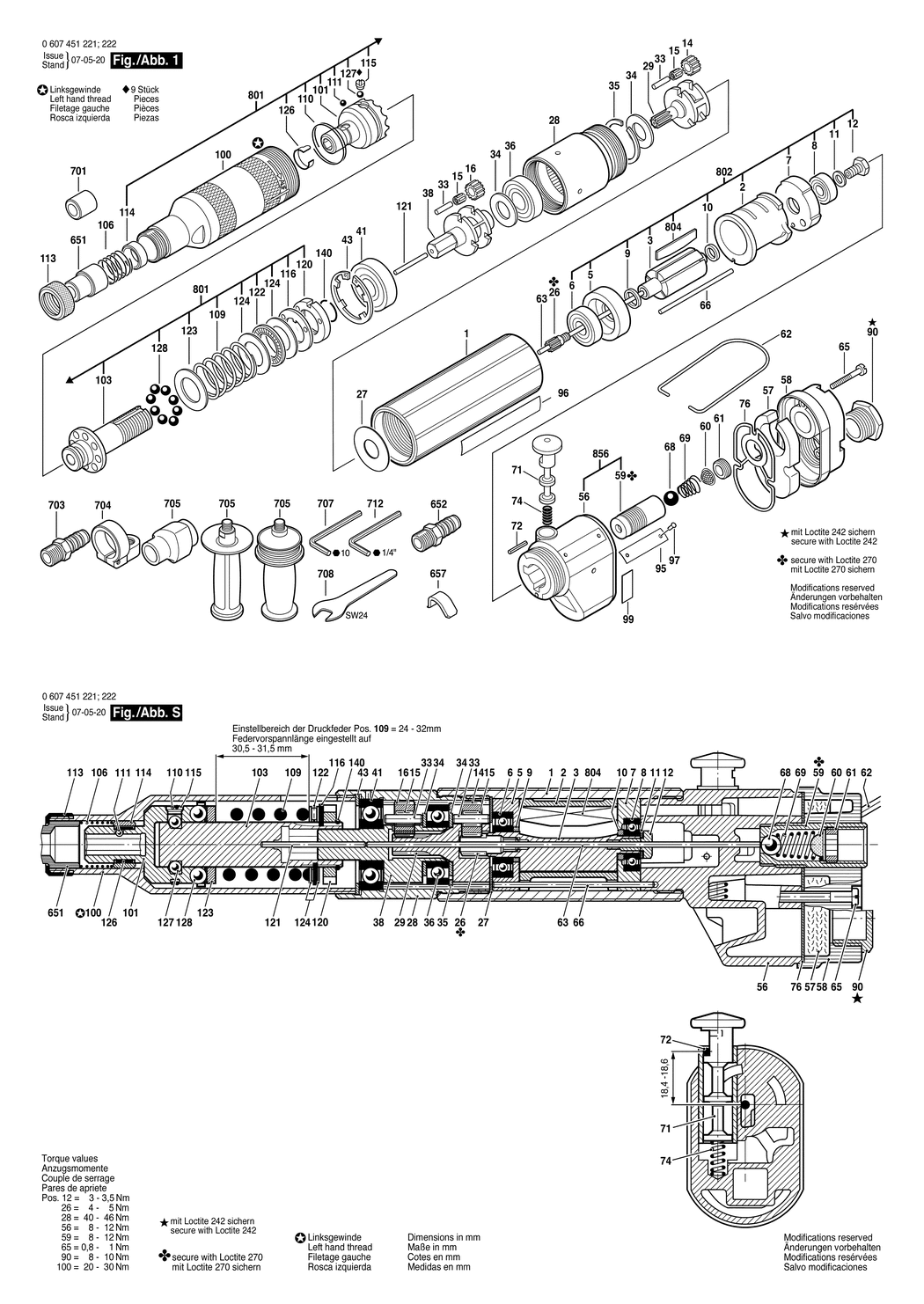

1 - MOTOR HOUSING
BSD-3600760015.A45
3600760015
|
£93.88
|
£112.65
|
|
|
2 - STATOR 370W
BSD-3604090002.A18
3604090002
|
£81.81
|
£98.17
|
|
|
3 - ROTOR
BSD-3604220002.A24
3604220002
|
£93.88
|
£112.65
|
|
|
5 - BEARING FLANGE
BSD-3605700005.A55
3605700005
|
£54.42
|
£65.30
|
|
|
6 - GROOVE BALL BEARING 9x24x7 MM
BSD-3600905039.A277
3600905039
|
£12.04
|
£14.45
|
|
|
7 - BEARING FLANGE
BSD-3605700006.A46
3605700006
|
£72.18
|
£86.62
|
|
|
8 - BALL BEARING 7x19x6
BSD-2600905032.A1326
2600905032
|
£5.30
|
£6.36
|
|
|
9 - SPACER RING
BSD-2600202013.A67
2600202013
|
£8.67
|
£10.41
|
|
|
10 - SPACER RING
BSD-2600202014.A125
2600202014
|
£11.30
|
£13.56
|
|
|
11 - PLAIN WASHER DIN 125-A5.3-ST
BSD-2916011012.A19
2916011012
|
£1.75
|
£2.10
|
|
|
12 - HEX SCREW
BSD-3603450000.A25
3603450000
|
£7.36
|
£8.83
|
|
|
14 - CYLINDRICAL GEAR
BSD-3606316100.A47
3606316100
|
£21.52
|
£25.83
|
|
|
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7
BSD-3600913000.A454
3600913000
|
£4.26
|
£5.11
|
|
|
16 - CYLINDRICAL GEAR Z=16
BSD-3606316099.A89
3606316099
|
£21.68
|
£26.01
|
|
|
26 - PINION Z=23
BSD-3606300001.A20
3606300001
|
£27.31
|
£32.77
|
|
|
27 - STOP DISC
BSD-3600101001.A18
3600101001
|
£2.61
|
£3.13
|
|
|
28 - RING GEAR Z=49
BSD-3606334000.A143
3606334000
|
£102.57
|
£123.08
|
|
|
29 - PLANETARY-GEAR CARRIER
BSD-3606337001.A10
3606337001
|
-
|
|
|
|
33 - NEEDLE ROLLER
BSD-3603201000.A95
3603201000
|
£1.75
|
£2.10
|
|
|
34 - SHIM WASHER
BSD-3600103002.A165
3600103002
|
£3.72
|
£4.47
|
|
|
35 - RETAINING RING
BSD-3600224000.A139
3600224000
|
£1.75
|
£2.10
|
|
|
36 - GROOVE BALL BEARING 12x28x8
BSD-1900900287.A24
1900900287
|
£21.68
|
£26.01
|
|
|
38 - PLANETARY-GEAR CARRIER
BSD-3606337005.A7
3606337005
|
£120.11
|
£144.13
|
|
|
41 - GROOVE BALL BEARING 12x32x10
BSD-1600905007.A121
1600905007
|
£11.30
|
£13.56
|
|
|
43 - SPRING RETAINING RING
BSD-3600119000.A12
3600119000
|
£10.10
|
£12.12
|
|
|
56 - VALVE BODY
BSD-3605190071.A5
3605190071
|
-
|
|
|
|
57 - DAMPING PLATE
BSD-3601015007.A9
3601015007
|
£2.80
|
£3.36
|
|
|
58 - CONNECTION COVER
BSD-3605500014.A17
3605500014
|
£7.36
|
£8.83
|
|
|
59 - FITTING
BSD-3603373002.A8
3603373002
|
£12.04
|
£14.45
|
|
|
60 - STRAINER
BSD-3600002000.A337
3600002000
|
£3.72
|
£4.47
|
|
|
61 - THREADED RING
BSD-3603340005.A10
3603340005
|
£4.26
|
£5.11
|
|
|
62 - SUSPENSION LOOP
BSD-3604720004.A101
3604720004
|
£2.80
|
£3.36
|
|
|
63 - STRAIGHT PIN
BSD-3604710030.A9
3604710030
|
-
|
|
|
|
65 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-4.8
BSD-2910001134.A0
2910001134
|
£1.75
|
£2.10
|
|
|
66 - STRAIGHT PIN
BSD-3604710028.A0
3604710028
|
-
|
|
|
|
68 - BALL 8 MM III DIN 5401 ST
BSD-1903230524.A14
1903230524
|
£2.80
|
£3.36
|
|
|
69 - COMPRESSION SPRING
BSD-3604643002.A36
3604643002
|
£2.80
|
£3.36
|
|
|
71 - CONTROL PISTON
BSD-3608750010.A0
3608750010
|
£33.74
|
£40.49
|
|
|
72 - COILED SPRING PIN 2x12 DIN 7343
BSD-2917800037.A4
2917800037
|
£2.16
|
£2.59
|
|
|
74 - COMPRESSION SPRING
BSD-3604611002.A28
3604611002
|
£2.80
|
£3.36
|
|
|
76 - SEALING PLATE
BSD-3601015006.A13
3601015006
|
£2.61
|
£3.13
|
|
|
90 - SILENCER
BSD-3603462000.A13
3603462000
|
£16.41
|
£19.69
|
|
|
95 - NAMEPLATE
BSD-160111A3HF.A274
160111A3HF
|
£3.72
|
£4.47
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-1601110481.A86
1601110481
|
£2.16
|
£2.59
|
|
|
97 - GROOVED NAIL
BSD-3603133000.A51
3603133000
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1942
3601119236
|
£3.72
|
£4.47
|
|
|
100 - HOUSING
BSD-3605125013.A5
3605125013
|
-
|
|
|
|
101 - CLUTCH ELEMENT
BSD-3606445030.A49
3606445030
|
£102.57
|
£123.08
|
|
|
103 - DRIVE SHAFT
BSD-3606122013.A36
3606122013
|
£81.81
|
£98.17
|
|
|
106 - COMPRESSION SPRING
BSD-3604615000.A21
3604615000
|
£1.75
|
£2.10
|
|
|
109 - COMPRESSION SPRING dia 4 MM
BSD-3604619000.A49
3604619000
|
£7.36
|
£8.83
|
|
|
110 - RETAINING RING
BSD-3604601001.A119
3604601001
|
£2.16
|
£2.59
|
|
|
111 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A463
1903230003
|
£2.61
|
£3.13
|
|
|
113 - UNION NUT
BSD-3603340000.A13
3603340000
|
£4.26
|
£5.11
|
|
|
114 - BUSHING
BSD-3600202000.A8
3600202000
|
£5.58
|
£6.70
|
|
|
115 - SEALING PLATE
BSD-3600001000.A5
3600001000
|
£2.80
|
£3.36
|
|
|
116 - ADJUSTING DISC
BSD-3600134000.A31
3600134000
|
£2.80
|
£3.36
|
|
|
120 - ROUND NUT
BSD-3603301004.A21
3603301004
|
£21.68
|
£26.01
|
|
|
121 - STRAIGHT PIN 31.0 MM
BSD-3603201032.A5
3603201032
|
£6.52
|
£7.83
|
|
|
122 - ROLLER THRUST BEARING
BSD-3600921000.A112
3600921000
|
£6.52
|
£7.83
|
|
|
123 - SUPPORT DISC
BSD-3600103004.A49
3600103004
|
£13.12
|
£15.75
|
|
|
124 - SUPPORT DISC
BSD-3600101002.A148
3600101002
|
£2.16
|
£2.59
|
|
|
126 - LEAF SPRING
BSD-2601250001.A74
2601250001
|
£3.72
|
£4.47
|
|
|
127 - BALL DIN 5401-5 G28
BSD-1903230009.A157
1903230009
|
£1.75
|
£2.10
|
|
|
128 - BALL DIN 5401-6 G28
BSD-1903230011.A148
1903230011
|
£2.61
|
£3.13
|
|
|
140 - RETAINING RING 14 DIN 9045
BSD-2916600008.A65
2916600008
|
£2.80
|
£3.36
|
|
|
651 - GUIDE SLEEVE
BSD-3600329000.A76
3600329000
|
£7.36
|
£8.83
|
|
|
652 - HOSE FITTING
BSD-2603386002.A180
2603386002
|
£5.30
|
£6.36
|
|
|
657 - ANGLE PIECE
BSD-3601329007.A31
3601329007
|
£4.26
|
£5.11
|
|
|
701 - GUIDE SLEEVE
BSD-3600328003.A12
3600328003
|
-
|
|
|
|
703 - HOSE FITTING dia 8 MM
BSD-3603386001.A125
3603386001
|
£16.41
|
£19.69
|
|
|
704 - SUPPORT CLAMP
BSD-3608040000.A2
3608040000
|
-
|
|
|
|
705 - AUXILIARY HANDLE M14
BSD-1602025022.A1005
1602025022
|
£13.41
|
£16.09
|
|
|
705 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A329
1602025030
|
£18.96
|
£22.75
|
|
|
705 - HANDLE
BSD-3600499000.A3
3600499000
|
-
|
|
|
|
707 - OFFSET SCREWDRIVER DIN 911 SW10
BSD-1907950009.A1
1907950009
|
£21.68
|
£26.01
|
|
|
708 - SINGLE-HEAD ENG. WRENCH DIN 894 SW24
BSD-1907950513.A169
1907950513
|
£16.41
|
£19.69
|
|
|
712 - HEXAGON-SOCKET KEY
BSD-3607950001.A194
3607950001
|
£2.80
|
£3.36
|
|
|
801 - OVERRIDING CLUTCH
BSD-3607031105.A8
3607031105
|
-
|
|
|
|
802 - ASSEMBLY OF SERVICE PARTS
BSD-3607031018.A1
3607031018
|
£410.78
|
£492.94
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607030248.A112
3607030248
|
£31.64
|
£37.97
|
|
|
856 - SPARE VALVE BODY
BSD-3607031134.A4
3607031134
|
-
|
|
|
