Bosch 370 WATT-SERIE / 0607451200 / --- Spare Parts

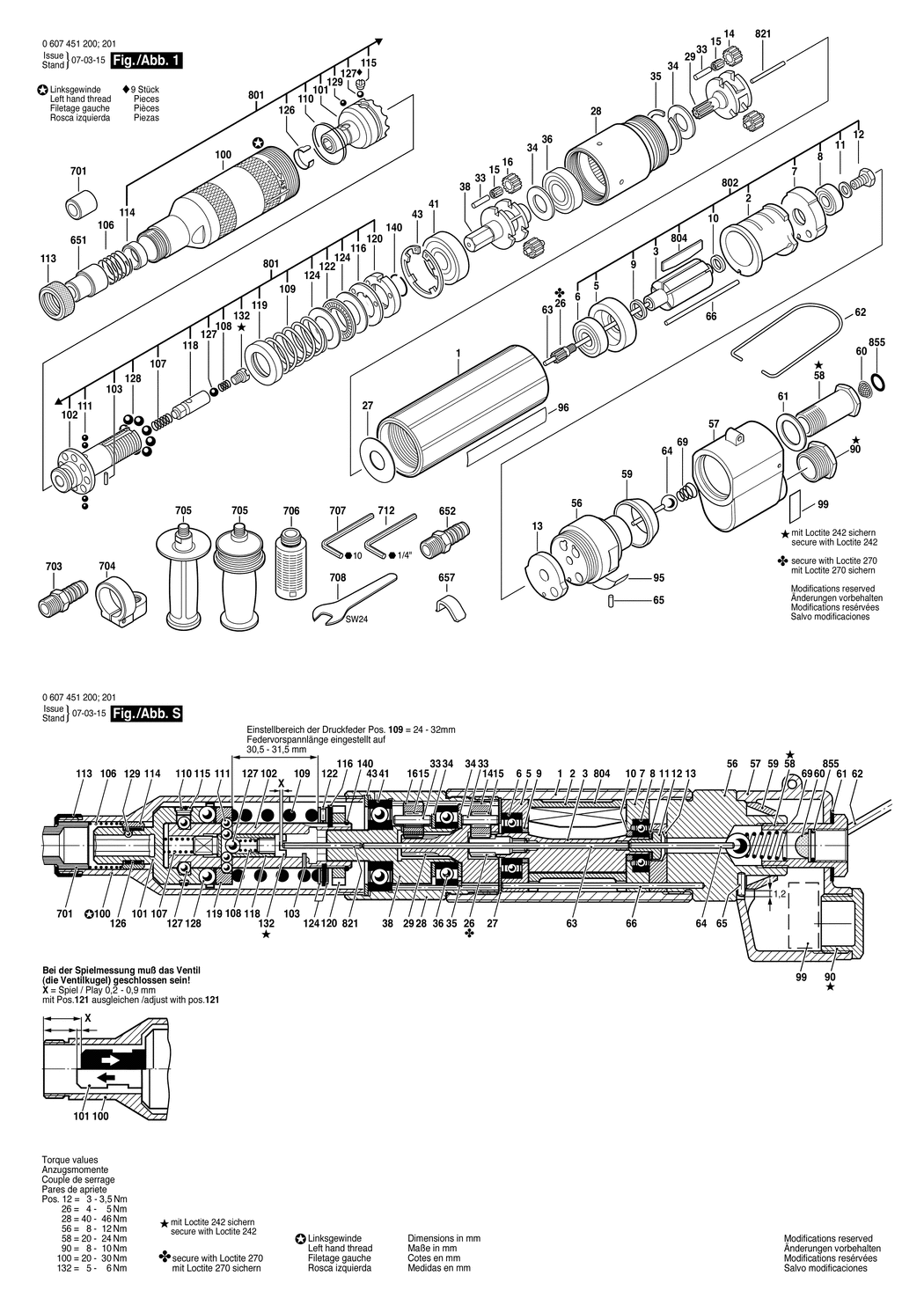

An exploded drawing and listing for the Bosch 370 WATT-SERIE / 0607451200 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3600760015.A3 3600760015	£93.88	£112.65
2 - STATOR 370W BSD-3604090003.A35 3604090003	£93.88	£112.65
3 - ROTOR BSD-3604220002.A54 3604220002	£93.88	£112.65
5 - BEARING FLANGE BSD-3605700005.A88 3605700005	£54.42	£65.30
6 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A188 3600905039	£12.04	£14.45
7 - BEARING FLANGE BSD-3605700007.A33 3605700007	£63.50	£76.20
8 - BALL BEARING 7x19x6 BSD-2600905032.A2333 2600905032	£5.30	£6.36
9 - SPACER RING BSD-2600202013.A126 2600202013	£8.67	£10.41
10 - SPACER RING BSD-2600202014.A66 2600202014	£11.30	£13.56
11 - PLAIN WASHER DIN 433-5.3-ST BSD-2916011011.A70 2916011011	£1.75	£2.10
12 - HEX SCREW BSD-3603450000.A60 3603450000	£7.36	£8.83
13 - INTERMEDIATE PIECE BSD-3602305000.A18 3602305000	£37.27	£44.72
14 - CYLINDRICAL GEAR BSD-3606316100.A91 3606316100	£21.52	£25.83
15 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A101 3600913000	£4.26	£5.11
16 - CYLINDRICAL GEAR Z=16 BSD-3606316099.A40 3606316099	£21.68	£26.01
26 - PINION Z=23 BSD-3606300001.A2 3606300001	£27.31	£32.77
27 - STOP DISC BSD-3600101001.A202 3600101001	£2.61	£3.13
28 - RING GEAR Z=49 BSD-3606334000.A43 3606334000	£102.57	£123.08
29 - PLANETARY-GEAR CARRIER BSD-3606337001.A28 3606337001	-
33 - NEEDLE ROLLER BSD-3603201000.A232 3603201000	£1.75	£2.10
34 - SHIM WASHER BSD-3600103002.A8 3600103002	£3.72	£4.47
35 - RETAINING RING BSD-3600224000.A3 3600224000	£1.75	£2.10
36 - GROOVE BALL BEARING 12x28x8 BSD-1900900287.A162 1900900287	£21.68	£26.01
38 - PLANETARY-GEAR CARRIER BSD-3606337005.A73 3606337005	£120.11	£144.13
41 - GROOVE BALL BEARING 12x32x10 BSD-1600905007.A20 1600905007	£11.30	£13.56
43 - SPRING RETAINING RING BSD-3600119000.A61 3600119000	£10.10	£12.12
56 - VALVE BODY BSD-3605190002.A0 3605190002	-
57 - SILENCER BSD-3605190014.A3 3605190014	-
58 - FITTING BSD-3603458001.A23 3603458001	-
59 - SINTERED-METAL BUSHING BSD-3600521000.A30 3600521000	-
60 - STRAINER BSD-3600002000.A45 3600002000	£3.72	£4.47
61 - PLAIN WASHER BSD-3600101003.A22 3600101003	-
62 - SUSPENSION LOOP BSD-2604720004.A30 2604720004	£4.26	£5.11
63 - STRAIGHT PIN BSD-3604710002.A6 3604710002	£10.10	£12.12
64 - UNLOADING VALVE BSD-3603201020.A2 3603201020	-
65 - STRAIGHT PIN 3 H 8x6 DIN 7 BSD-2917500074.A23 2917500074	-
66 - STRAIGHT PIN BSD-3604710000.A17 3604710000	£5.58	£6.70
69 - COMPRESSION SPRING BSD-3604643002.A20 3604643002	£2.80	£3.36
90 - SILENCER BSD-3603462000.A125 3603462000	£16.41	£19.69
95 - NAMEPLATE BSD-160111A3HF.A616 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A407 1601110481	£2.16	£2.59
99 - REFERENCE PLATE BSD-3601119236.A383 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125013.A38 3605125013	-
101 - CLUTCH ELEMENT BSD-3606445030.A4 3606445030	£102.57	£123.08
102 - DRIVE SHAFT BSD-3606122008.A45 3606122008	£120.11	£144.13
103 - SLOTTED SPRING PIN 2x5 DIN 1481 BSD-2917760033.A17 2917760033	£1.75	£2.10
106 - COMPRESSION SPRING BSD-3604615000.A49 3604615000	£1.75	£2.10
107 - COMPRESSION SPRING BSD-3604610003.A74 3604610003	£3.72	£4.47
108 - COMPRESSION SPRING BSD-3604610002.A54 3604610002	£3.72	£4.47
109 - COMPRESSION SPRING dia 4 MM BSD-3604619000.A31 3604619000	£7.36	£8.83
110 - RETAINING RING BSD-3604601001.A85 3604601001	£2.16	£2.59
111 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A836 1903230007	£1.75	£2.10
113 - UNION NUT BSD-3603340000.A61 3603340000	£4.26	£5.11
114 - BUSHING BSD-3600202000.A36 3600202000	£5.58	£6.70
115 - SEALING PLATE BSD-3600001000.A65 3600001000	£2.80	£3.36
116 - ADJUSTING DISC BSD-3600134000.A82 3600134000	£2.80	£3.36
118 - LOCKING BOLT BSD-3603150203.A65 3603150203	£45.67	£54.80
119 - COUPLING PLATE BSD-3600114001.A65 3600114001	£18.96	£22.75
120 - ROUND NUT BSD-3603301004.A146 3603301004	£21.68	£26.01
122 - ROLLER THRUST BEARING BSD-3600921000.A75 3600921000	£6.52	£7.83
124 - SUPPORT DISC BSD-3600101002.A8 3600101002	£2.16	£2.59
126 - LEAF SPRING BSD-2601250001.A133 2601250001	£3.72	£4.47
127 - BALL DIN 5401-5 G28 BSD-1903230009.A944 1903230009	£1.75	£2.10
128 - BALL DIN 5401-6 G28 BSD-1903230011.A465 1903230011	£2.61	£3.13
129 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A3 1903230003	£2.61	£3.13
132 - SCREW PLUG BSD-3603463000.A110 3603463000	£2.61	£3.13
140 - RETAINING RING 14 DIN 9045 BSD-2916600008.A272 2916600008	£2.80	£3.36
651 - GUIDE SLEEVE BSD-3600329000.A55 3600329000	£7.36	£8.83
652 - HOSE FITTING BSD-2603386002.A108 2603386002	£5.30	£6.36
657 - ANGLE PIECE BSD-3601329007.A137 3601329007	£4.26	£5.11
701 - GUIDE SLEEVE BSD-3600328003.A67 3600328003	-
703 - HOSE FITTING dia 8 MM BSD-3603386001.A6 3603386001	£16.41	£19.69
704 - SUPPORT CLAMP BSD-3608040000.A80 3608040000	-
705 - AUXILIARY HANDLE M14 BSD-1602025022.A1312 1602025022	£13.41	£16.09
705 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A1192 1602025030	£18.96	£22.75
705 - HANDLE BSD-3600499000.A31 3600499000	-
706 - SILENCER BSD-3607000073.A89 3607000073	£18.96	£22.75
707 - OFFSET SCREWDRIVER DIN 911 SW10 BSD-1907950009.A172 1907950009	£21.68	£26.01
708 - SINGLE-HEAD ENG. WRENCH DIN 894 SW24 BSD-1907950513.A5 1907950513	£16.41	£19.69
712 - HEXAGON-SOCKET KEY BSD-3607950001.A133 3607950001	£2.80	£3.36
801 - CUTOFF COUPLING SP SET BSD-3607031109.A0 3607031109	-
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031017.A2 3607031017	£306.65	£367.98
804 - ASSEMBLY OF SERVICE PARTS BSD-3607030248.A9 3607030248	£31.64	£37.97
821 - ASSEMBLY OF SERVICE PARTS BSD-3607031087.A29 3607031087	£12.04	£14.45
855 - O-RING 10x2 MM BSD-1900210306.A32 1900210306	£1.75	£2.10
