Bosch 180 WATT-SERIE / 0607453616 / --- Spare Parts

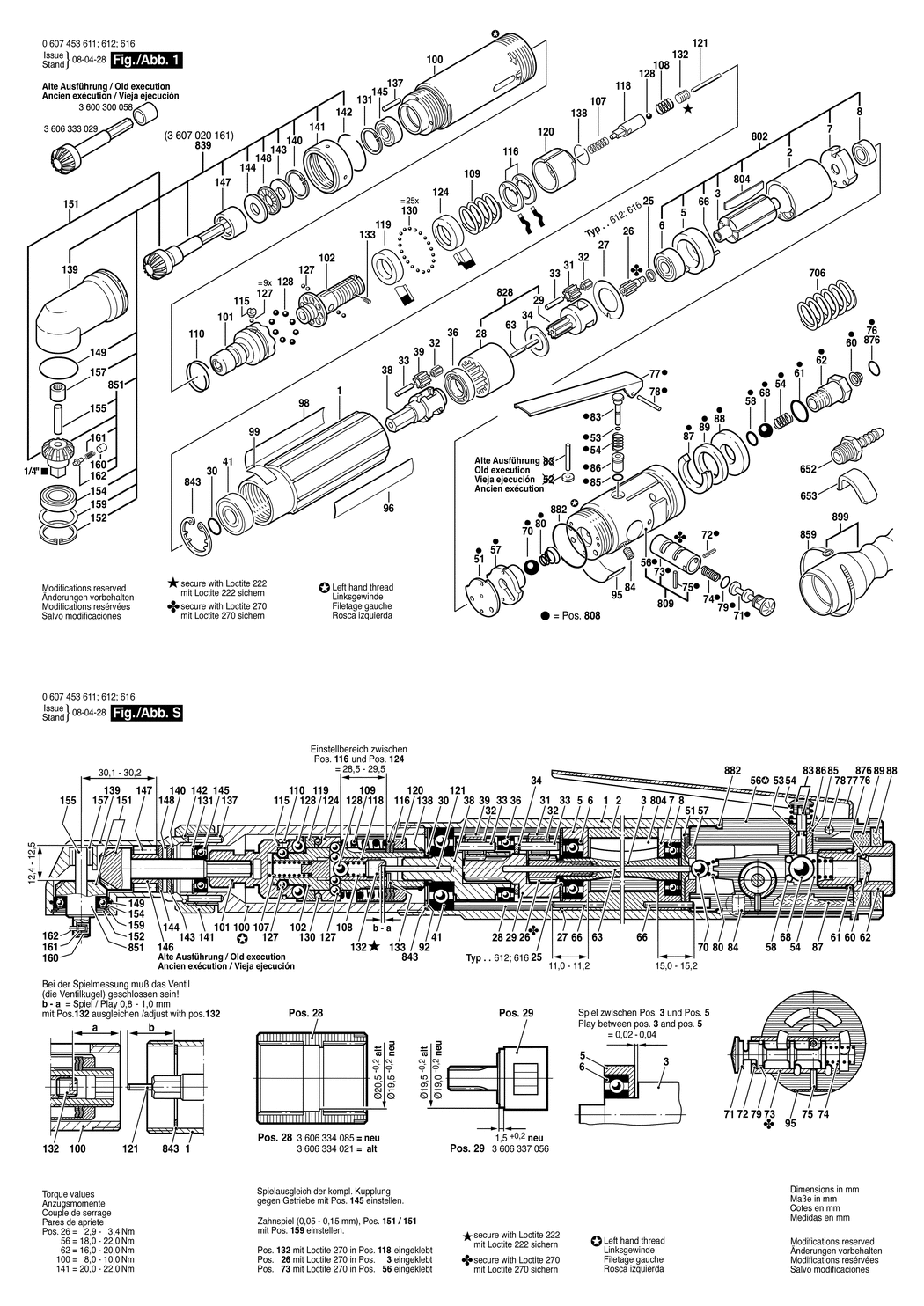

An exploded drawing and listing for the Bosch 180 WATT-SERIE / 0607453616 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-16051082JD.A4 16051082JD	-
2 - STATOR 180W BSD-3604090050.A45 3604090050	£93.88	£112.65
3 - ROTOR BSD-3604220081.A27 3604220081	£102.57	£123.08
5 - BEARING FLANGE BSD-3605700107.A7 3605700107	£37.27	£44.72
6 - GROOVE BALL BEARING 7x19x6 BSD-1900905044.A57 1900905044	£7.36	£8.83
7 - BEARING FLANGE BSD-3605700108.A44 3605700108	£45.67	£54.80
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A26 1900905028	£33.74	£40.49
25 - SHIM WASHER BSD-3600100007.A10 3600100007	£1.75	£2.10
26 - PINION Z=9 BSD-3606300046.A16 3606300046	£21.42	£25.71
27 - STOP DISC BSD-3600101047.A21 3600101047	£2.16	£2.59
28 - RING GEAR dia19.5 MM BSD-3606334085.A8 3606334085	£8.67	£10.41
29 - PLANETARY-GEAR CARRIER BSD-3606337041.A28 3606337041	£93.88	£112.65
30 - O-RING 12x2.5 MM BSD-1900210110.A1 1900210110	£2.61	£3.13
31 - CYLINDRICAL GEAR BSD-3606316112.A80 3606316112	£21.68	£26.01
32 - NEEDLE-ROLLER ASSEMBLY INA K3x5x7 BSD-3600913000.A371 3600913000	£4.26	£5.11
33 - NEEDLE ROLLER BSD-3603201000.A210 3603201000	£1.75	£2.10
34 - STOP DISC BSD-3600103003.A41 3600103003	£2.80	£3.36
36 - GROOVE BALL BEARING 12x21x5 BSD-3600905002.A203 3600905002	£16.41	£19.69
38 - PLANETARY-GEAR CARRIER BSD-3606337175.A18 3606337175	£156.22	£187.46
39 - CYLINDRICAL GEAR BSD-3606316112.A81 3606316112	£21.68	£26.01
41 - GROOVE BALL BEARING BSD-3600905015.A114 3600905015	£16.41	£19.69
51 - PLATE BSD-3605700116.A3 3605700116	£45.67	£54.80
53 - O-RING BSD-3600210092.A2 3600210092	£2.16	£2.59
54 - COMPRESSION SPRING BSD-3604611017.A41 3604611017	£2.61	£3.13
56 - VALVE HOUSING BSD-3605190176.A12 3605190176	£68.42	£82.10
57 - INTERMEDIATE PIECE BSD-3605700126.A13 3605700126	£72.18	£86.62
58 - O-RING 4.3x2.4 MM BSD-3600210084.A15 3600210084	£2.61	£3.13
60 - STRAINER BSD-3600002000.A158 3600002000	£3.72	£4.47
61 - O-RING 9.0x1.5 MM BSD-2600210021.A14 2600210021	£1.75	£2.10
62 - FITTING BSD-3603458016.A42 3603458016	£11.30	£13.56
63 - STRAIGHT PIN L=93.5 MM BSD-3603201067.A2 3603201067	£6.52	£7.83
66 - STRAIGHT PIN BSD-3603201077.A46 3603201077	£11.30	£13.56
68 - BALL DIN 5401-8 MM III-ST BSD-1903230014.A75 1903230014	£1.75	£2.10
70 - BALL DIN 5401-9.5MM-III-ST BSD-1903230528.A31 1903230528	£1.75	£2.10
71 - CONTROL PISTON BSD-3608750038.A35 3608750038	£23.86	£28.63
72 - COILED SPRING PIN DIN 7343-1.5x10 BSD-2917800016.A3 2917800016	£1.75	£2.10
73 - VALVE BUSHING BSD-3600340008.A13 3600340008	£45.67	£54.80
74 - COMPRESSION SPRING BSD-3604611007.A53 3604611007	£2.16	£2.59
75 - STRAIGHT PIN DIN6325-2M6X6 BSD-2917550034.A32 2917550034	£1.75	£2.10
76 - O-RING BSD-3600210094.A2 3600210094	£2.80	£3.36
77 - CONTROL LEVER BSD-3601902001.A76 3601902001	£6.52	£7.83
78 - GROOVED PIN DIN 1475-2x18-ST BSD-2917700040.A16 2917700040	£2.80	£3.36
79 - O-RING BSD-3600210093.A68 3600210093	£1.75	£2.10
80 - COMPRESSION SPRING BSD-3604643005.A6 3604643005	£1.75	£2.10
83 - CONTROL PIN BSD-3608750048.A6 3608750048	£5.30	£6.36
84 - SET SCREW M 5x5-DIN 913-45H BSD-2912041147.A25 2912041147	£2.16	£2.59
85 - O-RING 4.0x1.0 MM BSD-3600210015.A94 3600210015	£3.72	£4.47
86 - BUSHING BSD-3600300064.A30 3600300064	£10.10	£12.12
87 - SILENCER BSD-3601010010.A140 3601010010	£2.16	£2.59
88 - SILENCER BSD-3601010037.A40 3601010037	£11.30	£13.56
89 - SILENCER BSD-3601010044.A36 3601010044	£7.36	£8.83
95 - NAMEPLATE BSD-160111A3HF.A130 160111A3HF	£3.72	£4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A57 3601119055	£3.72	£4.47
98 - STICKER BSD-3601110204.A32 3601110204	£1.75	£2.10
99 - REFERENCE PLATE BSD-3601119236.A1361 3601119236	£3.72	£4.47
100 - HOUSING BSD-3605125026.A3 3605125026	£81.81	£98.17
101 - CLUTCH ELEMENT BSD-3606432006.A15 3606432006	£81.81	£98.17
102 - DRIVE SHAFT BSD-3606122011.A1 3606122011	£120.11	£144.13
107 - COMPRESSION SPRING BSD-3604610003.A16 3604610003	£3.72	£4.47
108 - COMPRESSION SPRING BSD-3604610002.A142 3604610002	£3.72	£4.47
109 - COMPRESSION SPRING BSD-3604619003.A16 3604619003	£5.58	£6.70
110 - COMPRESSION SPRING BSD-3604610002.A141 3604610002	£3.72	£4.47
115 - SEALING PLATE BSD-3600001002.A55 3600001002	£3.72	£4.47
116 - ADJUSTING DISC BSD-3600134003.A1 3600134003	£2.61	£3.13
118 - LOCKING BOLT BSD-3603150203.A121 3603150203	£45.67	£54.80
119 - SUPPORT DISC BSD-3600114002.A55 3600114002	£12.04	£14.45
120 - ROUND NUT BSD-3603344009.A77 3603344009	£27.23	£32.68
121 - STRAIGHT PIN 33.7 MM BSD-3603201004.A1 3603201004	£11.30	£13.56
124 - COUPLING PLATE BSD-3600220001.A57 3600220001	£11.30	£13.56
127 - BALL DIN 5401-4 MM-III-ST BSD-1903230007.A291 1903230007	£1.75	£2.10
128 - BALL DIN 5401-5 G28 BSD-1903230009.A275 1903230009	£1.75	£2.10
130 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A342 1903230003	£2.61	£3.13
131 - SPRING RETAINING RING 16x1 MM. DIN 472 BSD-2916660003.A53 2916660003	£1.75	£2.10
132 - SET SCREW BSD-3603400001.A27 3603400001	£2.80	£3.36
133 - COILED SPRING PIN DIN 7343-2x5 BSD-2917800033.A14 2917800033	£1.75	£2.10
137 - STRAIGHT PIN DIN 6325-5M2.5x12 BSD-2917530057.A22 2917530057	£1.75	£2.10
138 - RETAINING RING 14 DIN 9045 BSD-2916600008.A0 2916600008	£2.80	£3.36
139 - SPINDLE HOUSING BSD-3605106071.A16 3605106071	£135.25	£162.30
140 - SPRING RETAINING RING 18x1MM. DIN 472 BSD-2916660004.A18 2916660004	£1.75	£2.10
141 - UNION NUT BSD-3603342002.A24 3603342002	£16.41	£19.69
142 - RETAINING RING DIN 9045-24 BSD-2916600013.A20 2916600013	-
143 - SUPPORT DISC BSD-3600100094.A17 3600100094	£18.96	£22.75
144 - SUPPORT DISC BSD-3600100095.A20 3600100095	£18.96	£22.75
145 - GROOVE BALL BEARING BSD-1280905004.A14 1280905004	£31.64	£37.97
147 - NEEDLE BEARING BSD-3600917019.A24 3600917019	£11.30	£13.56
148 - ROLLER THRUST BEARING BSD-3600929003.A22 3600929003	£21.52	£25.83
149 - O-RING 21.0x1.0 MM BSD-3600210127.A15 3600210127	£1.75	£2.10
151 - BEVEL GEAR SET BSD-3606333590.A2 3606333590	£283.50	£340.20
152 - SPRING RETAINING RING DIN 472-21x1MM BSD-2916660045.A11 2916660045	£1.75	£2.10
154 - GROOVE BALL BEARING BSD-3600900018.A19 3600900018	£23.86	£28.63
155 - BEARING BOLT BSD-3603120003.A5 3603120003	£37.27	£44.72
157 - NEEDLE BEARING BSD-9001140359.A21 9001140359	£6.52	£7.83
159 - SHIM 0.05 MM BSD-1600101650.A130 1600101650	£2.61	£3.13
159 - SHIM 0.1 MM BSD-1600101648.A108 1600101648	£1.75	£2.10
160 - GUIDE SLEEVE BSD-3600320016.A24 3600320016	£14.91	£17.89
161 - COMPRESSION SPRING BSD-1604611004.A38 1604611004	£2.80	£3.36
162 - PRESSURE SPINDLE BSD-1603124060.A65 1603124060	£5.58	£6.70
652 - HOSE FITTING BSD-3603386066.A33 3603386066	£14.91	£17.89
653 - ANGLE PIECE BSD-3601329007.A81 3601329007	£4.26	£5.11
706 - COMPRESSION SPRING BSD-3604618003.A6 3604618003	£7.36	£8.83
802 - ASSEMBLY OF SERVICE PARTS BSD-3607031320.A1 3607031320	-
804 - ASSEMBLY OF SERVICE PARTS BSD-3607031304.A8 3607031304	£27.23	£32.68
808 - ASSEMBLY OF SERVICE PARTS BSD-3607031361.A2 3607031361	£458.51	£550.21
809 - VALVE HOUSING BSD-3607031419.A18 3607031419	£135.25	£162.30
839 - ANGLE SCREWDRIVER HEAD 3/8 BSD-3607020165.A3 3607020165	£798.41	£958.09
843 - PARTS SET BSD-3607010010.A54 3607010010	£7.36	£8.83
851 - ASSEMBLY OF SERVICE PARTS BSD-3607030151.A4 3607030151	£283.50	£340.20
859 - HOLDING BELT BSD-3604710062.A49 3604710062	£1.75	£2.10
882 - O-RING BSD-3607010006.A100 3607010006	£31.64	£37.97
899 - AIR HOSE BSD-3607000064.A39 3607000064	£27.23	£32.68
