Bosch ---- / 0607150582 / --- Spare Parts

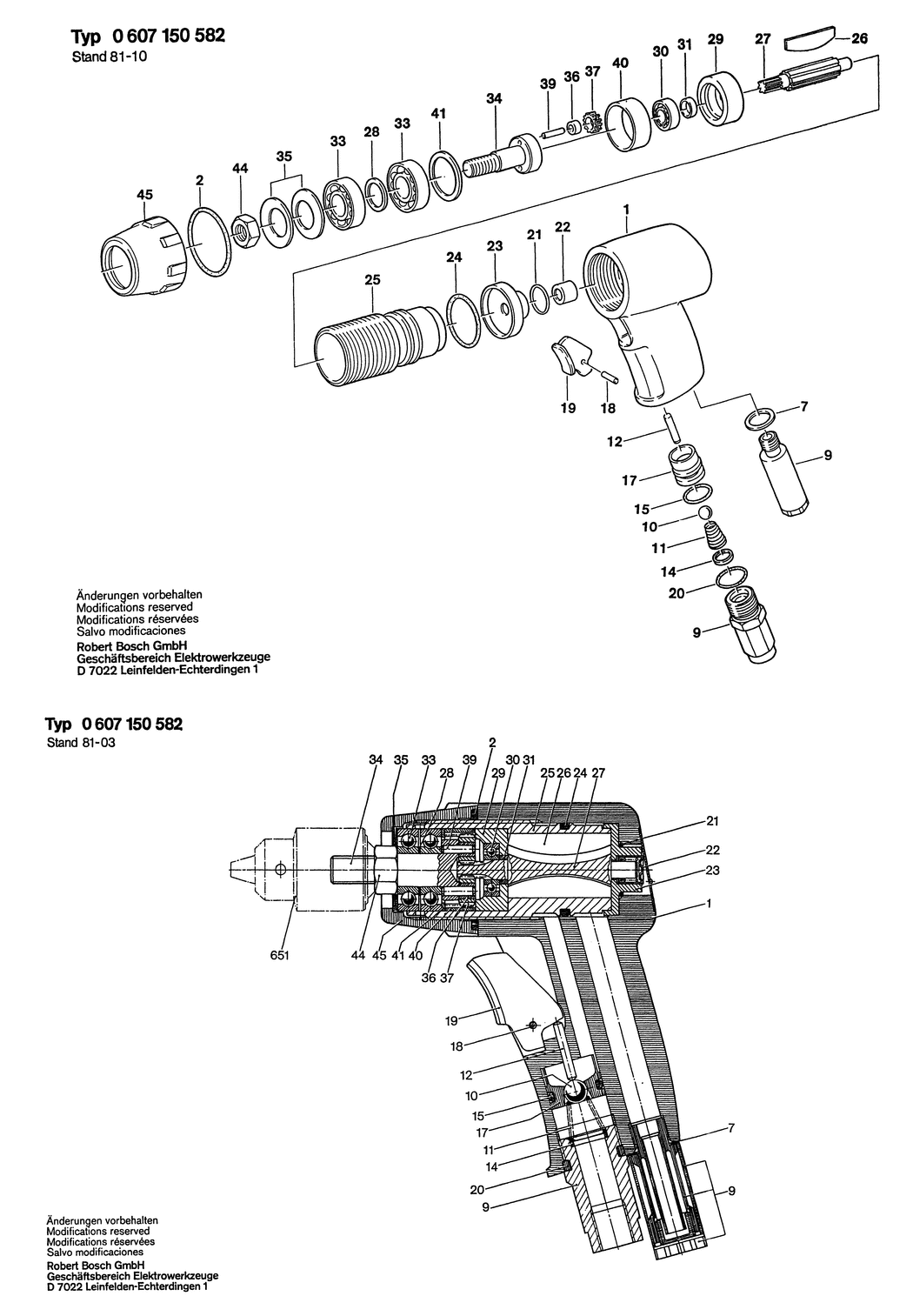

An exploded drawing and listing for the Bosch ---- / 0607150582 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1609302098.A0 1609302098	-
2 - SEAL RING BSD-1609310158.A12 1609310158	-
7 - SEALING DISK BSD-1609302099.A0 1609302099	-
8 - FITTING BSD-1609302100.A0 1609302100	-
9 - SILENCER BSD-1609302101.A0 1609302101	-
10 - BALL BSD-1609310076.A3 1609310076	-
11 - COMPRESSION SPRING BSD-1609310354.A2 1609310354	-
12 - NEEDLE ROLLER BSD-1609310021.A0 1609310021	-
14 - STRAINER BSD-1609310355.A0 1609310355	-
15 - O-RING BSD-1609310352.A2 1609310352	-
17 - VALVE BUSHING BSD-1609310353.A0 1609310353	-
18 - SLOTTED SPRING PIN BSD-1609310350.A2 1609310350	-
19 - CONTROL LEVER BSD-1609310300.A1 1609310300	-
20 - O-RING BSD-1609310118.A0 1609310118	-
21 - SEAL RING BSD-1609310013.A1 1609310013	-
22 - NEEDLE-ROLLER BEARING BSD-1609302104.A0 1609302104	-
23 - BEARING FLANGE BSD-1609302105.A0 1609302105	-
24 - O-RING BSD-1609302106.A0 1609302106	-
25 - GEAR HOUSING BSD-1609302107.A0 1609302107	-
26 - ROTOR LAMELLA BSD-1609310230.A1 1609310230	-
27 - ROTOR BSD-1609302108.A0 1609302108	-
28 - SHIM WASHER BSD-1609302109.A0 1609302109	-
29 - BEARING FLANGE BSD-1609302110.A0 1609302110	-
30 - GROOVE BALL BEARING BSD-1609302112.A0 1609302112	-
31 - SPACER RING BSD-1609302113.A0 1609302113	-
33 - GROOVE BALL BEARING BSD-1609302111.A0 1609302111	-
34 - PLANETARY-GEAR CARRIER BSD-1609302114.A0 1609302114	-
35 - CUPPED WASHER BSD-1609302115.A0 1609302115	-
36 - BUSHING BSD-1609302116.A0 1609302116	-
37 - TOOTHED GEAR BSD-1609302117.A0 1609302117	-
39 - NEEDLE ROLLER BSD-1609302118.A0 1609302118	-
40 - RING GEAR BSD-1609302119.A0 1609302119	-
41 - SHIM WASHER BSD-1609302120.A0 1609302120	-
44 - HEX NUT BSD-1609302121.A0 1609302121	-
45 - SCREW CAP BSD-1609302122.A0 1609302122	-
95 - NAMEPLATE BSD-160111A3H5.A508 160111A3H5	£2.61	£3.13
96 - ROUND-HEAD GROOVED PIN BSD-1609310358.A2 1609310358	-
650 - HOSE FITTING BSD-1609310043.A3 1609310043	-
651 - KEY CHUCK dia1.5-10 MM. 3/8 BSD-1608571053.A58 1608571053	£20.99	£25.19

Attribute Name	Value
Brand	Bosch
