Bosch ---- / 0602413107 / --- 72 Volt Spare Parts

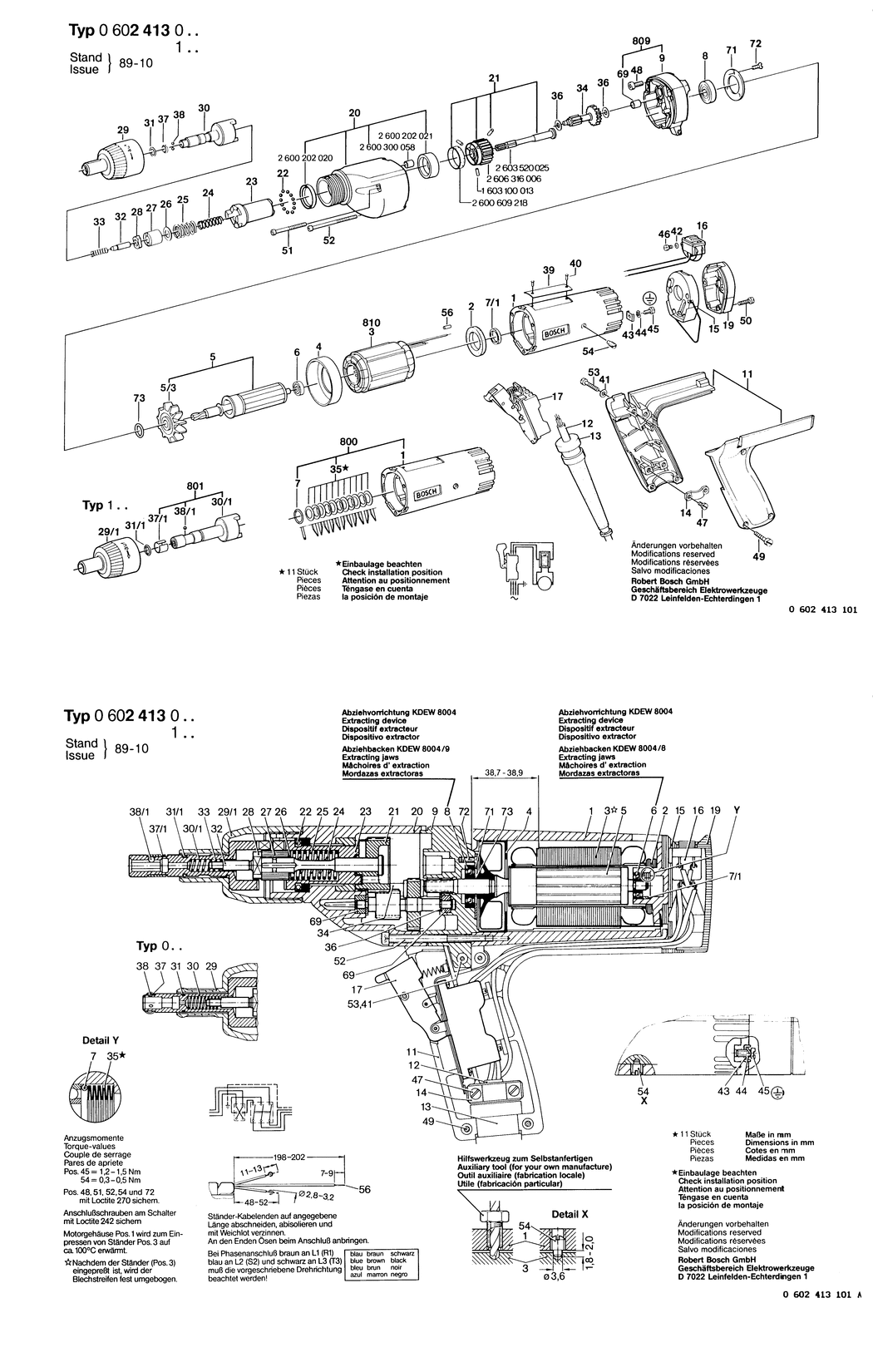

An exploded drawing and listing for the Bosch ---- / 0602413107 / --- 72 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605102058.A5 3605102058	£120.11	£144.13
2 - SEAL RING BSD-1600209011.A1 1600209011	£2.80	£3.36
4 - AIR-DEFLECTOR RING BSD-1600502005.A342 1600502005	£2.61	£3.13
5 - ROTOR BSD-3604080020.A59 3604080020	-
5/3 - FAN BSD-1606610105.A2 1606610105	£14.91	£17.89
6 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A331 1900905015	£30.42	£36.51
7 - O-RING 12.0x2.25 MM BSD-3600210039.A146 3600210039	£7.36	£8.83
7/1 - RUBBER RING 6MM.dia12xdia16.4x3MM BSD-3600206002.A22 3600206002	-
8 - GROOVE BALL BEARING 9x24x7 BSD-1610905011.A2 1610905011	£14.91	£17.89
9 - BEARING HOUSING BSD-3605820046.A27 3605820046	-
11 - HANDLE BSD-3605132044.A20 3605132044	-
12 - ELEC. CABLE W/CONNECTION BSD-3604462049.A41 3604462049	-
13 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1137 3600703011	£2.80	£3.36
14 - FASTENING CLAMP BSD-1601302014.A771 1601302014	£2.61	£3.13
15 - CONNECTION HOUSING BSD-3600099005.A29 3600099005	£16.41	£19.69
16 - REVERSING SWITCH BSD-1607200043.A40 1607200043	-
17 - SWITCH BSD-1607200038.A79 1607200038	£54.42	£65.30
19 - SEALING CAP BSD-3605500071.A44 3605500071	£16.41	£19.69
20 - GEAR HOUSING BSD-2605806227.A0 2605806227	-
21 - SPINDLE WITH GEAR Z=37 BSD-2606100052.A42 2606100052	-
22 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A75 1903230004	£2.16	£2.59
23 - COUPLING HALF BSD-2606445000.A73 2606445000	-
24 - COMPRESSION SPRING BSD-1604616010.A80 1604616010	-
25 - COMPRESSION SPRING BSD-1604619005.A77 1604619005	-
26 - SHIM BSD-1600100607.A38 1600100607	-
27 - BUSHING BSD-1600309004.A1 1600309004	-
28 - ROUND NUT BSD-1603341000.A80 1603341000	-
29 - GUIDE SLEEVE BSD-3600460003.A28 3600460003	-
30 - CARRIER BSD-3606455016.A26 3606455016	-
31 - O-RING 10x2 MM BSD-1900210106.A30 1900210106	£1.75	£2.10
32 - PRESSURE SPINDLE BSD-1603120022.A33 1603120022	-
33 - COMPRESSION SPRING BSD-1604626002.A74 1604626002	-
34 - SPINDLE WITH GEAR Z=14/34 BSD-1606328086.A31 1606328086	-
35 - DISC SPRING BSD-3600150013.A112 3600150013	£3.72	£4.47
36 - SHIM 0.50 MM BSD-2600100613.A264 2600100613	£1.75	£2.10
37 - HOLDING SPRING BSD-3604682003.A112 3604682003	-
38 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A478 1903230006	£2.16	£2.59
39 - NAMEPLATE BSD-3601106053.A196 3601106053	£5.30	£6.36
40 - GROOVED NAIL BSD-3603133000.A162 3603133000	£2.61	£3.13
41 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A100 2916060006	£1.32	£1.58
42 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A229 2916060003	£1.32	£1.58
43 - CLAMPING SADDLE BSD-3601321001.A584 3601321001	£3.72	£4.47
44 - SPRING WASHER dia4.2 MM BSD-3600150006.A628 3600150006	£2.61	£3.13
45 - PAN HEAD SCREW DIN 85-AM4x8-MS BSD-2910110118.A191 2910110118	£1.75	£2.10
46 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8 BSD-2910091046.A109 2910091046	£1.75	£2.10
47 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A47 2910021116	£2.16	£2.59
48 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A56 2910141122	£2.16	£2.59
49 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A748 2910021122	£2.16	£2.59
50 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8 BSD-2910141131.A10 2910141131	£2.16	£2.59
51 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8 BSD-2910141140.A187 2910141140	£1.75	£2.10
52 - HEX SOCKET HEAD CAP SCREW BSD-3603414001.A40 3603414001	-
53 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A134 2910011162	£1.75	£2.10
54 - SET SCREW BSD-3603402000.A191 3603402000	£1.75	£2.10
56 - END SPLICE BSD-3604477008.A126 3604477008	£1.75	£2.10
71 - RETAINING WASHER BSD-3600190012.A5 3600190012	-
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8 BSD-2910780050.A82 2910780050	-
73 - O-RING 8.0x1.0 MM BSD-1600210045.A153 1600210045	£1.75	£2.10
96 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A42 1601110481	£2.16	£2.59
99 - REFERENCE PLATE BSD-3601119236.A1517 3601119236	£3.72	£4.47
651 - SINGLE-HEAD ENG. WRENCH DIN 894 SW 12 BSD-1907950506.A48 1907950506	£13.12	£15.75
652 - STRAIGHT PIN 4x60 MM BSD-2603101035.A60 2603101035	£2.80	£3.36
702 - SUSPENSION LOOP BSD-3604682000.A17 3604682000	£14.72	£17.67
703 - HEX SOCKET HEAD CAP SCREW BSD-2910131193.A33 2910131193	£1.75	£2.10
800 - MOTOR HOUSING BSD-3605102028.A60 3605102028	£156.22	£187.46
801 - CARRIER BSD-3606455019.A36 3606455019	-
809 - BEARING HOUSING BSD-1605820162.A35 1605820162	-
810 - STATOR 72V/200HZ.110V/300HZ BSD-1604229202.A28 1604229202	£306.65	£367.98

Attribute Name	Value
Brand	Bosch
