Bosch ---- / 0602373085 / --- Spare Parts

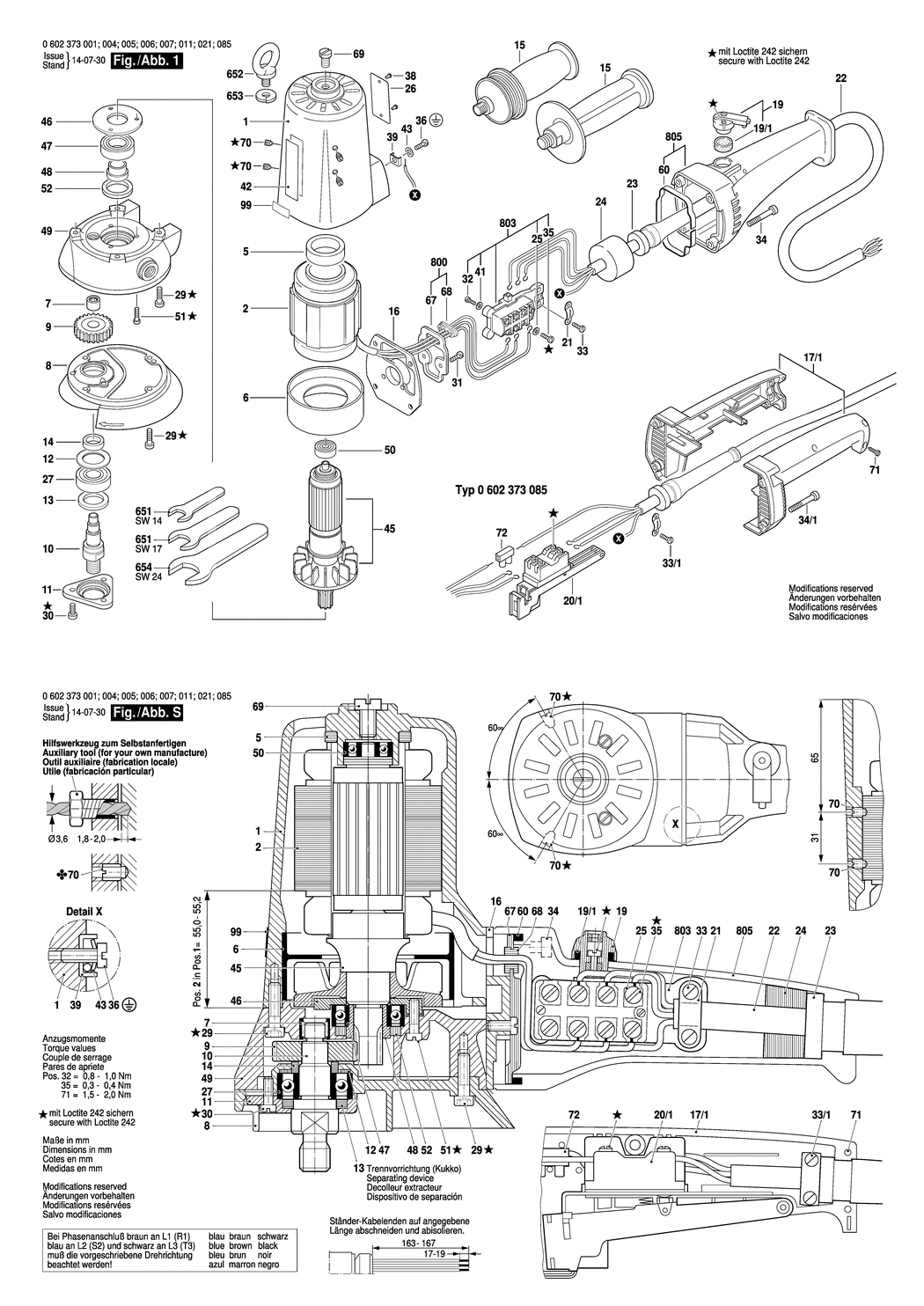

An exploded drawing and listing for the Bosch ---- / 0602373085 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605102055.A0 3605102055	£352.76	£423.31
2 - STATOR 220V/360HZ BSD-1604229214.A0 1604229214	-
5 - SEAL RING BSD-1600209004.A5 1600209004	£2.80	£3.36
6 - AIR-DEFLECTOR RING BSD-1600209002.A6 1600209002	£5.30	£6.36
7 - NEEDLE BEARING BSD-1600910007.A4 1600910007	£13.12	£15.75
8 - BEARING COVER BSD-3605808006.A1 3605808006	£218.41	£262.09
9 - CYLINDRICAL GEAR BSD-1606320040.A0 1606320040	£102.57	£123.08
10 - GRINDING SPINDLE BSD-1603523071.A0 1603523071	-
11 - BEARING COVER BSD-1605808041.A1 1605808041	£41.62	£49.95
12 - SHIM 0.4 MM BSD-1600102641.A8 1600102641	£5.01	£6.01
13 - FELT WASHER BSD-3600205002.A28 3600205002	£2.61	£3.13
14 - INTERMEDIATE RING BSD-1600202027.A4 1600202027	£10.82	£12.99
15 - AUXILIARY HANDLE M14 BSD-1602025022.A4 1602025022	£13.41	£16.09
15 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A682 1602025030	£18.96	£22.75
16 - SEALING PLATE BSD-3601038010.A4 3601038010	-
17/1 - HOUSING SECTION BSD-3607031661.A7 3607031661	£33.74	£40.49
19 - CONTROL LEVER BSD-1602026030.A56 1602026030	£10.10	£12.12
19/1 - FELT WASHER BSD-1600205008.A166 1600205008	£1.75	£2.10
20/1 - SWITCH BSD-1607200064.A39 1607200064	£40.80	£48.96
21 - FASTENING CLAMP BSD-1601303003.A334 1601303003	£2.16	£2.59
22 - ELEC. CABLE W/CONNECTION BSD-3604462045.A9 3604462045	£68.42	£82.10
23 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A544 1600703009	£5.58	£6.70
24 - SEALING PLATE BSD-1600113003.A123 1600113003	£2.80	£3.36
25 - SPRING WASHER DIN 137-A4 BSD-1600150006.A233 1600150006	-
26 - NAMEPLATE BSD-3601106053.A405 3601106053	£5.30	£6.36
27 - GROOVE BALL BEARING 15x35x11 BSD-1900905226.A6 1900905226	£27.23	£32.68
29 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x18-8.8 BSD-2910141160.A46 2910141160	£2.16	£2.59
30 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8 BSD-2910021154.A104 2910021154	£1.75	£2.10
31 - SOCKET HEAD CAP SCREW DIN 84-AM5x10-5.8 BSD-2910011152.A19 2910011152	£1.75	£2.10
32 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A620 2910211006	£1.75	£2.10
33/1 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910021120.A38 2910021120	£1.75	£2.10
34/1 - SOCKET HEAD CAP SCREW DIN 84-BM5x30-5.8 BSD-2910011166.A140 2910011166	£1.75	£2.10
35 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A393 2910091118	£1.75	£2.10
36 - PAN HEAD SCREW DIN 85-MS-M 4x12 BSD-2910110122.A157 2910110122	£1.75	£2.10
38 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A385 3603133001	£2.61	£3.13
39 - CLAMPING SADDLE BSD-3601321001.A394 3601321001	£3.72	£4.47
41 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A432 2916011005	£1.75	£2.10
42 - MANUFACTURER'S NAMEPLATE BSD-3601110104.A12 3601110104	£5.01	£6.01
43 - SPRING WASHER dia4.2 MM BSD-3600150006.A678 3600150006	£2.61	£3.13
45 - ROTOR WITHOUT WINDING BSD-1604080079.A1 1604080079	£357.27	£428.72
46 - BEARING COVER BSD-1600501019.A499 1600501019	£23.86	£28.63
47 - GROOVE BALL BEARING 17x35x10 BSD-1600900001.A187 1600900001	-
48 - INTERMEDIATE RING BSD-1600420003.A4 1600420003	£36.63	£43.96
49 - BEARING HOUSING BSD-1605820152.A1 1605820152	£216.12	£259.35
50 - GROOVE BALL BEARING 7x22x7 BSD-1610900025.A3 1610900025	£16.41	£19.69
51 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A244 2910021125	£1.75	£2.10
52 - FELT WASHER BSD-3600205002.A26 3600205002	£2.61	£3.13
60 - SEALING CORD BSD-1601014000.A25 1601014000	£2.80	£3.36
67 - SEALING PLATE BSD-1602388006.A50 1602388006	£5.58	£6.70
68 - GROMMET BSD-1600306001.A261 1600306001	£2.61	£3.13
69 - SOCKET HEAD CAP SCREW DIN 84-AM8x10-8.8 BSD-2910021232.A3 2910021232	£1.75	£2.10
70 - SET SCREW BSD-1603402002.A83 1603402002	£1.75	£2.10
71 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A781 2910211021	£1.75	£2.10
72 - CONNECTING TERMINAL BSD-1601091007.A13 1601091007	-
99 - REFERENCE PLATE BSD-3601119236.A1069 3601119236	£3.72	£4.47
651 - SINGLE-HEAD ENG. WRENCH SW 14 BSD-1907950508.A117 1907950508	£14.91	£17.89
652 - LIFTING EYE BOLT DIN 580-M 8 BSD-2912521237.A0 2912521237	£11.78	£14.13
653 - SPRING LOCK WASHER DIN 127-B12 BSD-2916680011.A8 2916680011	-
654 - SINGLE-HEAD ENG. WRENCH DIN 894 SW24 BSD-1907950513.A86 1907950513	£16.41	£19.69
800 - SEALING PLATE BSD-1602388007.A217 1602388007	£12.04	£14.45
805 - HANDLE BSD-3605132048.A7 3605132048	£63.50	£76.20
