Bosch HSH 28 / 0612314001 / --- 250 Volt Spare Parts

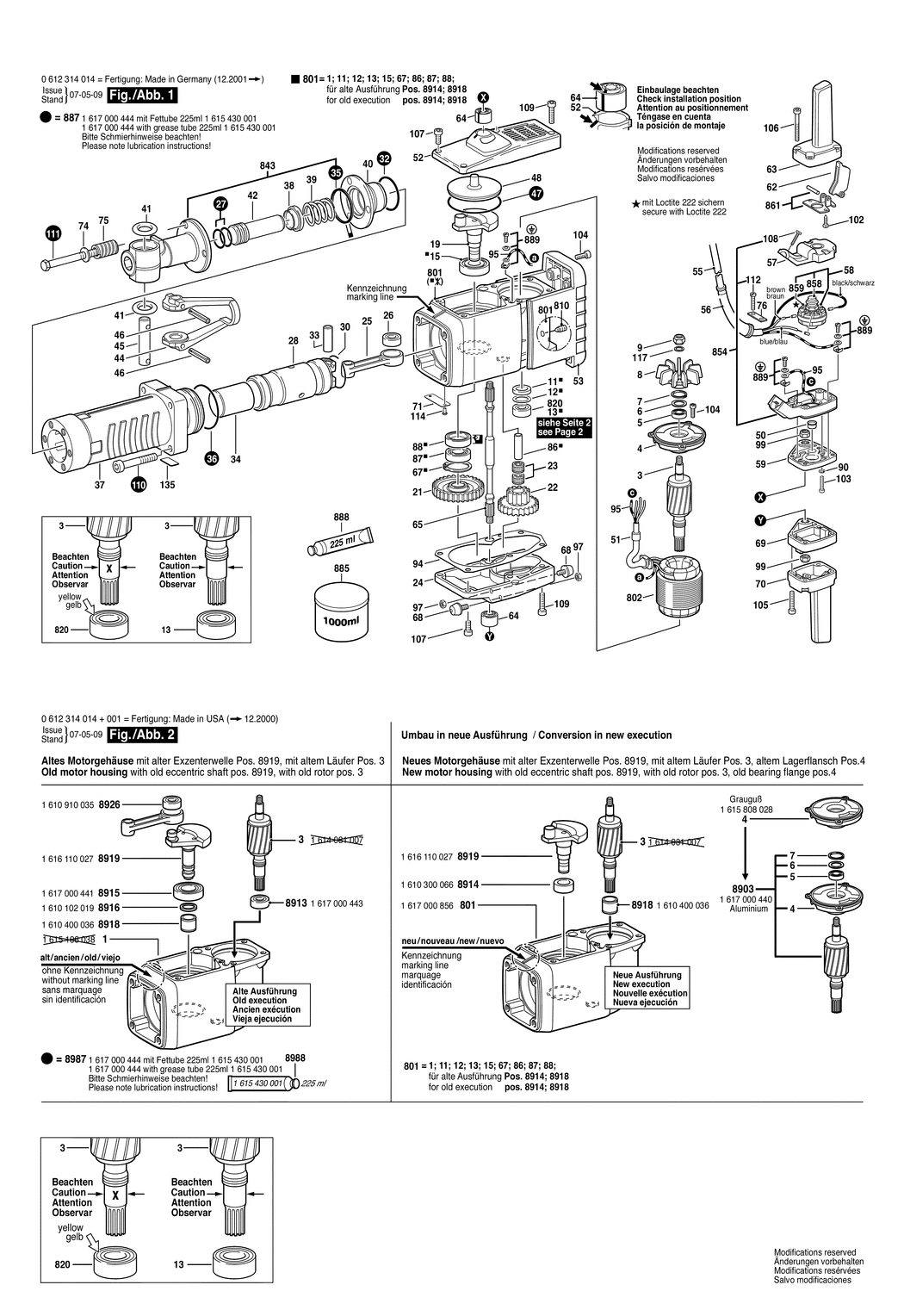

An exploded drawing and listing for the Bosch HSH 28 / 0612314001 / --- 250 Volt

	Ex VAT	Inc VAT
3 - ROTOR WITHOUT WINDING BSD-1614081030.A5 1614081030	£187.56	£225.07
4 - BEARING FLANGE BSD-1615808089.A0 1615808089	£156.22	£187.46
5 - GROOVE BALL BEARING 15x35x11 BSD-1610900028.A1 1610900028	£19.45	£23.34
6 - SUPPORTING DISC DIN 988-S25x35x2 BSD-2916280021.A12 2916280021	£1.32	£1.58
7 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A58 2916660014	£1.75	£2.10
8 - FAN BSD-1616610028.A11 1616610028	£51.22	£61.47
9 - HEX NUT DIN 985-M12X1 BSD-1613313000.A16 1613313000	£2.80	£3.36
11 - FELT WASHER BSD-1610108009.A11 1610108009	-
12 - SUPPORTING DISC 2.5 MM BSD-1610103004.A1 1610103004	-
13 - NEEDLE-ROLLER BEARING BSD-1610910093.A0 1610910093	£37.27	£44.72
15 - NEEDLE-ROLLER BEARING D35xD47x17 BSD-1610910091.A5 1610910091	£33.74	£40.49
19 - ECCENTRIC SHAFT BSD-1616110033.A0 1616110033	£149.42	£179.31
21 - CYLINDRICAL GEAR Z=46 BSD-1616318011.A0 1616318011	£120.11	£144.13
22 - CYLINDRICAL GEAR Z=50/18 BSD-1616328040.A0 1616328040	-
23 - NEEDLE-ROLLER ASSEMBLY BSD-1610913005.A12 1610913005	£8.67	£10.41
24 - GEAR COVER BSD-1615500329.A1 1615500329	£179.37	£215.24
25 - CONNECTING ROD BSD-1612001040.A12 1612001040	£72.18	£86.62
26 - NEEDLE-ROLLER BEARING D25xD37x17 BSD-1610910092.A18 1610910092	£31.64	£37.97
27 - O-RING 36.0x5.0 MM BSD-1610210033.A13 1610210033	£2.61	£3.13
28 - HAMMER PISTON BSD-1618700043.A0 1618700043	£357.27	£428.72
30 - RETAINING RING dia54.2xdia2.8 BSD-1614601039.A12 1614601039	£2.16	£2.59
32 - O-RING 60x4 MM BSD-1900210156.A3 1900210156	£8.67	£10.41
33 - PISTON PIN BSD-3613101500.A1 3613101500	£7.36	£8.83
34 - STRIKER BSD-1618710039.A12 1618710039	£63.50	£76.20
35 - SEAL RING BSD-1610209007.A6 1610209007	£8.67	£10.41
36 - O-RING 80x3 MM BSD-1900210166.A24 1900210166	£5.30	£6.36
37 - GUIDE TUBE BSD-1615806053.A0 1615806053	£438.57	£526.28
38 - GUIDE BUSHING BSD-1610220009.A12 1610220009	£21.68	£26.01
39 - COMPRESSION SPRING BSD-1614619005.A13 1614619005	£6.52	£7.83
40 - INTERMEDIATE FLANGE BSD-1615700017.A13 1615700017	£135.25	£162.30
41 - O-RING 17.3x17.7 MM BSD-1610210008.A3 1610210008	£5.58	£6.70
42 - STRIKER PIN BSD-1613123003.A12 1613123003	£120.11	£144.13
44 - RETAINING BRACKET BSD-1618045026.A34 1618045026	£179.37	£215.24
45 - LOCKING BOLT BSD-1613103004.A12 1613103004	£54.42	£65.30
46 - SLOTTED SPRING PIN 8x55 DIN 1481 BSD-2917760187.A12 2917760187	£2.80	£3.36
47 - O-RING 100x3 MM BSD-1900210172.A13 1900210172	£10.10	£12.12
48 - SEALING CAP BSD-1610516007.A15 1610516007	£14.75	£17.70
50 - PROTECTION SLEEVE BSD-3600421500.A16 3600421500	£2.61	£3.13
51 - CORD GUARD BSD-1610703019.A0 1610703019	£4.75	£5.70
52 - FAN COVER BSD-1615500328.A0 1615500328	£218.41	£262.09
53 - COVERING HOOD BSD-1600A00C0N.A1 1600A00C0N	£72.18	£86.62
55 - POWER SUPPLY CORD 5m 4 x 1.5mm H07RN-F BSD-1614462074.A0 1614462074	£102.57	£123.08
56 - GROMMET BSD-1610703011.A32 1610703011	£14.91	£17.89
57 - SWITCH COVER BSD-1615500212.A12 1615500212	£11.30	£13.56
58 - SWITCH BSD-1617200108.A15 1617200108	£59.53	£71.44
59 - INTERMEDIATE PLATE BSD-1615700041.A11 1615700041	£93.88	£112.65
62 - SWITCH-PAWL BSD-1612026011.A3 1612026011	£6.52	£7.83
63 - HANDLE BSD-1615132010.A11 1615132010	£37.27	£44.72
64 - RUBBER TORSION-BAR BSD-1616334000.A21 1616334000	£27.23	£32.68
65 - TOOTHED SHAFT BSD-1613060005.A14 1613060005	£54.42	£65.30
67 - SPRING RETAINING RING DIN 472 52x2MM BSD-2916660023.A56 2916660023	£5.30	£6.36
68 - RUBBER BUFFER BSD-1613465001.A12 1613465001	£5.58	£6.70
69 - INTERMEDIATE PLATE BSD-1615700042.A11 1615700042	£103.14	£123.77
70 - HANDLE BSD-1615132011.A1 1615132011	£37.27	£44.72
71 - NAMEPLATE BSD-1611104002.A6 1611104002	£1.32	£1.58
74 - DISC SPRING DIN 2093-A25X12.2X1.5 BSD-2916160009.A12 2916160009	£3.72	£4.47
75 - COMPRESSION SPRING BSD-3614640501.A1 3614640501	£10.10	£12.12
76 - FASTENING CLAMP BSD-1611302012.A0 1611302012	-
86 - BEARING BOLT BSD-1610300033.A3 1610300033	£21.52	£25.83
87 - GROOVE BALL BEARING 25x52x15 BSD-1610900027.A10 1610900027	£27.23	£32.68
88 - ROTARY SHAFT LIP SEAL BSD-1610283016.A5 1610283016	£10.10	£12.12
90 - SPRING LOCK WASHER BSD-1610151007.A0 1610151007	£1.75	£2.10
94 - SEALING PLATE BSD-1611015021.A23 1611015021	£2.80	£3.36
95 - CONNECTING CABLE BSD-1614441000.A0 1614441000	-
97 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A340 2915011007	-
99 - HEX NUT DIN 985-10-M10x1 BSD-3613313500.A0 3613313500	£2.80	£3.36
102 - TAPPING SCREW DIN 7971-BZ4.2x13 BSD-2910211025.A74 2910211025	£1.75	£2.10
103 - OVAL-HEAD SCREW DIN 7985-M4x25-8.8 BSD-2910951132.A72 2910951132	-
104 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A200 2910141201	£2.61	£3.13
105 - MICROENCAPSULATED SCREW DIN 912-M6X30-8.8 BSD-2914551188.A11 2914551188	£2.80	£3.36
106 - MICROENCAPSULATED SCREW DIN 912-M6X55-8.8 BSD-2914551189.A0 2914551189	£1.75	£2.10
107 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A109 2910141242	£1.75	£2.10
108 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A181 2603490023	£1.75	£2.10
109 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x35-8.8 BSD-2910141248.A25 2910141248	£1.75	£2.10
110 - HEX SOCKET HEAD CAP SCREW DIN-M12x70-8.8 BSD-2910141356.A1 2910141356	£2.61	£3.13
111 - MICROENCAPSULATED SCREW DIN EN-24014-M12x110-12.9 BSD-2914550034.A0 2914550034	£3.72	£4.47
112 - TAPPING SCREW DIN 7971-ST4.8x25-C BSD-2910211236.A0 2910211236	£1.75	£2.10
114 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A59 2917721034	£1.75	£2.10
117 - PLAIN WASHER DIN 433-A13-ST 50 BSD-2916011019.A19 2916011019	£2.16	£2.59
135 - REFERENCE PLATE BSD-3611119512.A0 3611119512	-
801 - MOTOR HOUSING BSD-1617000856.A1 1617000856	£1111.70	£1334.04
802 - STATOR 250V/200HZ.230V/180HZ BSD-1614229097.A2 1614229097	-
810 - SET SCREW M 8x16 DIN 417-5.8 BSD-2912051238.A0 2912051238	-
820 - NEEDLE-ROLLER BEARING D25xD37x17 BSD-1610910094.A1 1610910094	£27.31	£32.77
843 - TOOLHOLDER BSD-1617000428.A12 1617000428	£458.51	£550.21
854 - SWITCH HOUSING BSD-1617000891.A0 1617000891	£37.27	£44.72
858 - PROTECTIVE CAP BSD-1610591001.A13 1610591001	£21.52	£25.83
859 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A152 2910091118	£1.75	£2.10
861 - FIXING PLATE BSD-1617000429.A1 1617000429	£12.04	£14.45
885 - GREASE 1000 ML BSD-1615430007.A13 1615430007	£68.42	£82.10
887 - WEAR AND TEAR PART SET BSD-1617000444.A0 1617000444	£21.68	£26.01
888 - GREASE TUBE 225 ML BSD-1615430001.A40 1615430001	£23.86	£28.63
889 - CLAMPING SADDLE BSD-1617000156.A2 1617000156	£2.80	£3.36
8903 - ROTOR WITHOUT WINDING BSD-1617000440.A1 1617000440	-
8913 - NEEDLE-ROLLER BEARING BSD-1617000443.A1 1617000443	-
8914 - INNER RING BSD-1610300066.A0 1610300066	-
8915 - NEEDLE-ROLLER BEARING BSD-1617000441.A0 1617000441	£93.88	£112.65
8916 - SHIM WASHER 4.0 MM BSD-1610102019.A0 1610102019	£3.72	£4.47
8918 - INNER RING BSD-1610400036.A1 1610400036	-
8919 - ECCENTRIC SHAFT BSD-1616110027.A8 1616110027	£167.68	£201.22
8926 - NEEDLE-ROLLER BEARING D20xD37x17 BSD-1610910035.A8 1610910035	£23.86	£28.63
8987 - WEAR AND TEAR PART SET BSD-1617000444.A1 1617000444	£21.68	£26.01
8988 - GREASE TUBE 225 ML BSD-1615430001.A41 1615430001	£23.86	£28.63
