Bosch ---- / 0612308061 / --- 115 Volt Spare Parts

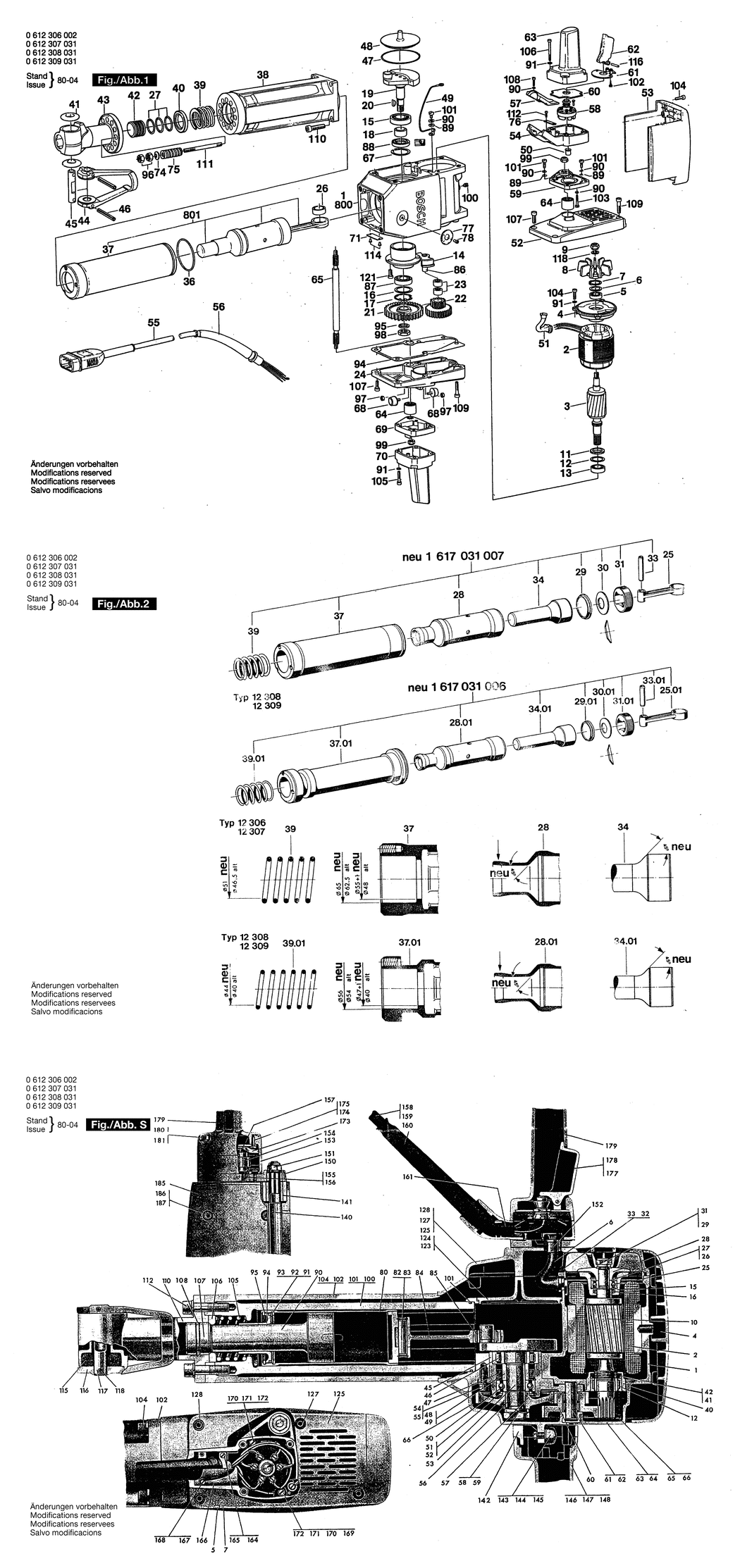

An exploded drawing and listing for the Bosch ---- / 0612308061 / --- 115 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-1615106025.A7 1615106025	-
2 - STATOR 115V/200HZ BSD-1614229127.A1 1614229127	-
3 - ROTOR WITHOUT WINDING BSD-1614081030.A3 1614081030	£187.56	£225.07
4 - BEARING FLANGE BSD-1615808028.A9 1615808028	-
5 - GROOVE BALL BEARING 15x35x11 BSD-1900905279.A11 1900905279	£11.30	£13.56
6 - SUPPORTING DISC DIN 988-S25x35x2 BSD-2916280021.A10 2916280021	£1.32	£1.58
7 - SPRING RETAINING RING BSD-1610119005.A3 1610119005	-
8 - FAN BSD-1616610028.A9 1616610028	£51.22	£61.47
9 - HEX NUT DIN 985-M12X1 BSD-1613313000.A14 1613313000	£2.80	£3.36
11 - FELT WASHER BSD-1610108009.A9 1610108009	-
12 - SUPPORTING DISC 2.5 MM BSD-1610103004.A3 1610103004	-
13 - NEEDLE-ROLLER BEARING BSD-1610910034.A9 1610910034	-
14 - FLANGED BEARING BSD-1615805043.A3 1615805043	-
15 - CYL. ROLLER BEARING DIN 5412-62x30x16 BSD-1610910012.A7 1610910012	-
16 - SHIM 2.5 MM BSD-1610102010.A9 1610102010	£2.80	£3.36
17 - SPRING RETAINING RING DIN 472 52x2MM BSD-2916660023.A39 2916660023	£5.30	£6.36
18 - SPACER BUSHING BSD-1610300034.A14 1610300034	£33.74	£40.49
19 - ECCENTRIC SHAFT BSD-1616110011.A4 1616110011	-
20 - WOODRUFF KEY BSD-1610023002.A4 1610023002	-
21 - CYLINDRICAL GEAR Z=46 BSD-1616318006.A3 1616318006	-
22 - CYLINDRICAL GEAR Z=50/18 BSD-1616328021.A5 1616328021	-
23 - NEEDLE-ROLLER BEARING BSD-1610910002.A4 1610910002	-
24 - GEAR COVER BSD-1615500099.A8 1615500099	-
26 - NEEDLE-ROLLER BEARING D20xD37x17 BSD-1610910035.A1 1610910035	£23.86	£28.63
27 - O-RING 30x3 MM BSD-1900210132.A1 1900210132	-
36 - O-RING 80x3 MM BSD-1900210166.A17 1900210166	£5.30	£6.36
37 - GUIDE TUBE BSD-1615806013.A5 1615806013	-
38 - HAMMER PIPE BSD-1615806015.A0 1615806015	-
39 - COMPRESSION SPRING BSD-1614023000.A4 1614023000	-
40 - ADAPTOR PLATE BSD-1610114009.A2 1610114009	-
41 - O-RING 17.3x17.7 MM BSD-1610210008.A5 1610210008	£5.58	£6.70
42 - STRIKER PIN BSD-1613200002.A0 1613200002	-
43 - TOOLHOLDER BSD-1618597012.A3 1618597012	-
44 - RETAINING BRACKET BSD-1618045026.A27 1618045026	£179.37	£215.24
45 - LOCKING BOLT BSD-1613103004.A5 1613103004	£54.42	£65.30
46 - SLOTTED SPRING PIN 8x55 DIN 1481 BSD-2917760187.A5 2917760187	£2.80	£3.36
47 - O-RING 100x3 MM BSD-1900210172.A21 1900210172	£10.10	£12.12
48 - SEALING CAP BSD-1610516007.A22 1610516007	£14.75	£17.70
49 - CONNECTING CABLE BSD-1614441000.A2 1614441000	-
50 - PROTECTION SLEEVE BSD-3600421500.A13 3600421500	£2.61	£3.13
51 - CORD GUARD BSD-1610703019.A7 1610703019	£4.75	£5.70
52 - FAN COVER BSD-1615500097.A1 1615500097	-
53 - COVERING HOOD BSD-1600A00C0N.A2 1600A00C0N	£72.18	£86.62
54 - SWITCH HOUSING BSD-1617000858.A12 1617000858	£33.74	£40.49
55 - POWER SUPPLY CORD BSD-1614462027.A1 1614462027	-
56 - GROMMET BSD-1610703011.A36 1610703011	£14.91	£17.89
57 - SWITCH COVER BSD-1615500095.A8 1615500095	-
58 - SWITCH BSD-1617200108.A18 1617200108	£59.53	£71.44
59 - INTERMEDIATE PLATE BSD-1615700041.A14 1615700041	£93.88	£112.65
60 - SEALING PLATE BSD-1611031001.A8 1611031001	-
61 - FIXING PLATE BSD-1610147008.A10 1610147008	-
62 - SWITCH-PAWL BSD-1612026011.A7 1612026011	£6.52	£7.83
63 - HANDLE BSD-1615132010.A5 1615132010	£37.27	£44.72
64 - RUBBER TORSION-BAR BSD-1616334000.A22 1616334000	£27.23	£32.68
65 - TOOTHED SHAFT BSD-1613060005.A7 1613060005	£54.42	£65.30
67 - SPRING RETAINING RING DIN 472 52x2MM BSD-2916660023.A40 2916660023	£5.30	£6.36
68 - RUBBER BUFFER BSD-1613465001.A14 1613465001	£5.58	£6.70
69 - INTERMEDIATE PLATE BSD-1615700042.A8 1615700042	£103.14	£123.77
70 - HANDLE BSD-1615132011.A8 1615132011	£37.27	£44.72
72 - INSULATION TUBING BSD-1610406006.A3 1610406006	-
74 - DISC SPRING DIN 2093-A25X12.2X1.5 BSD-2916160009.A15 2916160009	£3.72	£4.47
75 - COMPRESSION SPRING BSD-1614640000.A7 1614640000	-
76 - FIXING PLATE BSD-1611034013.A2 1611034013	-
77 - MANUFACTURER'S NAMEPLATE BSD-1610032000.A1 1610032000	-
78 - LUBRIC. HEAD BSD-1617401000.A9 1617401000	-
86 - BEARING BOLT BSD-1610300033.A5 1610300033	£21.52	£25.83
87 - GROOVE BALL BEARING 6205 DIN 625 BSD-1900900307.A10 1900900307	-
88 - ROTARY SHAFT LIP SEAL BSD-1610283004.A9 1610283004	-
89 - PLAIN WASHER DIN 46 255-DPG 9 BSD-2916010409.A133 2916010409	-
90 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A917 2916690003	£1.75	£2.10
91 - SPRING LOCK WASHER M6 BSD-2916690005.A158 2916690005	-
94 - SEALING PLATE BSD-1611015021.A16 1611015021	£2.80	£3.36
95 - SPRING LOCK WASHER BSD-2916680015.A4 2916680015	-
96 - HEX NUT BSD-1613302000.A1 1613302000	-
97 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A343 2915011007	-
98 - HEX NUT BSD-1613300005.A9 1613300005	-
99 - HEX NUT DIN 985-10-M10x1 BSD-3613313500.A3 3613313500	£2.80	£3.36
100 - SET SCREW DIN 417-M8x15-5.8 BSD-2912051237.A33 2912051237	-
101 - PAN HEAD SCREW DIN 85-AM4x8-MS BSD-2910110118.A49 2910110118	£1.75	£2.10
102 - TAPPING SCREW DIN 7971-BZ4.2x13 BSD-2910211025.A78 2910211025	£1.75	£2.10
103 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-5.8 BSD-2910011132.A6 2910011132	£1.32	£1.58
104 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A192 2910141201	£2.61	£3.13
105 - HEX SOCKET HEAD CAP SCREW DIN 912-M 6x30-8.8 BSD-2910142205.A1 2910142205	-
106 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x55-8.8 BSD-2910141215.A10 2910141215	£3.72	£4.47
107 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A100 2910141242	£1.75	£2.10
108 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A870 2910021125	£1.75	£2.10
109 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x35-8.8 BSD-2910141248.A17 2910141248	£1.75	£2.10
110 - HEX SOCKET HEAD CAP SCREW DIN 912-M 12x40-8.8 BSD-2910141346.A9 2910141346	-
111 - STUD BSD-2613502002.A7 2613502002	-
112 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-5.8 BSD-2910011154.A37 2910011154	£1.75	£2.10
114 - ROUND-HEAD GROOVED PIN 2x6 DIN 1476-ST BSD-2917721034.A75 2917721034	£1.75	£2.10
116 - STRAIGHT PIN BSD-1613100005.A8 1613100005	-
118 - PLAIN WASHER DIN 433-A13-ST 50 BSD-2916011019.A17 2916011019	£2.16	£2.59
119 - REFERENCE PLATE BSD-1601110023.A1 1601110023	-
121 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x25-8.8 BSD-2910141244.A64 2910141244	£1.75	£2.10
651 - OFFSET SCREWDRIVER DIN 911 SW10 BSD-1907950009.A135 1907950009	£21.68	£26.01
652 - GREASE GUN BSD-1615437500.A14 1615437500	-
653 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A877 1907950006	£4.26	£5.11
700 - POINTED CHISEL 400 MM BSD-1618660000.A4 1618660000	£44.87	£53.84
701 - WIDE CHISEL 400 MM X 80 MM BSD-1618661000.A8 1618661000	£81.62	£97.94
800 - MOTOR HOUSING BSD-1615106025.A6 1615106025	-
801 - PISTON ASSEMBLY BSD-1617031006.A1 1617031006	-
802 - PARTS SET BSD-1617010052.A1 1617010052	-
888 - NAMEPLATE BSD-160111A3H3.A2967 160111A3H3	£2.61	£3.13
